PISTON KIT 02-04 KX250 66.40 A, WOSSNER 8088DA KAWASAKI MX 13001-0013
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

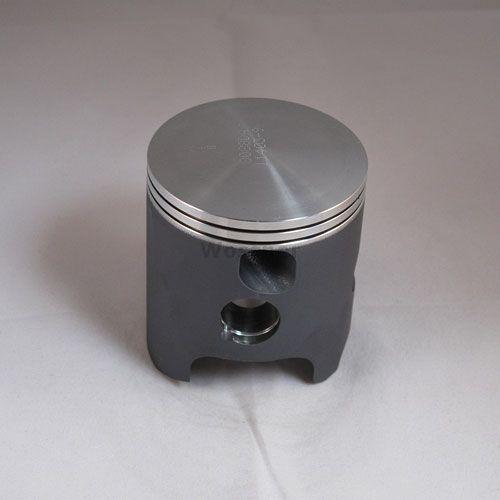

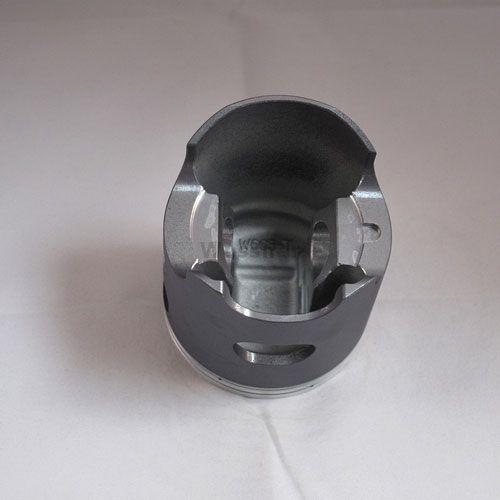

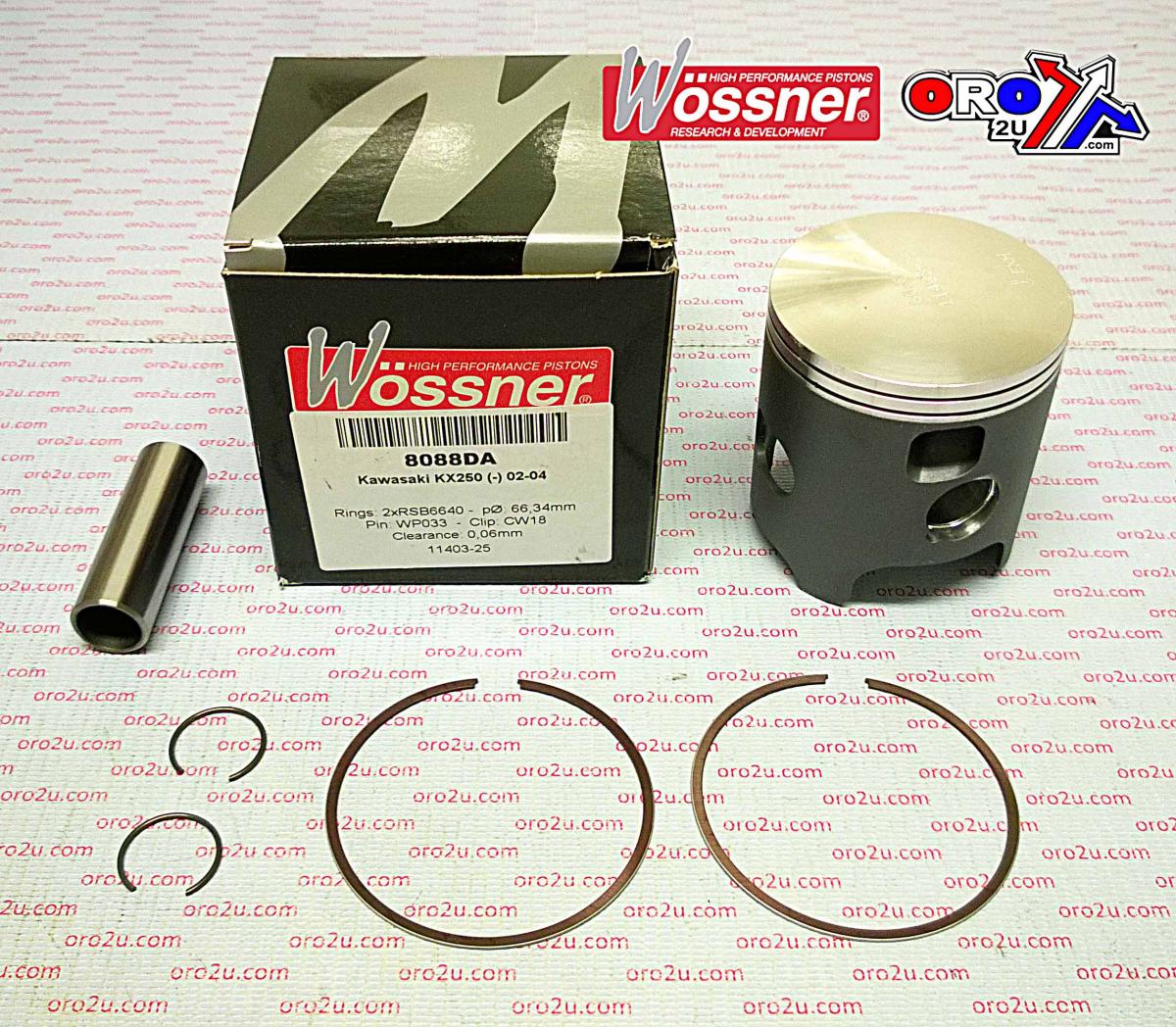

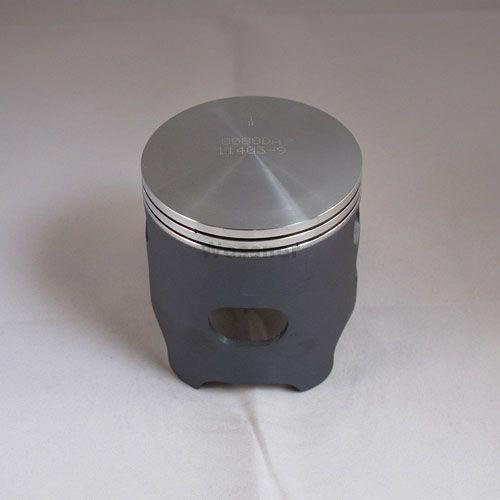

Wossner forged piston kit with 66.40mm bore, designed for 2002-2004 Kawasaki KX250 models. Features forged construction for enhanced strength and durability, optimised heat transfer, and an elliptical design for even load distribution. Manufactured in Germany. Specifications include an actual bore of 66.34mm, 249 cm³ engine displacement, 72.00mm stroke, 0.06mm clearance, 2-stroke compression ratio, 37.00mm compression height, CW18 lock part number, WP033 pin part number, RSB6640 x 2 ring set part number, and P2022 rod part number. Cross-reference OEM part numbers include 13001-0013, 09104809, and 799M06640.
- SKU
- 56-W799.A.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250 | 2002 |
| KAWASAKI | KX 250 | 2003 |
| KAWASAKI | KX 250 | 2004 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.4mm
- Variant Id
- 257785
FULL DESCRIPTION
Wossner Forged Piston Kit for Kawasaki KX250 (2002-2004)
Enhance the performance and durability of your Kawasaki KX250 with this high-quality Wossner forged piston kit. Engineered for demanding off-road conditions, this kit provides superior strength, improved thermal efficiency, and reliable operation. Manufactured in Germany to exacting standards, Wossner pistons are a premium upgrade for your motorcycle's engine.
Key Features:
- Forged Construction: Offers exceptional strength and resistance to high temperatures and pressures, ensuring long-lasting performance.
- Optimised Heat Transfer: Designed to efficiently transfer heat from the combustion chamber to the cylinder walls, helping to prevent detonation and maintain optimal engine temperature.
- Elliptical Piston Design: Reduces localized pressure points and promotes even distribution of thrust loads, contributing to smoother operation and reduced wear.
- Precision Engineering: Manufactured with tight tolerances for a perfect fit and optimal engine sealing.
- German Manufacturing: Guarantees high-quality materials and superior craftsmanship.
Specifications:
- Bore: 66.40mm
- Actual Bore: 66.34mm
- Engine Displacement: 249 cm³
- Stroke: 72.00mm
- Clearance: 0.06mm
- Compression Ratio: 2-stroke (Wossner and OEM)
- Compression Height: 37.00mm
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB6640 x 2
- Rod Part Number: P2022
Cross-Reference OEM Part Numbers:
- 13001-0013
- 09104809
- 799M06640
