PISTON KIT 02-04 CR250 66.40 A, WOSSNER 8066DA HONDA MX
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

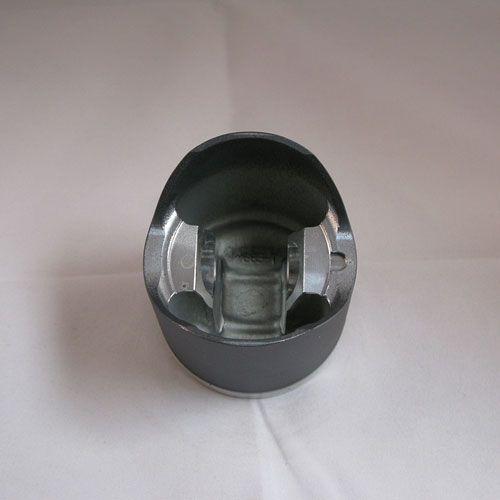

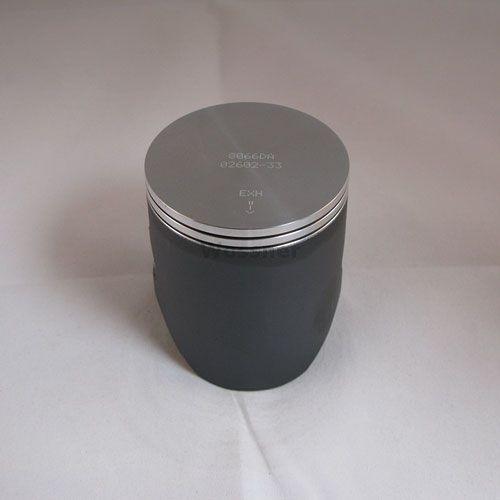

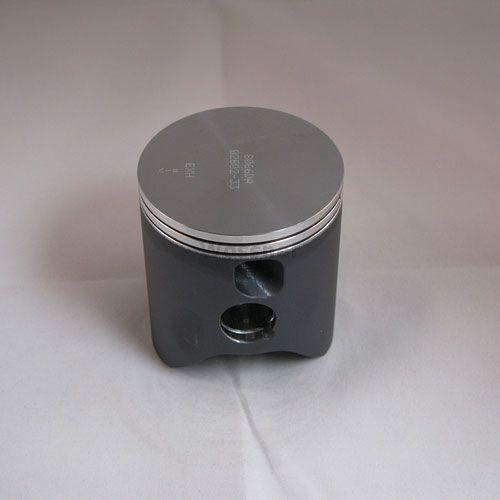

Wossner forged piston kit with a 66.40mm bore, featuring superior strength and durability, designed for efficient heat dissipation and even thrust load distribution. Manufactured in Germany. Specifications: Bore 66.40mm, Actual Bore 66.34mm, Engine Displacement 249 cm³, Stroke 72.00mm, Clearance 0.06mm, Compression Ratio 2-stroke, Compression Height 38.00mm, Lock Part Number CW18, Pin Part Number WP033, Ring Set Part Number RSB6640 x 2, Rod Part Number P2020. Cross-Reference OEM Part Numbers: 13102-KSK-670, 09104773, 801M06640.
- SKU
- 56-W801+00A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| HONDA | CR 250 | 2002 |
| HONDA | CR 250 | 2003 |
| HONDA | CR 250 | 2004 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.40mm
- Variant Id
- 257794
FULL DESCRIPTION
Wossner Forged Piston Kit 66.40mm Bore for Honda CR250R (2002-2004)
Elevate your Honda CR250R's performance with this Wossner forged piston kit. Engineered for exceptional strength and durability, this kit is designed to withstand the rigors of high-performance two-stroke operation. Precision manufactured in Germany, each piston undergoes advanced forging processes to ensure optimal heat transfer and structural integrity.
Key Features:
- Forged Construction: Provides superior strength and exceptional durability for demanding use.
- Efficient Heat Dissipation: Designed to effectively transfer heat from the combustion chamber to the cylinder walls, promoting cooler engine operation.
- Elliptical Piston Shape: Promotes even thrust load distribution, minimizing localized pressure points and enhancing longevity.
- German Engineering: Manufactured to exacting standards in Germany, ensuring premium quality and reliability.

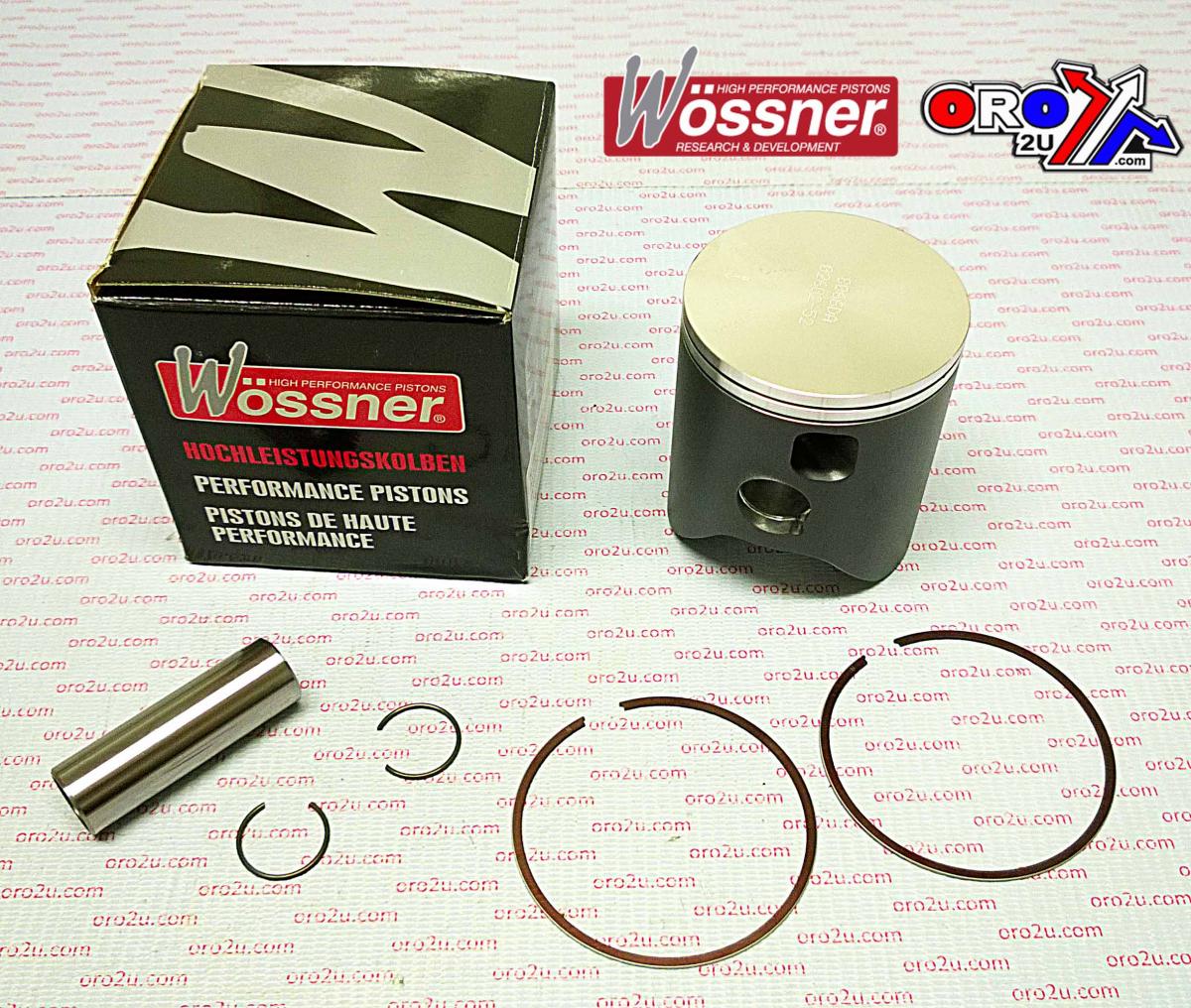

- Complete Kit: Includes all necessary components for a precise fit and reliable operation.
Specifications:
- Piston Bore: 66.40mm
- Actual Bore: 66.34mm
- Engine Displacement: 249 cm³
- Stroke: 72.00mm
- Clearance: 0.06mm
- Compression Ratio: 2-stroke (Wossner and OEM compatible)
- Compression Height: 38.00mm
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB6640 x 2
- Rod Part Number: P2020
