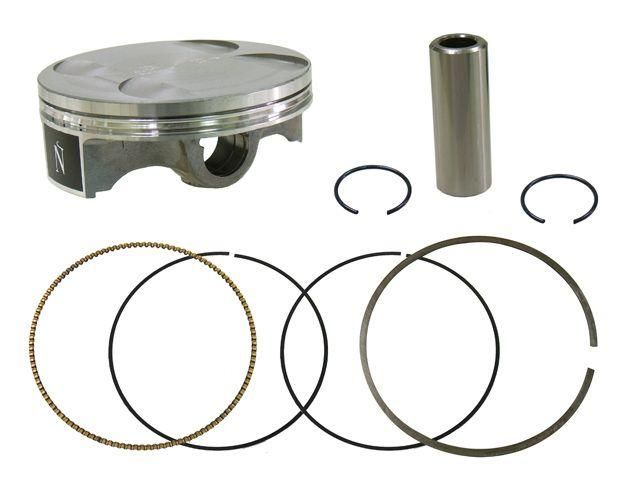

PISTON KIT 02-03 CRF450R 96.00, FORGED WOSSNER 8546DC
Wossner 96.02mm forged piston kit. Features forged construction for enhanced strength and longevity, optimized heat transfer for improved engine performance, and an elliptical design that prevents piston collapse and ensures even load distribution. Manufactured in Germany. Specifications include Bore Size 96.02mm, Actual Bore Diameter 95.98mm, Displacement 449 cm³, Stroke 62.10mm, Clearance 0.04mm, Wossner Compression Ratio 12.00:1, OEM Compression Ratio 11.50:1, Dome Volume -2.20 cm³, Compression Height 24.00mm. Gasket Part Number D4006, Lock Part Number CW19, Pin Part Number WP037, Ring Set Part Number 960ADS, Rod Part Number P4026. Wossner part number 8546DC.
- SKU
- 56-W4820.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (26)
| Make | Model | Year |
|---|---|---|
| HONDA | CRE F R 450 | 2007 |
| HONDA | CRF 450R | 2002 |
| HONDA | CRF 450R | 2003 |
| HONDA | CRF 450R | 2004 |
| HONDA | CRF 450R | 2005 |
| HONDA | CRF 450R | 2006 |
| HONDA | CRF 450R | 2007 |
| HONDA | CRF 450R | 2008 |
| HONDA | CRF 450X | 2005 |
| HONDA | CRF 450X | 2006 |
| HONDA | CRF 450X | 2007 |
| HONDA | CRF 450X | 2008 |
| HONDA | CRF 450X | 2009 |
| HONDA | CRF 450X | 2010 |
| HONDA | CRF 450X | 2011 |
| HONDA | CRF 450X | 2012 |
| HONDA | CRF 450X | 2013 |
| HONDA | CRF 450X | 2014 |
| HONDA | CRF 450X | 2015 |
| HONDA | CRF 450X | 2016 |
| HONDA | CRF 450X | 2017 |
| HONDA | CRM F R 450 | 2007 |
| KAWASAKI | KLX 400 | 2003 |
| KAWASAKI | KLX 400 | 2004 |
| KAWASAKI | KLX 400 | 2005 |
| KAWASAKI | KLX 400 | 2006 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96mm
- Variant Id
- 256173
FULL DESCRIPTION
Wossner 96.02mm Forged Piston Kit for CRF450R
Experience enhanced strength and durability with this Wossner forged piston kit. Engineered in Germany, this piston is designed for optimal performance and longevity in your motorcycle's engine.
The advanced elliptical design ensures a uniform bearing surface, effectively reducing localized pressure and distributing thrust loads evenly. This intelligent design prevents piston collapse, maintaining consistent engine operation and prolonging component life.
Benefit from optimized heat transfer capabilities, which promote efficient cooling of the combustion chamber and contribute to improved engine performance. Manufactured to high-quality standards, this piston kit is a reliable upgrade for your motorcycle.
Key Features:
- Forged construction for superior strength and extended lifespan.
- Optimized heat transfer for enhanced engine efficiency and cooling.
- Elliptical design to prevent piston collapse and ensure even load distribution.
- Precision manufacturing standards from Germany.
Specifications:
- Bore Size: 96.02mm
- Actual Bore Diameter: 95.98mm
- Displacement: 449 cm³
- Stroke: 62.10mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 12.00:1
- OEM Compression Ratio: 11.50:1
- Dome Volume: -2.20 cm³
- Compression Height: 24.00mm
- Gasket Part Number: D4006
- Lock Part Number: CW19
- Pin Part Number: WP037
- Ring Set Part Number: 960ADS
- Rod Part Number: P4026
