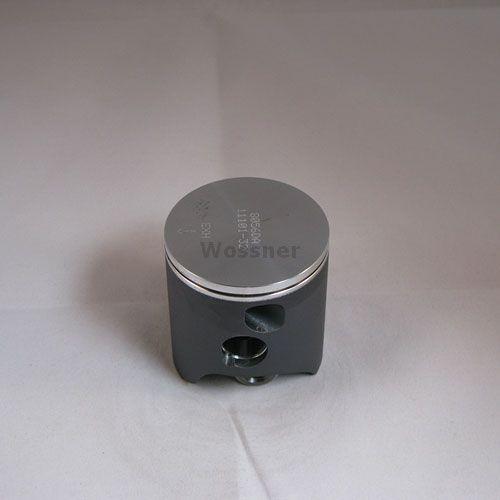

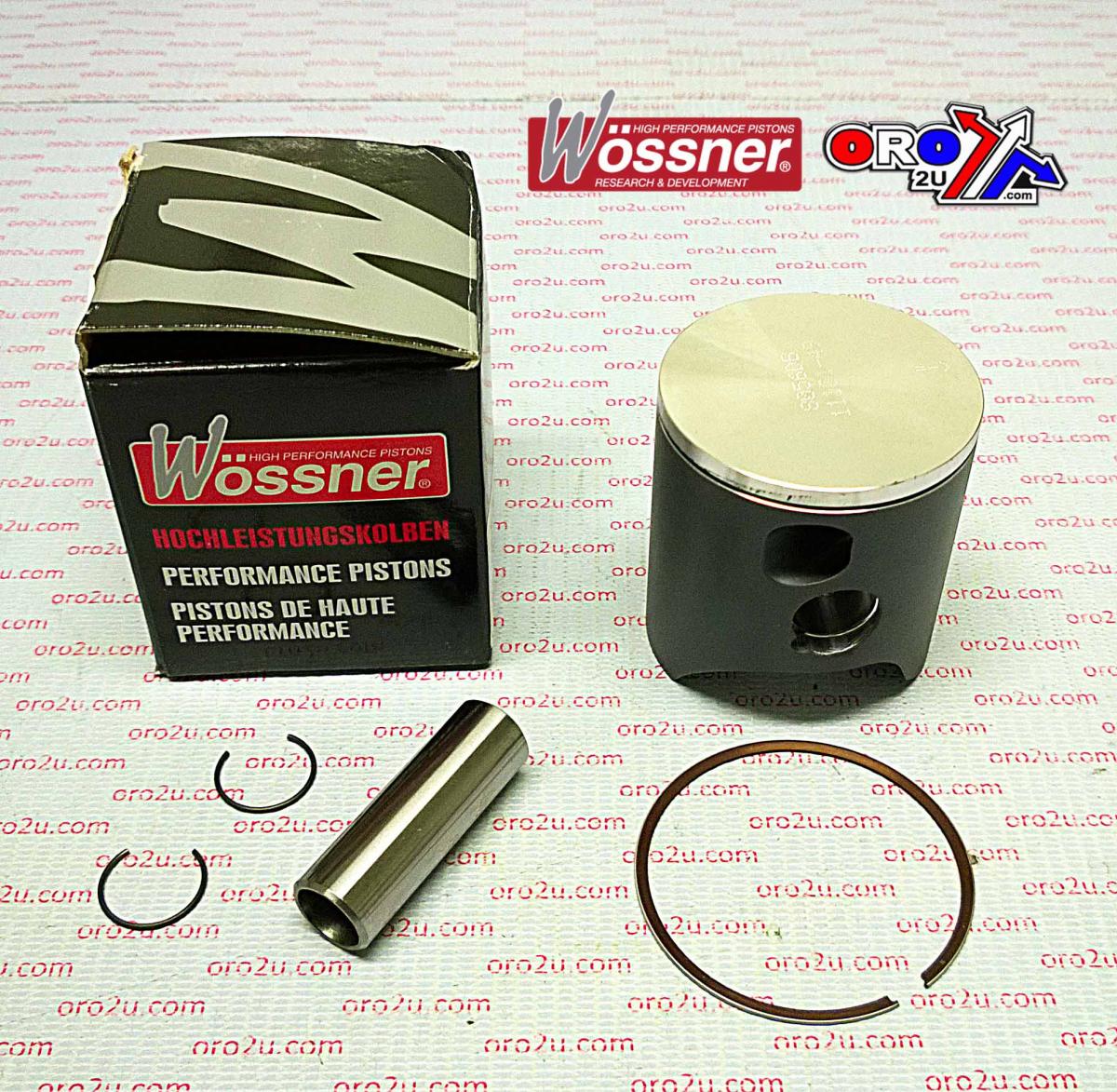

PISTON KIT 01-06 KTM125 SX 54, WOSSNER 8056DA, 1-RING 50430007100

Wossner Forged Piston Kit 54.00mm Bore for KTM SX 125

Upgrade your KTM SX 125 with this high-performance Wossner forged piston kit. Engineered in Germany, this piston kit offers superior strength, durability, and improved heat transfer for enhanced engine performance. The advanced elliptical design ensures even thrust load distribution, effectively preventing localized pressure buildup and reducing the risk of piston collapse. Designed for single-ring applications, this kit is a premium choice for riders seeking reliability and power.

Key Features:

• Wossner forged piston for exceptional strength and longevity
• Optimized heat transfer for better engine efficiency
• Elliptical design for balanced thrust load and reduced wear
• Suitable for single-ring configurations
• Precision manufactured in Germany

Specifications:

• Bore Size: 54.00mm
• Actual Piston Diameter: 53.95mm
• Hub Stroke: 54.50mm
• Clearance: 0.05mm
• Compression Height: 29.50mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers:

• 50430007100
• 09104766
• 836M05400
• 50330007500 I / 50330207100 I
• 50330007500 II / 50330207100 II
