PISTON KIT 01-05 KTM250 75.00, FORGED WOSSNER 8592DA 59830007000

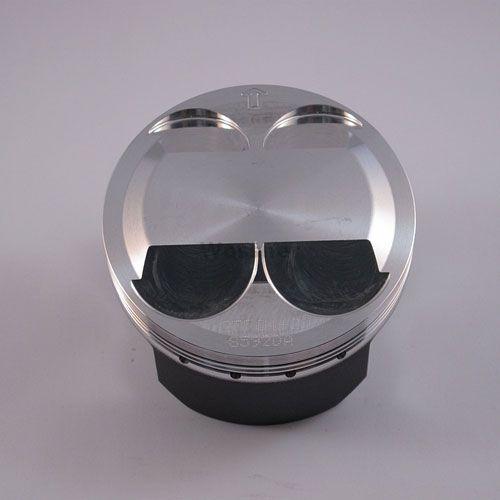

Wossner Forged Piston Kit 75.00mm 249cc

Upgrade your motorcycle's engine with this high-performance Wossner forged piston kit. Engineered for superior strength and durability, this piston kit is designed to deliver optimal performance and reliability. Manufactured in Germany, Wossner pistons are built to withstand the demands of high-performance riding.

The forged construction provides enhanced strength compared to cast pistons, ensuring longevity and resistance to extreme conditions. Wossner's innovative elliptical design is crucial for managing heat expansion. This design ensures a uniform bearing surface under heat, effectively reducing localized pressure and distributing thrust loads evenly. This prevents piston collapse and contributes to a smoother running engine.

This piston kit is engineered for optimal heat transfer from the combustion chamber to the cylinder walls, which helps to maintain consistent engine temperatures and improve overall efficiency.

Key Features:

• Forged Construction: Provides superior strength and durability for demanding applications.
• Elliptical Design: Ensures uniform bearing surface under heat expansion, preventing localized pressure and piston collapse.
• Optimized Heat Transfer: Enhances engine efficiency and longevity by managing combustion chamber heat.
• OEM Compression Ratio: Designed for a direct replacement, maintaining the original engine's compression specifications.

Specifications:

• Bore: 74.95 mm
• Piston Size: 75.00 mm
• Displacement: 249 cm³
• Stroke: 56.50 mm
• Clearance: 0.05 mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.00:1
• Dome Volume: +4.10 cm³
• Compression Height: 25.30 mm

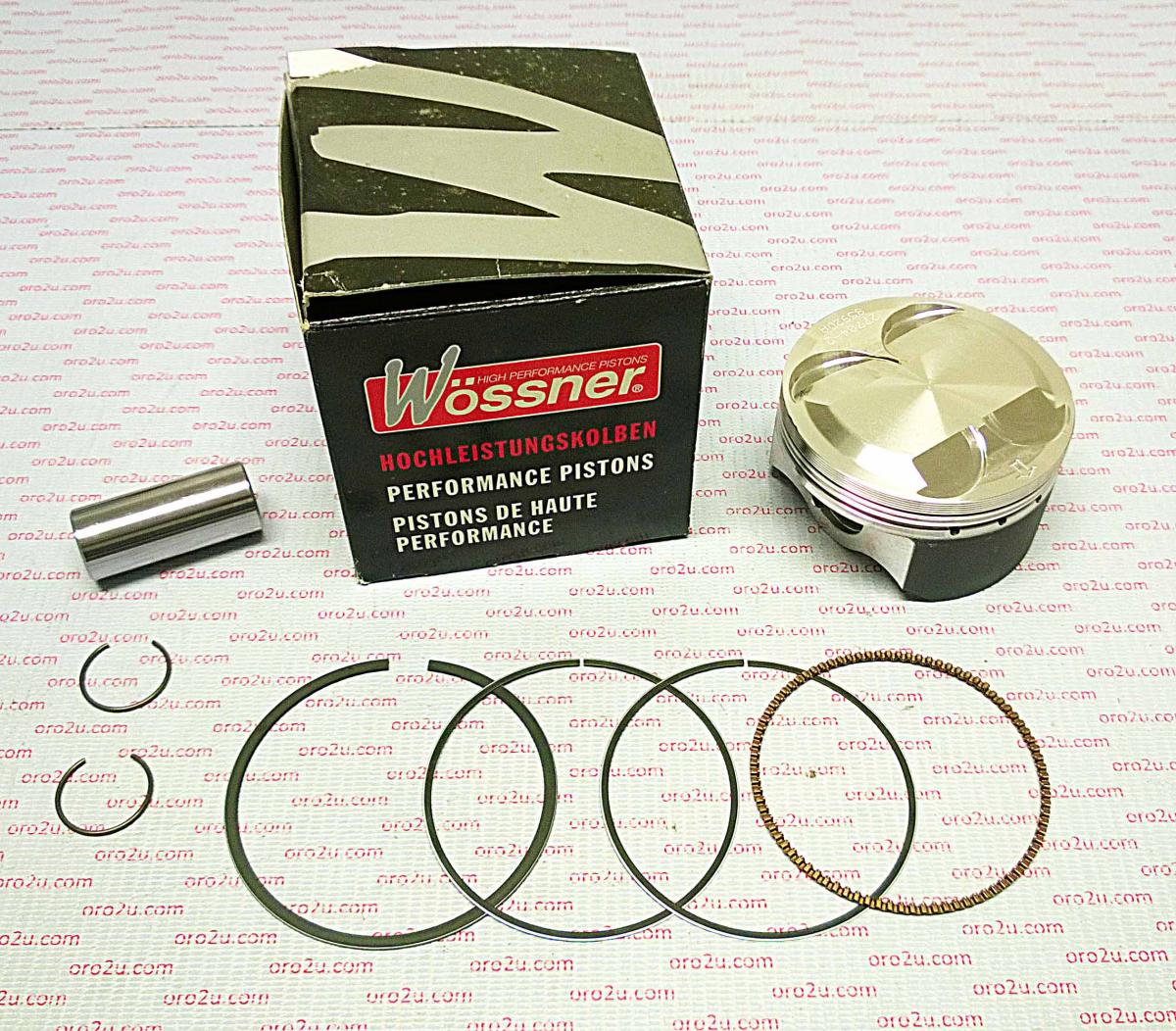

Included Components:

• Lock: CW20
• Pin: WP029
• Ring Set: 750XDS

Cross-Reference OEM Part Number:

• 59830007000
