PISTON KIT 01-02 KX125 54.00 B, WOSSNER 8062DB KAWASAKI MX
Wossner piston kit with a 54.01mm bore and 53.96mm actual piston diameter. Constructed from high-quality forged materials, it ensures durability, superior heat transfer, and consistent performance in 2-stroke engines. Features include forged piston design for enhanced strength and durability, efficient heat transfer, elliptical profile for even bearing surface, and uniform thrust load distribution. Manufactured in Germany. Specifications: Bore 54.01mm, Piston Diameter 53.96mm, Display (cm³) 125, Stroke (mm) 45.80, Clearance (mm) 0.05, Compression Height (mm) 26.00, Wossner Compression Ratio 2-stroke, OEM Compression Ratio 2-stroke. Included components: Lock CW15, Pin WP032, Ring Set RSB5400, Rod P2034. Part Number: 56-W783+00B.WO (Piston PN# 8062DB).
- SKU
- 56-W783+00B.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Piston Kit for Kawasaki KX125 (2001-2002)
This Wossner piston kit features a 54.01mm bore and a 53.96mm actual piston diameter, engineered for optimal performance in 2-stroke engines. Constructed from high-quality forged materials, this piston kit offers enhanced strength, superior heat transfer capabilities, and consistent reliability.
Key Features:
- Forged piston design for increased strength and durability.
- Promotes efficient heat transfer from the combustion chamber to the cylinder walls.
- Elliptical profile ensures an even bearing surface during thermal expansion.
- Distributes thrust loads uniformly to prevent localized pressure and piston collapse.
- Manufactured in Germany.
Specifications:
- Bore: 54.01mm
- Piston Diameter: 53.96mm
- Display (cm³): 125
- Stroke (mm): 45.80
- Clearance (mm): 0.05
- Compression Height (mm): 26.00
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke

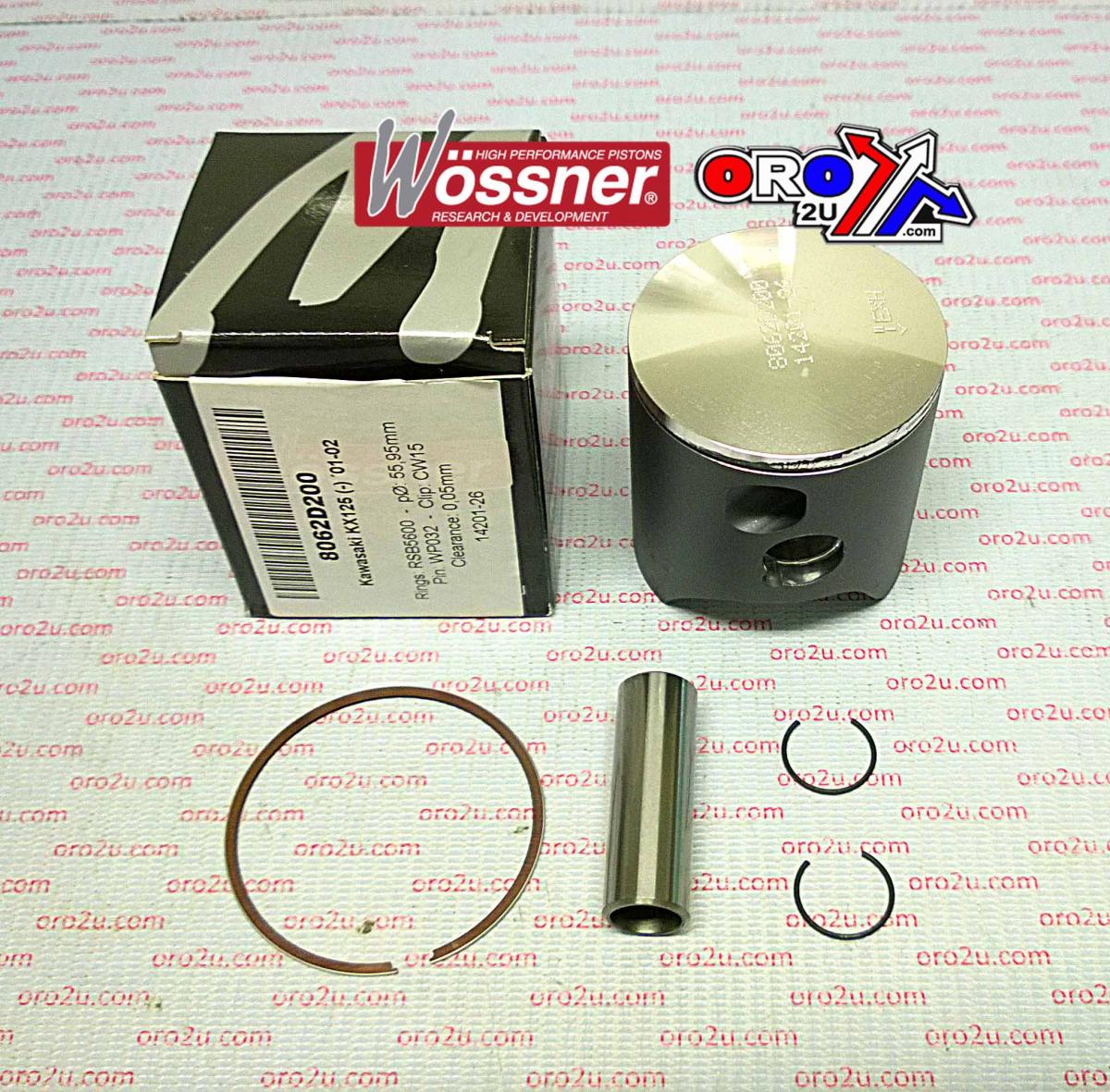

Included Components:
- Lock: CW15
- Pin: WP032
- Ring Set: RSB5400
- Rod: P2034
