PISTON KIT 00-20 KX65 44.50 A, WOSSNER 8196DA KAWASAKI MX 13001-1630
Wossner piston kit with a 44.50mm bore (actual size 44.45mm) engineered for high-revving two-stroke engines. Precision-forged in Germany for superior durability, thermal efficiency, and consistent performance. Features forged piston construction for high strength and extended lifespan, optimal heat transfer design, and an elliptical profile that distributes thrust loads evenly, minimizing pressure and the risk of piston collapse. Specifications include a bore size of 44.50 mm, actual piston size of 44.45 mm, 65 cm³ displacement, 41.60 mm stroke, 0.05 mm clearance, 2-stroke compression ratio, and 23.60 mm compression height. Cross-reference OEM part numbers include 13001-1630, 09104873, 752M04450, and 11300-03852. Included components: Wossner piston PN# 8196DA, lock PN# CW12, pin PN# WP091, ring set PN# RSB4450, and rod PN# P2001.
- SKU
- 56-W752.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (39)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 65 | 2000 |
| KAWASAKI | KX 65 | 2001 |
| KAWASAKI | KX 65 | 2002 |
| KAWASAKI | KX 65 | 2003 |
| KAWASAKI | KX 65 | 2004 |
| KAWASAKI | KX 65 | 2005 |
| KAWASAKI | KX 65 | 2006 |
| KAWASAKI | KX 65 | 2007 |
| KAWASAKI | KX 65 | 2008 |
| KAWASAKI | KX 65 | 2009 |
| KAWASAKI | KX 65 | 2010 |
| KAWASAKI | KX 65 | 2011 |
| KAWASAKI | KX 65 | 2012 |
| KAWASAKI | KX 65 | 2013 |
| KAWASAKI | KX 65 | 2014 |
| KAWASAKI | KX 65 | 2015 |
| KAWASAKI | KX 65 | 2016 |
| KAWASAKI | KX 65 | 2017 |
| KAWASAKI | KX 65 | 2018 |
| KAWASAKI | KX 65 | 2019 |
| KAWASAKI | KX 65 | 2020 |
| KAWASAKI | KX 65 | 2021 |
| KAWASAKI | KX 65 | 2022 |
| KAWASAKI | KX 65 | 2023 |
| KAWASAKI | KX 65 | 2024 |
| KAWASAKI | KX 65 | 2025 |
| SUZUKI | RM 65 | 2000 |
| SUZUKI | RM 65 | 2001 |
| SUZUKI | RM 65 | 2002 |
| SUZUKI | RM 65 | 2003 |
| SUZUKI | RM 65 | 2004 |
| SUZUKI | RM 65 | 2005 |
| SUZUKI | RM 65 | 2006 |
| SUZUKI | RM 65 | 2007 |
| SUZUKI | RM 65 | 2008 |
| SUZUKI | RM 65 | 2009 |
| SUZUKI | RM 65 | 2010 |
| SUZUKI | RM 65 | 2011 |
| SUZUKI | RM 65 | 2012 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 44.50mm
- Variant Id
- 257651
FULL DESCRIPTION
Wossner Piston Kit - 44.50mm Bore
This Wossner piston kit, featuring a 44.50mm bore (actual size 44.45mm), is precision-engineered for high-performance two-stroke engines. Manufactured in Germany, this forged piston is designed to deliver exceptional durability, superior thermal efficiency, and consistent power output, especially in high-revving applications.
Key Features:
- Forged Piston Construction: Ensures maximum strength and an extended operational lifespan.
- Optimized Heat Transfer: Designed for efficient heat management from the combustion chamber to the cylinder walls, enhancing performance and reliability.
- Elliptical Piston Profile: Evenly distributes thrust loads, reducing stress and minimizing the risk of piston collapse.
- German Engineering: Meticulously manufactured in Germany for precise fitment and optimal performance.
Specifications:
- Bore Size: 44.50 mm
- Actual Piston Size: 44.45 mm
- Displacement (cm³): 65
- Stroke (mm): 41.60
- Clearance (mm): 0.05
- Compression Ratio: 2-stroke (Wossner and OEM compatible)
- Compression Height (mm): 23.60
Cross-Reference OEM Part Numbers:
- 13001-1630
- 09104873
- 752M04450
- 11300-03852

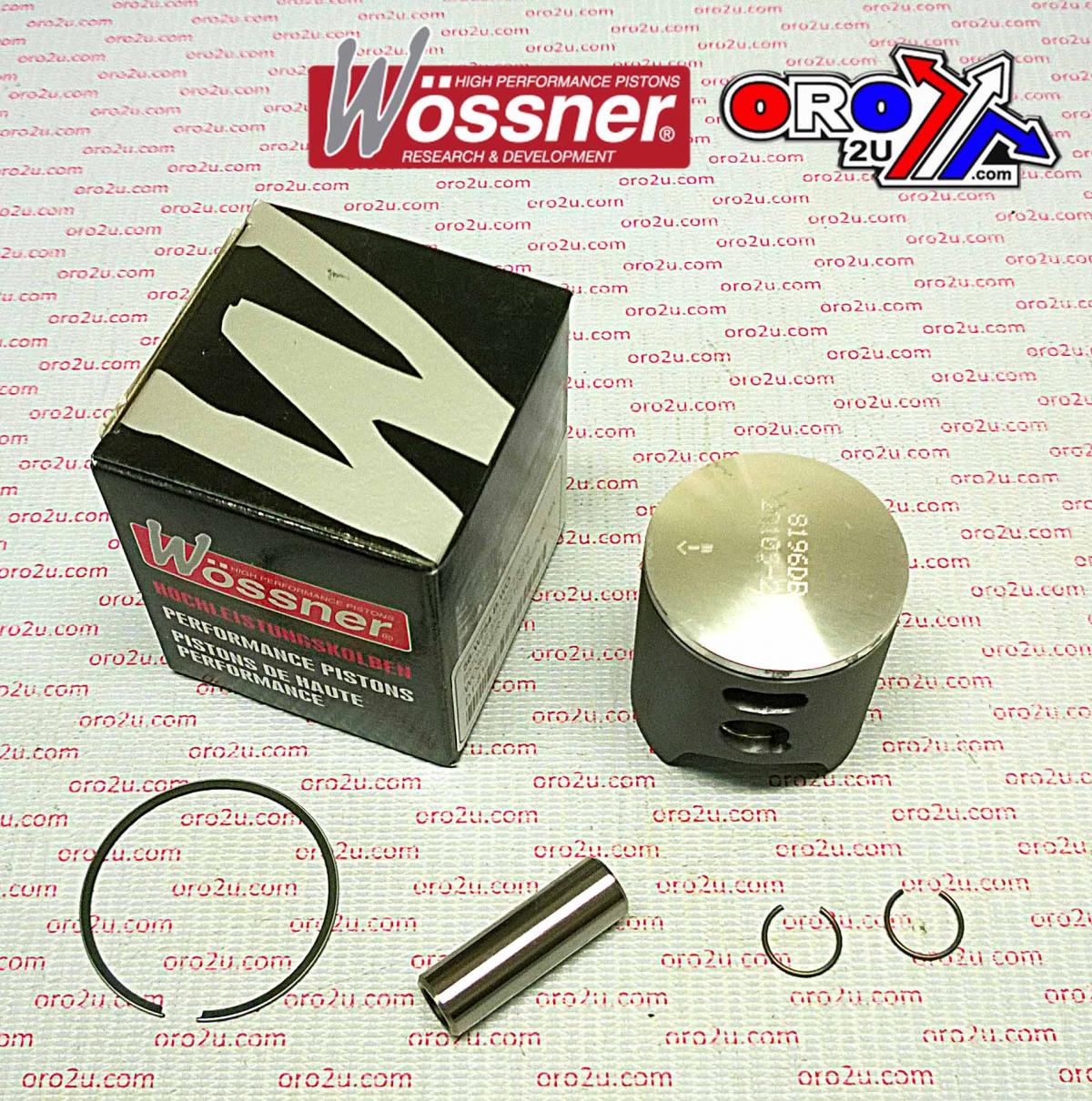

Included Components:
- Piston: Wossner PN# 8196DA
- Lock: PN# CW12
- Pin: PN# WP091
- Ring Set: PN# RSB4450
- Rod: PN# P2001
