PISTON KIT 00-08 SX65 45.00 C, WOSSNER 8198DC KTM MX
This Wossner piston kit features a 45.02mm bore (+0.02mm oversize, actual size 44.98mm) and is precision-forged in Germany. It offers enhanced strength, optimal thermal performance, and reliable operation in high-revving two-stroke engines. Features include forged piston construction for superior durability and mechanical reliability, engineered for efficient heat transfer, and an elliptical design to distribute load evenly and minimize localized stress. Specifications include a bore size of 45.02 mm, actual piston size of 44.98 mm, display (cm³) of 63, stroke (mm) of 40.00, clearance (mm) of 0.05, compression ratio of 2-stroke (Wossner and OEM), and compression height (mm) of 21.70. Included components are Piston: Wossner PN# 8198DC, Lock: PN# CW12, Pin: PN# WP091, Ring Set: PN# RSB4500, and Rod: PN# P2002.
- SKU
- 56-W746.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (35)
| Make | Model | Year |
|---|---|---|
| KTM | 65 SX | 1997 |
| KTM | 65 SX | 1998 |
| KTM | 65 SX | 1999 |
| KTM | 65 SX | 2000 |
| KTM | 65 SX | 2001 |
| KTM | 65 SX | 2002 |
| KTM | 65 SX | 2003 |
| KTM | 65 SX | 2004 |
| KTM | 65 SX | 2005 |
| KTM | 65 SX | 2006 |
| KTM | 65 SX | 2007 |
| KTM | 65 SX | 2008 |
| KTM | 65 XC | 1999 |
| KTM | 65 XC | 2000 |
| KTM | 65 XC | 2001 |
| KTM | 65 XC | 2002 |
| KTM | 65 XC | 2003 |
| KTM | 65 XC | 2004 |
| KTM | 65 XC | 2005 |
| KTM | 65 XC | 2006 |
| KTM | 65 XC | 2007 |
| KTM | 65 XC | 2008 |
| KTM | 65 XC | 2009 |
| KTM | 65 XC | 2010 |
| KTM | 65 XC | 2011 |
| KTM | 65 XC | 2012 |
| KTM | 65 XC | 2013 |
| KTM | 65 XC | 2014 |
| KTM | 65 XC | 2015 |
| KTM | 65 XC | 2016 |
| KTM | 65 XC | 2017 |
| KTM | 65 XC | 2018 |
| KTM | 65 XC | 2019 |
| KTM | 65 XC | 2020 |
| KTM | 65 XC | 2021 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 45.00mm
- Variant Id
- 257624
FULL DESCRIPTION
Wossner Piston Kit 45.02mm for KTM SX65 (2000-2008)
This Wossner piston kit features a 45.02mm bore (+0.02mm oversize, actual size 44.98mm) and is engineered for high-performance KTM SX65 models. Precision-forged in Germany, this kit delivers enhanced strength, superior thermal management, and dependable operation, even in demanding, high-revving two-stroke applications.
Key Features
- Forged Piston Construction: Ensures exceptional durability and mechanical reliability for extended engine life.
- Optimized Heat Transfer: Designed for efficient dissipation of heat from the combustion chamber to the cylinder wall, maintaining optimal operating temperatures.
- Elliptical Piston Design: This sophisticated design promotes even load distribution, minimizes localized stress points, and effectively prevents piston collapse under stress.
- German Engineering: Manufactured in Germany to exacting standards, guaranteeing consistent quality and precision for a perfect fit and reliable performance.
Specifications
- Bore Size: 45.02 mm
- Actual Piston Size: 44.98 mm
- Displacement (cm³): 63
- Stroke (mm): 40.00
- Clearance (mm): 0.05
- Compression Ratio: 2-stroke (Compatible with Wossner and OEM specifications)
- Compression Height (mm): 21.70

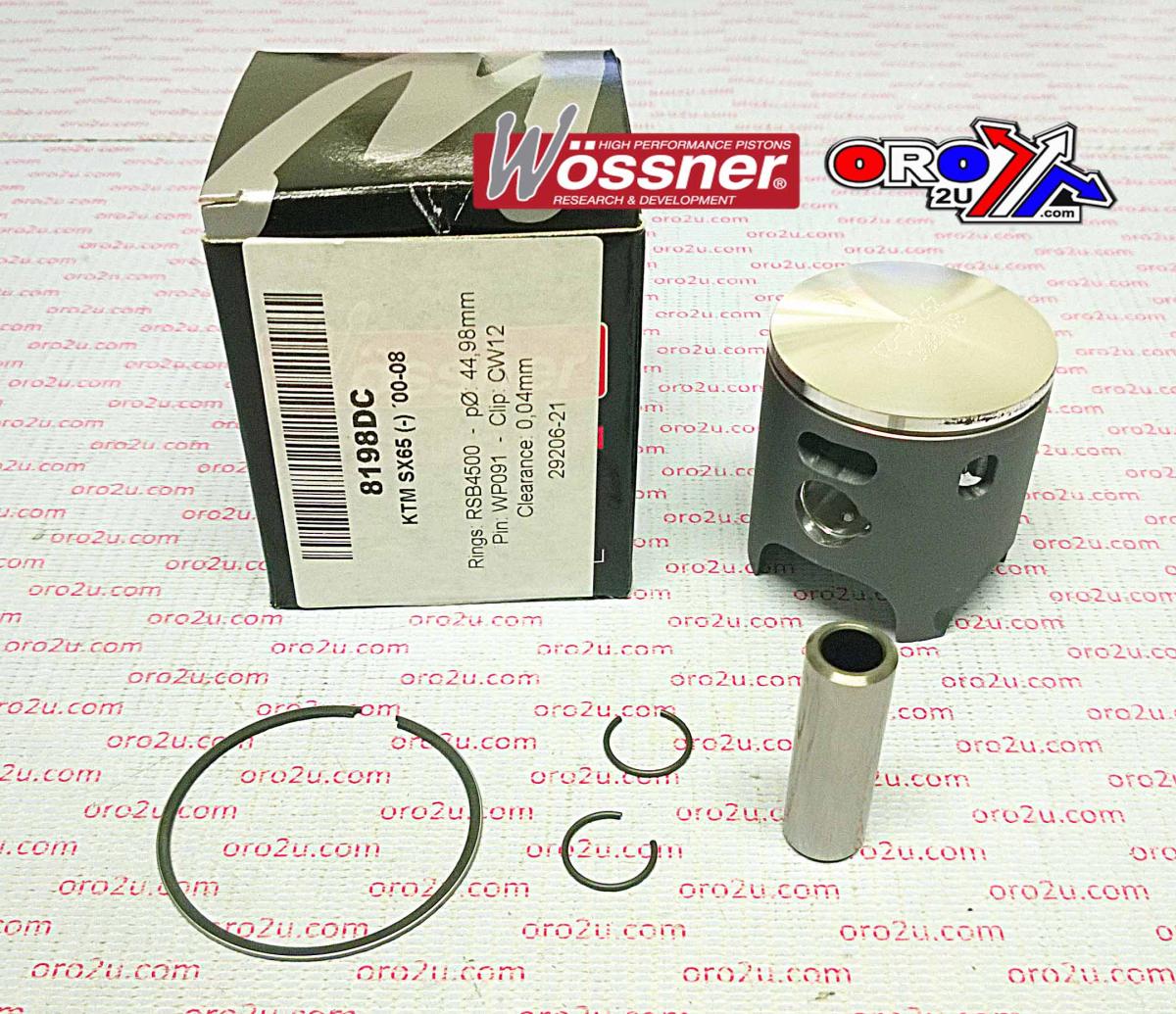

Included Components
- Piston: Wossner PN# 8198DC
- Lock: PN# CW12
- Pin: PN# WP091
- Ring Set: PN# RSB4500
- Rod: PN# P2002
