PISTON KIT 00-02 RM250 66.40 B, WOSSNER 8059DB SUZUKI MX
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
Wossner 8059DB piston kit with a 66.41mm bore offers a +0.01mm oversize fitment. Forged piston delivers exceptional strength and resistance to wear. Engineered for efficient heat dissipation from the combustion chamber to the cylinder wall. Elliptical design promotes uniform expansion and load distribution. Helps prevent piston collapse by minimising localised pressure. Manufactured with precision in Germany. Bore: 66.41 mm. Actual piston size: 66.35 mm. Stroke: 72.00 mm. Display volume: 249 cm³. Clearance: 0.06 mm. Compression ratio: 2-stroke (Wossner and OEM). Compression height: 38.00 mm. Cross-reference OEM part numbers: Piston Kit: 8059DB, Lock: CW18, Pin: WP033, Ring Set: RSB6640 x 4, Rod: P2026, Part No: 56-W756.B.WO.
- SKU
- 56-W756.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 250 | 1998 |
| SUZUKI | RM 250 | 2000 |
| SUZUKI | RM 250 | 2001 |
| SUZUKI | RM 250 | 2002 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.40mm
- Variant Id
- 257696
FULL DESCRIPTION

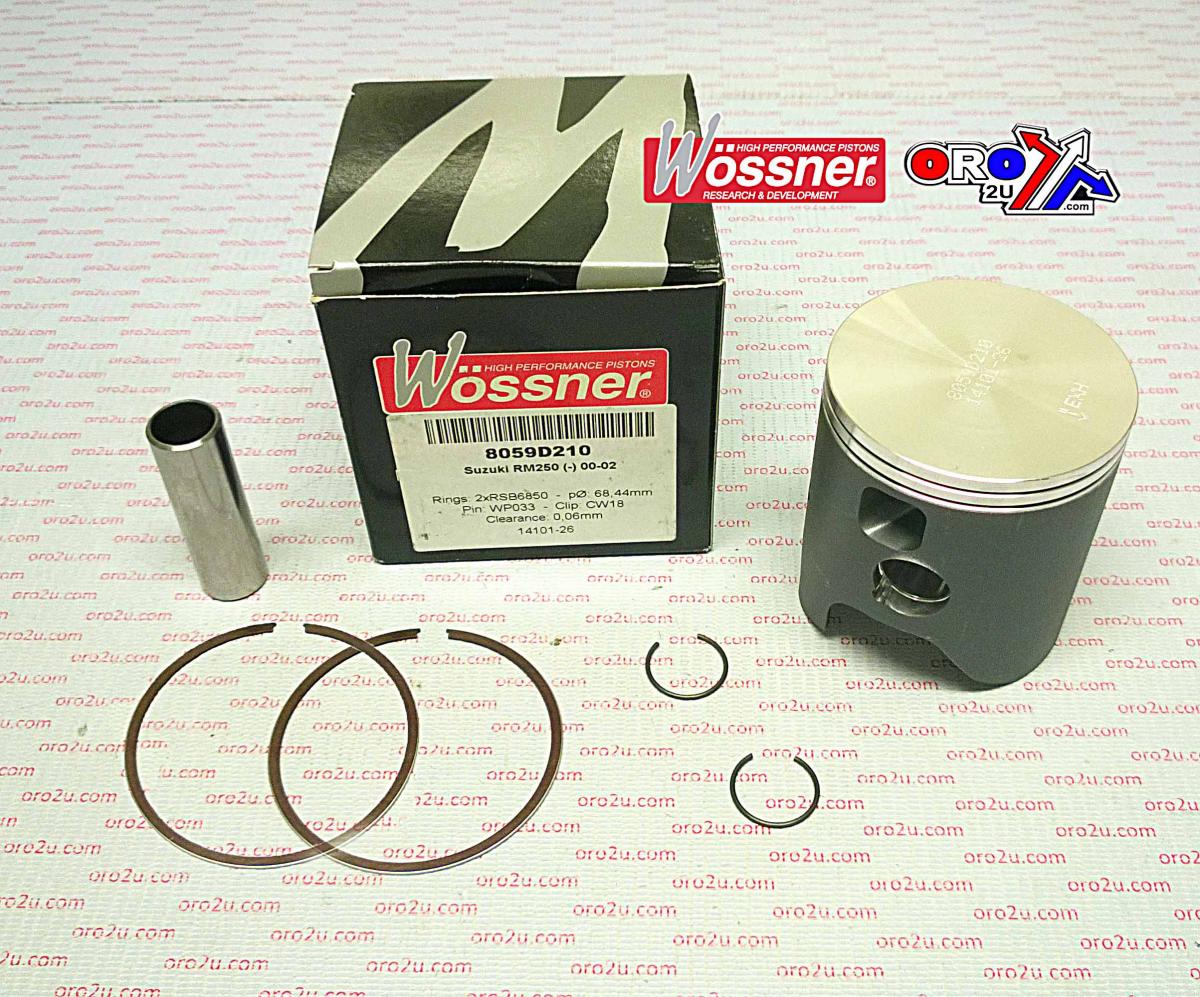

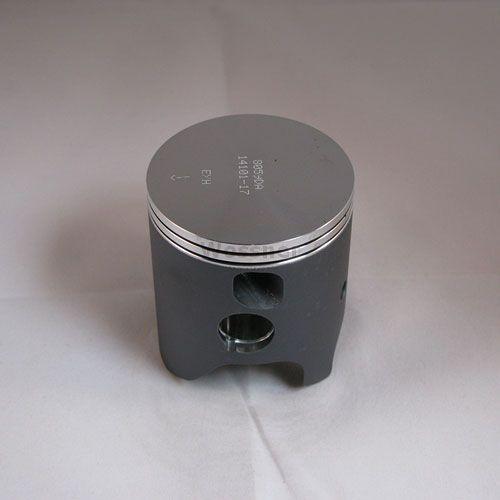

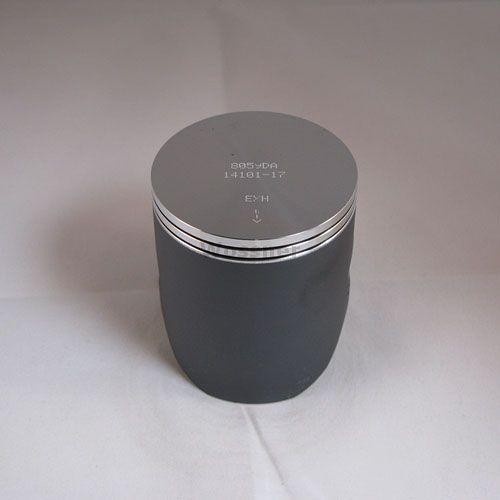

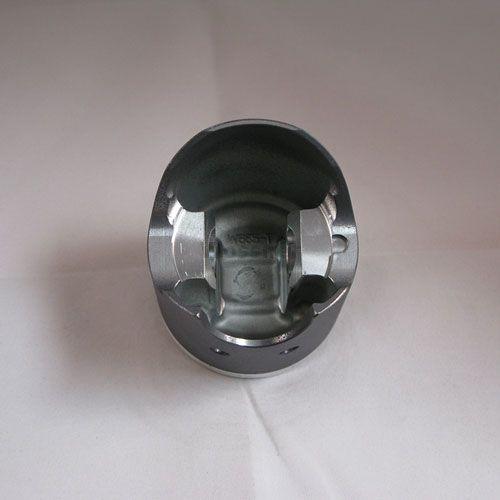

Wossner Forged Piston Kit for Suzuki RM250
Upgrade your Suzuki RM250 engine with this high-performance Wossner forged piston kit. Engineered for durability and optimal performance, this kit is designed to withstand the demanding conditions of motocross.
Key Features:
- Forged Construction: Crafted from premium forged materials for exceptional strength, wear resistance, and longevity under high thermal and mechanical stress.
- Precision Engineering: Meticulously manufactured in Germany to ensure precise piston-to-wall clearance and optimal engine performance.
- Efficient Heat Dissipation: Designed to effectively transfer heat from the combustion chamber to the cylinder wall, preventing overheating.
- Elliptical Design: Promotes uniform piston expansion and load distribution, helping to prevent piston collapse and minimize localized pressure.
- Oversize Fitment: Features a 66.41mm bore for a +0.01mm oversize fitment, ensuring a precise fit for enhanced engine efficiency.
Specifications:
- Bore: 66.41 mm
- Actual Piston Size: 66.35 mm
- Stroke: 72.00 mm
- Displacement Volume: 249 cm³
- Clearance: 0.06 mm
- Compression Ratio: 2-stroke (Wossner and OEM compatible)
- Compression Height: 38.00 mm
