PISTON KIT 00-02 RM250 66.40 A, WOSSNER 8059DA SUZUKI MX 12110-37E30-0F0
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

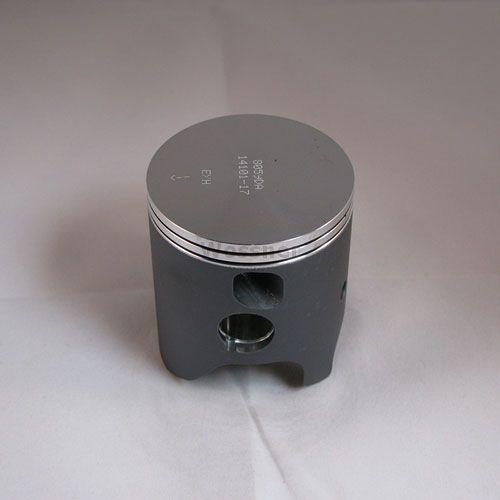

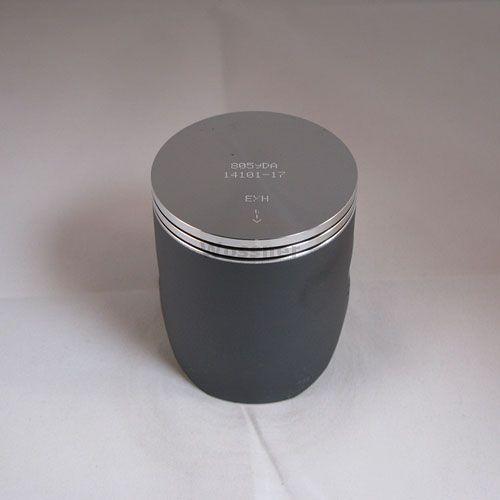

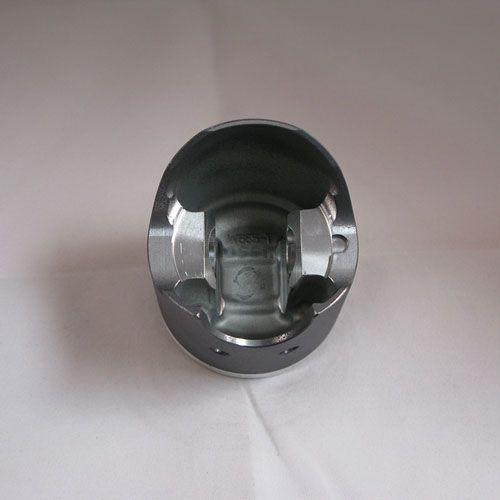

Wossner piston kit with 66.40mm bore, designed for 2-stroke performance engines. Features forged construction for enhanced strength and longevity, efficient heat transfer, and an elliptical design for uniform bearing contact. Specifications include bore 66.40 mm, actual piston size 66.34 mm, stroke 72.00 mm, display volume 249 cm³, clearance 0.06 mm, compression ratio 2-stroke (Wossner and OEM), and compression height 38.00 mm. Kit includes piston, lock CW18, pin WP033, two ring sets RSB6640, and rod P2026. Part number 56-W756.A.WO. Manufactured in Germany.
- SKU
- 56-W756.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 250 | 1998 |
| SUZUKI | RM 250 | 2000 |
| SUZUKI | RM 250 | 2001 |
| SUZUKI | RM 250 | 2002 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.40mm
- Variant Id
- 257694
FULL DESCRIPTION
Wossner Piston Kit for Suzuki RM250 (2000-2002)
This Wossner piston kit is engineered for optimal performance in Suzuki RM250 models from 2000 to 2002. Featuring a 66.40mm bore, this kit is constructed from high-quality forged material, delivering superior durability, enhanced heat management, and robust structural integrity critical for demanding 2-stroke engines.
Key Features:
- Forged construction provides exceptional strength and longevity under extreme operating conditions.
- Promotes efficient heat transfer from the combustion chamber to the cylinder wall, aiding in temperature regulation.
- Elliptical design ensures consistent bearing contact, compensating for thermal expansion.
- Minimizes localized stress to prevent piston failure and maintain engine integrity.
- Precision-engineered and manufactured in Germany for exacting quality standards.
Specifications:
- Bore: 66.40 mm
- Actual Piston Size: 66.34 mm
- Stroke: 72.00 mm
- Displacement Volume: 249 cm³
- Clearance: 0.06 mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM)
- Compression Height: 38.00 mm
Component Details:
- Piston Kit Part Number: 8059DA
- Lock Ring: CW18
- Piston Pin: WP033
- Ring Set: RSB6640 (x2)
- Conrod: P2026
