PISTON 96-97, 99 RM250 66.40, WOSSNER 8058DB SUZUKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

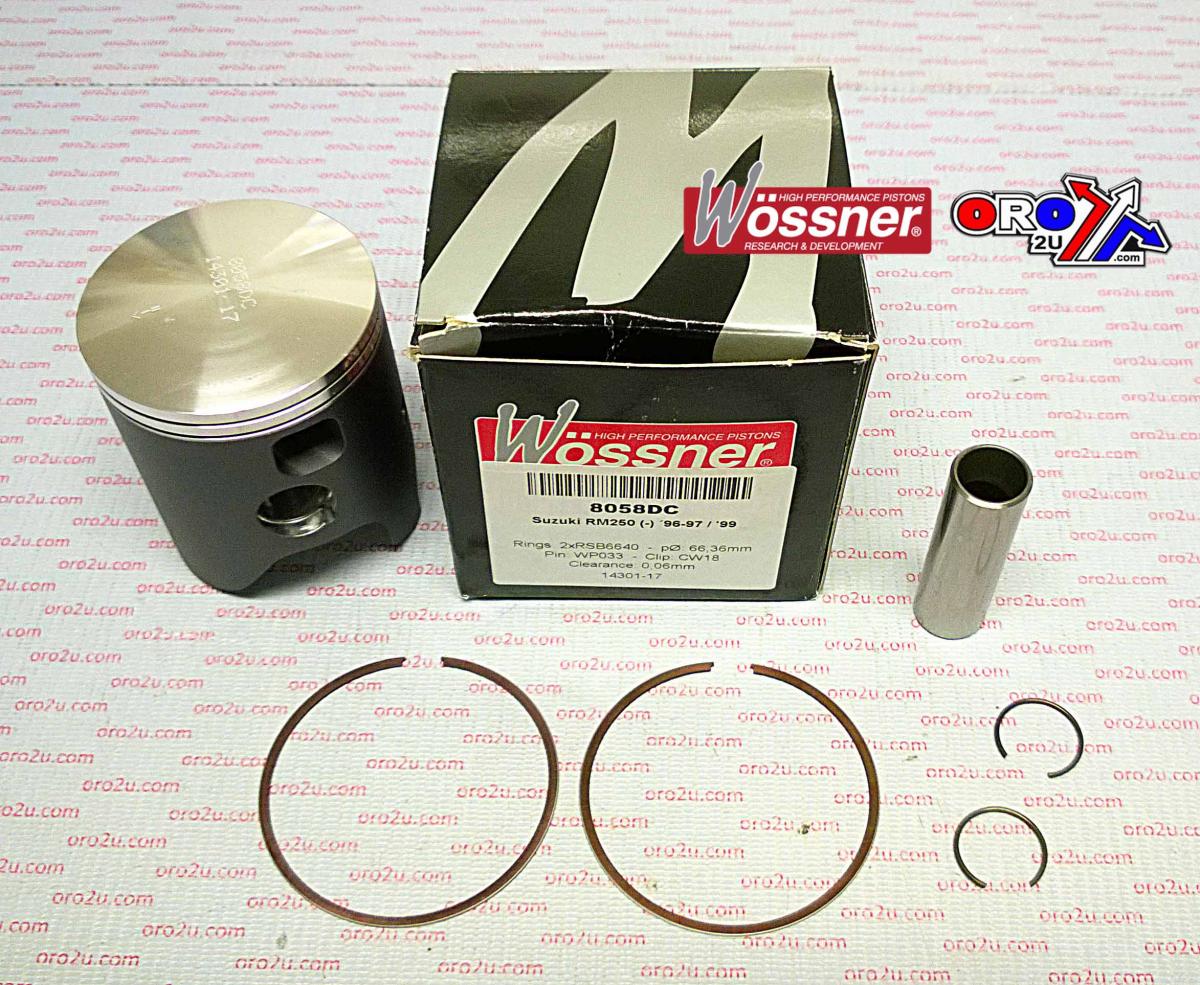

This Wossner forged piston kit is manufactured for Suzuki RM250 two-stroke engines. It features a 68.01mm bore (+0.01mm oversize) and an actual diameter of 67.95mm. Crafted in Germany, the piston utilises an elliptical design to manage thermal expansion, evenly distributing load and reducing the risk of collapse. It enhances heat transfer from the combustion chamber to the cylinder wall, supporting consistent engine operation in demanding conditions. Forged construction provides increased strength and resilience. The piston has a compression height of 38.00mm, a stroke of 72.00mm, and a displacement of 249 cm³. Piston clearance is 0.06mm. Compression ratio is 2-stroke (Wossner and OEM). Wossner Piston Kit Part No: 8023DB. Alternate Piston PN: 8058DB. Components included: Lock CW18, Pin WP033, Ring Set RSB6640 x2, Rod P2026. Weight is 360g.
- SKU
- 56-W681.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 250 | 1996 |
| SUZUKI | RM 250 | 1997 |
| SUZUKI | RM 250 | 1999 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.40mm
- Variant Id
- 257465
FULL DESCRIPTION
Wossner Forged Piston Kit
Enhance the performance and durability of your two-stroke engine with this Wossner forged piston kit. Manufactured in Germany, this high-quality piston is designed for precision and resilience under demanding conditions.
Key Features
- Forged Construction: Provides superior strength and resilience for increased longevity.
- Elliptical Piston Design: Engineered to manage thermal expansion, ensuring a uniform bearing surface even when hot.
- Reduced Stress and Collapse: This design prevents localized stress points, significantly reducing the risk of piston collapse.
- Efficient Heat Transfer: Promotes effective heat transfer from the combustion chamber to the cylinder wall, aiding in consistent engine operation.
- Precision Engineered in Germany: Guarantees high manufacturing standards and reliable performance.
Specifications
- Bore Size: 68.01mm (+0.01mm oversize)
- Actual Diameter: 67.95mm
- Compression Height: 38.00mm
- Stroke: 72.00mm
- Displacement: 249 cm³
- Piston Clearance: 0.06mm
- Compression Ratio: 2-stroke (Wossner and OEM)
Wossner Part Details
- Wossner Piston Kit Part Number: 8023DB
- Alternate Piston Part Number: 8058DB
- Lock: CW18
- Pin: WP033
- Ring Set: RSB6640 x2
- Rod: P2026
