PISTON 94-08 KTM620 640 101 C, FORGED WOSSNER KIT 8524DC
Wossner 8524DC forged piston kit with a 101.02mm bore (+0.02mm). Designed for efficient combustion chamber heat transfer and engineered with an elliptical profile to prevent collapse under heat expansion, ensuring a more uniform bearing surface. This kit includes lock CW22, pin WP009, and ring set 1010XSY. Specifications: Displacement 600 cm³, Hub Stroke 76.00mm, Clearance 0.06mm, Compression Ratio 11.70:1, Dome Volume +7.60cm³, Compression Height 26.50mm. Made in Germany.
- SKU
- 56-W181.C
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Forged Piston Kit - 101.02mm Bore
Enhance your motorcycle's performance with this high-quality Wossner forged piston kit. Engineered for superior strength and durability, this kit is designed to optimize combustion efficiency and withstand demanding riding conditions. Wossner pistons are renowned for their advanced design, contributing to efficient heat transfer from the combustion chamber to the cylinder walls.

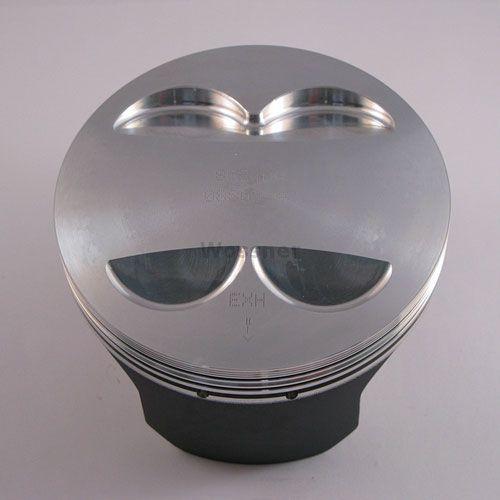

The piston features an elliptical design, which ensures a more uniform bearing surface even under the thermal expansion of the piston at operating temperatures. This intelligent design prevents collapse and contributes to a longer engine life.
Key Features:
- Wossner forged piston for exceptional strength and reliability.
- Advanced design promotes efficient heat transfer for optimal engine performance.
- Elliptical piston shape prevents collapse under heat expansion, maintaining a uniform bearing surface.
- Precision manufactured in Germany.

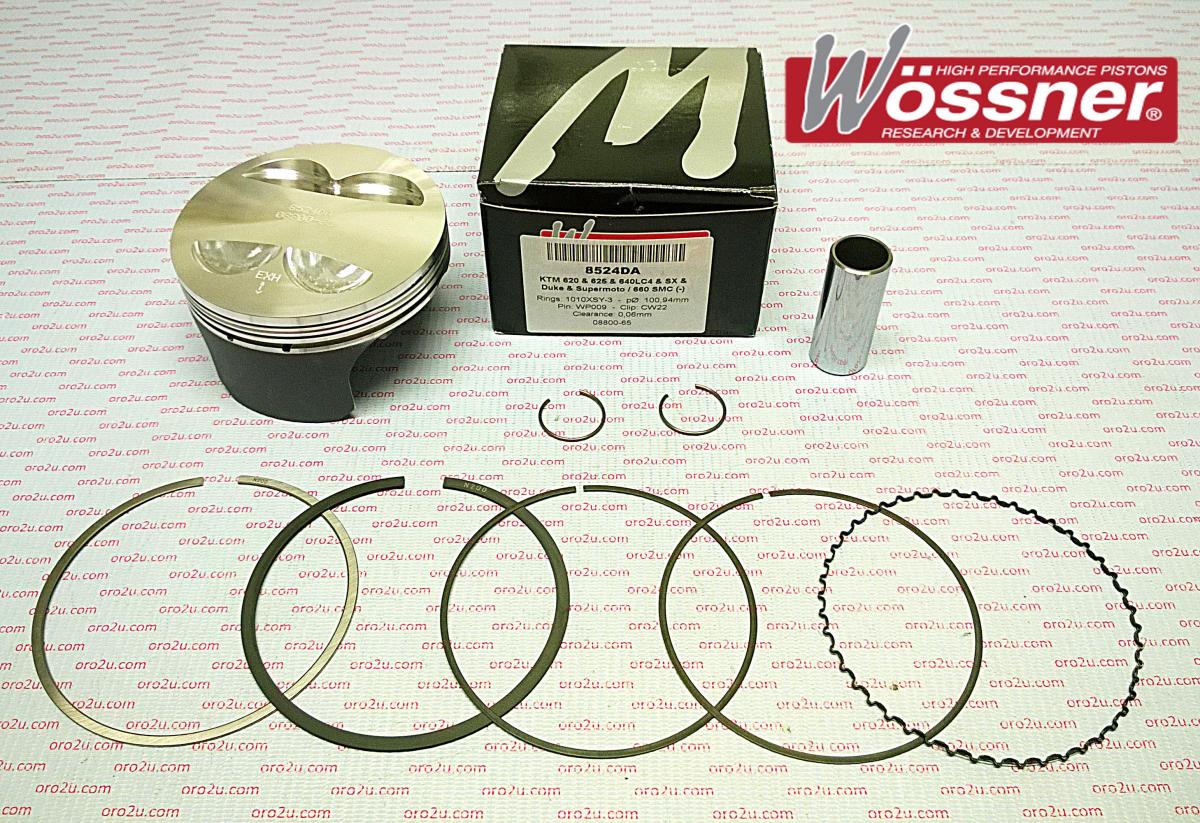

Kit Includes:
- Piston
- Lock (CW22)
- Pin (WP009)
- Ring Set (1010XSY)
Specifications:
- Bore Size: 101.02mm (+0.02mm)
- Displacement: 600 cm³
- Hub Stroke: 76.00mm
- Piston Clearance: 0.06mm
- Compression Ratio: 11.70:1 (OEM specified)
- Dome Volume: +7.60cm³
- Compression Height: 26.50mm
