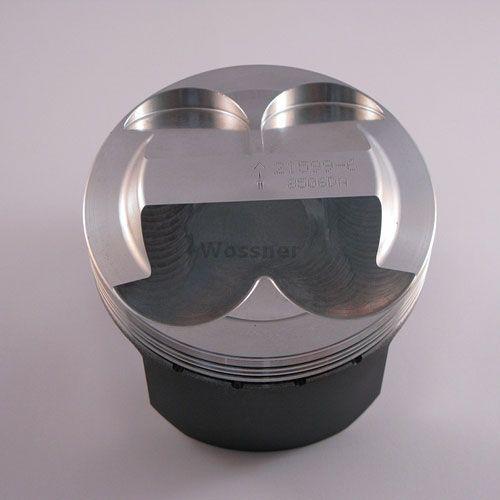

PISTON 92-94 KTM350 89.00 C, 8506DC WOSSNER FORGED

£203.33Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner 89.02mm forged piston kit is designed for durability and high performance. Engineered to optimize heat transfer and ensure uniform bearing surface expansion, it minimizes localized pressure and distributes thrust loads evenly, preventing piston collapse. Manufactured in Germany, this piston kit is built for reliability and precision. Features include a forged piston for superior strength and durability, optimized heat transfer for efficient combustion, and an elliptical design for even pressure distribution. Specifications: Bore Size 89.02mm, Actual Bore 88.96mm, Displacement 349cc, Stroke 64.00mm, Piston Clearance 0.06mm, Compression Ratio 10.00:1 (OEM), Dome Volume +13.60cm³, and Compression Height 26.50mm. Included Parts: Lock CW22, Pin WP017, and Ring Set 890XSY.

Specifications
SKU
56-W013.C
Brand
Wossner
Availability
In Stock (1)

Fitments (5)

MakeModelYear
KTM350 LC-41993
KTM350 LC-41994
KTM350 LC41992
KTM400 EGS E1997
KTM400 LC-41997
General Product Group
Engine
General Product Type
Pistons & Kits
Variant Id
254248
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit - 89.02mm Bore

Enhance your motorcycle's performance and durability with the Wossner 89.02mm forged piston kit. This premium piston is engineered in Germany to deliver exceptional strength and reliability for high-performance applications. Its advanced design optimizes heat transfer for efficient combustion and minimizes localized pressure by distributing thrust loads evenly across the bearing surface, effectively preventing piston collapse.

Key Features:

  • Superior Strength and Durability: Constructed from a high-quality forged alloy for maximum resilience.
  • Optimized Heat Transfer: Promotes efficient combustion and consistent engine temperatures.
  • Elliptical Design: Ensures even pressure distribution across the piston surface for reduced wear.
  • Precision Engineered: Manufactured in Germany to exacting standards for optimal fit and performance.
  • Reduced Localized Pressure: Distributes thrust loads evenly, preventing critical component failure.

Specifications:

  • Bore Size: 89.02mm
  • Actual Bore: 88.96mm
  • Displacement: 349cc
  • Stroke: 64.00mm
  • Piston Clearance: 0.06mm
  • Compression Ratio: 10.00:1 (OEM)
  • Dome Volume: +13.60cm³
  • Compression Height: 26.50mm

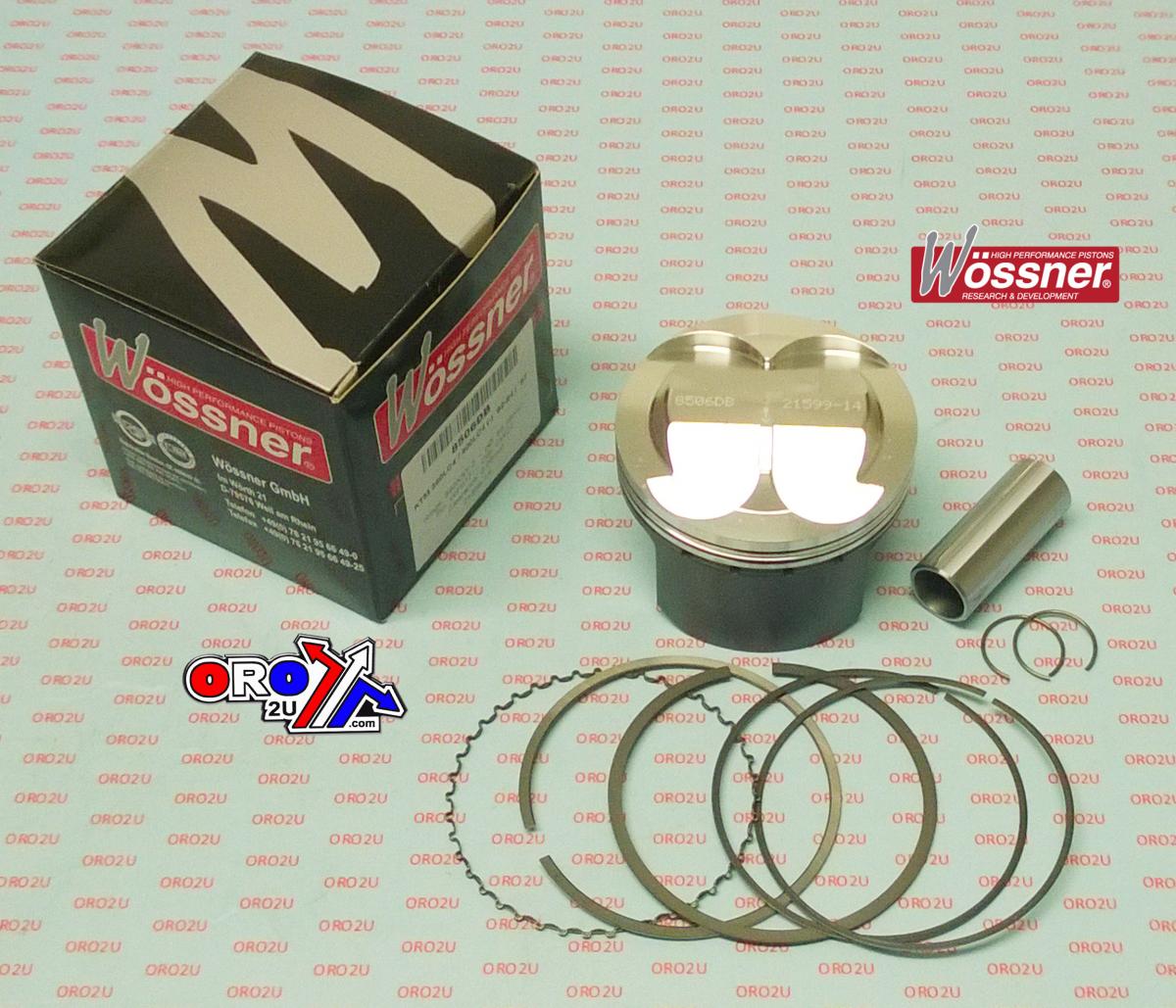

Included Components:

  • Lock: CW22
  • Pin: WP017
  • Ring Set: 890XSY
