PISTON 83-87 XL600R 100.50, WOSSNER 8822D050 HONDA
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

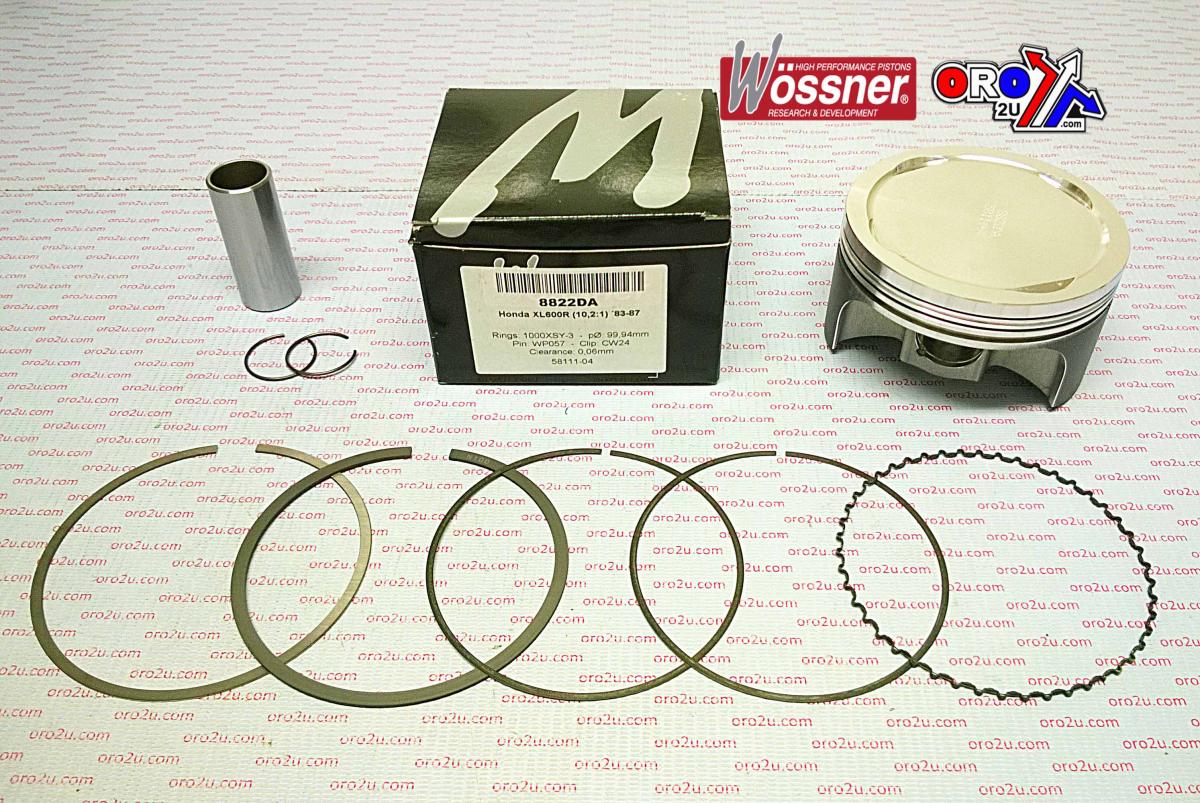

Wossner forged piston kit +0.50mm oversize, 100.50mm bore size. Features forged piston construction for high strength and wear resistance. Elliptical design allows uniform bearing surface during heat expansion. Optimised for effective heat dissipation to cylinder walls and helps prevent piston collapse by evenly distributing thrust loads. Made in Germany. Bore Size: 100.50mm, Actual Piston Size: 100.44mm, Display Displacement: 589 cm³, Stroke: 75.00mm, Piston Clearance: 0.06mm, Wossner Compression Ratio: 10.20:1, OEM Compression Ratio: 9.00:1, Dome Volume: -5.90 cm³, Compression Height: 32.80mm, Circlip Part Number: CW24, Pin Part Number: WP057, Ring Set Part Number: 1005XSY.
- SKU
- 56-W926_0.50.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 100.50mm
- Variant Id
- 258271
FULL DESCRIPTION

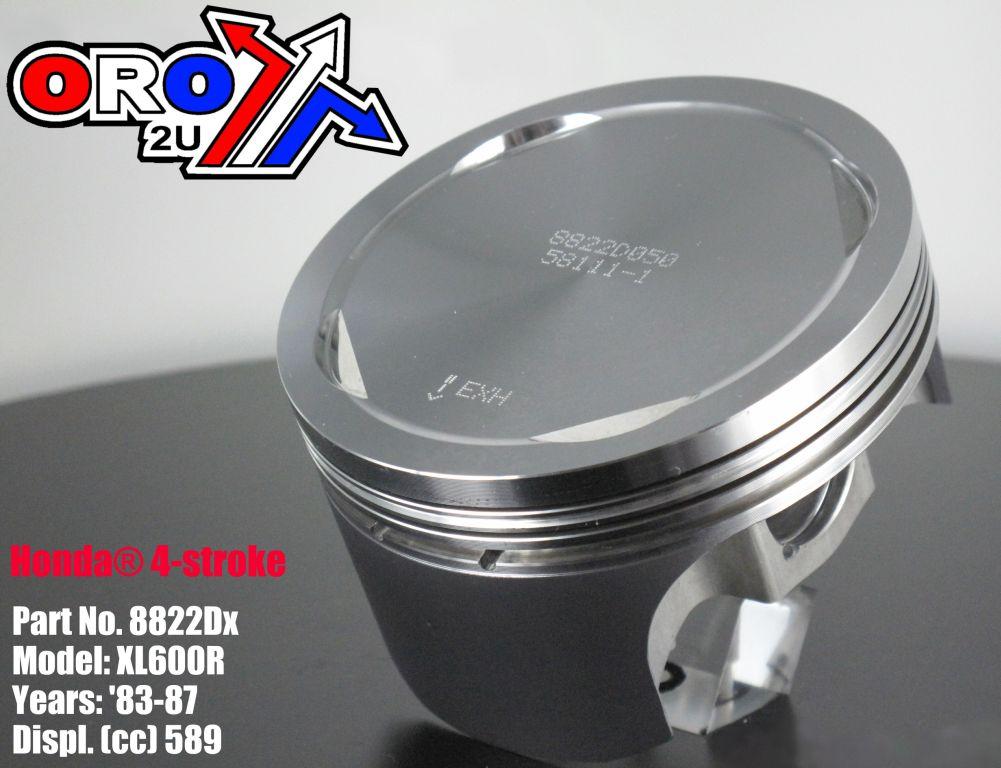

Wossner Forged Piston Kit +0.50mm for Honda XL600R
Upgrade your Honda XL600R's engine with this high-performance Wossner forged piston kit. Designed as a +0.50mm oversize replacement, this piston is engineered for superior durability, enhanced thermal efficiency, and improved performance with a higher compression ratio than OEM specifications.
Key Features
- Forged Piston Construction: Offers exceptional strength and wear resistance for longevity.
- Elliptical Design: Ensures a uniform bearing surface during thermal expansion, promoting smooth operation.
- Optimized Heat Dissipation: Effectively transfers heat to the cylinder walls, helping to prevent overheating.
- Even Thrust Load Distribution: Helps prevent piston collapse by distributing thrust loads evenly.
- Precision German Engineering: Manufactured to exacting standards in Germany for quality and reliability.
Specifications
- Bore Size: 100.50mm
- Actual Piston Size: 100.44mm
- Displacement: 589 cm³
- Stroke: 75.00mm
- Piston Clearance: 0.06mm
- Wossner Compression Ratio: 10.20:1
- OEM Compression Ratio: 9.00:1
- Dome Volume: -5.90 cm³
- Compression Height: 32.80mm
- Circlip Part Number: CW24
- Pin Part Number: WP057
- Ring Set Part Number: 1005XSY
