PISTON 83-87 XL600R 100.00, WOSSNER 8822DA HONDA 13110-MK2-043
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

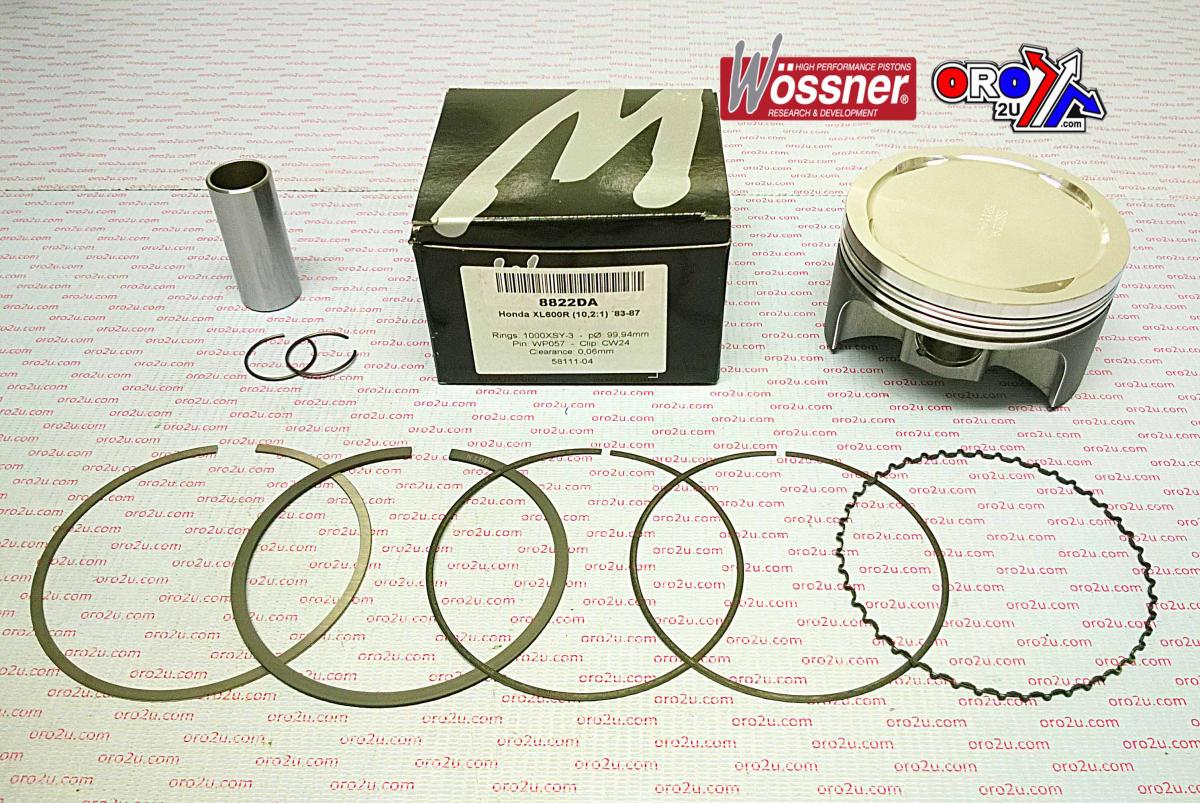

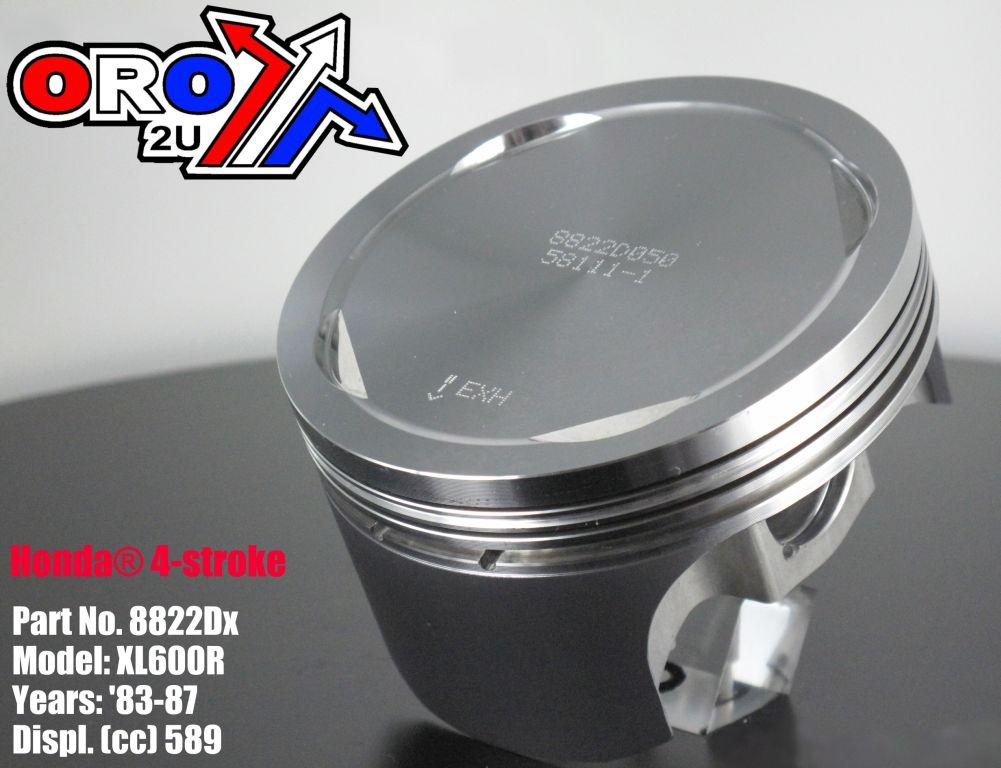

This Wossner forged piston kit is a standard-size replacement for Honda XL600R models (1983-1987). It features forged piston construction for superior durability, an elliptical design for even bearing surface during thermal expansion, and efficient heat dissipation. This piston minimizes localized pressure and helps prevent piston collapse. Manufactured in Germany. Bore Size: 100.00mm, Actual Piston Size: 99.94mm, Display Displacement: 589 cm³, Stroke: 75.00mm, Piston Clearance: 0.06mm, Wossner Compression Ratio: 10.20:1, OEM Compression Ratio: 9.00:1, Dome Volume: -5.90 cm³, Compression Height: 32.80mm, Circlip Part Number: CW24, Pin Part Number: WP057, Ring Set Part Number: 1000XSY. Cross-reference OEM Part Numbers: 13110-MK2-043, 4366M09700.
- SKU
- 56-W926.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (10)
| Make | Model | Year |
|---|---|---|
| HONDA | XL 600 | 1983 |
| HONDA | XL 600 | 1984 |
| HONDA | XL 600 | 1985 |
| HONDA | XL 600 | 1986 |
| HONDA | XL 600 | 1987 |
| HONDA | XL R 600 | 1983 |
| HONDA | XL R 600 | 1984 |
| HONDA | XL R 600 | 1985 |
| HONDA | XL R 600 | 1986 |
| HONDA | XL R 600 | 1987 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 100.00mm
- Variant Id
- 258269
FULL DESCRIPTION
Wossner Forged Piston Kit for Honda XL600R
Upgrade your Honda XL600R's engine with this high-performance Wossner forged piston kit. Engineered for durability and enhanced combustion, this standard-size replacement piston is designed to meet the demands of four-stroke engines.
Key Features:
- Forged piston construction ensures superior strength and longevity under high stress.
- Elliptical piston design promotes even bearing surface distribution during thermal expansion.
- Facilitates efficient heat dissipation from the combustion chamber to the cylinder walls.
- Minimizes localized pressure, helping to prevent piston collapse.
- Precision manufactured in Germany for exceptional quality and performance.
- Increases compression ratio from OEM 9.00:1 to 10.20:1 for improved power output.
Specifications:
- Bore Size: 100.00mm
- Actual Piston Size: 99.94mm
- Stroke: 75.00mm
- Piston Clearance: 0.06mm
- Wossner Compression Ratio: 10.20:1
- Dome Volume: -5.90 cm³
- Compression Height: 32.80mm
- Circlip Part Number: CW24
- Pin Part Number: WP057
- Ring Set Part Number: 1000XSY
OEM Cross Reference:
- 13110-MK2-043
- 4366M09700
