PISTON 05-07 RMZ450 95.50 HC, FORGED WOSSNER KIT 8616DC
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with high compression and durability. Engineered for optimal heat transfer to cylinder walls for efficient combustion. Features an elliptical design for a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards. Includes high-compression forged piston, optimized heat transfer, elliptical design, manufactured in Germany, and two-ring piston design. Specifications: Bore Size 96.02mm, Actual Bore Diameter 95.96mm, Displacement 449 cm³, Stroke 95.46mm, Clearance 0.04mm, Wossner Compression Ratio 13.50:1, OEM Compression Ratio 12.00:1, Dome Volume +1.40 cm³, Compression Height 22.30mm. Included Components: Lock Part Number CW19, Pin Part Number WP037, Ring Set Part Number 955XSY, Rod Part Number P4012.
- SKU
- 56-W207.C.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM-Z 450 | 2005 |
| SUZUKI | RM-Z 450 | 2006 |
| SUZUKI | RM-Z 450 | 2007 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95.5mm
- Variant Id
- 254993
FULL DESCRIPTION

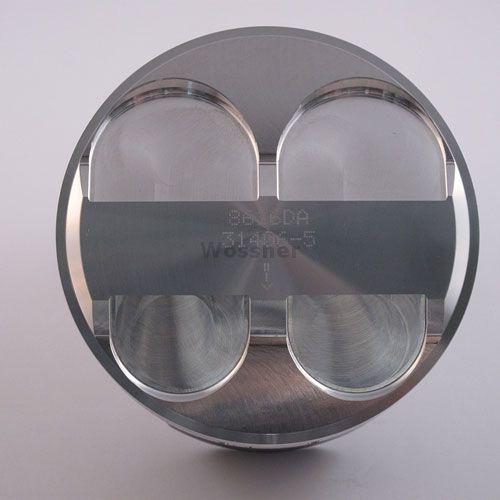

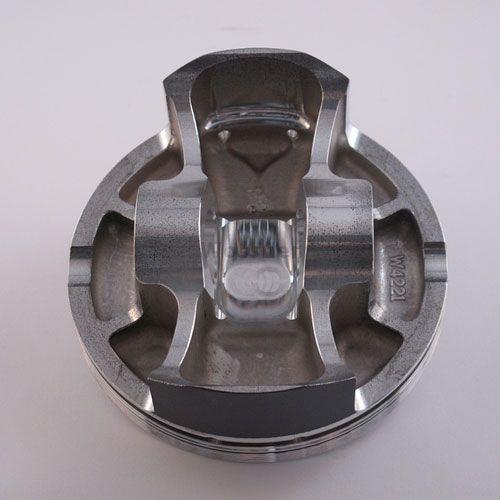

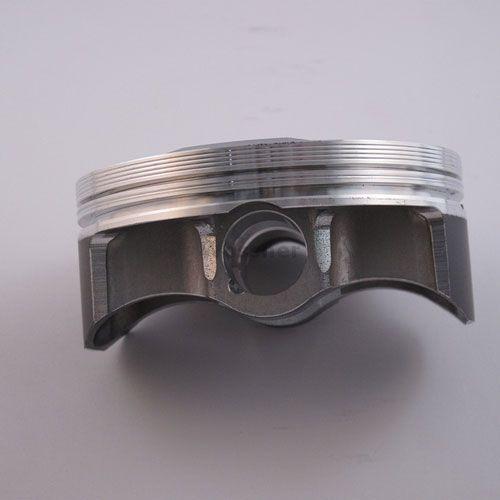

Wossner High Compression Forged Piston Kit for 449cc Engines
Enhance the performance and durability of your motorcycle with this Wossner forged piston kit. Engineered in Germany, this high-compression piston is designed for optimal efficiency and longevity.
The piston features an advanced elliptical design that ensures a uniform bearing surface even under extreme heat expansion. This innovative design effectively reduces localized pressure and evenly distributes thrust loads, preventing piston collapse and maintaining consistent operation.
Experience improved combustion thanks to the piston's optimized heat transfer capabilities, which efficiently move heat to the cylinder walls. This kit includes essential components for a complete installation.
Key Features:
- High-compression forged piston for superior performance
- Elliptical design prevents piston collapse under heat
- Optimized heat transfer for efficient combustion
- Precision manufactured in Germany to high-quality standards
- Durable two-ring piston design
Specifications:
- Bore Size: 96.02mm
- Actual Bore Diameter: 95.96mm
- Displacement: 449 cm³
- Stroke: 95.46mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.00:1
- Dome Volume: +1.40 cm³
- Compression Height: 22.30mm

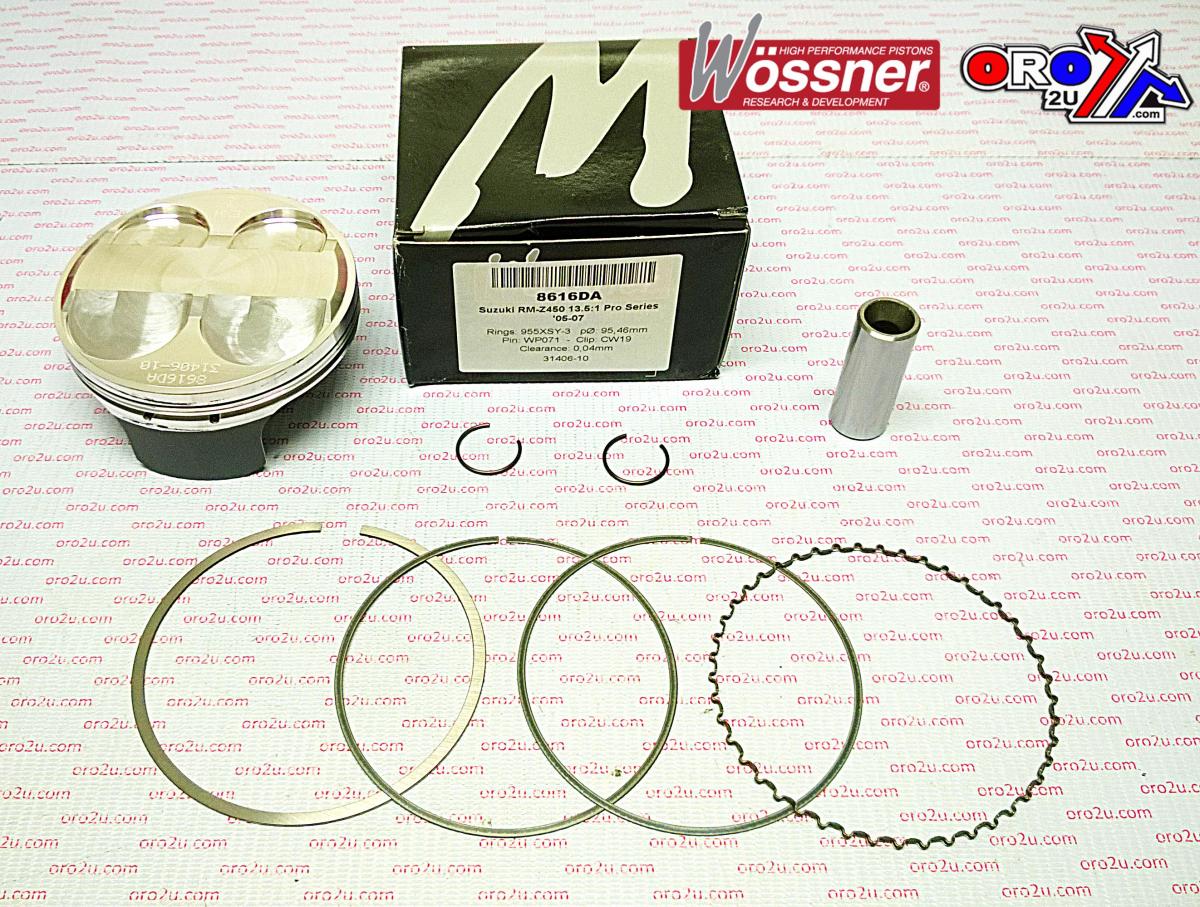

Included Components:
- Lock Part Number: CW19
- Pin Part Number: WP037
- Ring Set Part Number: 955XSY
- Rod Part Number: P4012
