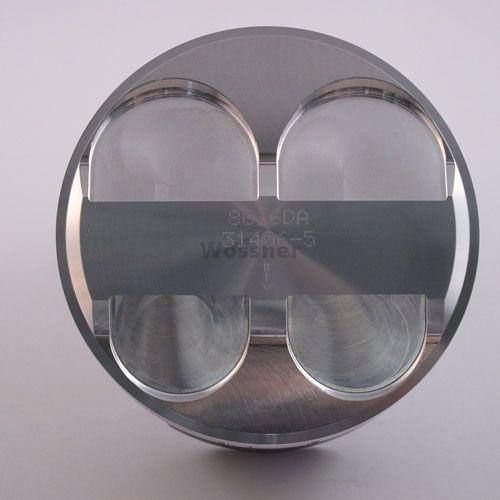

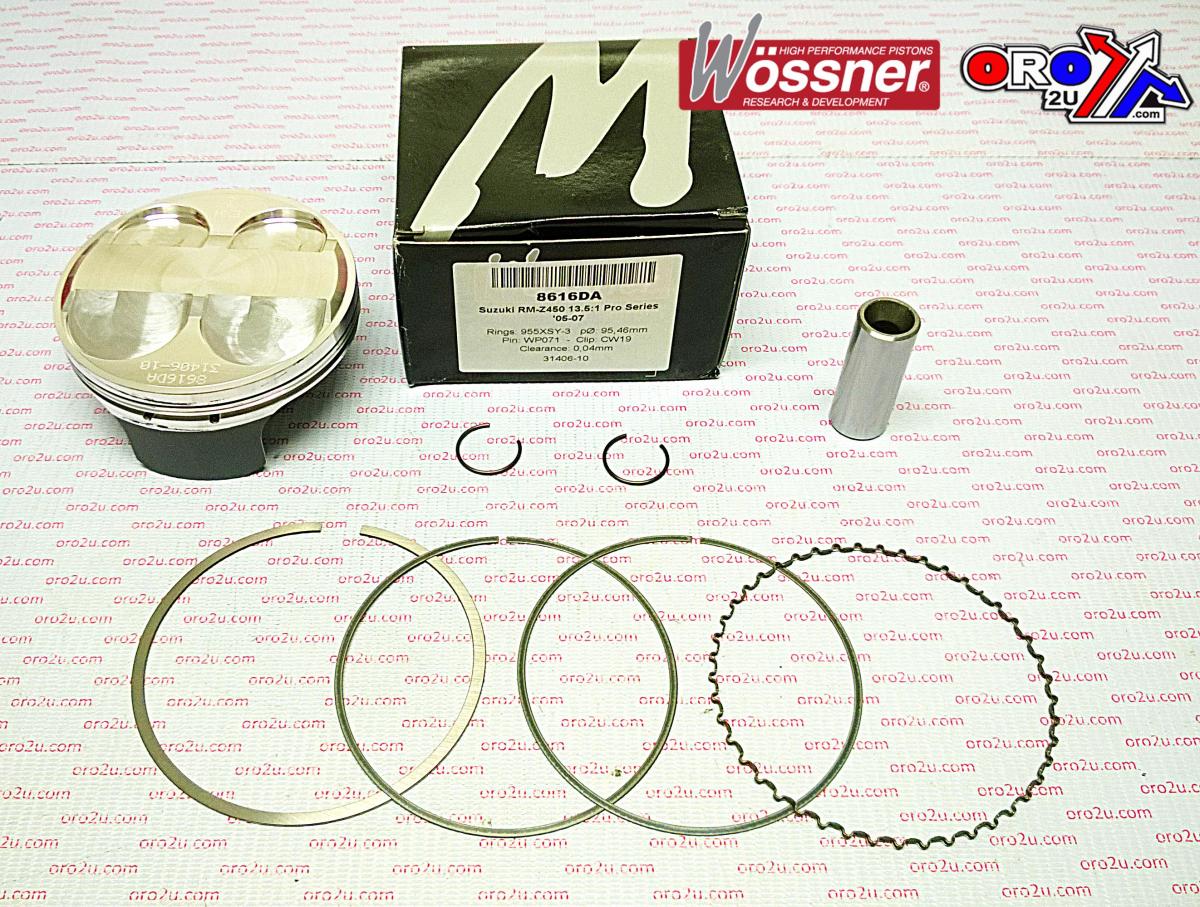

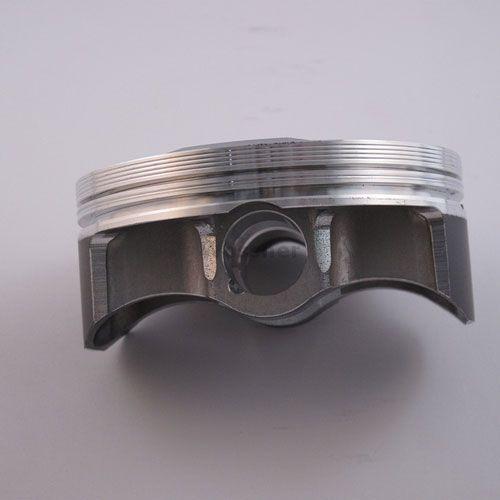

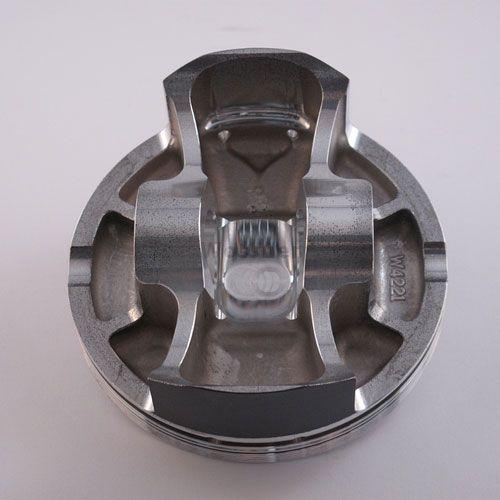

PISTON 05-07 RMZ450 95.50 HC, FORGED WOSSNER KIT 8616DB
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit for high compression and durability. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards. Features include a high-compression forged piston for enhanced performance, optimized heat transfer for efficient combustion, an elliptical design to prevent piston collapse, and a two-ring piston design. Specifications include a bore size of 96.01mm, actual bore diameter of 95.95mm, displacement of 449 cm³, stroke of 95.46mm, clearance of 0.04mm, Wossner compression ratio of 13.50:1, OEM compression ratio of 12.00:1, dome volume of +1.40 cm³, and compression height of 22.30mm. Included components are lock part number CW19, pin part number WP037, ring set part number 955XSY, and rod part number P4012.
- SKU
- 56-W207.B.WO
- Brand
- Wossner
- Availability
- In Stock (3)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM-Z 450 | 2005 |
| SUZUKI | RM-Z 450 | 2006 |
| SUZUKI | RM-Z 450 | 2007 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95.5mm
- Variant Id
- 254992
FULL DESCRIPTION
Wossner High Compression Forged Piston Kit
This Wossner forged piston kit is engineered for superior performance and durability. Designed for high compression applications, it features an advanced elliptical profile that ensures a uniform bearing surface even under extreme heat expansion. This intelligent design effectively reduces localized pressure and evenly distributes thrust loads, preventing piston collapse and promoting longevity.
The piston is optimized for efficient heat transfer to the cylinder walls, contributing to optimal combustion and engine efficiency. Manufactured to exacting standards in Germany, this Wossner piston is built to last.
Key Features
- High-compression forged piston for enhanced engine performance
- Elliptical design prevents piston collapse by managing heat expansion
- Optimized heat transfer for efficient combustion
- Durable construction manufactured in Germany
- Features a two-ring piston design
Specifications
- Bore Size: 96.01mm
- Actual Bore Diameter: 95.95mm
- Displacement: 449 cm³
- Stroke: 95.46mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.00:1
- Dome Volume: +1.40 cm³
- Compression Height: 22.30mm
Included Components
- Lock Part Number: CW19
- Pin Part Number: WP037
- Ring Set Part Number: 955XSY
- Rod Part Number: P4012
