PISTON 05-07 RMZ450 95.50 HC, FORGED WOSSNER KIT 8616DA, 12111-35G01-0F0
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged high-compression piston kit with an elliptical design for uniform bearing surface and even thrust load distribution, preventing piston collapse. Engineered for optimal heat transfer to cylinder walls for efficient combustion. Manufactured in Germany. Features include a two-ring piston design. Specifications: Bore Size 96.00mm, Actual Bore Diameter 95.94mm, Displacement 449 cm³, Stroke 95.46mm, Clearance 0.04mm, Wossner Compression Ratio 13.50:1, OEM Compression Ratio 12.00:1, Dome Volume +1.40 cm³, Compression Height 22.30mm. Includes Lock Part Number CW19, Pin Part Number WP037, Ring Set Part Number 955XSY, Rod Part Number P4012. Cross-reference OEM Part Number: 12111-35G01-0F0.
- SKU
- 56-W207.A.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM-Z 450 | 2005 |
| SUZUKI | RM-Z 450 | 2006 |
| SUZUKI | RM-Z 450 | 2007 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95.5mm
- Variant Id
- 254991
FULL DESCRIPTION
Wossner Forged High Compression Piston Kit
Upgrade your engine's performance with this Wossner forged piston kit. Engineered in Germany, this high-compression piston is designed for superior durability and optimal combustion efficiency. Its advanced elliptical design ensures uniform bearing surfaces under heat expansion, which reduces localized pressure and evenly distributes thrust loads to prevent piston collapse.
Key Features:
- High-compression forged piston for enhanced engine performance
- Optimized heat transfer to cylinder walls for efficient combustion
- Elliptical design prevents piston collapse by reducing localized pressure
- Expertly manufactured in Germany to stringent quality standards
- Features a two-ring piston design
Specifications:
- Bore Size: 96.00mm
- Actual Bore Diameter: 95.94mm
- Displacement: 449 cm³
- Stroke: 95.46mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.00:1
- Dome Volume: +1.40 cm³
- Compression Height: 22.30mm

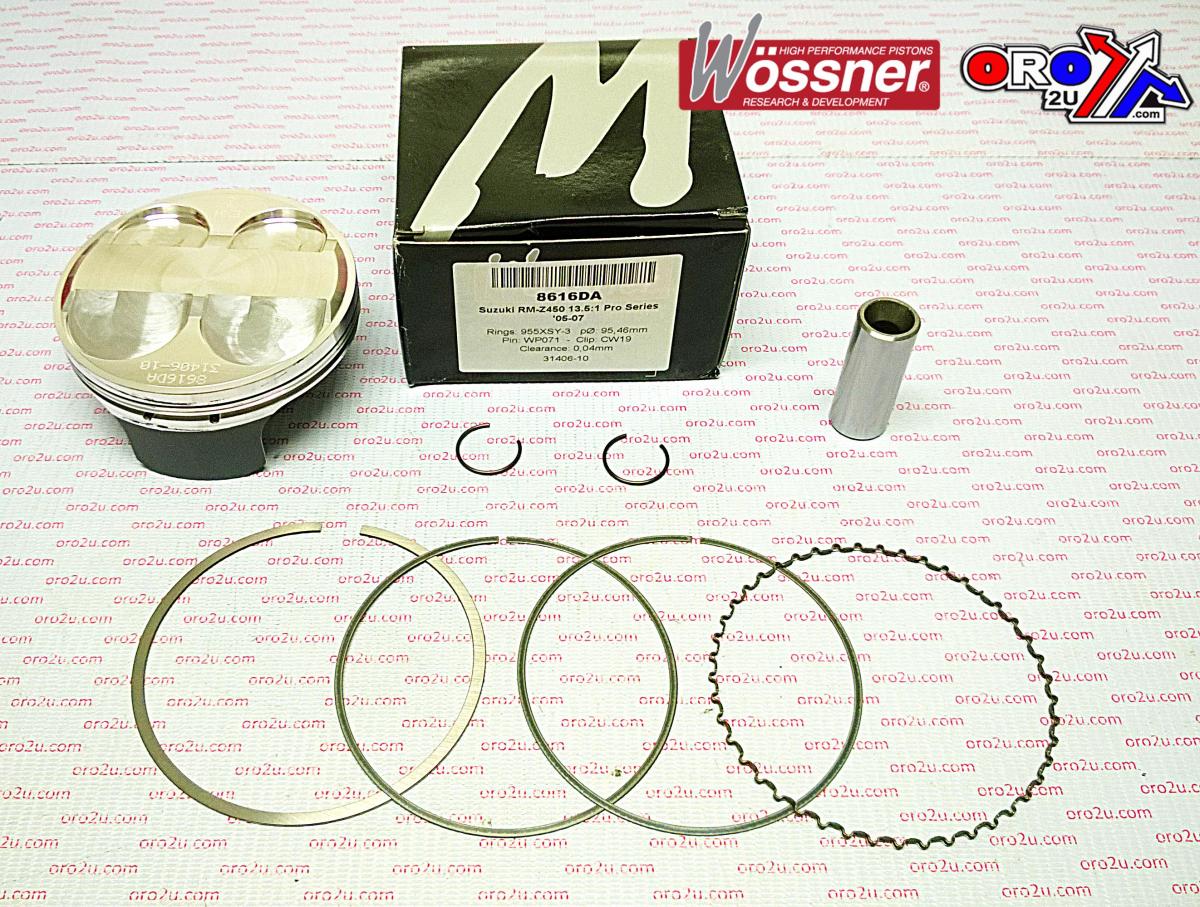

Included Components:
- Lock Part Number: CW19
- Pin Part Number: WP037
- Ring Set Part Number: 955XSY
- Rod Part Number: P4012
Cross-Reference OEM Part Numbers:
- 12111-35G01-0F0
