PISTON 04-09 HUSABERG 450 100, WOSSNER 8593DB FORGED KIT
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

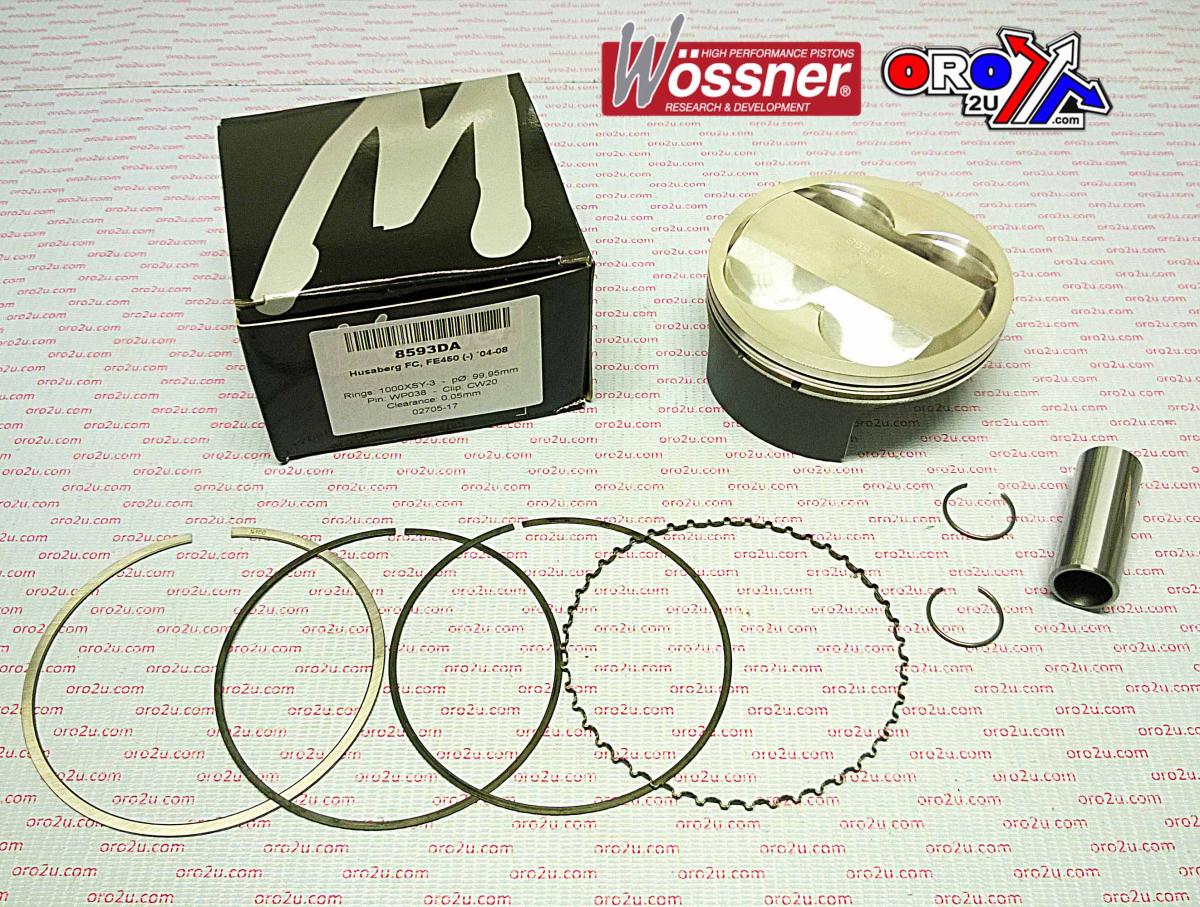

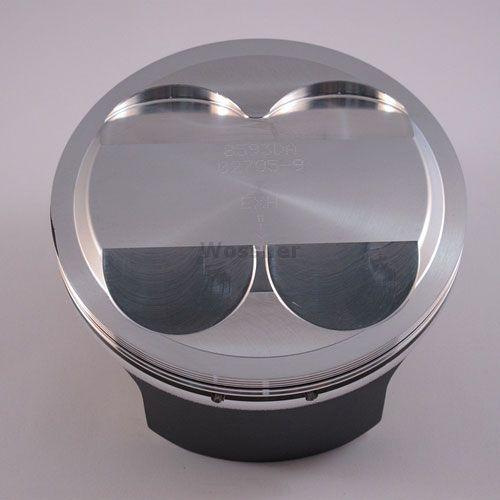

Wossner forged piston kit designed for superior strength and performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. Forged construction for enhanced durability. Optimized heat transfer for improved performance. Elliptical design prevents localized pressure and piston collapse. OEM compression ratio for direct replacement. Bore: 99.96 mm. Piston Size: 100.01 mm. Displacement: 449 cm³. Stroke: 57.20 mm. Clearance: 0.05 mm. Wossner Compression Ratio: OEM. OEM Compression Ratio: 13.00:1. Dome Volume: +9.00 cm³. Compression Height: 24.30 mm. Lock: CW20. Pin: WP038. Ring Set: 1000XSY.
- SKU
- 56-W028+00B
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- Variant Id
- 254312
FULL DESCRIPTION
Wossner Forged Piston Kit - Superior Strength and Performance
This Wossner forged piston kit is engineered for exceptional strength and optimal performance. Its advanced design promotes superior heat transfer from the combustion chamber to the cylinder walls. The elliptical piston design ensures a consistent bearing surface even under extreme heat expansion, effectively reducing localized pressure and distributing thrust loads evenly to prevent piston collapse.
Key Features:
- Forged construction for enhanced durability and longevity.
- Optimized heat transfer capabilities for improved engine performance.
- Elliptical design engineered to prevent localized pressure and piston collapse.
- Maintains OEM compression ratio for a direct replacement fit.
Specifications:
- Bore: 99.96 mm
- Piston Size: 100.01 mm
- Displacement: 449 cm³
- Stroke: 57.20 mm
- Clearance: 0.05 mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 13.00:1
- Dome Volume: +9.00 cm³
- Compression Height: 24.30 mm
Included Components:
- Lock: CW20
- Pin: WP038
- Ring Set: 1000XSY
