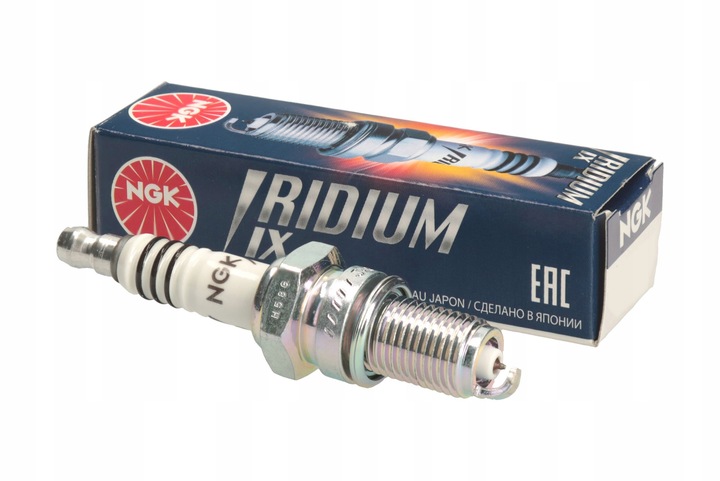

NGK SPARK PLUG BR10EIX RACING 6801 NG

NGK Iridium IX Spark Plug - BR10EIX

Experience the ultimate in spark plug technology with the NGK Iridium IX Spark Plug. Designed for superior performance and extended lifespan, this spark plug features an ultra-small diameter center electrode made from iridium, which is 25% smaller than platinum and significantly smaller than conventional nickel electrodes. This design reduces voltage requirements, prolongs ignition system life, and ensures a brighter, stronger spark for enhanced ignitability. The tapered cut ground electrode further optimizes flame core growth. The metal shell plating provides enhanced corrosion resistance, while the copper core and triple-sealed insulator ensure excellent heat transfer and prevent leakage. This spark plug is sold individually and features a solid terminal nut for durability in high-vibration environments.

Key Features:

• Ultimate in spark plug technology and performance.
• Iridium Electrode: 25% smaller than platinum and 1/4 the size of a conventional nickel electrode.
• Ultra-Small Diameter Center Electrode (0.6 mm): Reduces voltage requirements and extends ignition system life.
• Tapered Cut Ground Electrode: Improves flame core growth and ignitability.
• New metal shell plating provides enhanced anticorrosion qualities.
• Solid Terminal Nut: Ensures durability in high-vibration applications.
• Copper core and triple-sealed insulator provide better heat transfer and prevent leakage.
• Resistor Type.
• Sold individually.

Specifications:

• Heat Range: 10
• Thread Size: 14 mm
• Reach: 19 mm (3/4 inch)
• Hex Size: 13/16 inch (20.6 mm)
• Seat Type: Gasket
• Terminal Nut: Solid Terminal Nut (non-removable)
• Center Electrode: Fine Wire (0.6 mm) Iridium
• Ground Electrode: Tapered Cut Ground Electrode
• Gap: 0.031 inch (0.8 mm)

Cross-Reference:

• NGK Standard Plug Cross-Reference: BR10ES, BR10EV, B10EGP

Alternate/OEM Part Numbers:

• 6801
• BR10EIX
