GR5 UPPER ENGINE BOLT KIT OF 6, KTM SCREW M8X15 TORX45 PK6, / 0035080156S
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply

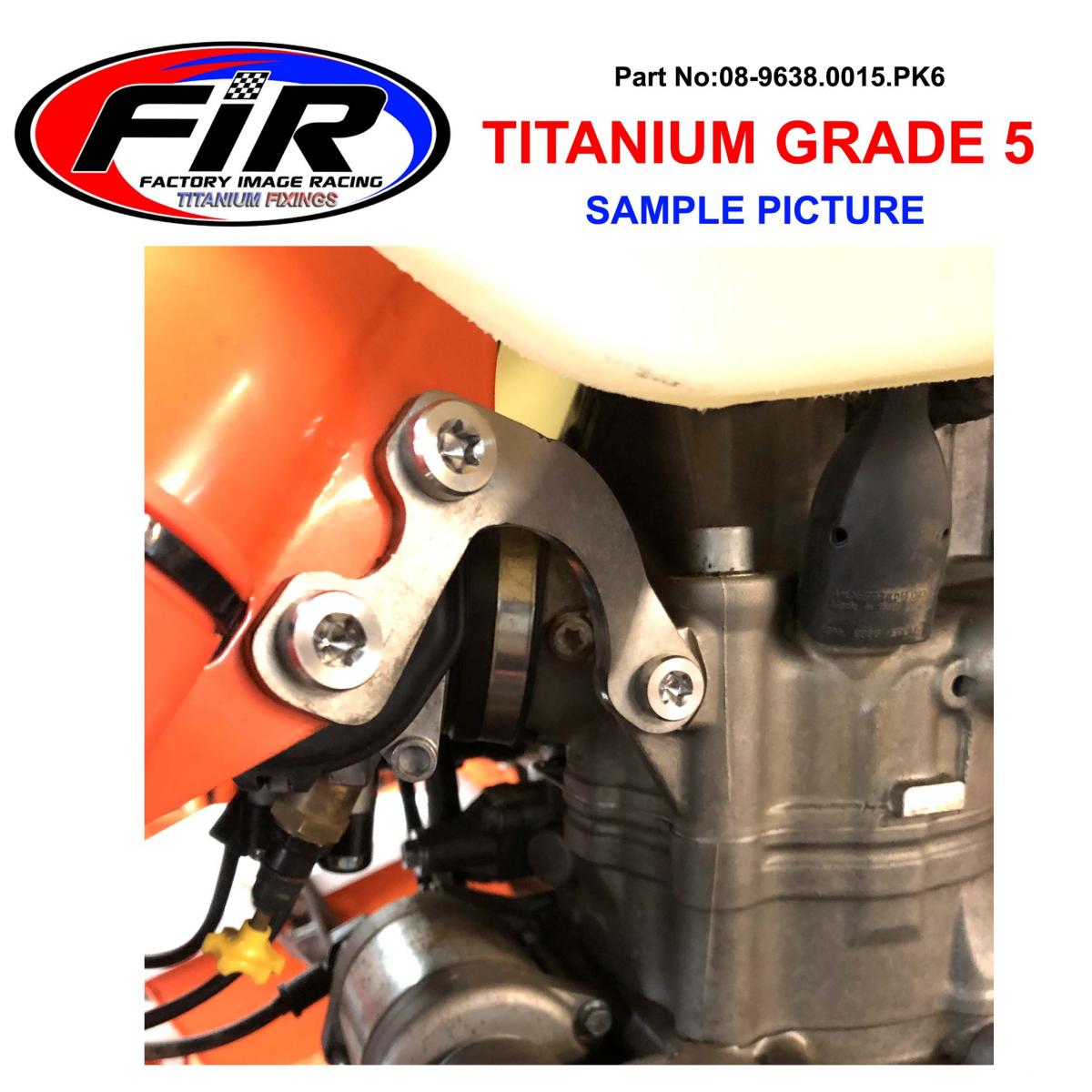

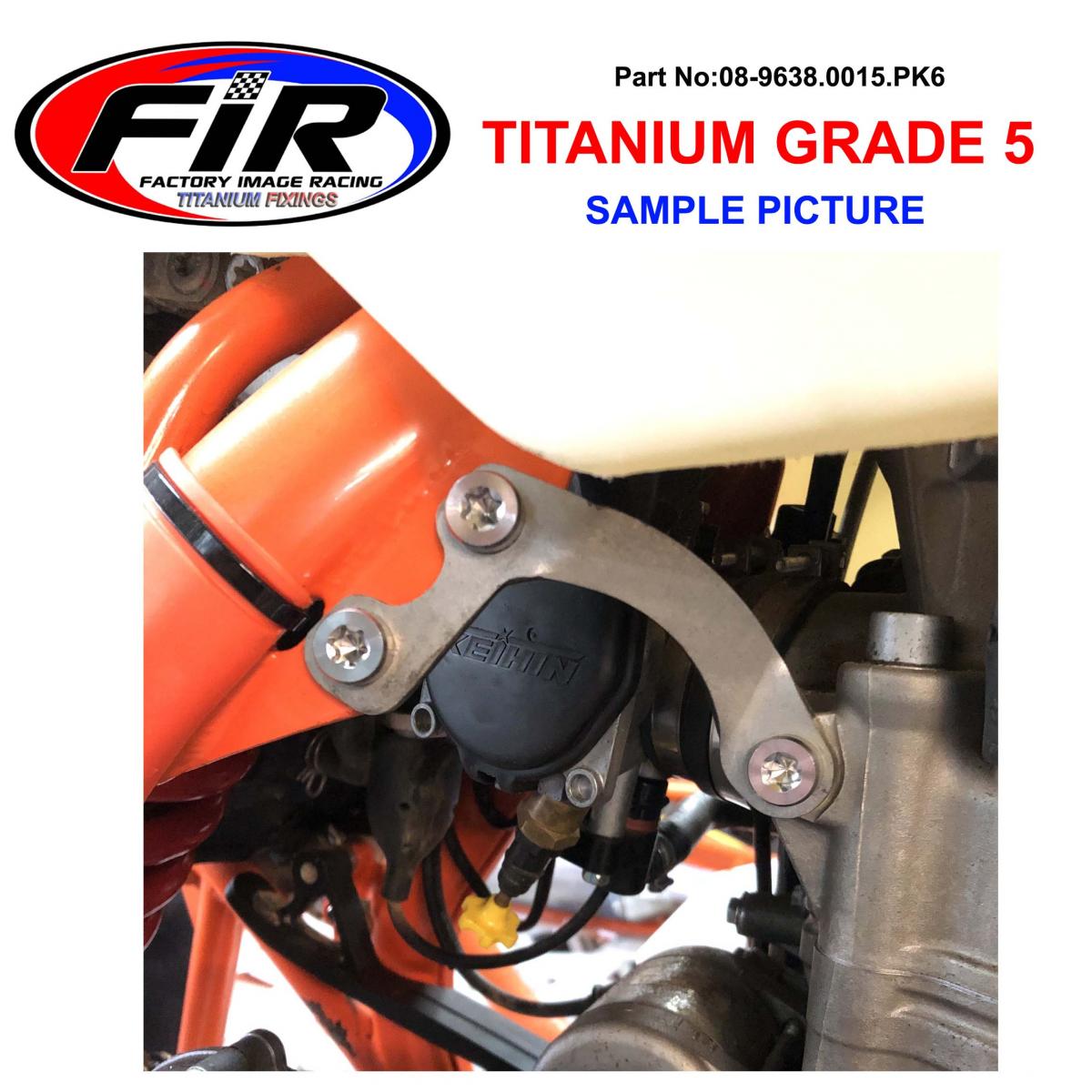

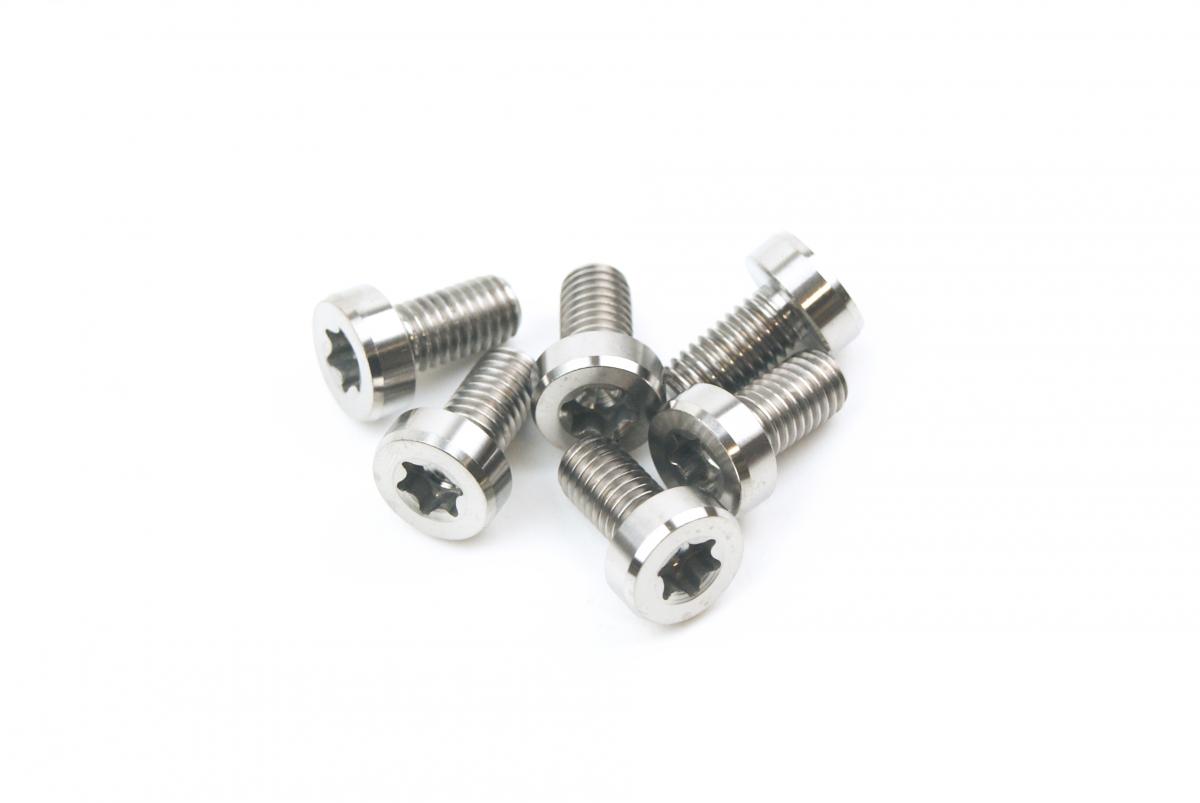

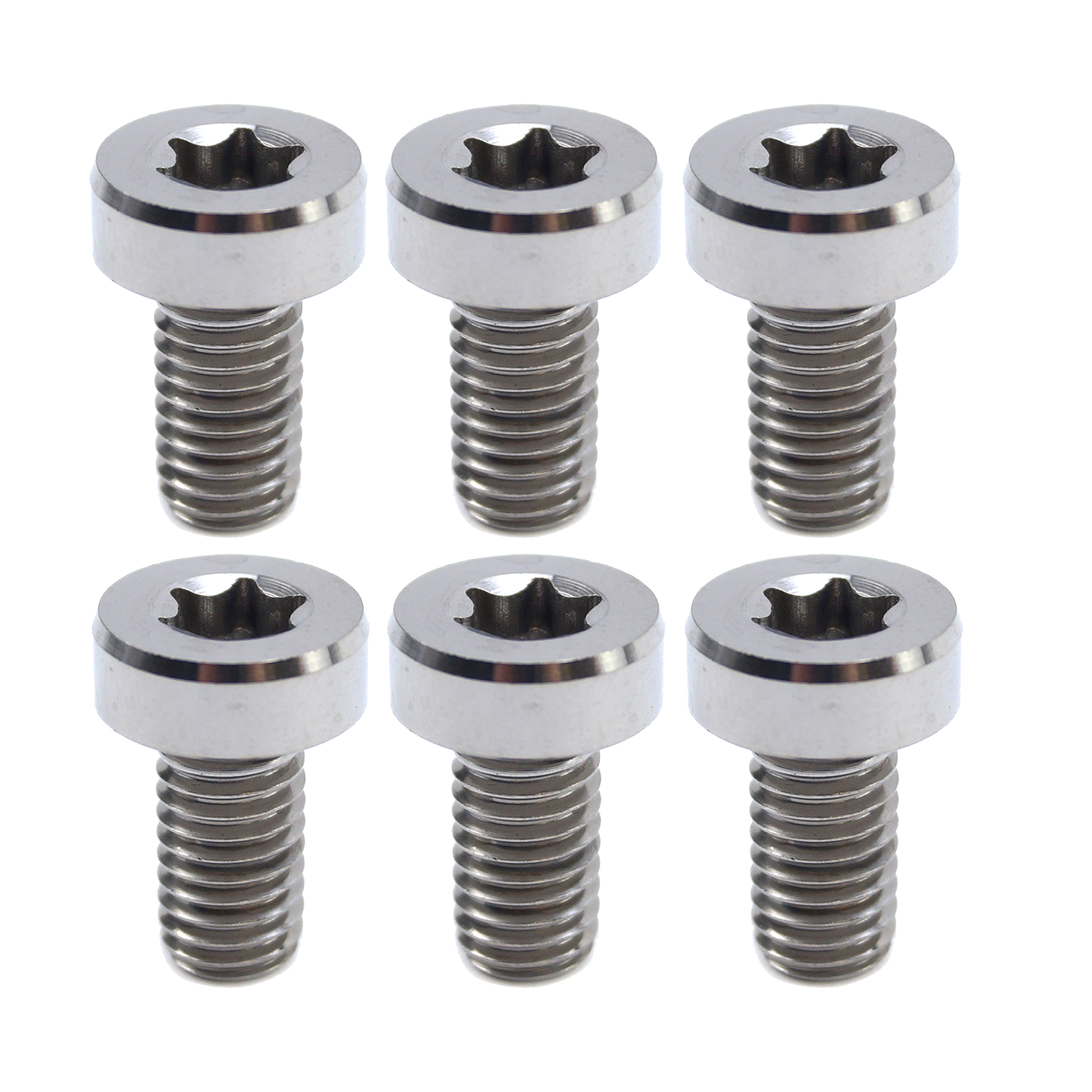

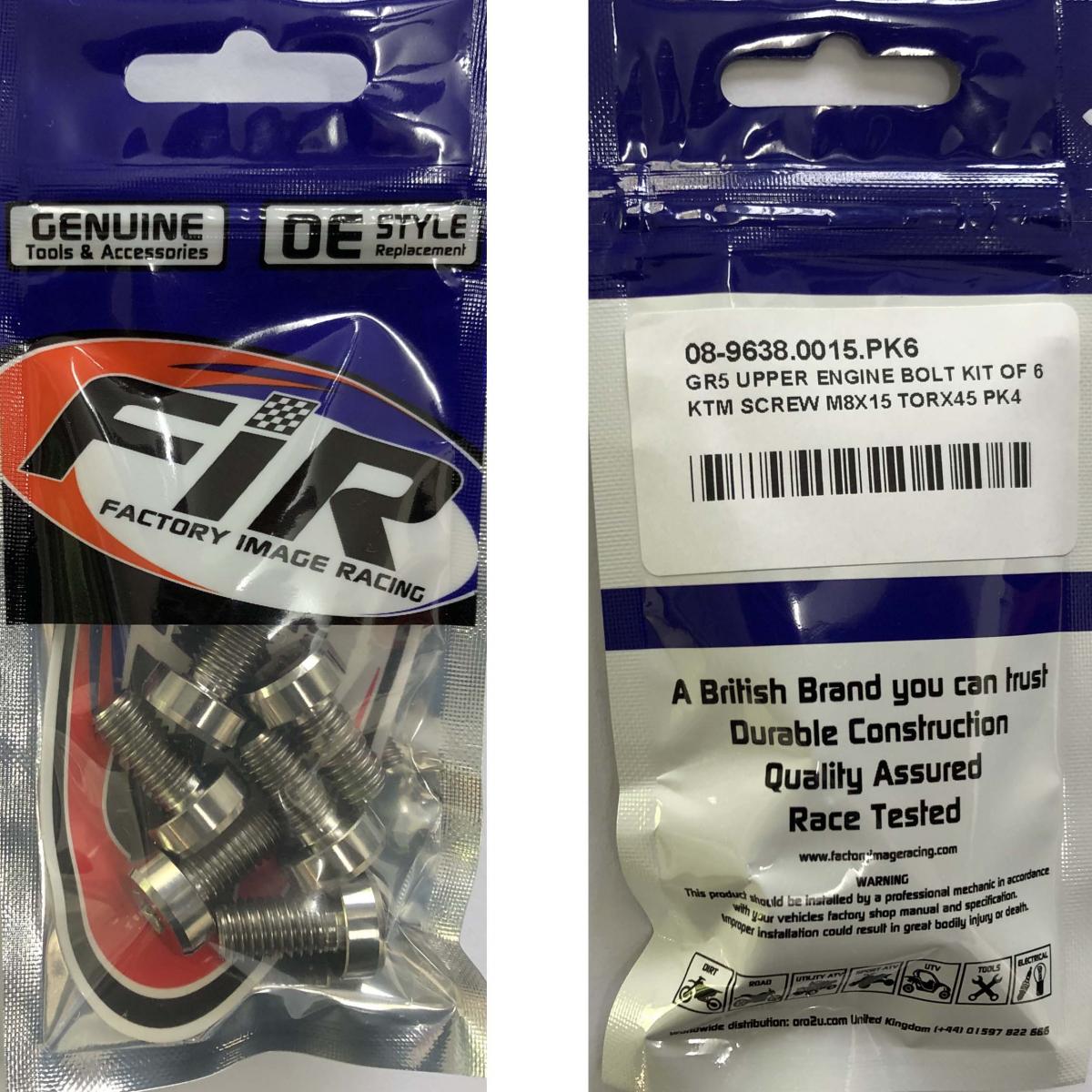

TITANIUM GRADE 5 KTM FACTORY LOOK ROUND HEAD BOLTS WITH TORX 45. Engine bolt kit for 2 & 4 stroke KTM. Material: Grade 5 (6Al/4V). Thread D: M8. Pitch P: M Coarse 1.25mm. Overall length L: 15mm. Thread length: 15mm. Head Torx: T45. Head Type: Round. Flange OD: 14.20mm. Pack size: 6. CNC machined with rolled threads from super strong grade 5 titanium alloy, used for its high strength and super-light properties, also fantastic anti-corrosion properties. Used in every application from motorcycles, cycles & much more. Part No. 08-9638.0015.PK6. Cross reference numbers >0035080156S.
- SKU
- 08-9638.0015.PK6
- Brand
- Factory Image Racing Titanium
- Availability
- In Stock (4)
- General Product Group
- Nuts & Bolts
- General Product Type
- Engine Bolt Kit
- Variant Id
- 294017
FULL DESCRIPTION
GR5 Upper Engine Bolt Kit for KTM - 6 Piece
Upgrade your KTM engine with this premium GR5 Titanium Upper Engine Bolt Kit. These bolts offer a factory look and superior performance for both 2-stroke and 4-stroke KTM engines.
Crafted from high-strength, lightweight Grade 5 (6Al/4V) titanium alloy, these bolts provide exceptional durability and corrosion resistance. They are CNC machined with rolled threads for maximum strength and reliability.
Key Features:
- Material: Grade 5 (6Al/4V) Titanium
- Head Style: Round with Torx T45 drive
- Thread Size: M8
- Thread Pitch: M Coarse 1.25mm
- Overall Length: 15mm
- Thread Length: 15mm
- Head Diameter (Flange OD): 14.20mm
- Pack Size: 6 bolts
- Finish: Provides a factory racing appearance
- Benefits: Super strong, ultra-lightweight, excellent anti-corrosion properties
This bolt kit is ideal for various applications where performance and aesthetics are paramount.
