GR5 SUZUKI ENGINE SPROCKET BOLT, EACH 27517-28H00 27517-28H00-000
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply

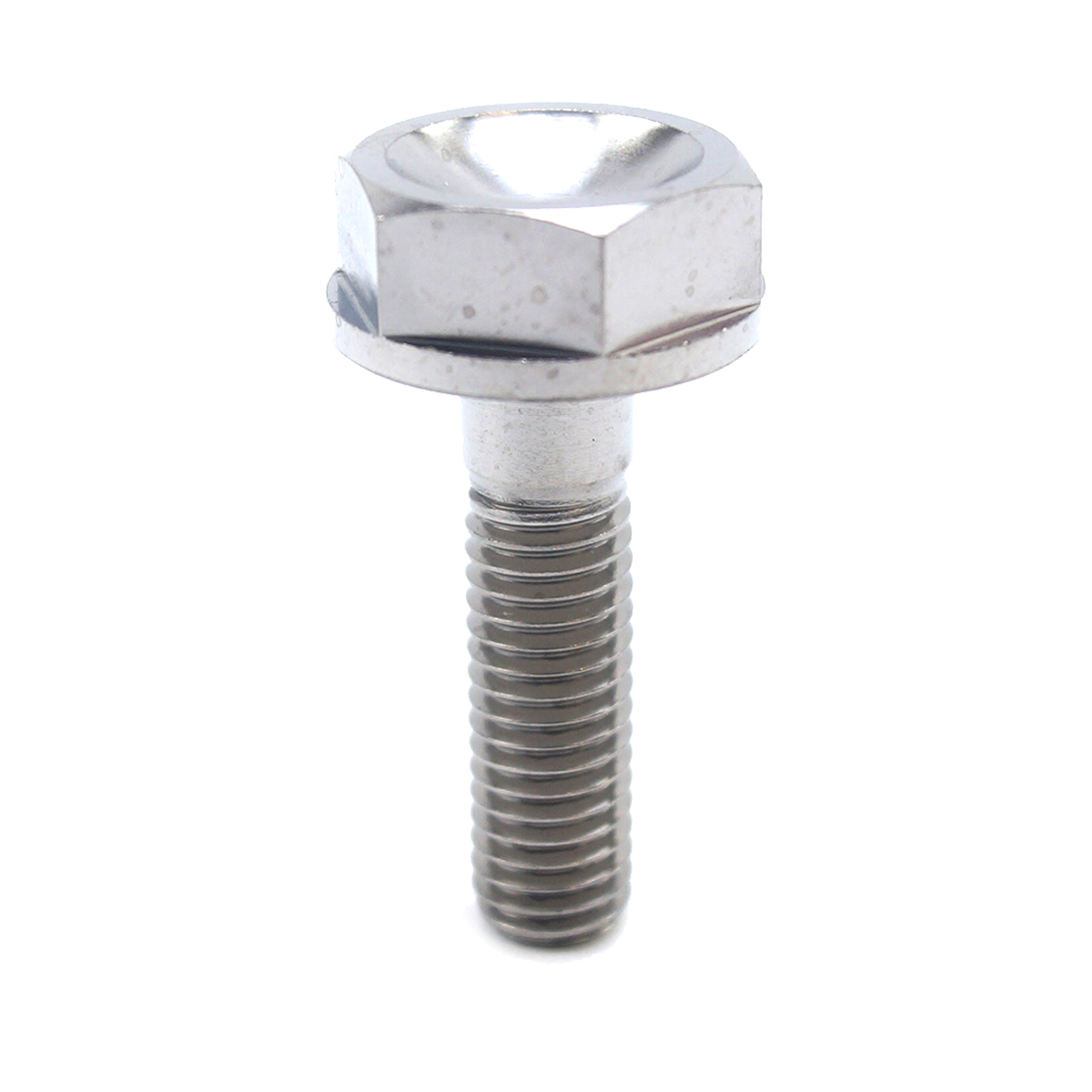

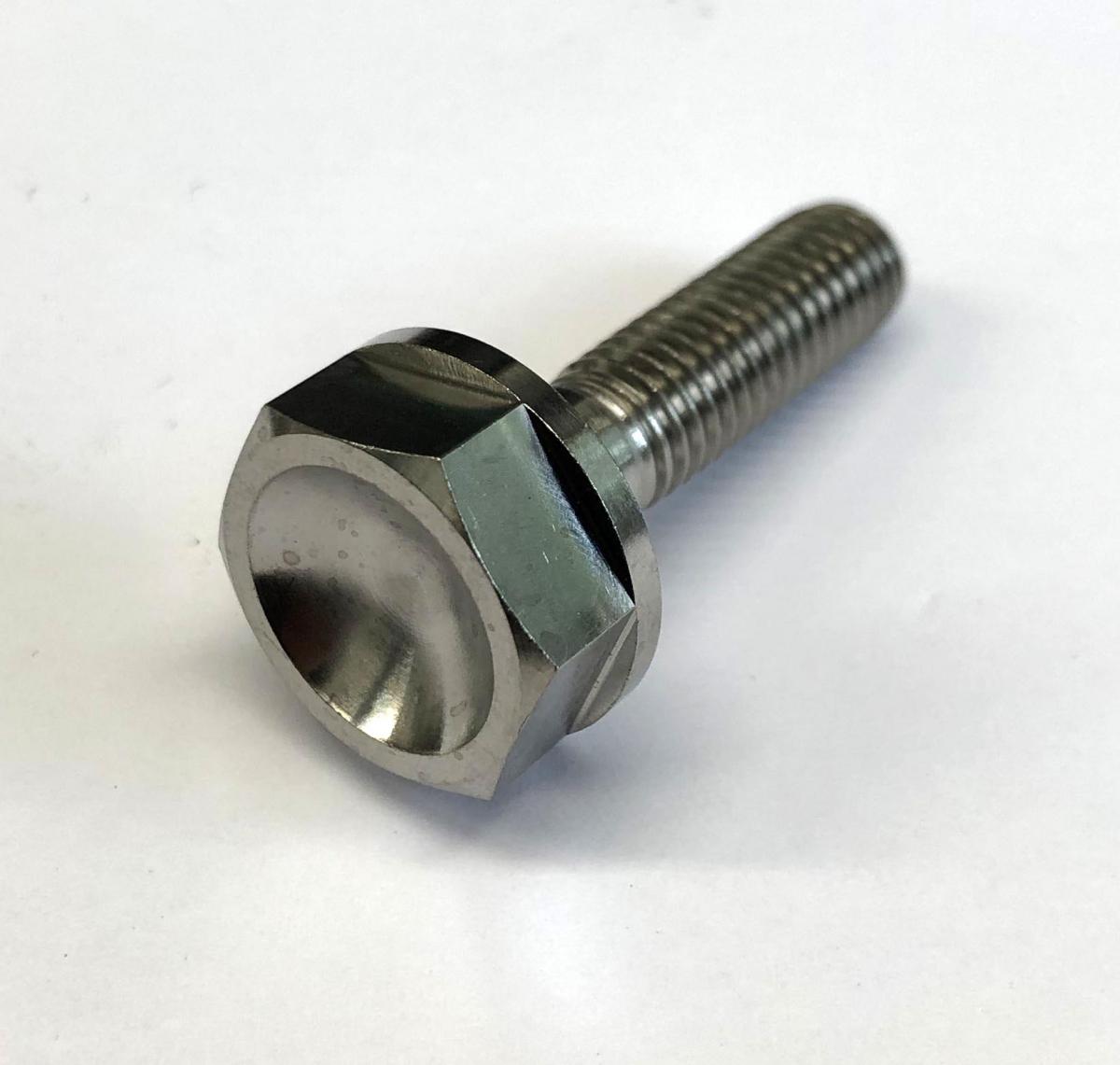

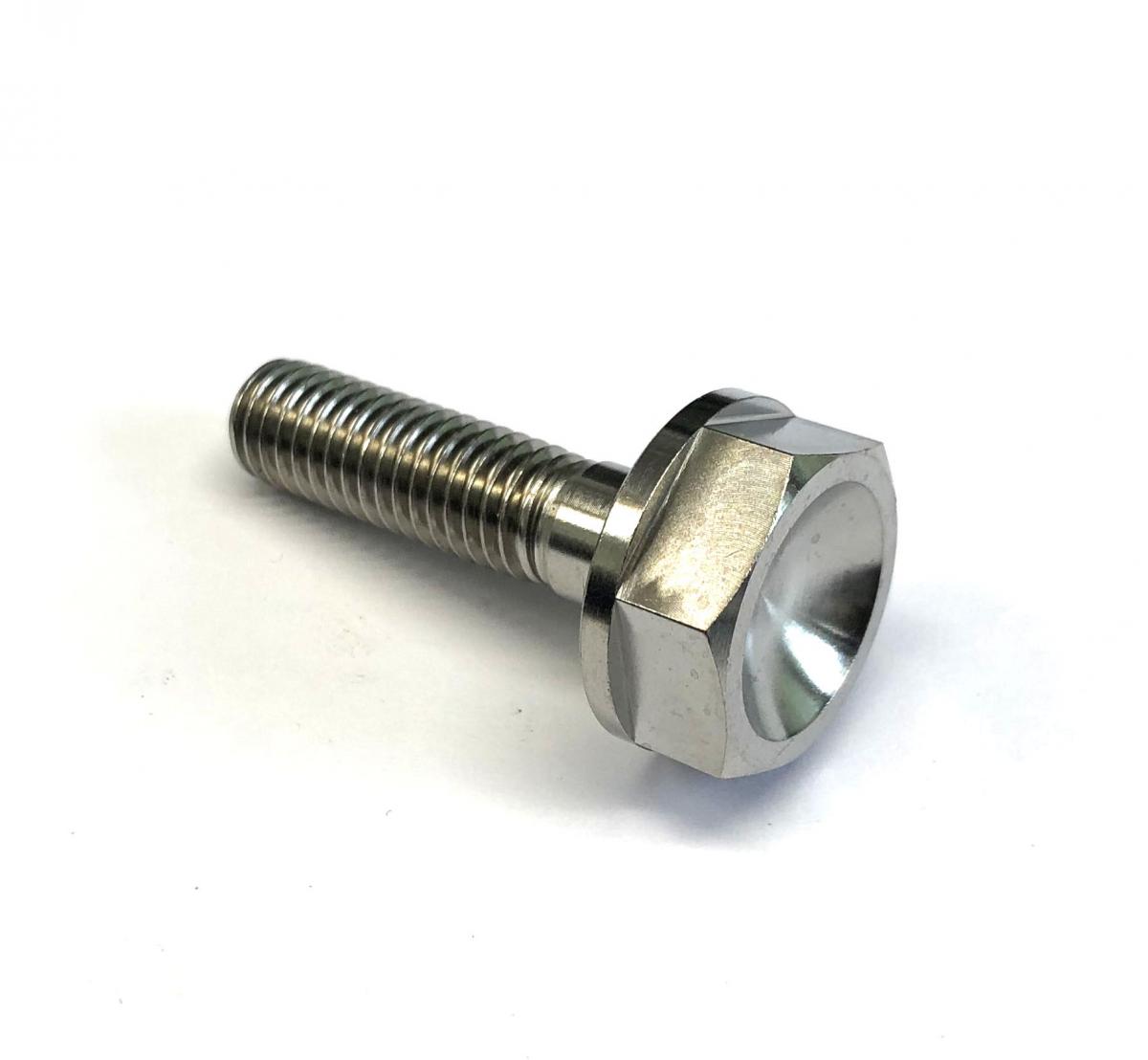

GR5 Suzuki engine sprocket bolt made from Grade 5 (6Al/4V) titanium. Features M8 thread diameter with a 1.25mm pitch, 30.10mm overall length, and 23.80mm thread length. The head has a 17mm spanner size and a 19.45mm flange outside diameter. OEM cross-reference numbers are 27517-28H00 and 27517-28H00-000.
- SKU
- 08-9748.EA
- Brand
- Factory Image Racing Titanium
- Availability
- In Stock (76)
- General Product Group
- Nuts & Bolts
- General Product Type
- Sprocket Bolt
- Variant Id
- 300673
FULL DESCRIPTION
GR5 Titanium Suzuki Engine Sprocket Bolt - Each
Upgrade your motorcycle's engine sprocket with this high-performance bolt crafted from Grade 5 Titanium. Known for its exceptional strength-to-weight ratio and corrosion resistance, Grade 5 titanium is the premier choice for demanding motorcycle applications.
Key Features:
- Material: Grade 5 (6Al/4V) Titanium
- Thread Diameter: M8
- Pitch: 1.25mm
- Overall Length: 30.10mm
- Thread Length: 23.80mm
- Head Type: Hex with a 17mm spanner size
- Flange Outer Diameter: 19.45mm
- OEM Cross Reference Numbers: 27517-28H00, 27517-28H00-000
This bolt offers superior durability and a lightweight alternative to standard steel fasteners, contributing to overall performance and longevity of your engine's drivetrain.
