GR5 KTM RAD GUARDS FIXS PK8 TITANIUM, SX EXC SXF EXCF 16-2020
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply

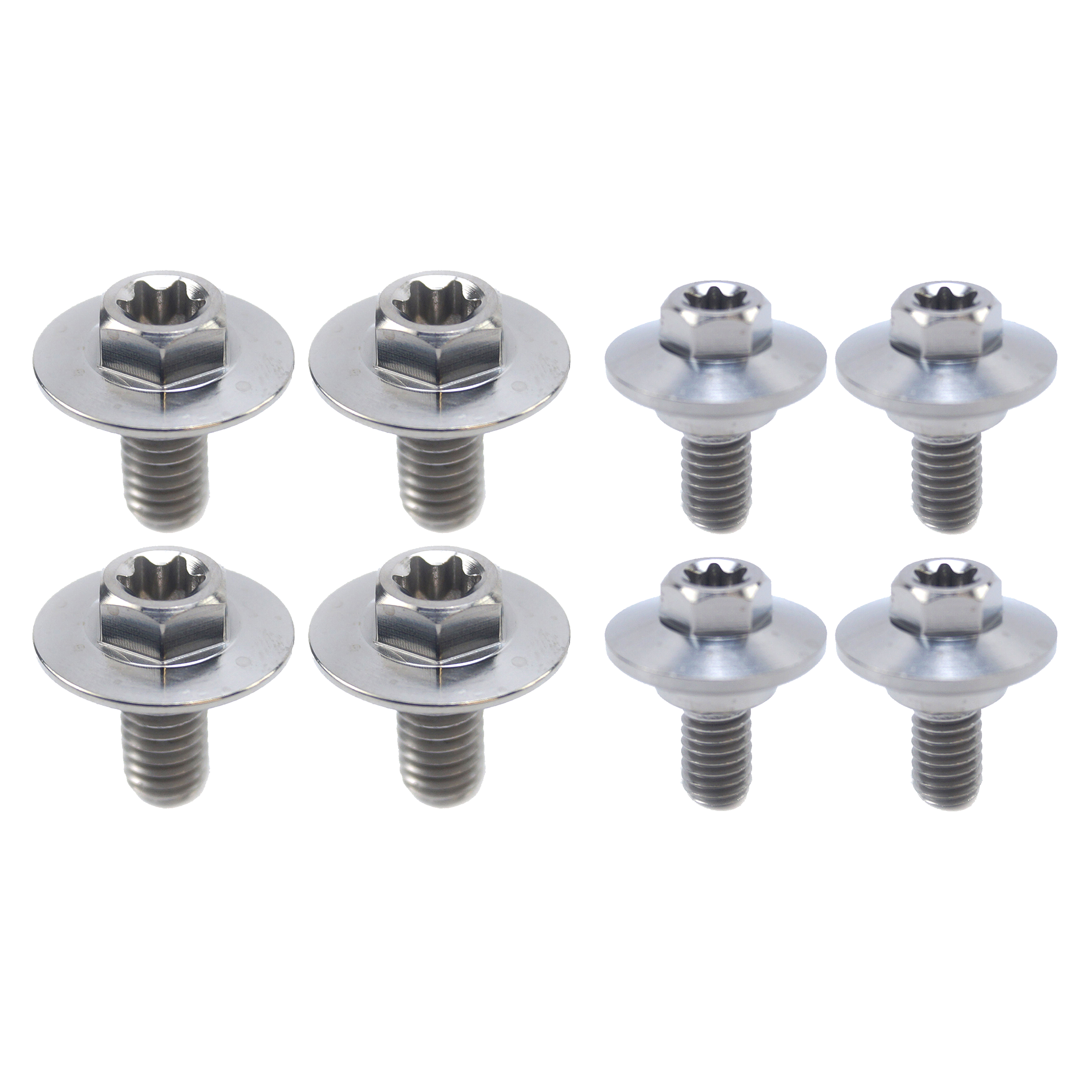

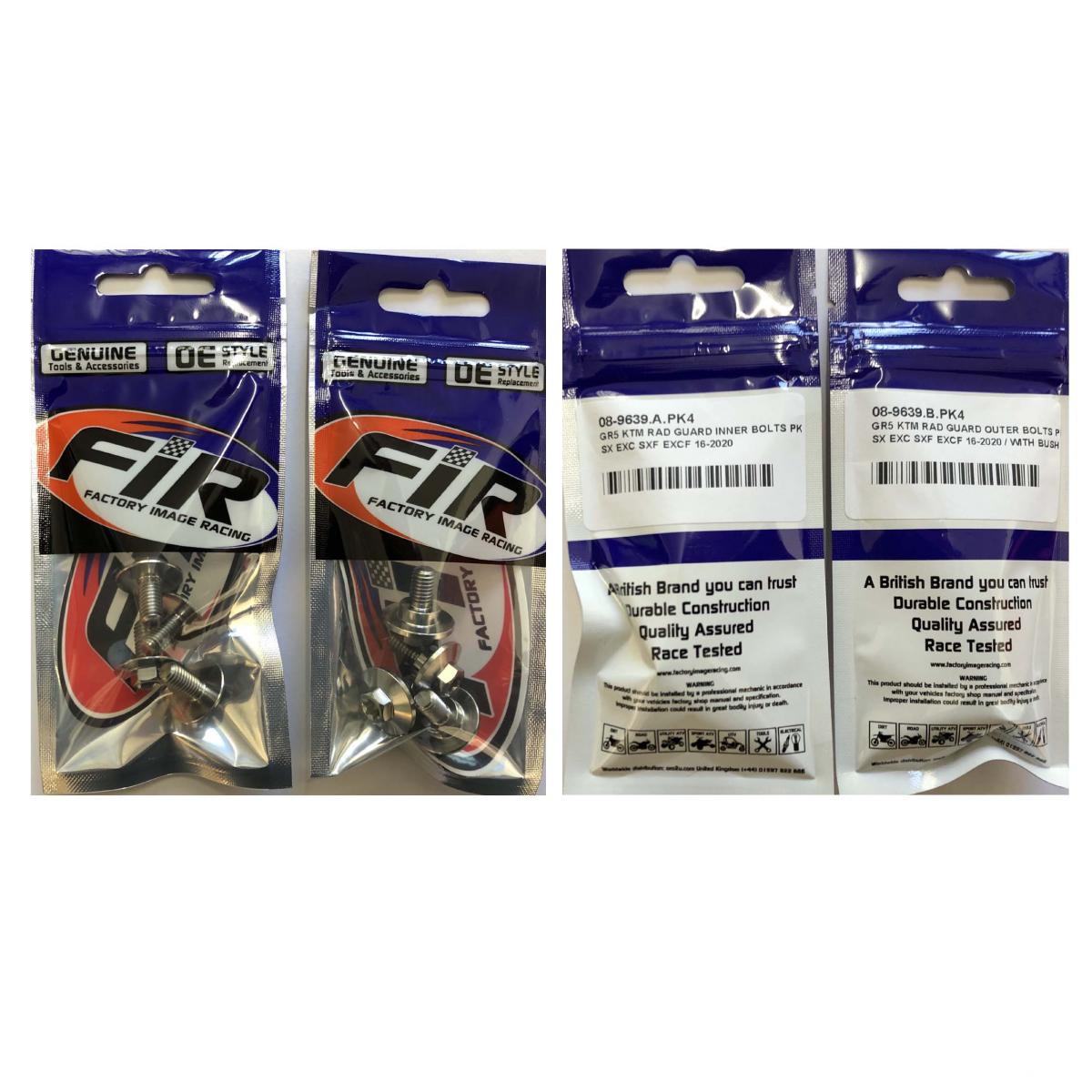

Kit of 8 Grade 5 titanium radiator bolt covers. Includes 4 inner and 4 outer bolts. Inner bolt OEM ref 0024060123. Material Grade 5 (6Al/4V). Thread D: M6. Pitch P: M Coarse 1.00mm. Overall length L: 12.00mm. Thread length: 12.00mm. Head Dual: T45 Torx & 8mm Spanner. Head Type: Round. Flange OD: 17.00mm. Pack size: 4. Outer bolt OEM ref 0025060166 & 79608052000. Material Grade 5 (6Al/4V). Thread D: M6. Pitch P: M Coarse 1.00mm. Overall length L: 13.50mm. Thread length: 10mm. Bush OD: 9.95mm. Bush length: 3.50mm. Head Dual: T45 Torx & 8mm Spanner. Head Type: Round. Flange OD: 17.80mm. Pack size: 4. CNC machined with rolled threads from super strong grade 5 titanium alloy. Used for its high strength and super-light properties. Fantastic anti-corrosion properties. Used in applications from motorcycles and cycles and much more. Part No. 08-9639.KIT. Manufacturer: Factory Image Racing. Weight: 46 grams.
- SKU
- 08-9639.KIT
- Brand
- Factory Image Racing
- Availability
- In Stock (31)
- General Product Group
- Nuts & Bolts
- General Product Type
- Plastic Bolt Kit
- Variant Id
- 293939
FULL DESCRIPTION

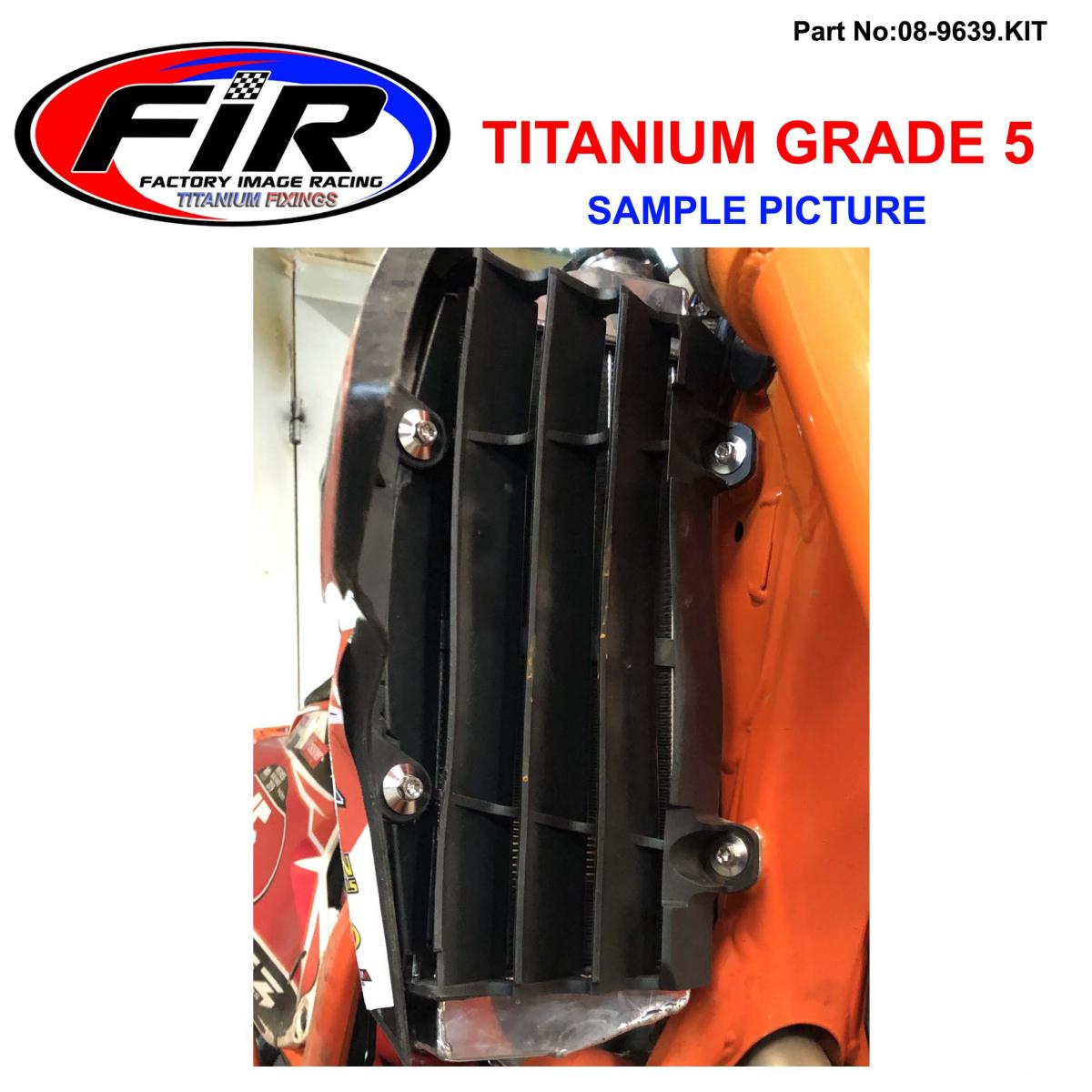

KTM Radiator Guard Bolt Kit - Grade 5 Titanium
Upgrade your KTM's radiator guards with this premium bolt kit crafted from Grade 5 Titanium. This kit provides essential replacement fasteners for your radiator covers, offering superior strength, light weight, and excellent corrosion resistance.
Key Features:
- Material: High-strength Grade 5 (6Al/4V) Titanium alloy
- Construction: CNC machined with rolled threads for enhanced durability
- Corrosion Resistance: Titanium offers excellent protection against rust and environmental damage
- Lightweight: Significantly lighter than standard steel bolts, reducing overall motorcycle weight
- Dual Head Design: Features both T45 Torx and 8mm Spanner drive for versatile installation
Inner Bolt Specifications:
- Thread Diameter: M6
- Thread Pitch: Coarse 1.00mm
- Overall Length: 12.00mm
- Thread Length: 12.00mm
- Head Type: Round
- Flange Outer Diameter: 17.00mm
- Pack Size: 4 bolts
Outer Bolt Specifications:
- Thread Diameter: M6
- Thread Pitch: Coarse 1.00mm
- Overall Length: 13.50mm
- Thread Length: 10mm
- Bush Outer Diameter: 9.95mm
- Bush Length: 3.50mm
- Head Type: Round
- Flange Outer Diameter: 17.80mm
- Pack Size: 4 bolts
