GR5 DUAL/D KTM BOLT 5x20mm EA, TITAUIUM / KTM OEM 0015050203
4.4 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply

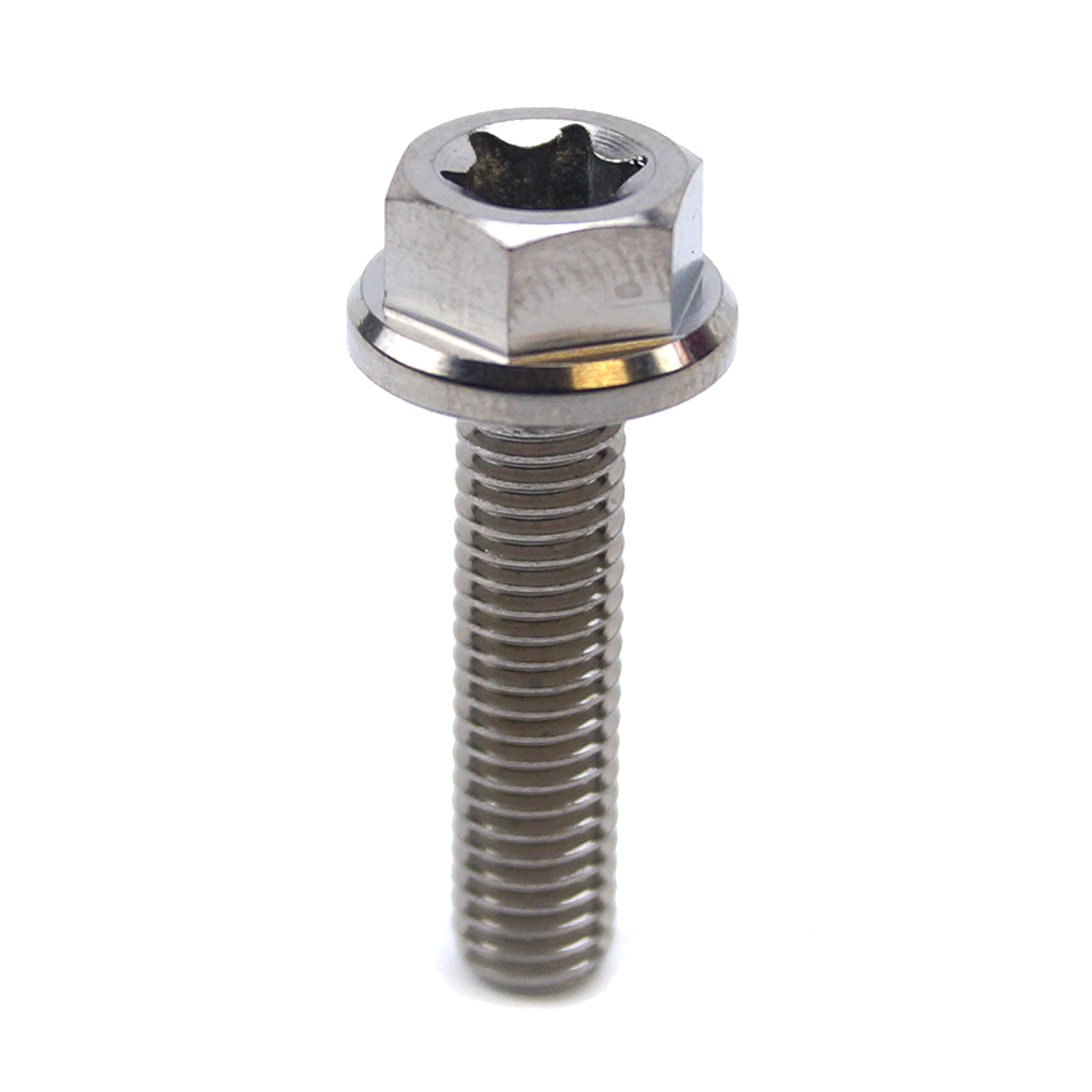

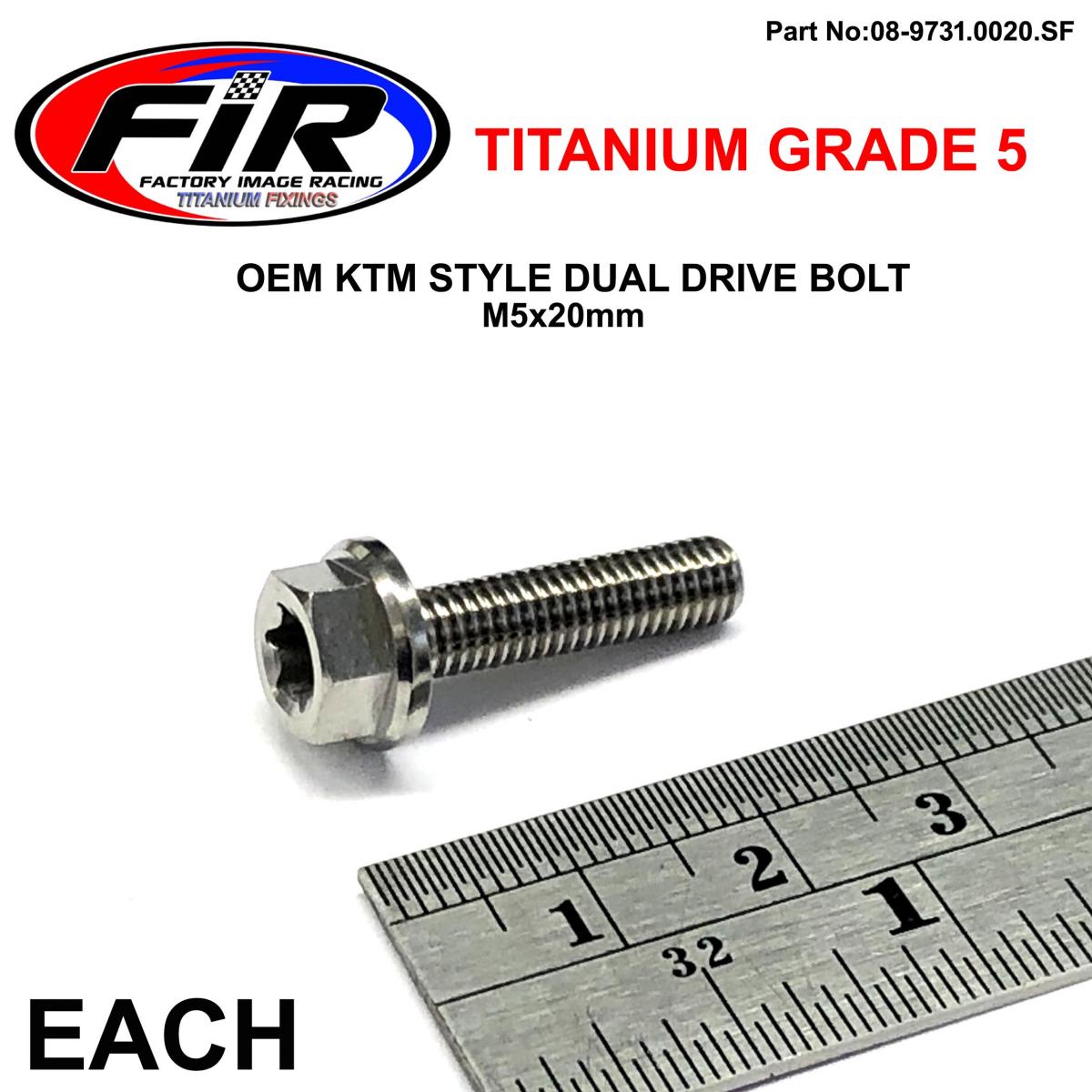

GR5 Titanium Standard Flange Bolt, M5 x 20mm, with a 8mm spanner and Torx 30 dual drive head. Made from Grade 5 (6Al/4V) titanium alloy, CNC machined with rolled threads for high strength, light weight, and excellent corrosion resistance. Flange outside diameter is 10.78mm. Cross reference OEM number 0015050203.
- SKU
- 08-9731.0020.SF
- Brand
- Factory Image Racing Titanium
- Availability
- In Stock (146)
- Variant Id
- 303892
FULL DESCRIPTION
Titanium Grade 5 Standard Flange Bolt
This is a M5x20mm standard flange bolt crafted from high-strength, lightweight Grade 5 (6Al/4V) titanium alloy. It features a dual drive head compatible with an 8mm spanner or a Torx 30 bit. The bolt offers excellent corrosion resistance, making it suitable for various applications including motorcycles and cycles.
This bolt is designed with a flange outer diameter of 10.78mm and a thread pitch of 0.80mm. The entire length of the bolt is 20mm, with the thread covering the full length.
This component is cross-referenced with KTM OEM part number 0015050203.
Key Features:
- Material: Grade 5 (6Al/4V) Titanium
- Size: M5 x 20mm
- Head Type: Dual Drive (8mm Hex or Torx 30)
- Flange Outer Diameter: 10.78mm
- Thread Pitch: 0.80mm
- Overall Length: 20mm
- Thread Length: 20mm
- High Strength and Lightweight
- Excellent Corrosion Resistance
- KTM OEM Cross Reference: 0015050203
