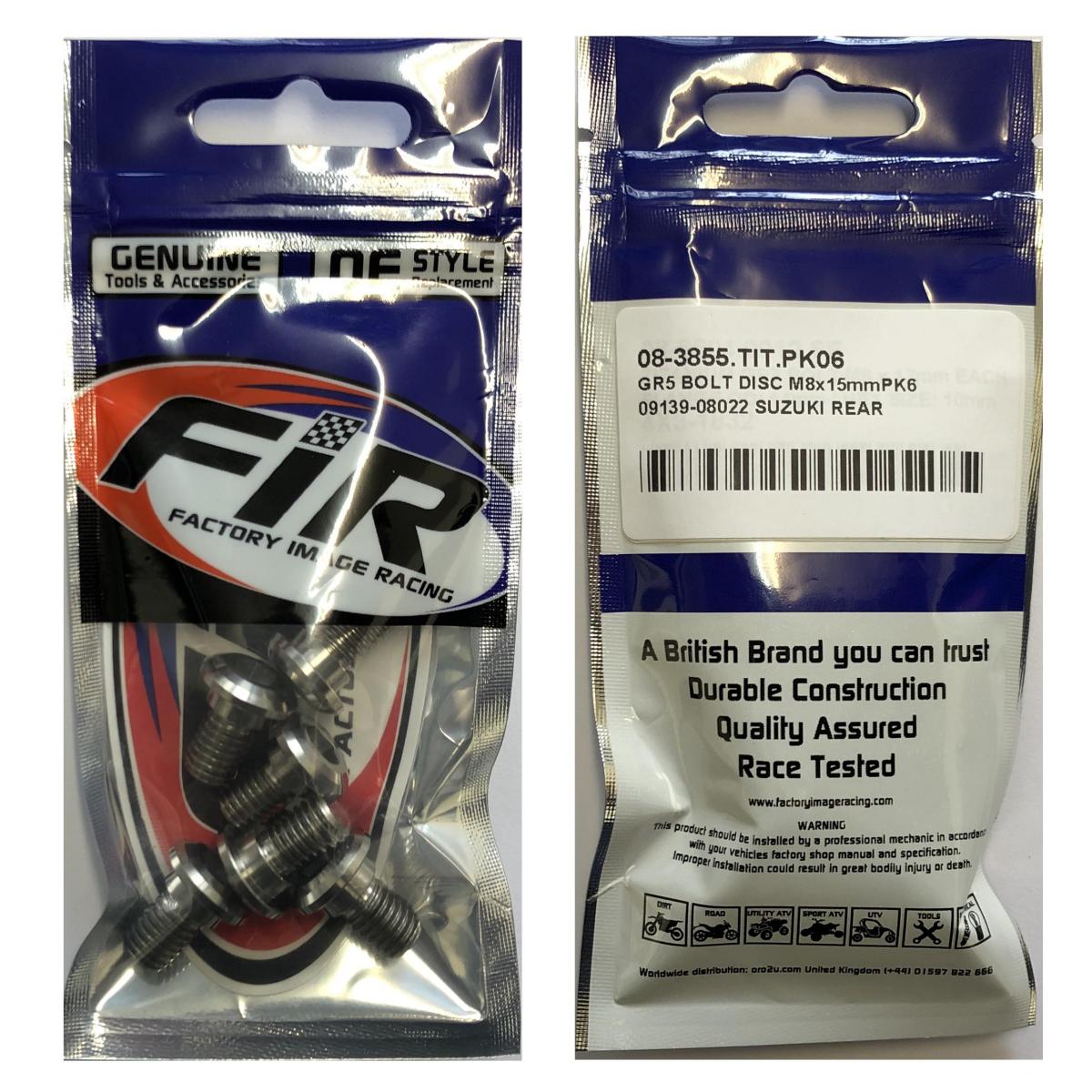

GR5 BOLT DISC M8x15mmPK6, 09139-08022 SUZUKI REAR

£19.76

4.1 Trustpilot 99.9% positive on eBay

UK delivery £4.99, free over £60 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Grade 5 (6Al/4V) Titanium Disc Bolt Set for Rear Wheels. Pitch T1: M8x1.25mm. Length T2: 10.80mm. OD step S1: 9.90mm. H step S2: 3.30mm. L Head H: 3.30mm. Head OD: 14.80mm. Head Allen: #6. Pack Quantity: 6. OEM Reference: SUZ 09139-08022. This bolt set provides durability and reliability, ensuring a secure attachment for rear wheels.

Specifications
SKU
08-3855.TIT.PK06
Brand
Factory Image Racing Titanium
Availability
In Stock (4)

Fitments (103)

MakeModelYear
KAWASAKIKLX 450R2008
KAWASAKIKLX 450R2009
KAWASAKIKLX 450R2010
KAWASAKIKLX 450R2011
KAWASAKIKLX 450R2012
KAWASAKIKLX 450R2013
KAWASAKIKLX 450R2014
KAWASAKIKLX 450R2015
KAWASAKIKLX 450R2016
KAWASAKIKLX 450R2017
KAWASAKIKLX 450R2018
KAWASAKIKLX 450R2019
KAWASAKIKLX 450R2020
KAWASAKIKLX 450R2021
KAWASAKIKX 1252003
KAWASAKIKX 1252004
KAWASAKIKX 1252005
KAWASAKIKX 1252006
KAWASAKIKX 1252007
KAWASAKIKX 1252008
KAWASAKIKX 2502003
KAWASAKIKX 2502004
KAWASAKIKX 2502005
KAWASAKIKX 2502006
KAWASAKIKX 2502007
KAWASAKIKX 2502008
KAWASAKIKX 250F2004
KAWASAKIKX 250F2005
KAWASAKIKX 250F2006
KAWASAKIKX 250F2007
KAWASAKIKX 250F2008
KAWASAKIKX 250F2009
KAWASAKIKX 250F2010
KAWASAKIKX 250F2011
KAWASAKIKX 250F2012
KAWASAKIKX 250F2013
KAWASAKIKX 250F2014
KAWASAKIKX 250F2015
KAWASAKIKX 250F2016
KAWASAKIKX 250F2017
KAWASAKIKX 250F2018
KAWASAKIKX 250F2019
KAWASAKIKX 250F2020
KAWASAKIKX 250F2021
KAWASAKIKX 450F2006
KAWASAKIKX 450F2007
KAWASAKIKX 450F2008
KAWASAKIKX 450F2009
KAWASAKIKX 450F2010
KAWASAKIKX 450F2011
KAWASAKIKX 450F2012
KAWASAKIKX 450F2013
KAWASAKIKX 450F2014
KAWASAKIKX 450F2015
KAWASAKIKX 450F2016
KAWASAKIKX 450F2017
KAWASAKIKX 450F2018
KAWASAKIKX 450F2019
KAWASAKIKX 450F2020
KAWASAKIKX 450F2021
SUZUKIRM X 4502010
SUZUKIRM X 4502011
SUZUKIRM X 4502012
SUZUKIRM X 4502013
SUZUKIRM X 4502014
SUZUKIRM X 4502015
SUZUKIRM X 4502016
SUZUKIRM X 4502017
SUZUKIRM-Z 2502004
SUZUKIRM-Z 2502005
SUZUKIRM-Z 2502006
SUZUKIRM-Z 2502007
SUZUKIRM-Z 2502008
SUZUKIRM-Z 2502009
SUZUKIRM-Z 2502010
SUZUKIRM-Z 2502011
SUZUKIRM-Z 2502012
SUZUKIRM-Z 2502013
SUZUKIRM-Z 2502014
SUZUKIRM-Z 2502015
SUZUKIRM-Z 2502016
SUZUKIRM-Z 2502017
SUZUKIRM-Z 2502018
SUZUKIRM-Z 2502019
SUZUKIRM-Z 2502020
SUZUKIRM-Z 2502021
SUZUKIRM-Z 4502005
SUZUKIRM-Z 4502006
SUZUKIRM-Z 4502007
SUZUKIRM-Z 4502008
SUZUKIRM-Z 4502009
SUZUKIRM-Z 4502010
SUZUKIRM-Z 4502011
SUZUKIRM-Z 4502012
SUZUKIRM-Z 4502013
SUZUKIRM-Z 4502014
SUZUKIRM-Z 4502015
SUZUKIRM-Z 4502016
SUZUKIRM-Z 4502017
SUZUKIRM-Z 4502018
SUZUKIRM-Z 4502019
SUZUKIRM-Z 4502020
SUZUKIRM-Z 4502021
General Material
Titanium
General Product Group
Braking
General Product Type
Disc Bolt
General Size
M8x14
Show more +1
Variant Id
298318
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

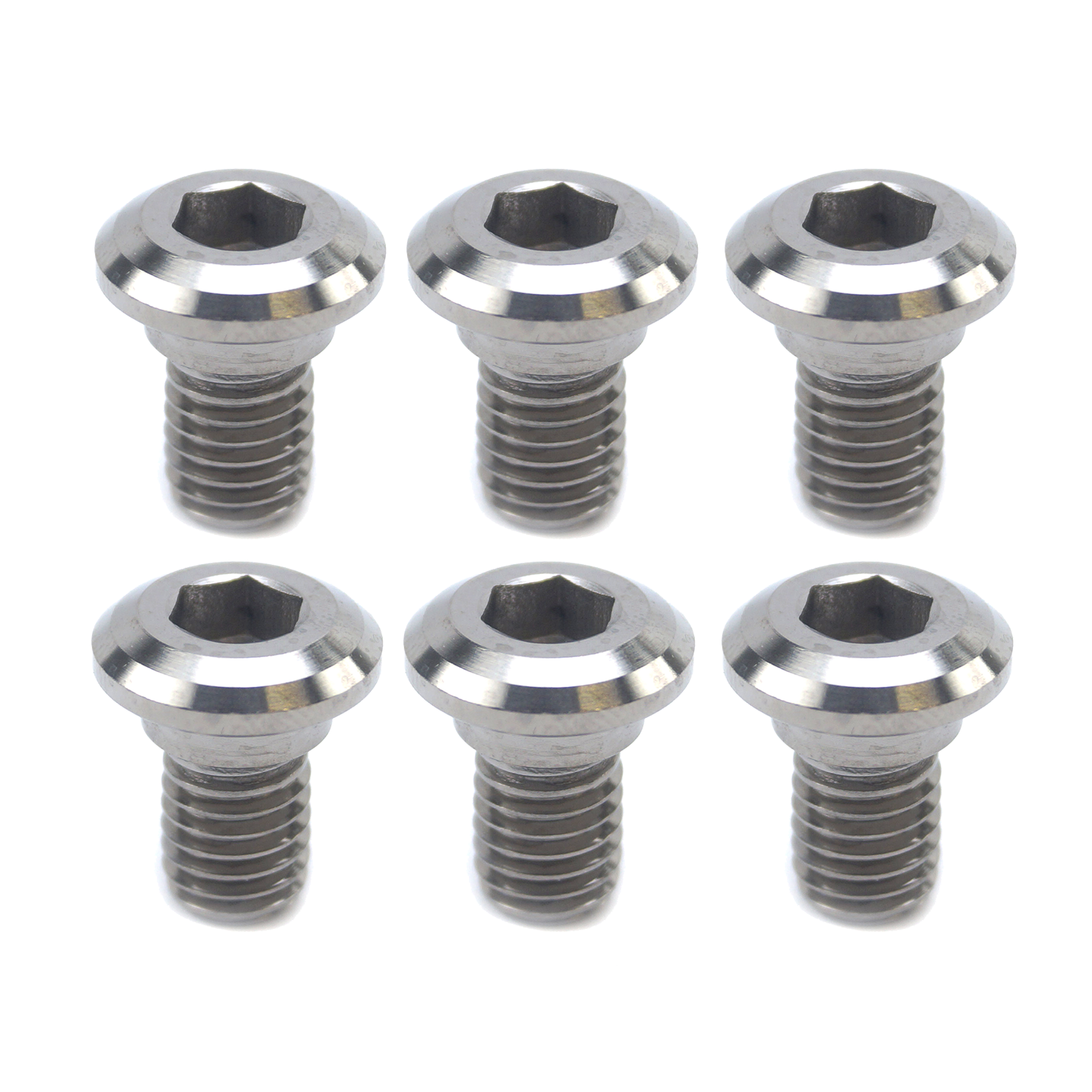

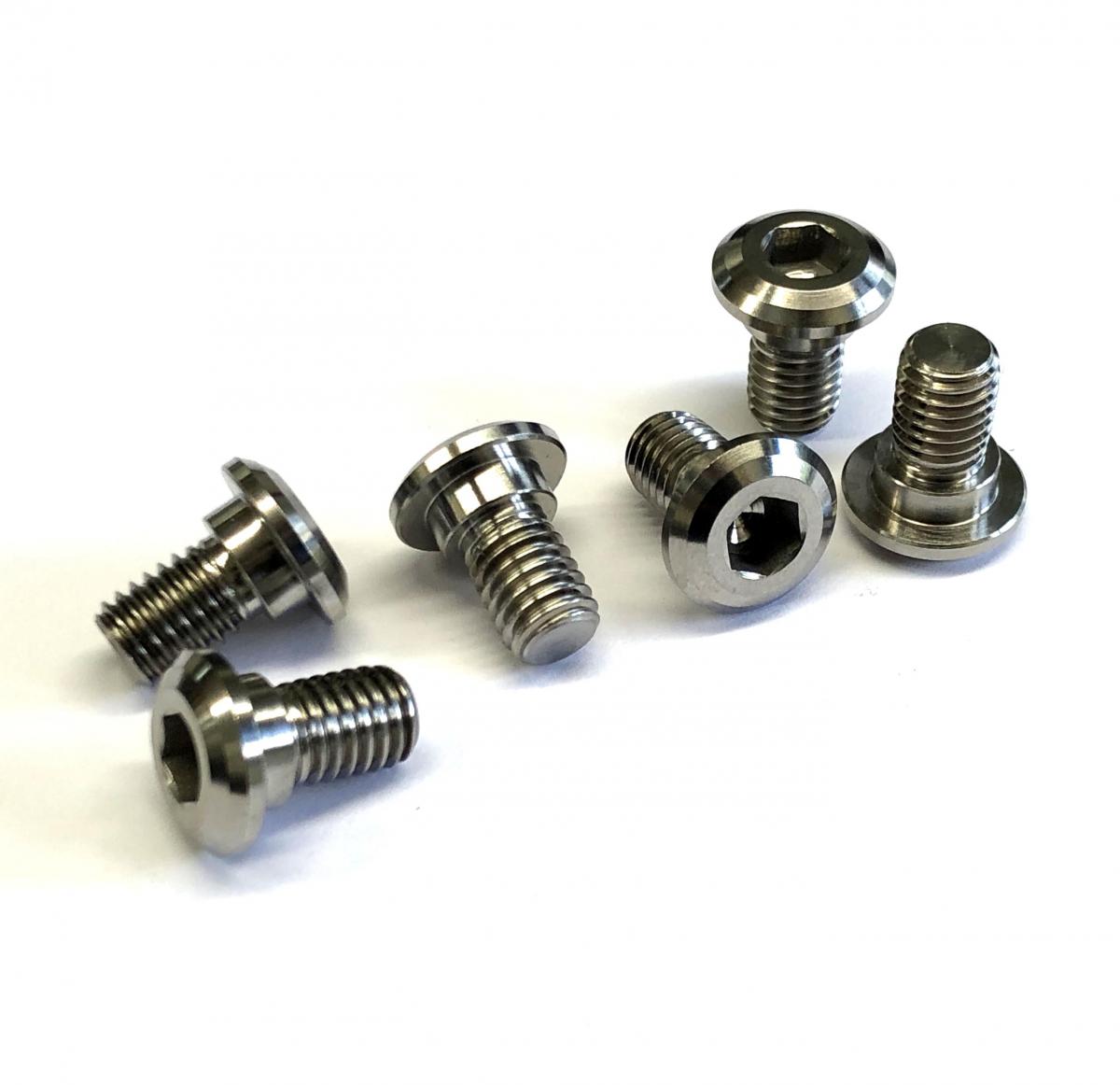

Factory Image Racing GR5 Titanium Disc Bolts

Upgrade your motorcycle's rear wheel security with these high-performance GR5 titanium disc bolts from Factory Image Racing. Engineered for superior strength and durability, Grade 5 titanium is the optimal choice for demanding motorcycle applications.

Key Features:

  • Material: Grade 5 (6Al/4V) Titanium, renowned for its exceptional strength-to-weight ratio and corrosion resistance.
  • Application: Designed specifically for rear wheel disc attachment.
  • Bolt Specifications:
    • Thread Pitch: M8x1.25mm
    • Length (under head): 10.80mm
    • Step Diameter 1: 9.90mm
    • Step Height 1: 3.30mm
    • Head Height: 3.30mm
    • Head Outer Diameter: 14.80mm
    • Allen Key Size: #6
  • Pack Quantity: Includes 6 bolts.
  • OEM Cross Reference: Replaces SUZ 09139-08022.

These titanium bolts offer a significant upgrade over standard steel fasteners, providing enhanced reliability and a premium aesthetic for your motorcycle's rear wheel assembly.
