GASKET TOP SET 89-00 XR600

K&S Technologies Top End Gasket Set for Honda XR

This comprehensive K&S Technologies gasket set is designed for top-end rebuilds on compatible Honda XR models. It provides all the necessary upper engine gaskets, sealing washers, O-rings, and valve stem seals required for servicing the cylinder head, cylinder, and valve train.

Key Features:

• Engineered for precision fit and reliable sealing during engine maintenance.
• Includes a wide range of components to complete a top-end overhaul.
• Some gaskets feature a silicone line coating for enhanced sealing performance.

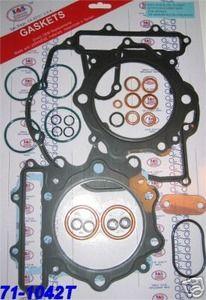

Kit Contents:

• 1 x Cylinder head gasket for Honda XR600R applications
• 1 x Cylinder head gasket for Honda XR650L applications
• 1 x Cylinder base gasket
• 1 x Cylinder head cover gasket
• 4 x Valve stem seals
• 2 x Exhaust pipe gaskets
• 1 x Muffler lid gasket
• 2 x Air path pipe gasket/washers for Honda XR650L applications
• 4 x Valve guide O-rings
• 4 x Tappet cap O-rings
• 1 x Carburettor insulator O-ring
• 1 x Tensioner shaft O-ring
• 1 x 6.5 mm sealing washer
• 4 x 14 mm camshaft sealing washers

Specifications:

• Valve guide O-ring size: 10 x 1.6 mm
• Tappet cap O-ring size: 39.5 x 2.6 mm
• Tensioner shaft O-ring size: 14.5 x 2.4 mm
• Sealing washer size: 6.5 mm
• Camshaft sealing washer size: 14 mm
