FORK TUBE & CARTRIDGE ROD TOOL
The Fork Tube & Cartridge Rod Holding Plate Tool is designed for the assembly and disassembly of fork tubes and cartridge rods. It is ideal for KYB, SHOWA twin chamber, and most street cartridge forks. This tool holds the spring securely while loosening or tightening the bottom nut or fork cap. Constructed from robust steel, it supports cartridge rod sizes from 10 to 12.5 mm and includes 2 holding handles for added stability. Holder dimensions are 102 x 102 mm with an inner diameter of 56 mm. Handle dimensions are 292 mm each. The plate dimensions are 84 mm (length) x 38 mm (width) x 6 mm (thickness). Manufacturer: Factory Image Racing.
- SKU
- 00-0091.FIR
- Brand
- Factory Image Racing
- Availability
- In Stock (11)
FULL DESCRIPTION

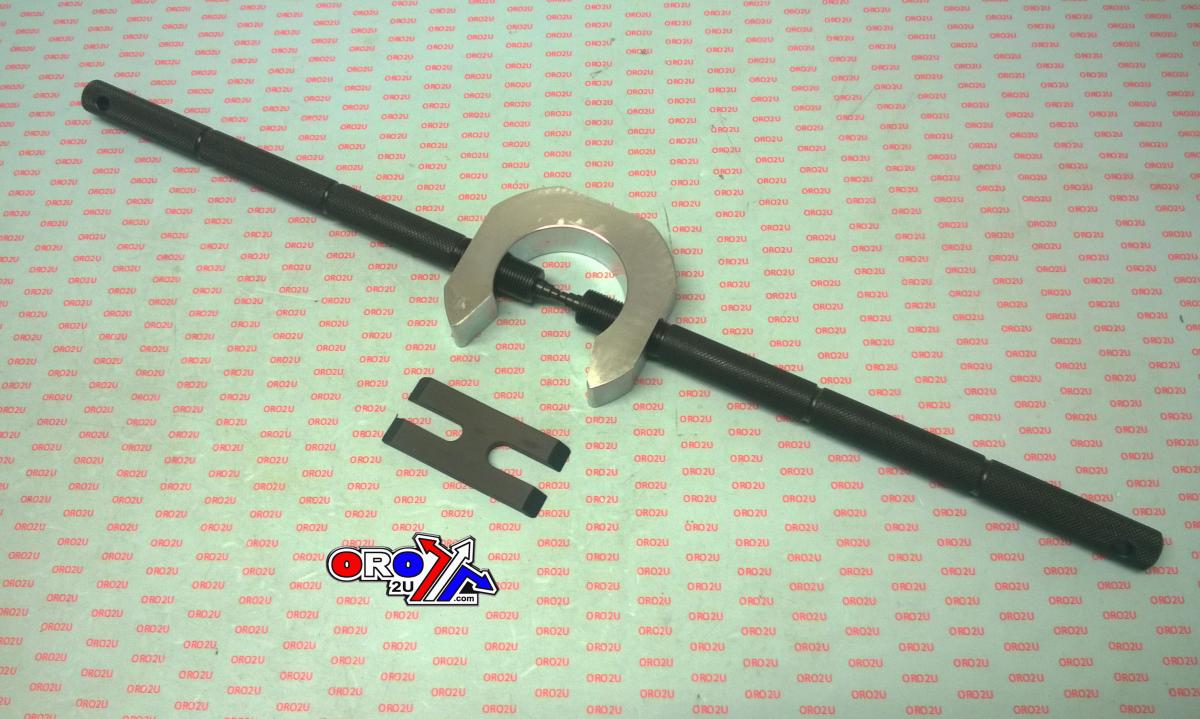

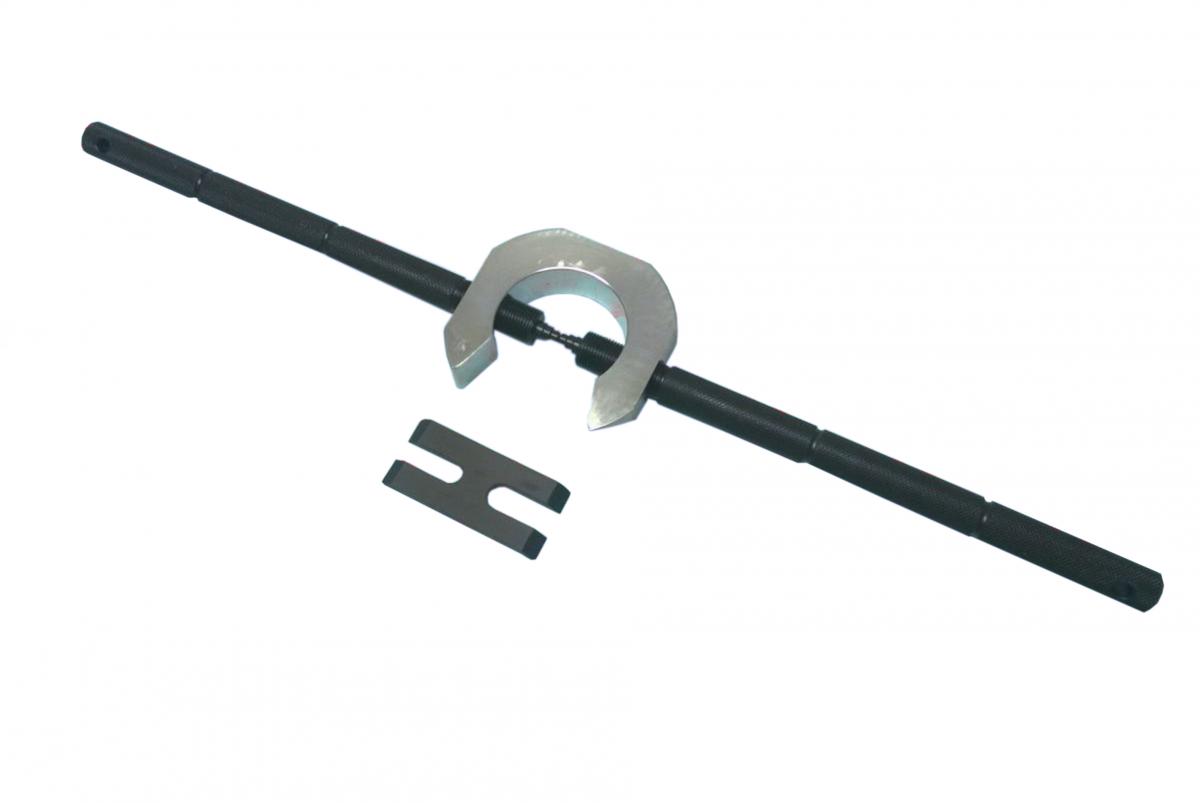

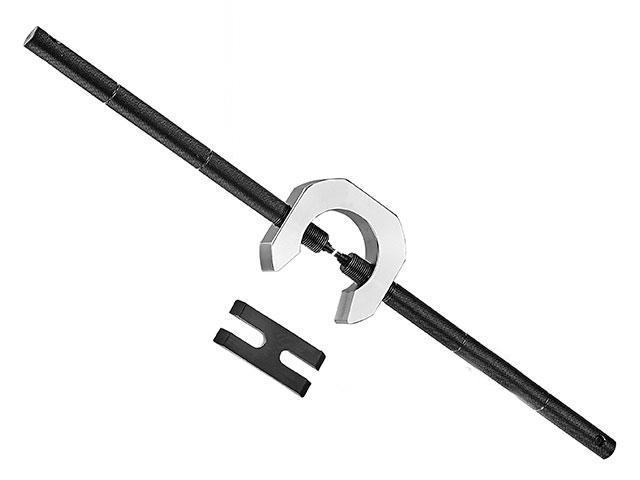

Fork Tube & Cartridge Rod Holding Plate Tool
This specialized tool is essential for the precise assembly and disassembly of motorcycle fork tubes and cartridge rods. Designed to accommodate a wide range of applications, it ensures secure handling of internal components during maintenance.
Key Features:

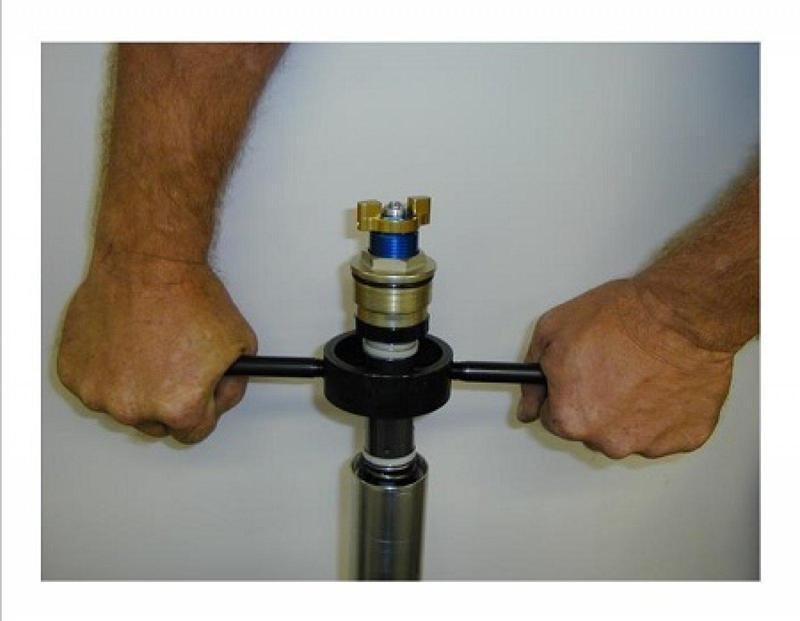

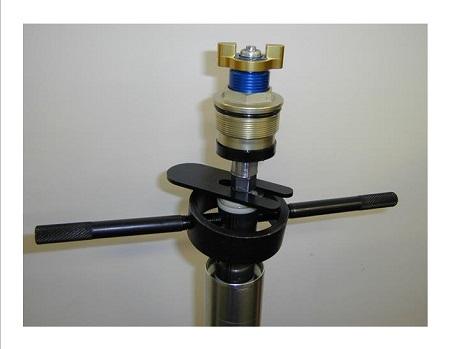

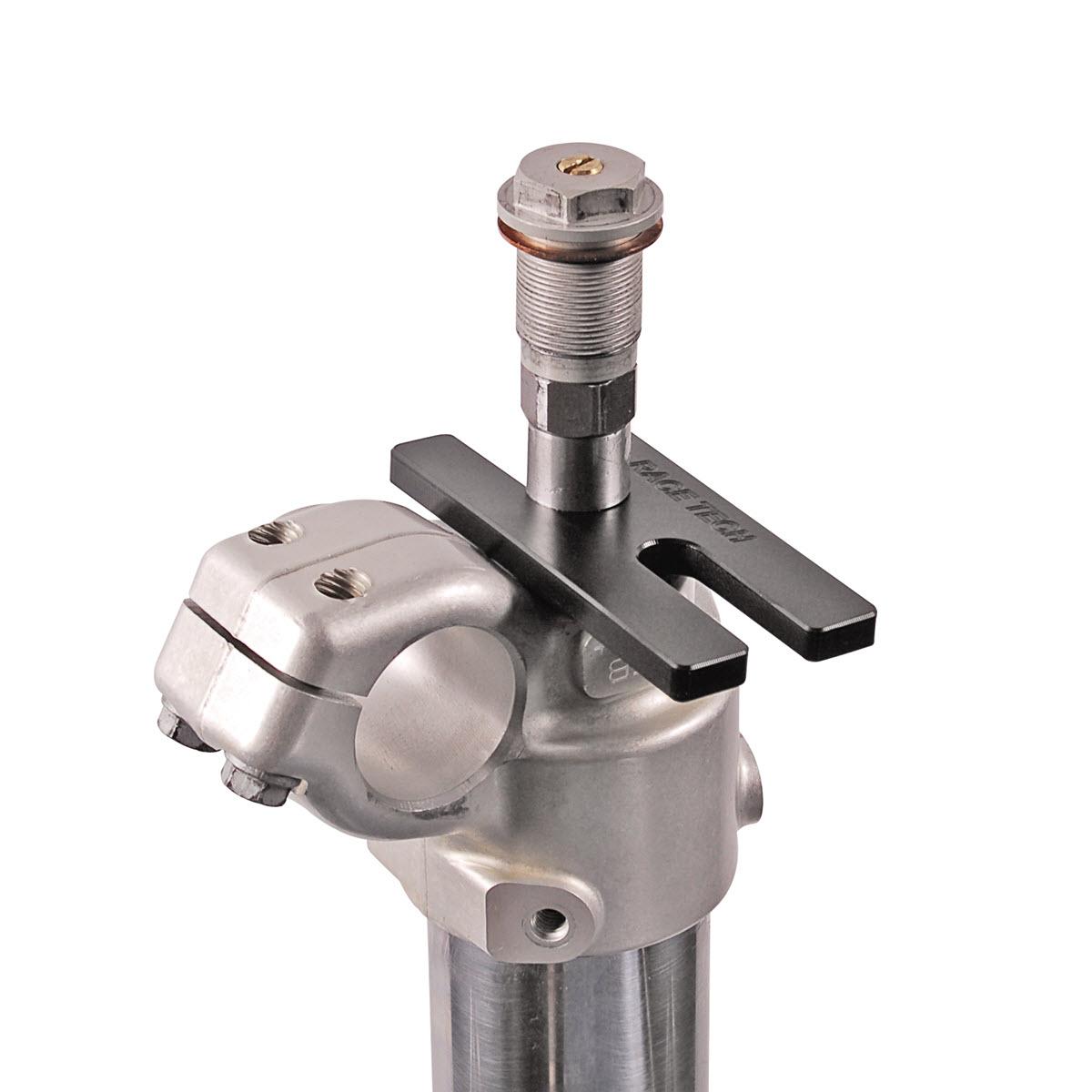

- Facilitates secure holding of the spring while loosening or tightening the bottom nut or fork cap.
- Specifically designed for use with KYB and SHOWA twin-chamber forks, as well as most street cartridge forks.
- Robust steel construction for durability and longevity.
- Compatible with cartridge rods measuring from 10 mm to 12.5 mm in diameter.
- Includes two ergonomic holding handles for enhanced stability and control during operation.
Specifications:
- Holder Dimensions: 102 mm x 102 mm
- Inner Diameter: 56 mm
- Handle Dimensions: 292 mm (each of 2 handles)
- Plate Dimensions: 84 mm (length) x 38 mm (width) x 6 mm (thickness)
