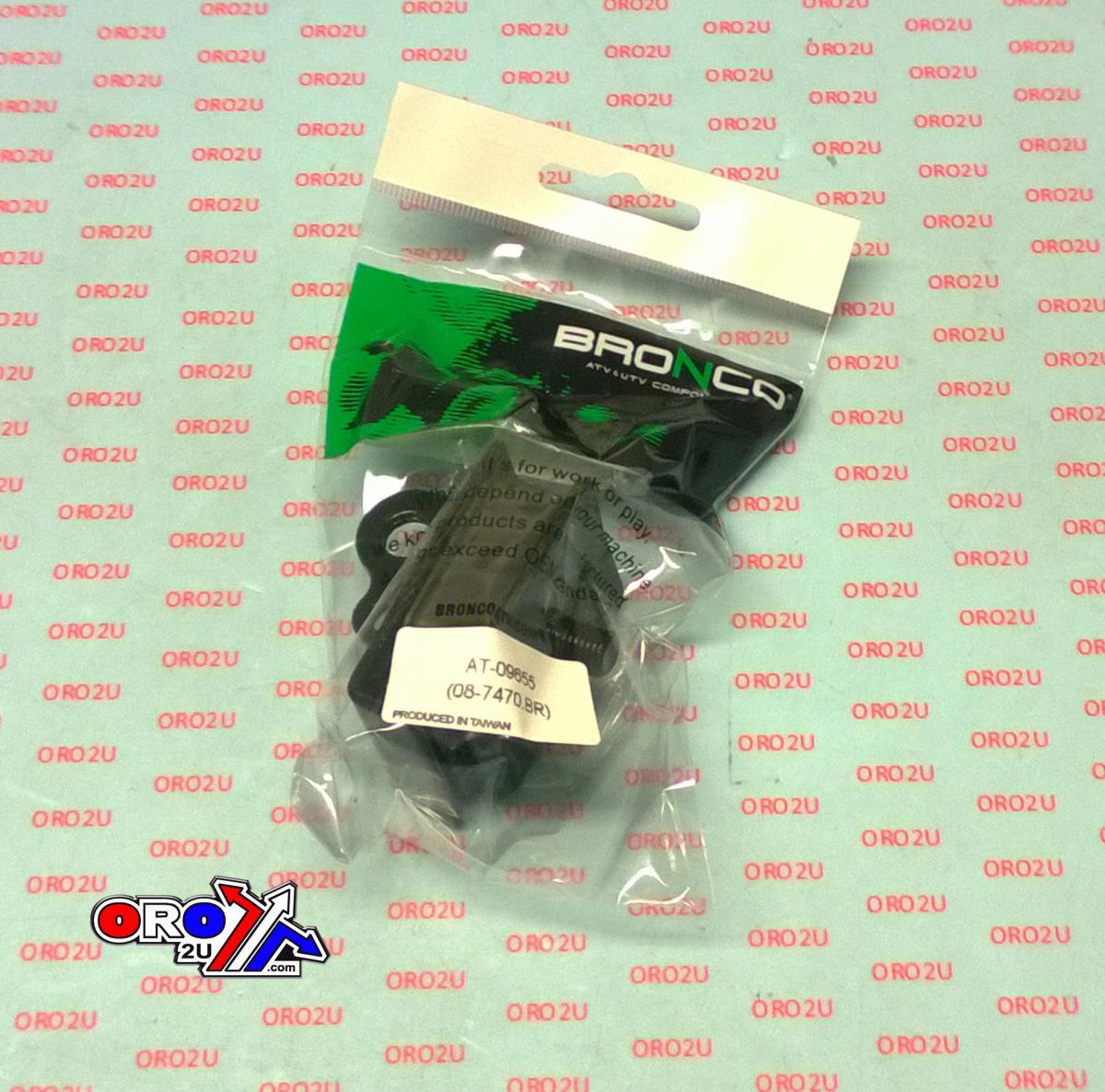

ENGINE MOTOR MOUNT YFM450/550/700, BRONCO AT-09655
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
BRONCO AT-09655 Motor Mount. Bracket size: L 60.7 mm, W 41.9 mm, T 22.1 mm. Rubber size: L 40.5 mm, W 34.6 mm, T 16.5 mm. Bolt size: M10 x pitch 1.25, Length 14.2 mm. Hole size: 10.1 mm / 6.6 mm. Material: Neoprene + Steel (SPCC). Cross Reference Numbers: 3B4-21485-00-00, 3B4-21485-01-00.
- SKU
- 08-7470.BR
- Brand
- Bronco
- Availability
- In Stock (37)
- General Product Group
- Frame & Chassis
- General Product Type
- Engine Mount
- Variant Id
- 286950
FULL DESCRIPTION
Bronco Engine Motor Mount
This Bronco motor mount is designed to provide a secure and stable connection for your engine. Constructed with a combination of neoprene and steel (SPCC), it offers durability and vibration dampening.
Key Features:
- Brand: Bronco
- Part Number: AT-09655
- Construction: Neoprene + Steel (SPCC)
- Bracket Dimensions: Length 60.7 mm (2.39 inches), Width 41.9 mm (1.65 inches), Thickness 22.1 mm (0.87 inches)
- Rubber Dimensions: Length 40.5 mm (1.6 inches), Width 34.6 mm (1.36 inches), Thickness 16.5 mm (0.65 inches)
- Bolt Size: M10 x pitch 1.25
- Bolt Length: 14.2 mm (0.56 inches)
- Hole Size: 10.1 mm (0.40 inches) / 6.6 mm (0.26 inches)
Cross Reference Numbers:
- 3B4-21485-00-00
- 3B4-21485-01-00
