DAMPER Dump box shock YAMAHA, BRONCO AT-04909, 5UG-F8415-00-00
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
BRONCO AT-04909 Shock Dump Box. Extended Length (C to C) 380mm, Closed Length 229mm, Stroke 151mm. Shaft Diameter 6mm, Tube Diameter 15mm. Damper Force 27KGS. Ball Socket Threads 8mm, Ball Socket Length 13mm. Shaft Material S45C, Hook Material Zinc Alloy, Tube Material STKM 12C. Shaft Nitrogen Treatment, Tube Black Coating. Cross Reference Numbers: AT-04909, 5UG-F8415-00-00.
- SKU
- 29-5989.BR
- Brand
- Bronco
- Availability
- In Stock (3)
Fitments (14)
| Make | Model | Year |
|---|---|---|
| YAMAHA | RHINO 450 | 2006 |
| YAMAHA | RHINO 450 | 2007 |
| YAMAHA | RHINO 450 | 2008 |
| YAMAHA | RHINO 450 | 2009 |
| YAMAHA | RHINO 660 | 2004 |
| YAMAHA | RHINO 660 | 2005 |
| YAMAHA | RHINO 660 | 2006 |
| YAMAHA | RHINO 660 | 2007 |
| YAMAHA | RHINO 700 | 2008 |
| YAMAHA | RHINO 700 | 2009 |
| YAMAHA | RHINO 700 | 2010 |
| YAMAHA | RHINO 700 | 2011 |
| YAMAHA | RHINO 700 | 2012 |
| YAMAHA | RHINO 700 | 2013 |
- General Product Group
- Frame & Chassis
- General Product Type
- Damper
- Variant Id
- 289689
FULL DESCRIPTION

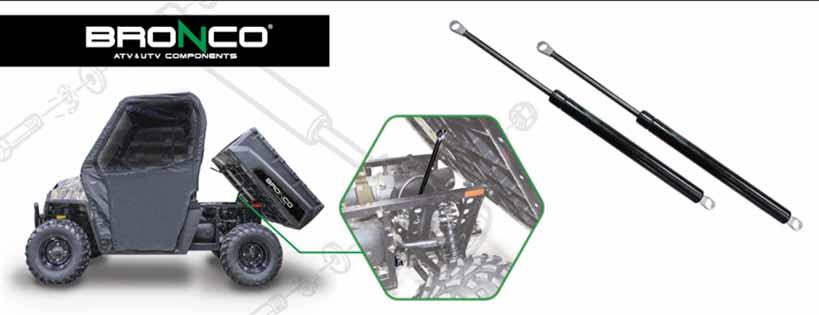

BRONCO Shock Damper Dump Box for Yamaha
This BRONCO Shock Damper Dump Box is designed to provide reliable performance and durability. It is constructed with high-quality materials for extended service life.
Key Features:
- Extended Length (Center to Center): 380mm
- Closed Length: 229mm
- Stroke: 151mm
- Shaft Diameter: 6mm
- Tube Diameter: 15mm
- Damper Force: 27KGS
- Ball Socket Threads: 8mm
- Ball Socket Length: 13mm
- Materials: S45C (shaft), Zinc alloy (hook), STKM 12C (tube)
- Shaft Treatment: Nitrogen treatment
- Tube Finish: Black coating
Cross Reference Numbers:
- AT-04909
- 5UG-F8415-00-00
