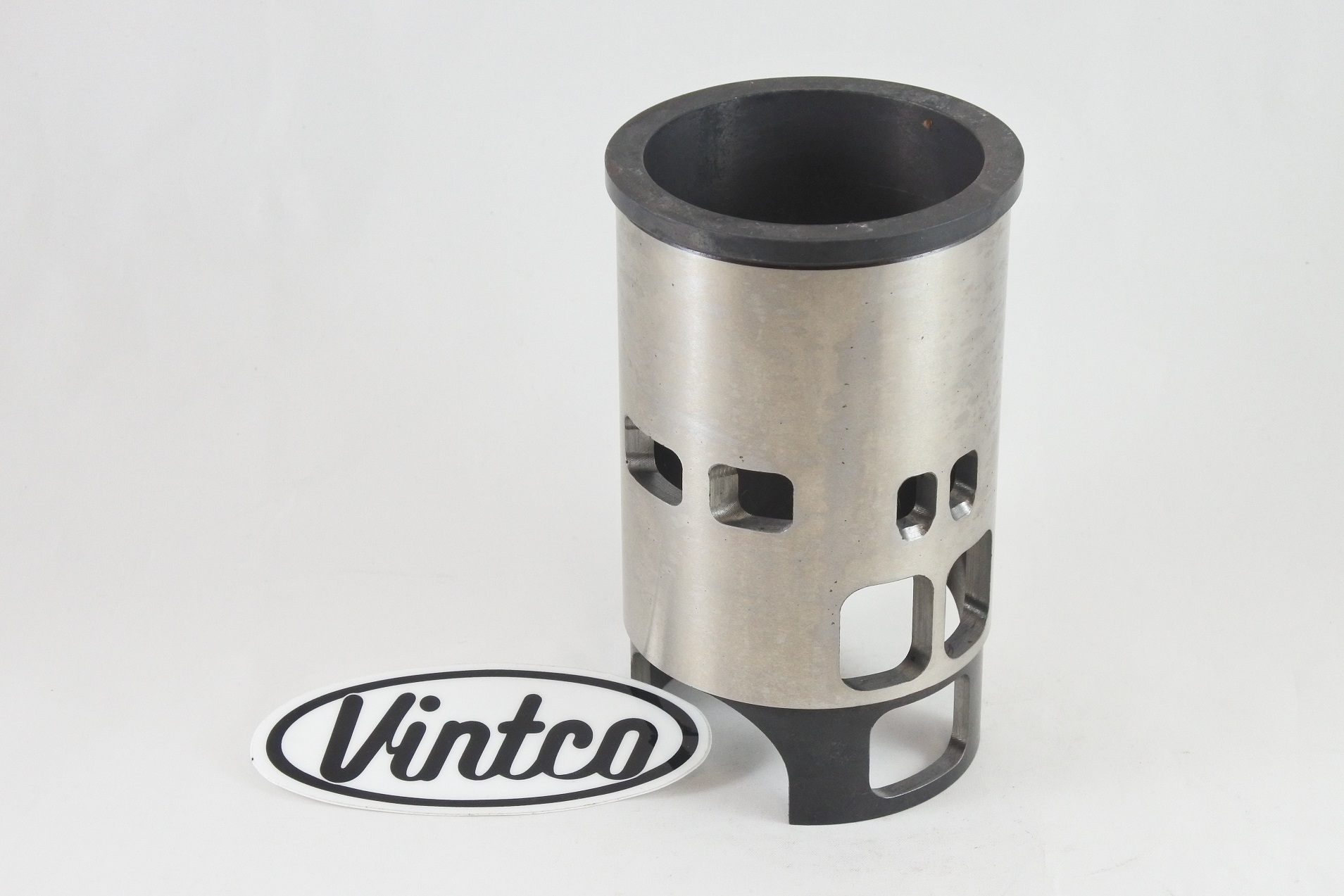

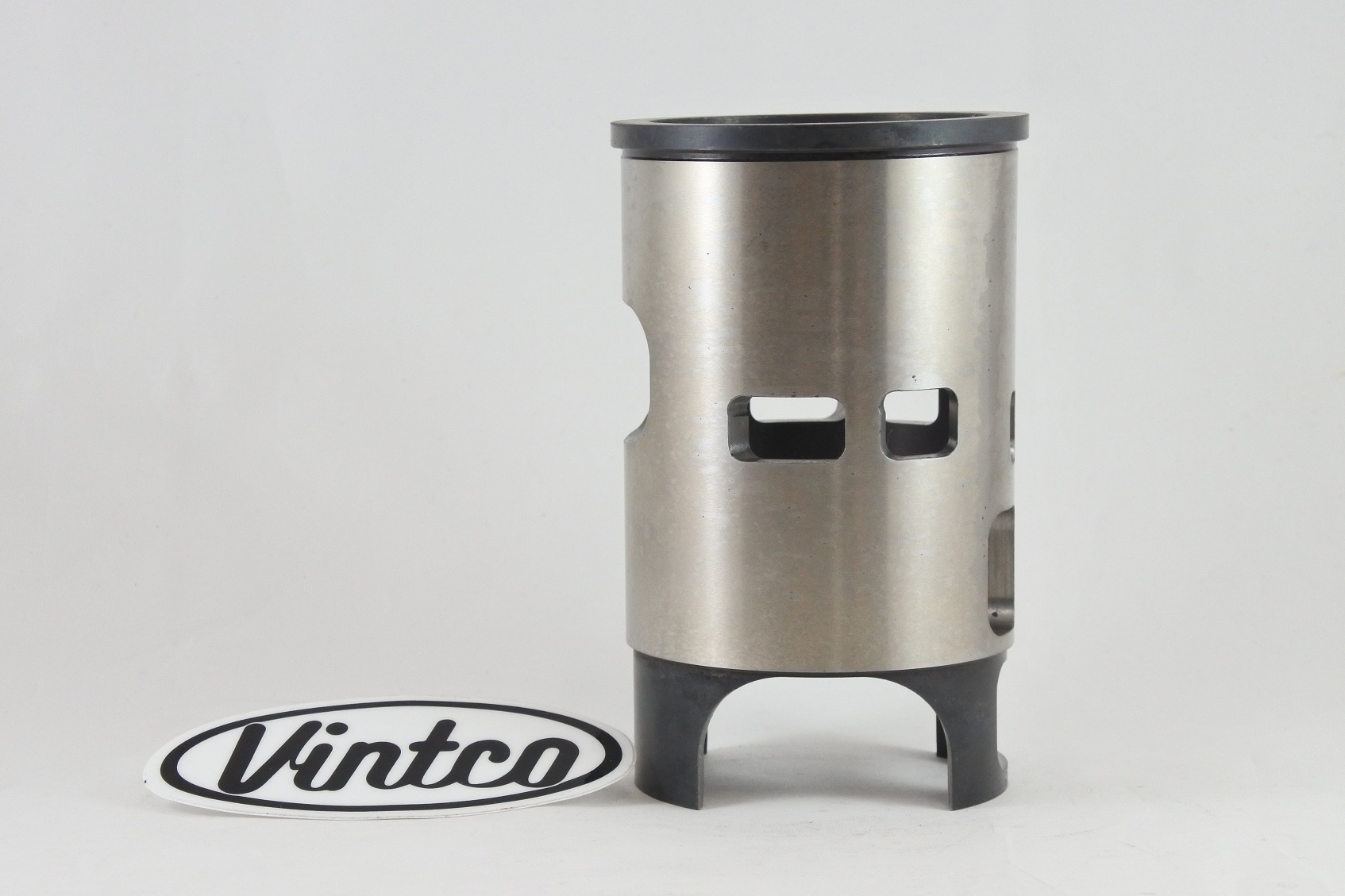

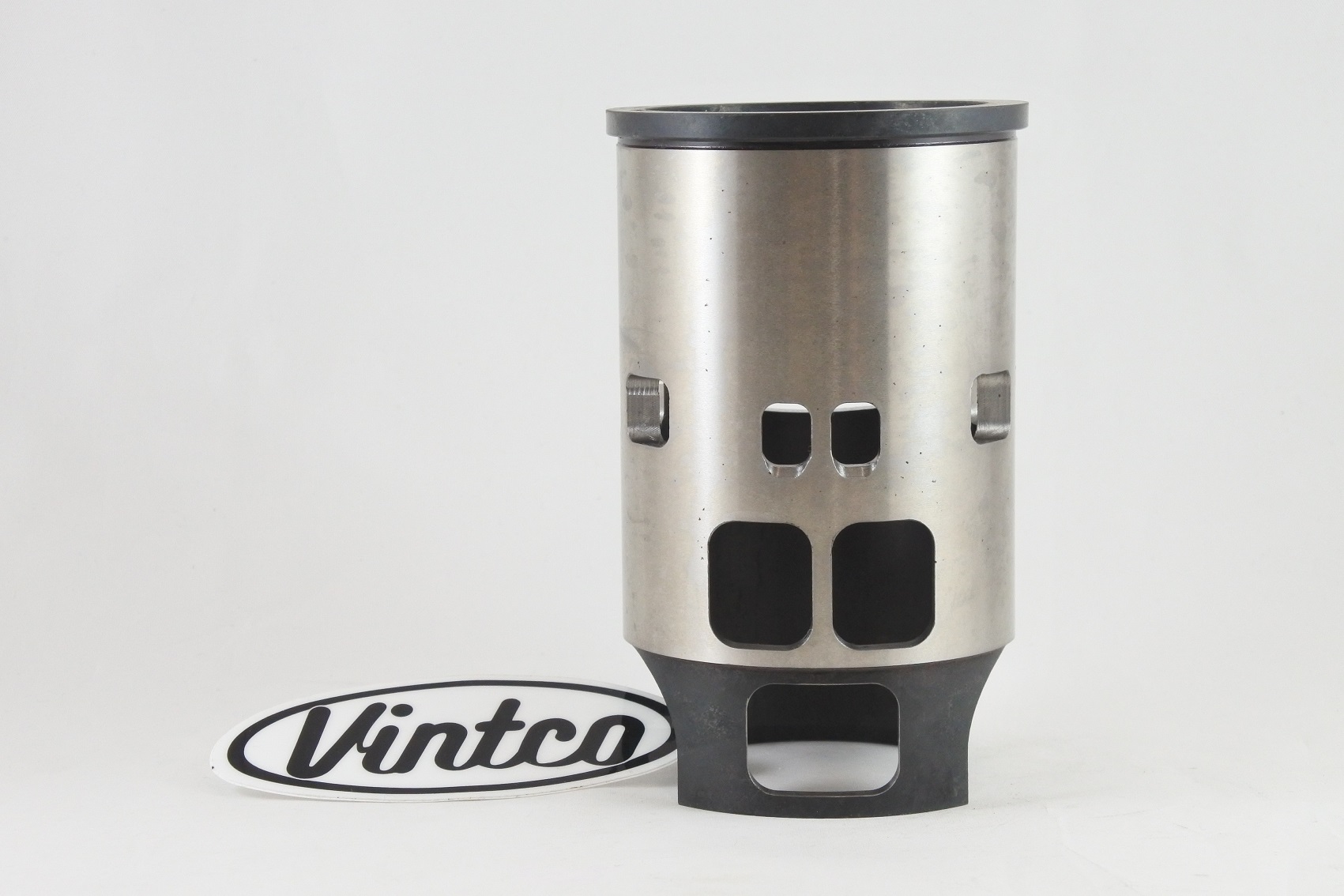

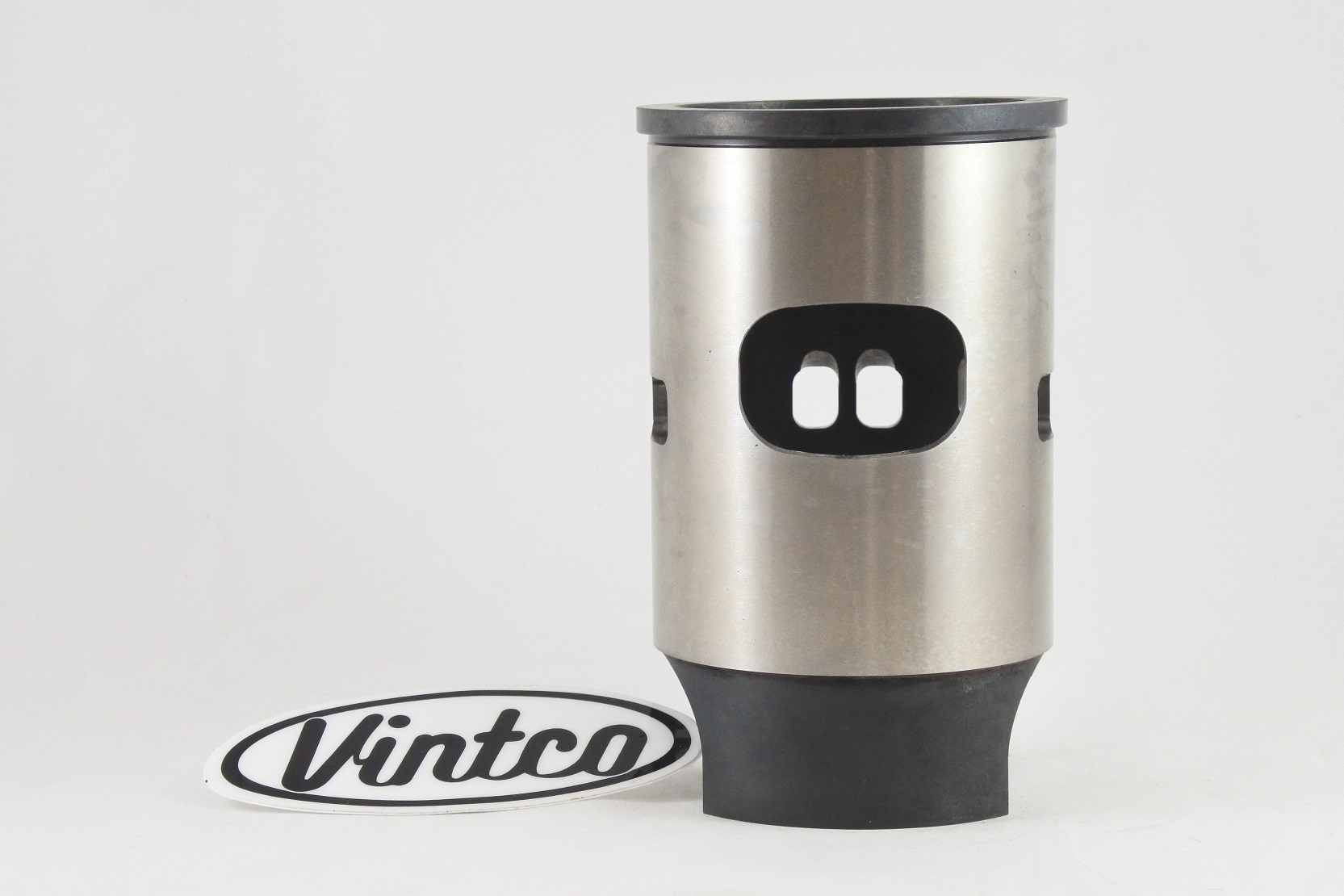

CYLINDER SLEEVE 73-81 SUZUKI DS RL TS 250 71mm VINTCO SLS09A
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Replacement cylinder sleeve for rebuilding worn or damaged cylinders. Features correctly angled ports to reduce port-matching work. Can be bored and honed to suit a stock-size VintCo piston kit. Designed for installation by an experienced and qualified machinist. Made in the USA for VintCo by Advanced Sleeve. VintCo Part Number: SLS09A. Material: Cast iron. Bore: 71 mm. Height: 138.7 mm. Outside diameter: 81 mm. Flange outside diameter: 85.1 mm. Flange height: 5.1 mm. Wall thickness: 5.9 mm. Intake port: 25 mm. Exhaust port location: 36.2 mm.
- SKU
- VIN-SLS09A
- Brand
- Vintco
- Availability
- In Stock (1)
Fitments (12)
| Make | Model | Year |
|---|---|---|
| SUZUKI | DS 250 | 1980 |
| SUZUKI | RL 250 | 1974 |
| SUZUKI | RL 250 | 1975 |
| SUZUKI | TS 250 | 1973 |
| SUZUKI | TS 250 | 1974 |
| SUZUKI | TS 250 | 1975 |
| SUZUKI | TS 250 | 1976 |
| SUZUKI | TS 250 | 1977 |
| SUZUKI | TS 250 | 1978 |
| SUZUKI | TS 250 | 1979 |
| SUZUKI | TS 250 | 1980 |
| SUZUKI | TS 250 | 1981 |
- SKU
- VIN-SLS09A
- Brand
- Vintco
- Availability
- In Stock (1)
FULL DESCRIPTION
VintCo Cylinder Sleeve for Vintage Suzuki Motorcycles
Restore your vintage Suzuki DS250, RL250, or TS250 with this high-quality replacement cylinder sleeve. Designed for rebuilding worn or damaged cylinders, this sleeve is precision manufactured in the USA by VintCo using advanced production techniques to ensure an OEM-style fit and reliable performance. The strategically angled ports are engineered to minimize the need for port-matching during installation, streamlining the rebuilding process. This cast iron sleeve can be bored and honed to precisely fit a stock-size VintCo piston kit, offering a complete solution for engine overhauls.
Key Features:
- Direct replacement cylinder sleeve for engine rebuilding.
- Engineered for specific Suzuki DS250, RL250, and TS250 models.
- Features correctly angled ports to reduce port-matching labor.
- Designed to be bored and honed for a perfect fit with VintCo stock-size piston kits.
- Requires installation by an experienced and qualified machinist for optimal results.
- Proudly manufactured in the USA by VintCo, in partnership with Advanced Sleeve.
- Constructed from durable cast iron for longevity.

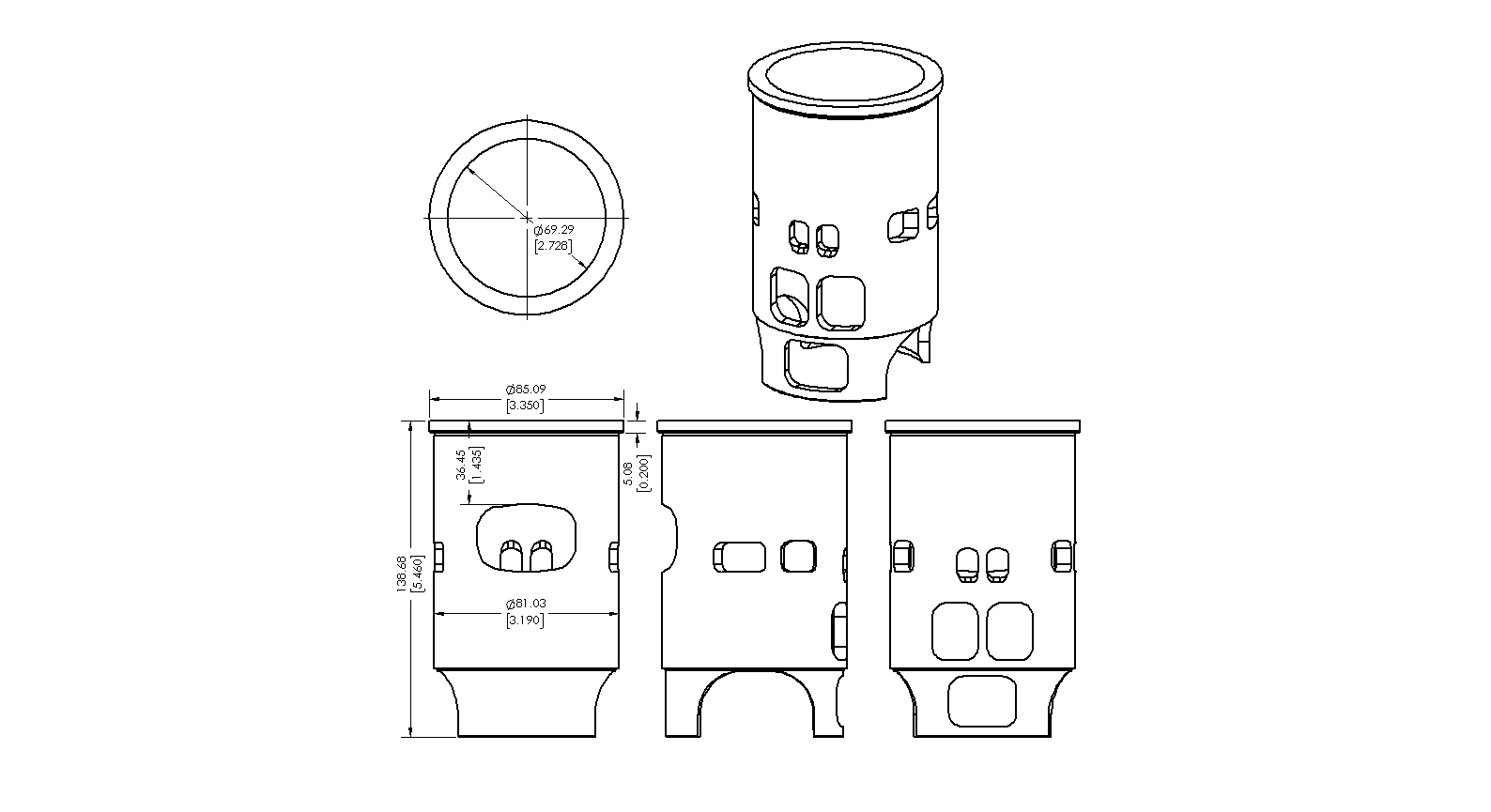

Specifications:
- VintCo Part Number: SLS09A
- Product Type: Cylinder Sleeve
- Material: Cast Iron
- Compatible Piston Part Number: PSS09-1.0
- Bore: 71 mm
- Height: 138.7 mm
- Outside Diameter: 81 mm
- Flange Outside Diameter: 85.1 mm
- Flange Height: 5.1 mm
- Wall Thickness: 5.9 mm
- Intake Port Dimension: 25 mm
- Exhaust Port Location: 36.2 mm from bottom
