CYLINDER KIT STD 50mm 2019-2025 HONDA CRF110 F 12100-KYK-D10
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
This 50 mm cylinder, piston and gasket kit is a direct OEM-style replacement. It uses a standard-bore 50 mm cylinder with a 90° temperature sensor port and is designed to meet or exceed OEM quality while handling increased power loads. All components are made to OEM specifications and match the original equipment in appearance. Engine: 4-stroke. Displacement: 109 cc. Bore type: Standard bore. Bore diameter: 50 mm. Stroke: 55.6 mm. Piston pin diameter: 13 mm. Temperature sensor port: Yes. Temperature sensor port angle: 90°. Cross-Reference OEM Part Numbers: CYLINDER 12100-KWB-600 / 12100-KYK-D10 / 12100-K03-H10, GASKET, CYLINDER 12191-K58-TC0, GASKET, CYLINDER HEAD 12251-KWB-601, RING SET, PISTON (STD) (RIKEN) 13011-KWW-740, PISTON (STD) 13101-KWW-740, PIN, PISTON 13111-KVR-C00, CLIP, PISTON PIN 13115-KVR-C00, Valve Stem Seal (2) 12209-GB4-682.
- SKU
- 56-K2902.50.CK19
- Brand
- Dirt Racing
- Availability
- In Stock (1)
Fitments (5)
| Make | Model | Year |
|---|---|---|
| HONDA | CRF 110F | 2013 |
| HONDA | CRF 110F | 2014 |
| HONDA | CRF 110F | 2015 |
| HONDA | CRF 110F | 2016 |
| HONDA | CRF 110F | 2017 |
- SKU
- 56-K2902.50.CK19
- Brand
- Dirt Racing
- Availability
- In Stock (1)
FULL DESCRIPTION
Dirt Racing 50mm Standard Bore Cylinder Kit
This comprehensive cylinder kit offers a direct OEM-style replacement for select Honda 110cc models. Engineered to meet or exceed original equipment quality, this kit is designed to handle increased power loads while maintaining appearance and fitment.
Key Features:
- OEM-style direct replacement cylinder kit
- Standard 50mm bore diameter
- Includes components manufactured to OEM specifications
- Designed for increased power handling
- Utilizes stock mounting locations for easy installation
- 90-degree temperature sensor port included
- Excellent value for money
Specifications:
- Engine Type: 4-stroke
- Displacement: 109 cc
- Bore Type: Standard Bore
- Bore Diameter: 50 mm
- Stroke: 55.6 mm
- Piston Pin Diameter: 13 mm
- Temperature Sensor Port: Yes
- Temperature Sensor Port Angle: 90 degrees
Included Components:

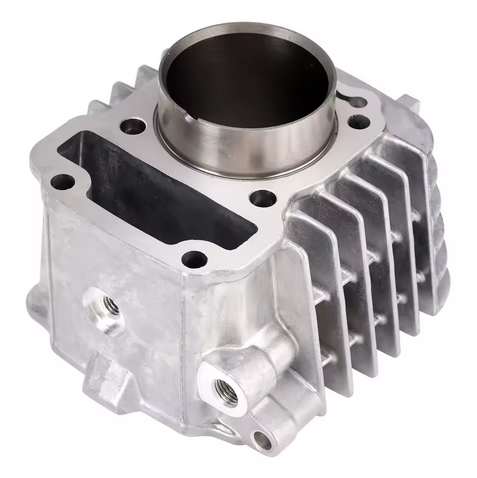

- Cylinder

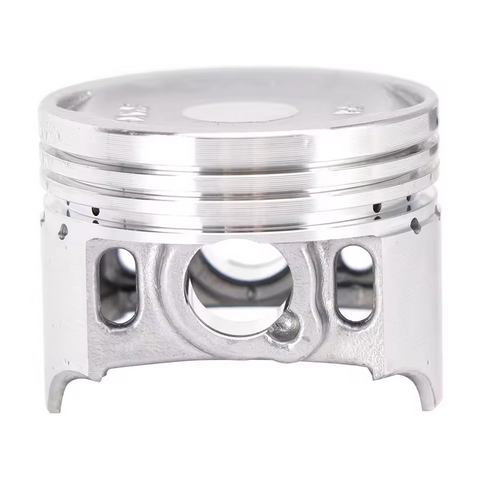

- Piston

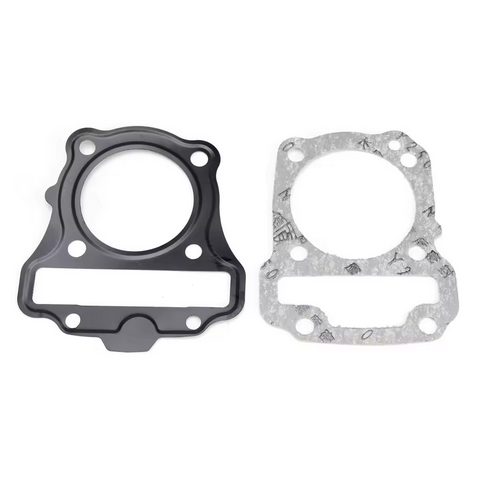

- Gaskets (Cylinder and Cylinder Head)

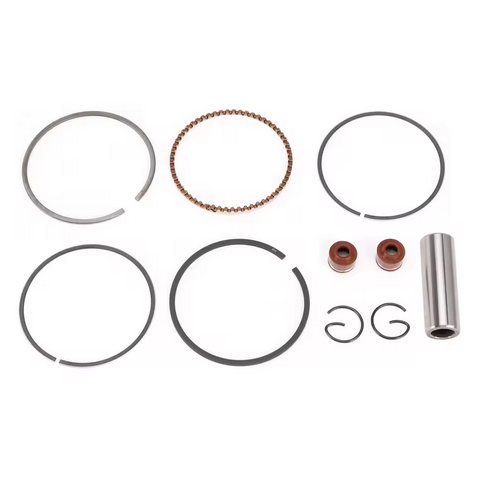

- Piston Ring Set (Standard)
- Piston Pin
- Piston Pin Clips
- Valve Stem Seals (2)
