CYLINDER KIT 92.00mm 2005-2011 HONDA TRX500 FOURTRAX 12100-HP0-A00

Dirt Racing Cylinder Kit 92.00mm for Honda TRX500 Fourtrax

This 92.00mm cylinder kit is a high-quality replacement designed to meet OEM specifications for Honda TRX500 Fourtrax Foreman models. The kit provides everything necessary for a complete top-end rebuild, ensuring reliable performance, durability, and straightforward installation.

Key Features:

• Comprehensive kit includes cylinder, piston, rings, pin, clips, and top-end gasket kit.
• Cast piston features a high silicone content for enhanced strength.
• Piston skirts are Molybdenum Teflon coated to minimize wear.
• Anodized piston dome offers superior heat resistance.
• Gaskets are constructed from performance-grade materials for maximum reliability.
• Designed as a direct OEM replacement, requiring no modifications.
• Incorporates cast iron sleeves for improved wear resistance and longevity.

Specifications:

• Piston Material: Forged Aluminum
• Actual Displacement: 475cc
• Bore Size: Standard 92 mm
• Piston Diameter: 91.96 mm
• Piston Height: 59.23 mm
• Piston Pin Diameter: 20 mm
• Piston Pin Height: 62 mm
• Sleeve Material: Cast Iron, Reboreable liner
• Cylinder Material: JIS AC4B-T6 Aluminum
• Cylinder Hardness: HR65up

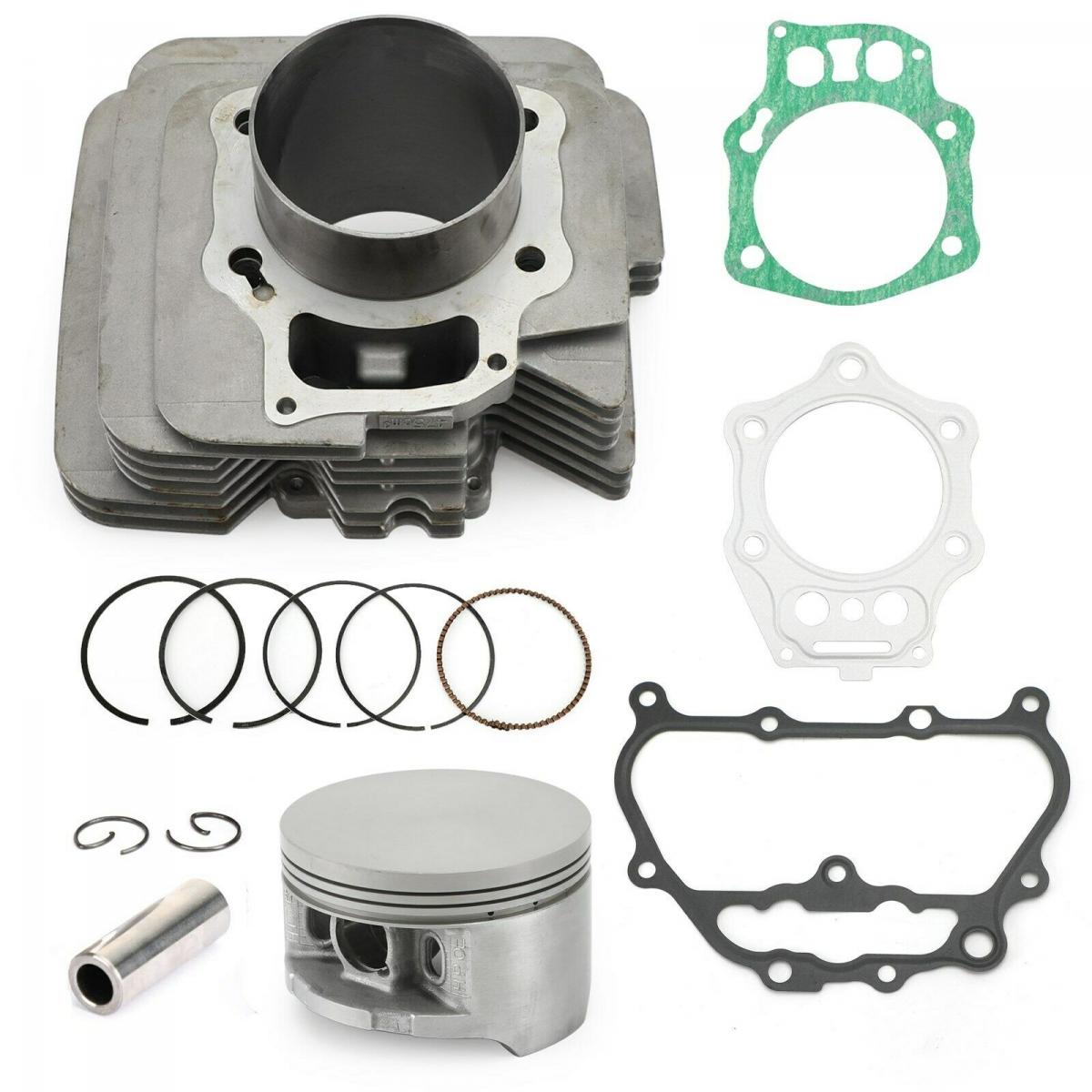

Package Includes:

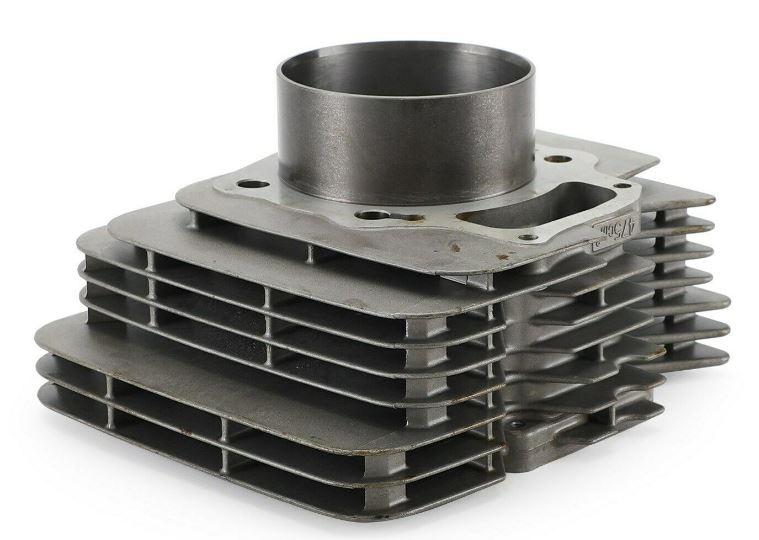

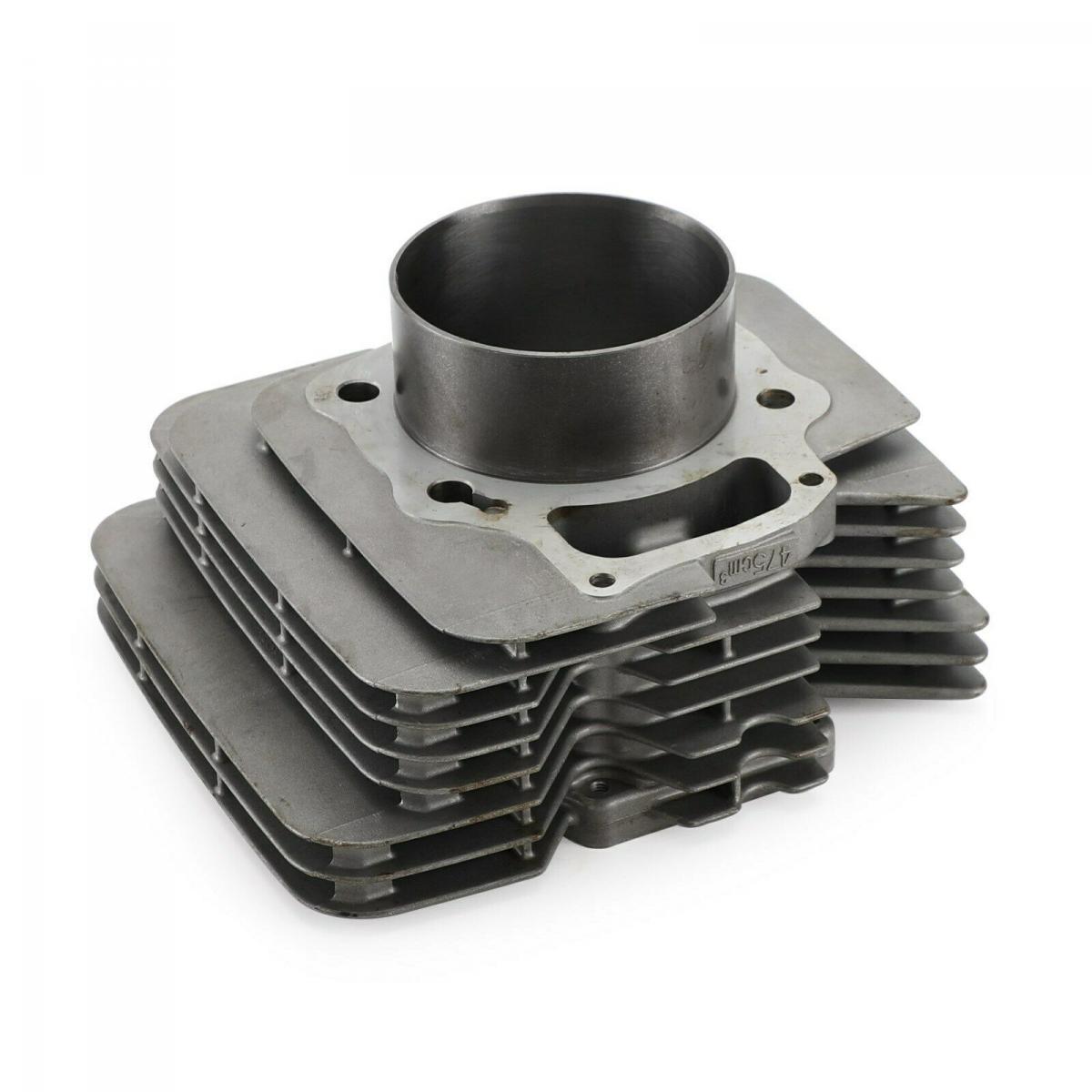

• 1x Cylinder

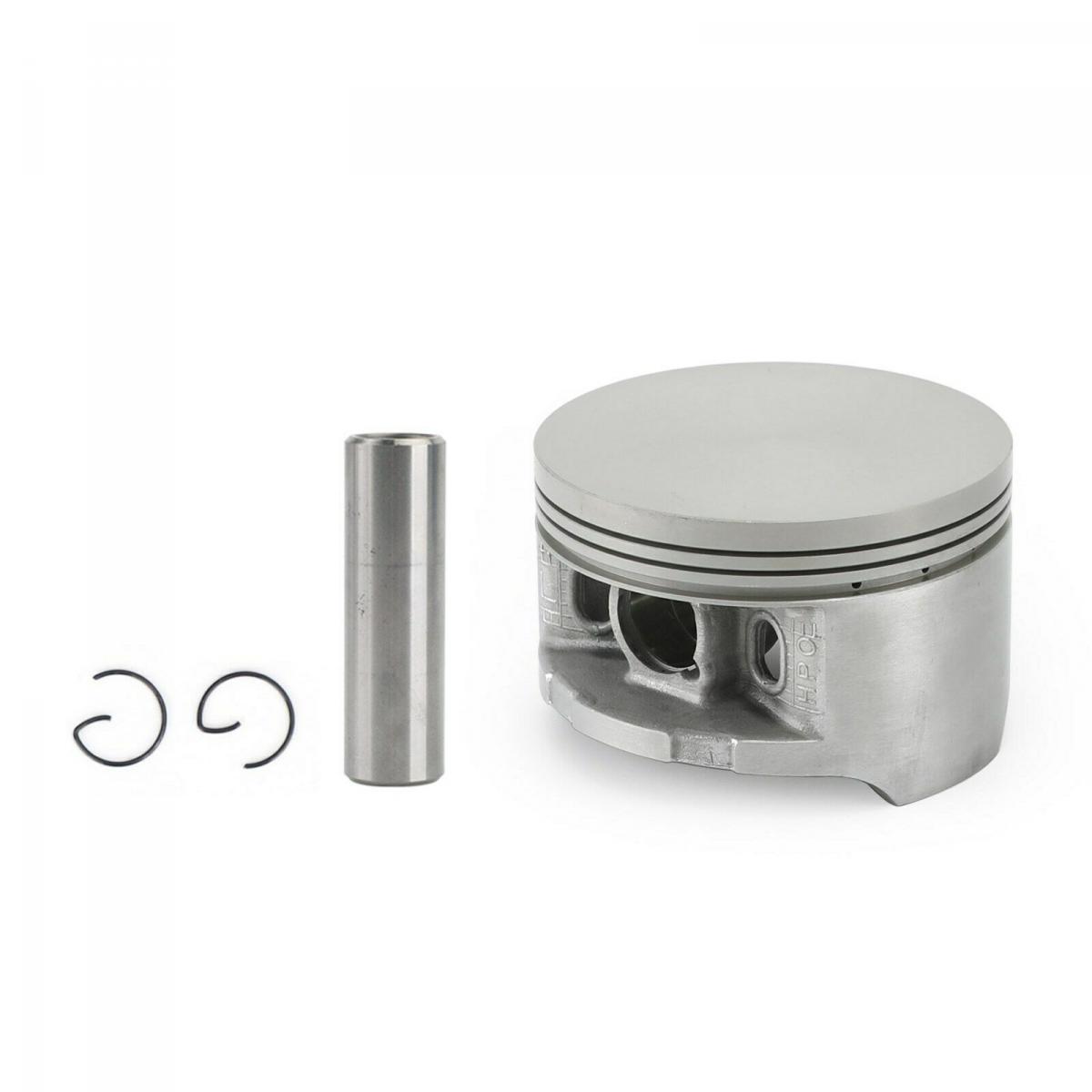

• 1x Piston (STD)
• 1x Piston Ring Set
• 1x Wristpin
• 1x Circlip (2)

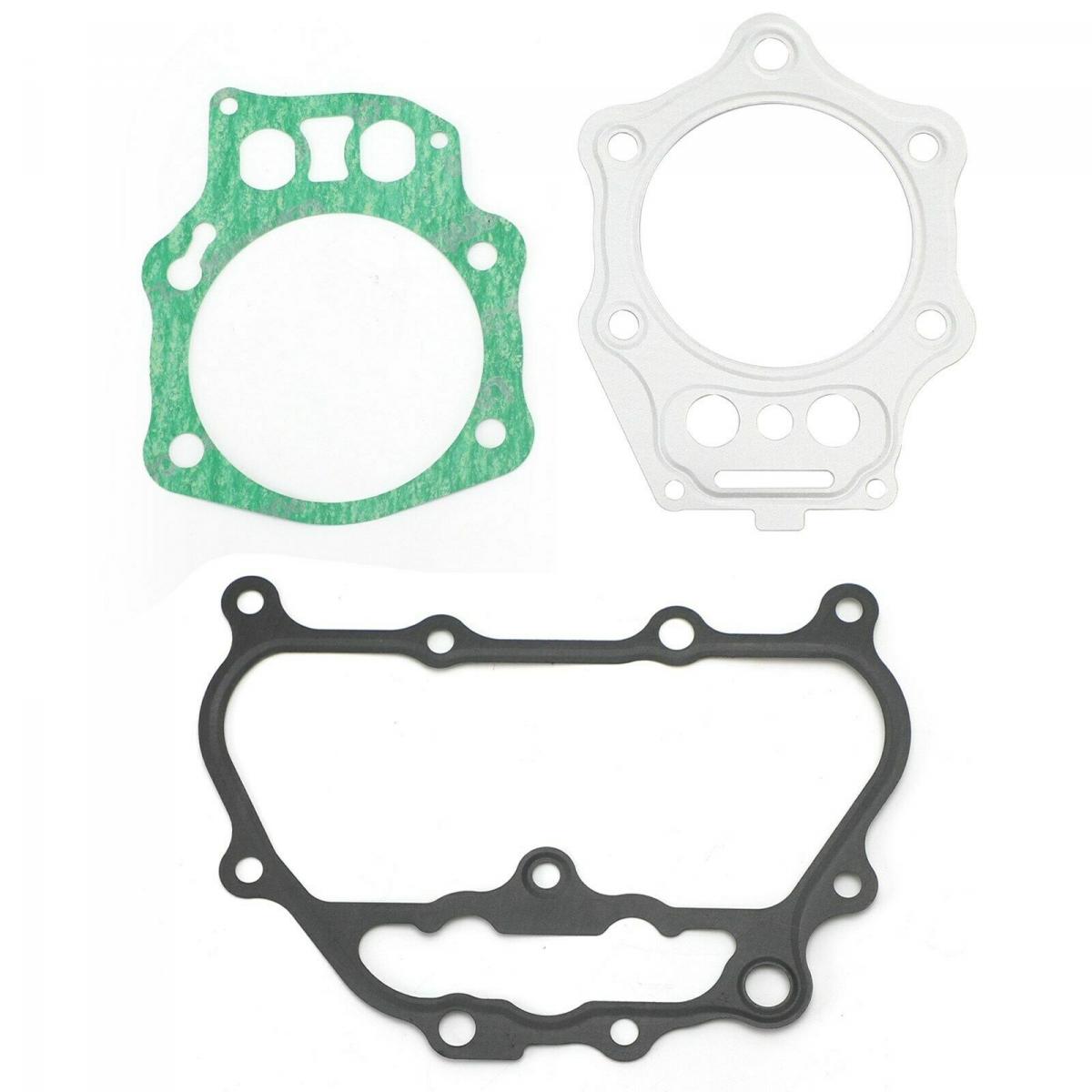

• 1x Cylinder Base Gasket
• 1x Cylinder Head Gasket
• 1x Cylinder Head Cover Gasket

Cross-Reference OEM Part Numbers:

• Cylinder: 12100-HP0-A00
• Cylinder Base Gasket: 12191-HP0-A00
• Cylinder Head Gasket: 12251-HP0-A00
• Cylinder Head Cover Gasket: 12315-HP0-A00
• Ring Set: 13010-HP0-A01
• Piston Pin: 13111-HN2-000
