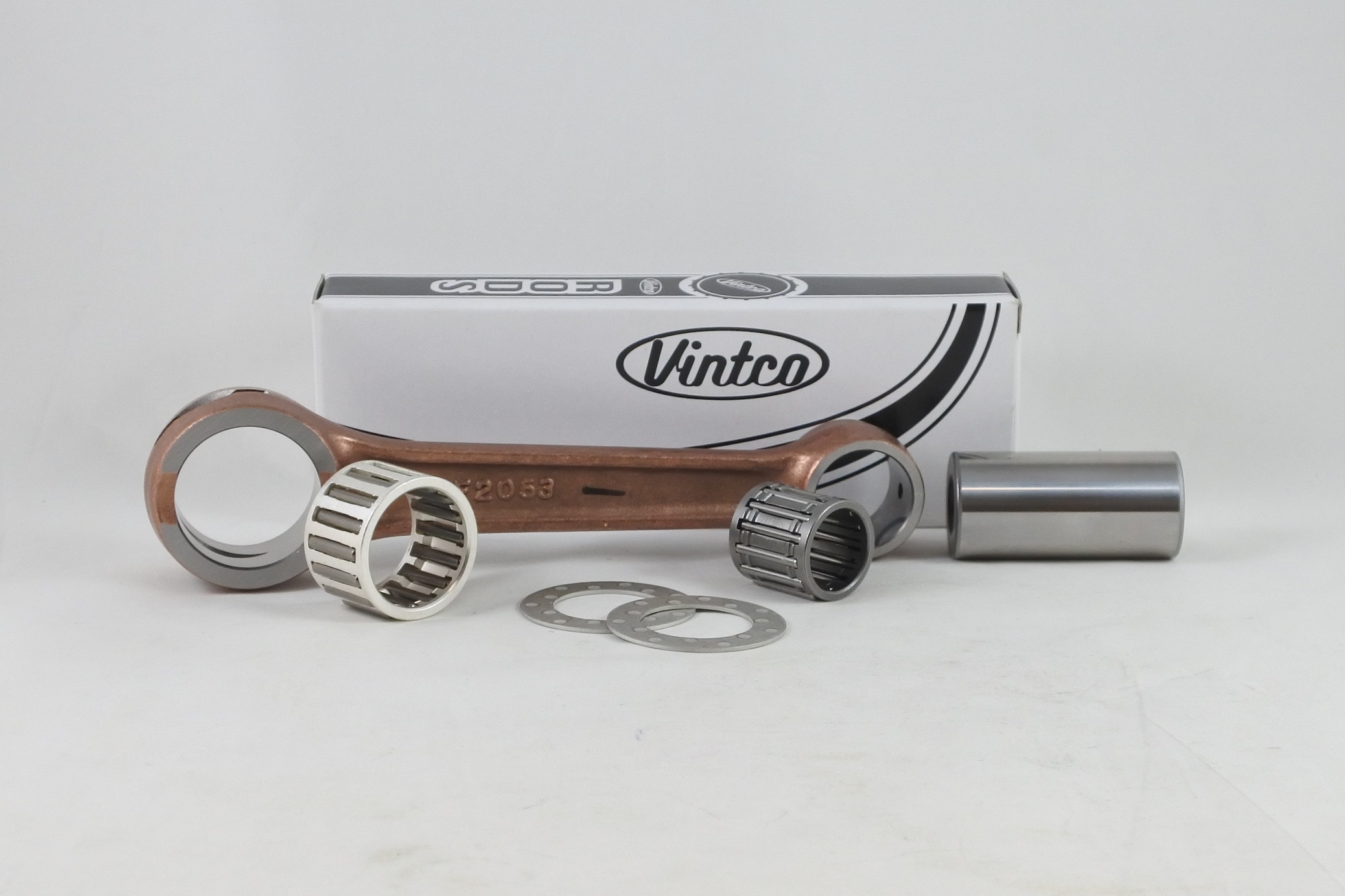

CONNECTING ROD KIT 85-04 KAWASAKI KX 500 VINTCO KR2053

VintCo Heavy Duty Connecting Rod Kit for Vintage Kawasaki KX500

Restore the performance of your vintage Kawasaki KX500 with this heavy-duty connecting rod kit from VintCo. Specifically manufactured for Kawasaki KX500 models produced between 1985 and 2004, this kit offers a reliable and cost-effective solution for engine repairs. Instead of replacing the entire crankshaft, this kit provides the essential components needed for a complete connecting rod assembly replacement.

Utilizing modern manufacturing techniques and premium materials, the VintCo KR2053 kit is engineered to meet or exceed OEM specifications for fitment and performance, ensuring your vintage dirt bike runs as it should.

Key Features:

• Direct replacement connecting rod kit for Kawasaki KX500 (1985-2004).
• Ideal for vintage Kawasaki 500 dirt bike applications.
• A more economical alternative to a full crankshaft replacement.
• Manufactured with advanced materials and modern production methods.
• Designed for precise OEM-level fit and performance.
• Constructed from heavy-duty forged steel for enhanced durability.

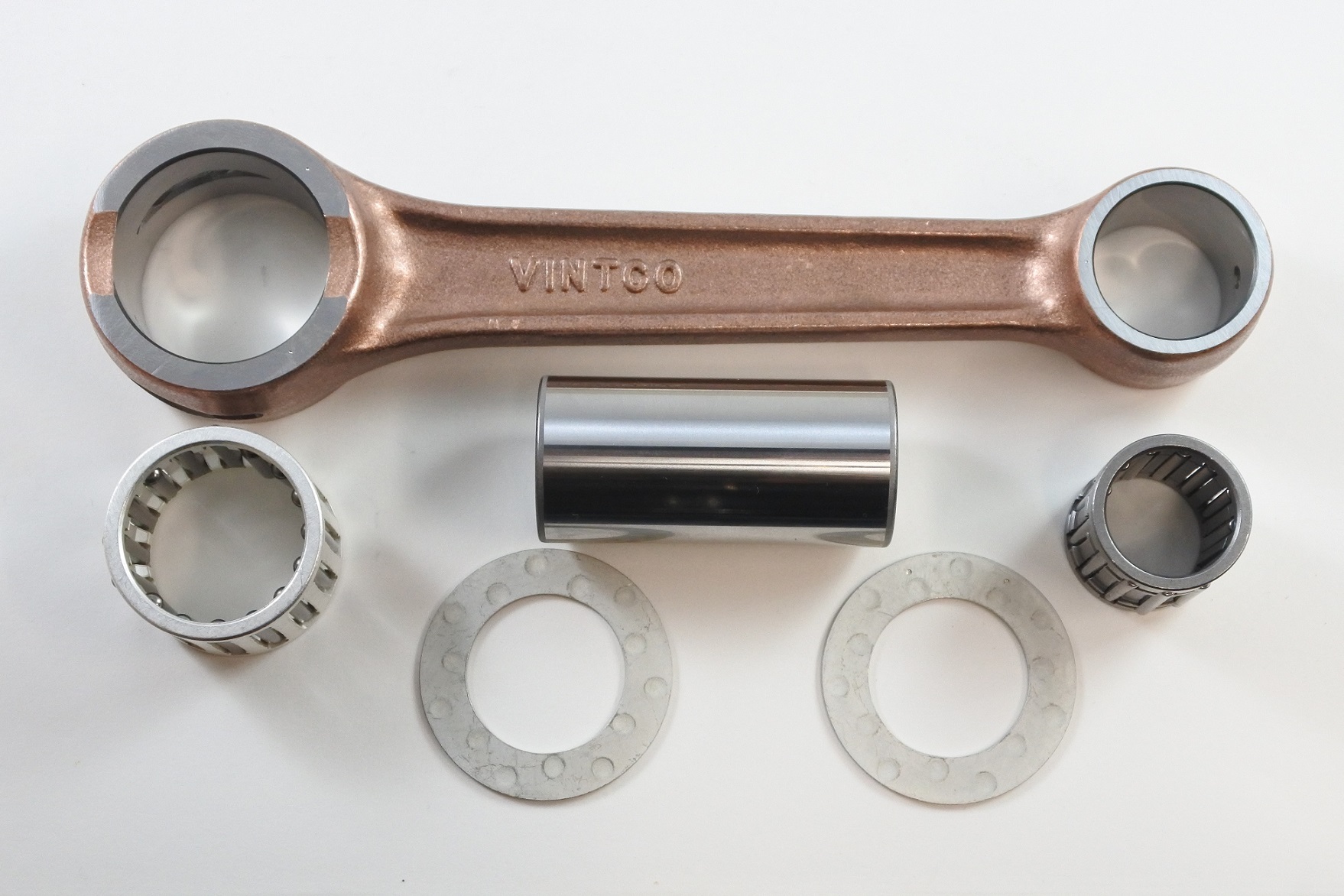

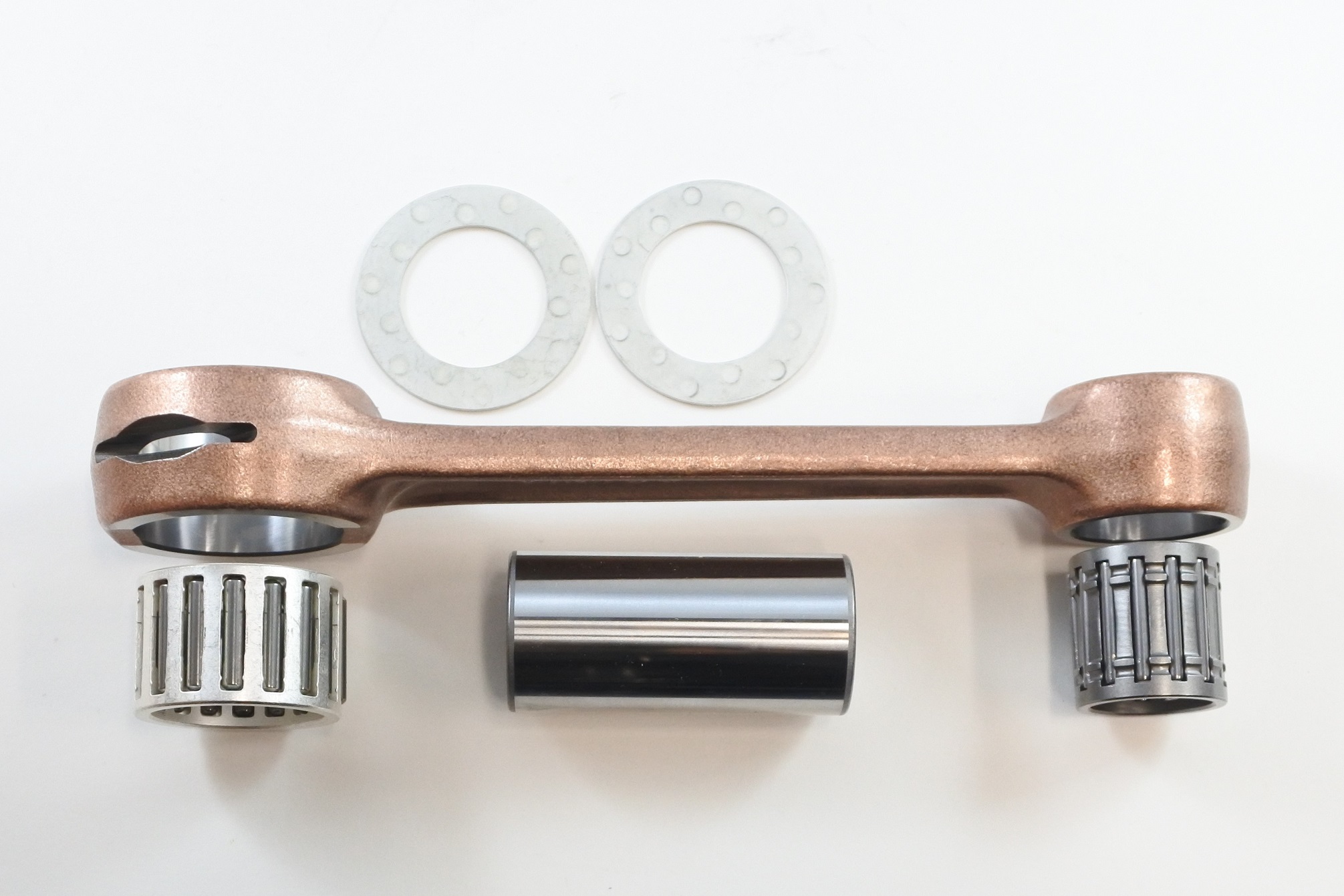

Kit Contents:

• 1 Connecting Rod
• 1 Crank Pin
• 1 Big End Bearing
• 1 Wrist Pin Bearing
• 2 Thrust Washers

Specifications:

• Connecting Rod Material: Heavy Duty Forged Steel
• Crank Pin Dimensions: 14 mm x 26 mm x 54.5 mm
• Big End Bearing Dimensions: 26 mm x 33 mm x 21.8 mm
• Wrist Pin Bearing Dimensions: 19 mm x 24 mm x 24.8 mm
• Thrust Washer Dimensions: 26.2 mm x 40.9 mm x 1 mm
• VintCo Part Number: KR2053
