CONNECTING ROD KIT 83-13 KAWASAKI SUZUKI KX RM 60 65 VINTCO KR2062
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
VintCo KR2062 is a newly manufactured heavy-duty connecting rod kit for Kawasaki and Suzuki mini dirt bike applications. This kit is intended as a cost-effective alternative to replacing the complete crankshaft. Manufactured from forged steel using modern materials and production techniques, it offers OEM-equivalent fit and performance. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers. Crank pin dimensions: 10 x 20 x 45.9 mm. Big end bearing dimensions: 20 x 26 x 13.8 mm. Wrist pin bearing dimensions: 12 x 16 x 15.3 mm. Thrust washer dimensions: 20.2 x 34 x 1 mm. VintCo Part Number: KR2062. Item Category: Connecting Rods. Material: Heavy-duty forged steel. Included connecting rod quantity: 1. Included thrust washer quantity: 2.
- SKU
- VIN-KR2062
- Brand
- Vintco
- Availability
- Out of Stock
Fitments (39)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 60 | 1983 |
| KAWASAKI | KX 60 | 1984 |
| KAWASAKI | KX 60 | 1985 |
| KAWASAKI | KX 60 | 1986 |
| KAWASAKI | KX 60 | 1987 |
| KAWASAKI | KX 60 | 1988 |
| KAWASAKI | KX 60 | 1989 |
| KAWASAKI | KX 60 | 1990 |
| KAWASAKI | KX 60 | 1991 |
| KAWASAKI | KX 60 | 1992 |
| KAWASAKI | KX 60 | 1993 |
| KAWASAKI | KX 60 | 1994 |
| KAWASAKI | KX 60 | 1995 |
| KAWASAKI | KX 60 | 1996 |
| KAWASAKI | KX 60 | 1997 |
| KAWASAKI | KX 60 | 1998 |
| KAWASAKI | KX 60 | 1999 |
| KAWASAKI | KX 60 | 2000 |
| KAWASAKI | KX 60 | 2001 |
| KAWASAKI | KX 60 | 2002 |
| KAWASAKI | KX 60 | 2003 |
| KAWASAKI | KX 65 | 2000 |
| KAWASAKI | KX 65 | 2001 |
| KAWASAKI | KX 65 | 2002 |
| KAWASAKI | KX 65 | 2003 |
| KAWASAKI | KX 65 | 2004 |
| KAWASAKI | KX 65 | 2005 |
| KAWASAKI | KX 65 | 2006 |
| KAWASAKI | KX 65 | 2007 |
| KAWASAKI | KX 65 | 2008 |
| KAWASAKI | KX 65 | 2009 |
| KAWASAKI | KX 65 | 2010 |
| KAWASAKI | KX 65 | 2011 |
| KAWASAKI | KX 65 | 2012 |
| KAWASAKI | KX 65 | 2013 |
| SUZUKI | RM 60 | 2003 |
| SUZUKI | RM 65 | 2003 |
| SUZUKI | RM 65 | 2004 |
| SUZUKI | RM 65 | 2005 |
- SKU
- VIN-KR2062
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Heavy-Duty Connecting Rod Kit for Kawasaki and Suzuki Mini Dirt Bikes
The VintCo KR2062 is a newly manufactured, heavy-duty connecting rod kit designed for specific Kawasaki and Suzuki mini dirt bike models. This kit offers a cost-effective solution for replacing a complete crankshaft, providing OEM-equivalent fit and performance.
Crafted from forged steel using modern materials and production techniques, this connecting rod kit ensures durability and reliability for your off-road adventures.
Key Features:
- Direct Replacement Kit: Specifically engineered for select Kawasaki and Suzuki mini dirt bike applications.
- Cost-Effective Solution: A more economical alternative to replacing the entire crankshaft assembly.
- Heavy-Duty Construction: Manufactured from durable forged steel for enhanced longevity.

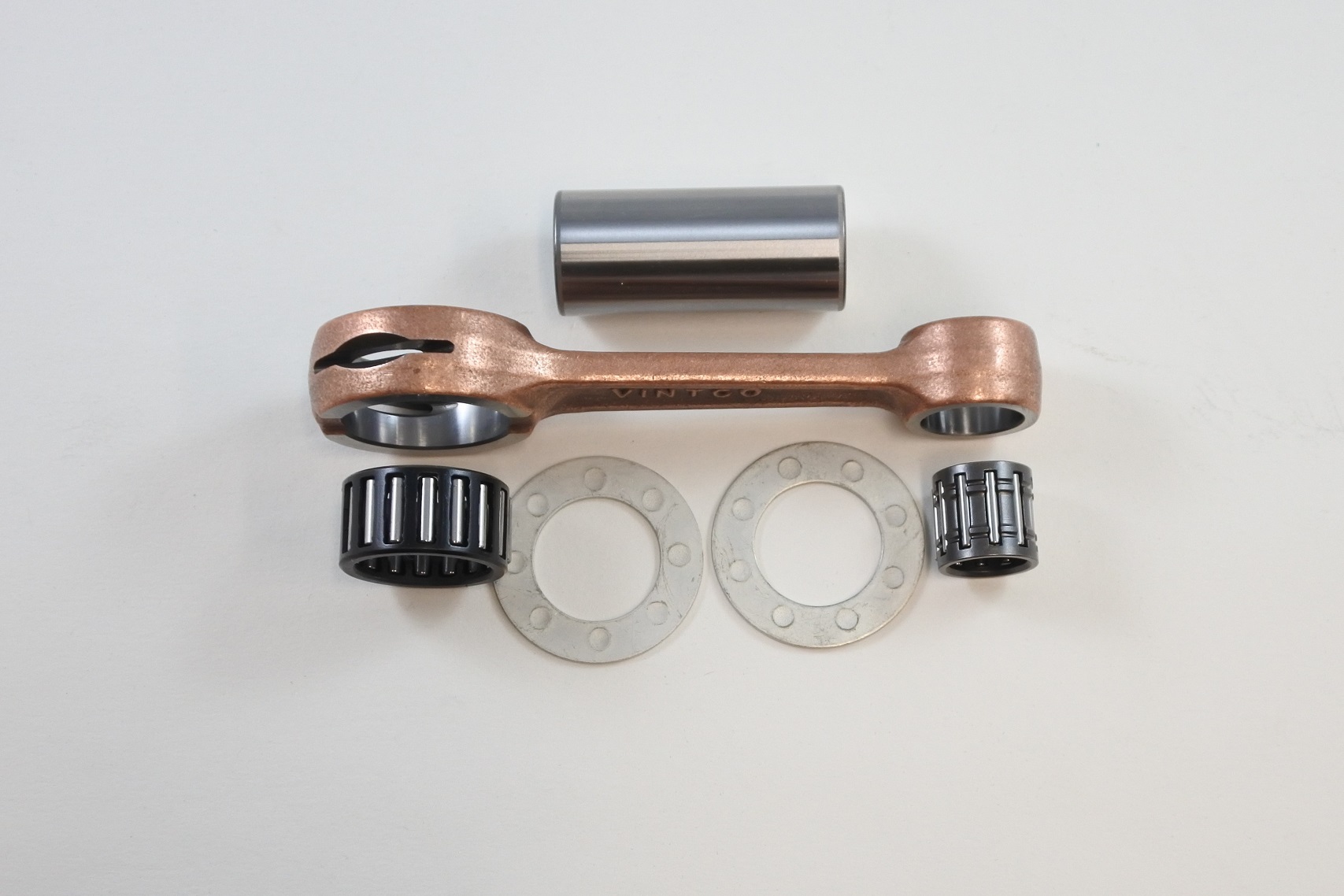

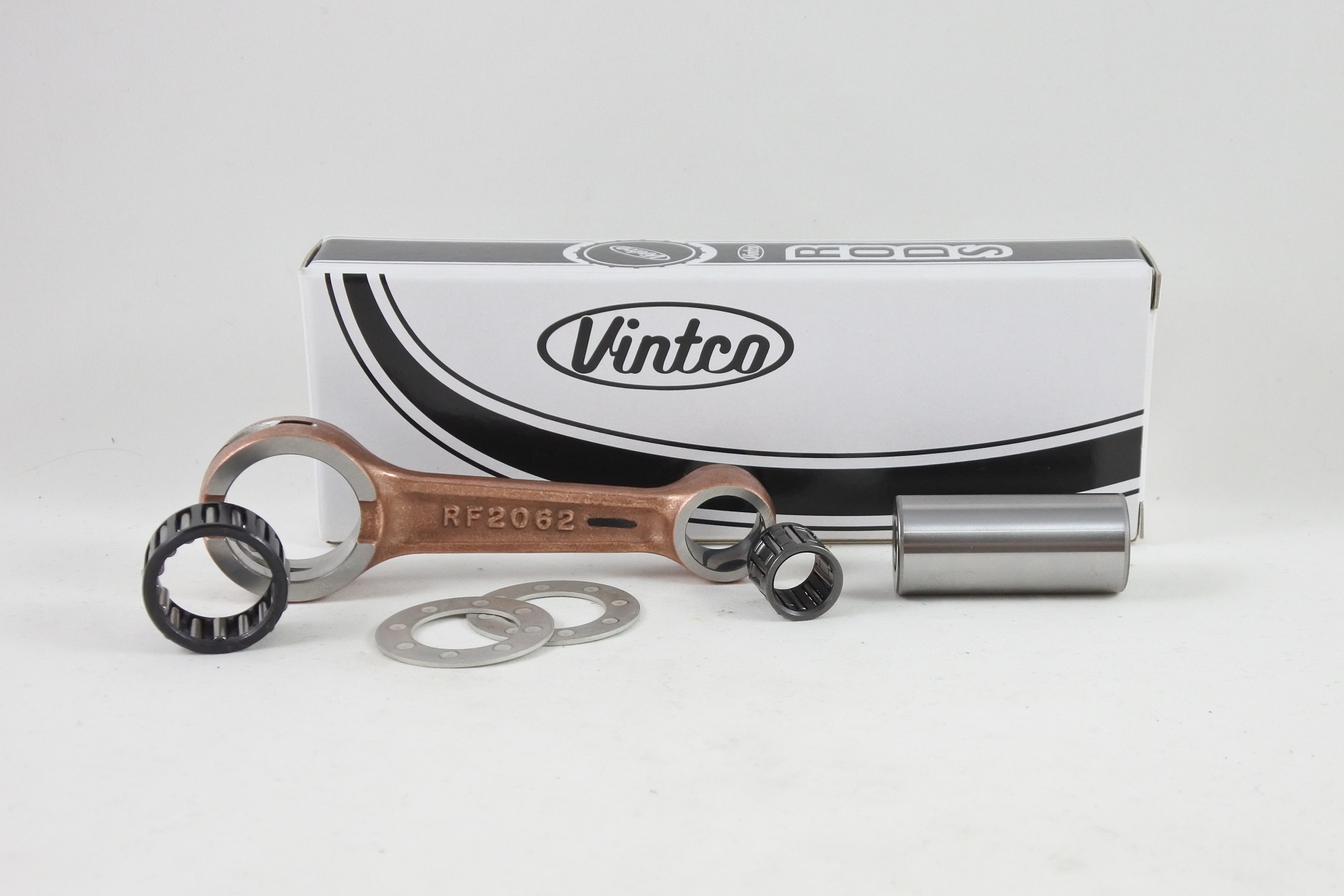

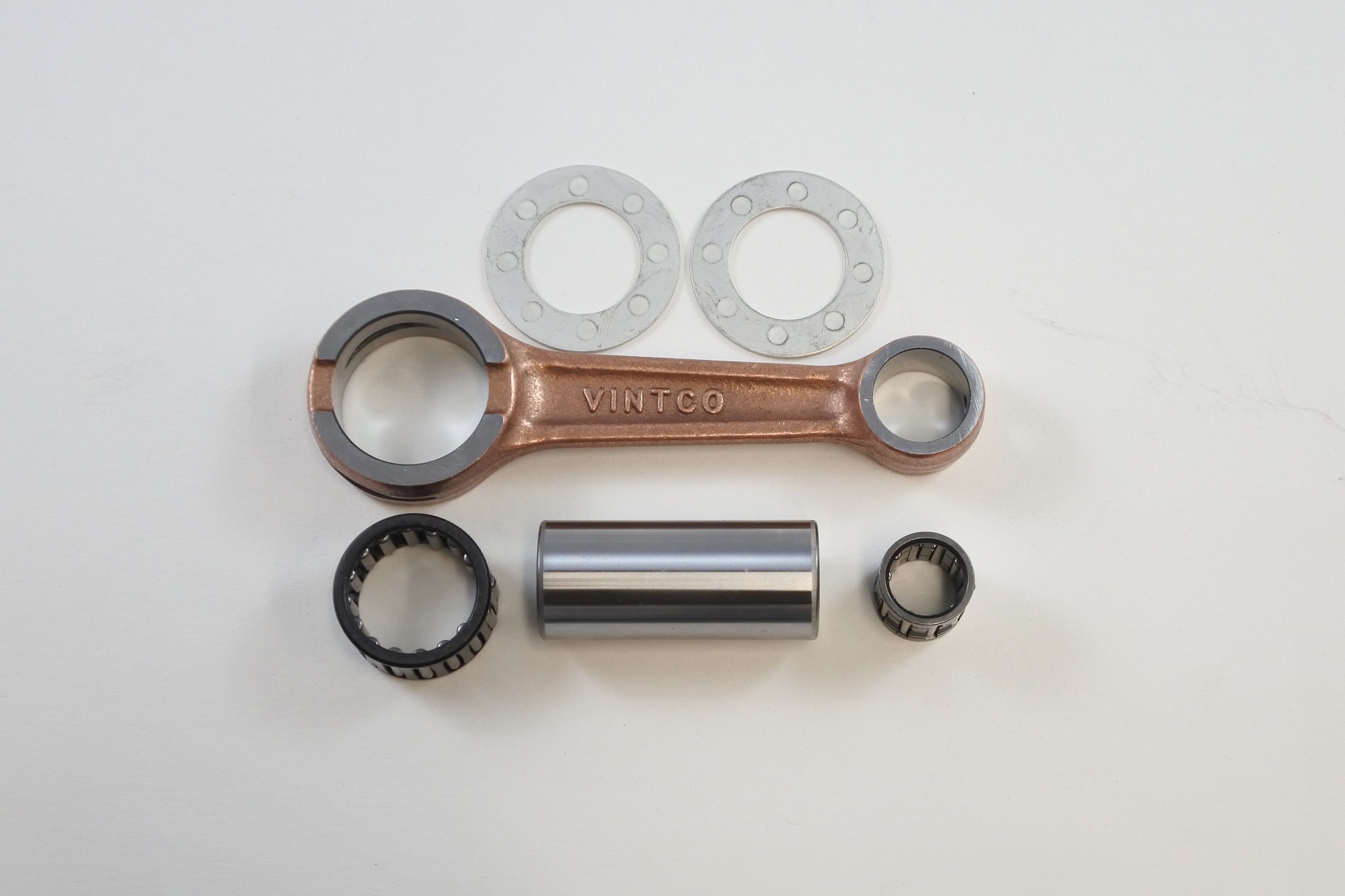

- Complete Assembly: Includes all necessary components for installation: connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers.
- Modern Manufacturing: Utilizes contemporary materials and production methods for optimal performance.
- OEM-Equivalent Fit: Designed to match the specifications and performance of original equipment.
Included Components and Dimensions:
- Connecting Rod (1)
- Crank Pin (Dimensions: 10mm x 20mm x 45.9mm)
- Big End Bearing (Dimensions: 20mm x 26mm x 13.8mm)
- Wrist Pin Bearing (Dimensions: 12mm x 16mm x 15.3mm)
- Thrust Washers (2) (Dimensions: 20.2mm x 34mm x 1mm)
Part Number: KR2062
Manufacturer: VintCo
