CONNECTING ROD KIT 83-01 HONDA ATC250R CR250 VINTCO KR2043

VintCo Connecting Rod Kit for Honda CR250 and ATC250R

This VintCo KR2043 connecting rod kit is a newly manufactured replacement assembly designed for specific Honda CR250 and ATC250R models. It offers a cost-effective alternative to replacing the complete crankshaft. Manufactured using modern materials and production techniques, this kit aims to provide fit and performance equivalent to or better than original equipment.

Key Features:

• Direct replacement connecting rod kit for select Honda CR250 and ATC250R motorcycles.
• A viable alternative to a full crankshaft replacement.
• Expertly manufactured for vintage motorcycle applications.
• Utilizes contemporary materials and advanced production methods.
• Engineered for OEM-level or superior fit and performance.
• Comprehensive kit includes essential components for installation.

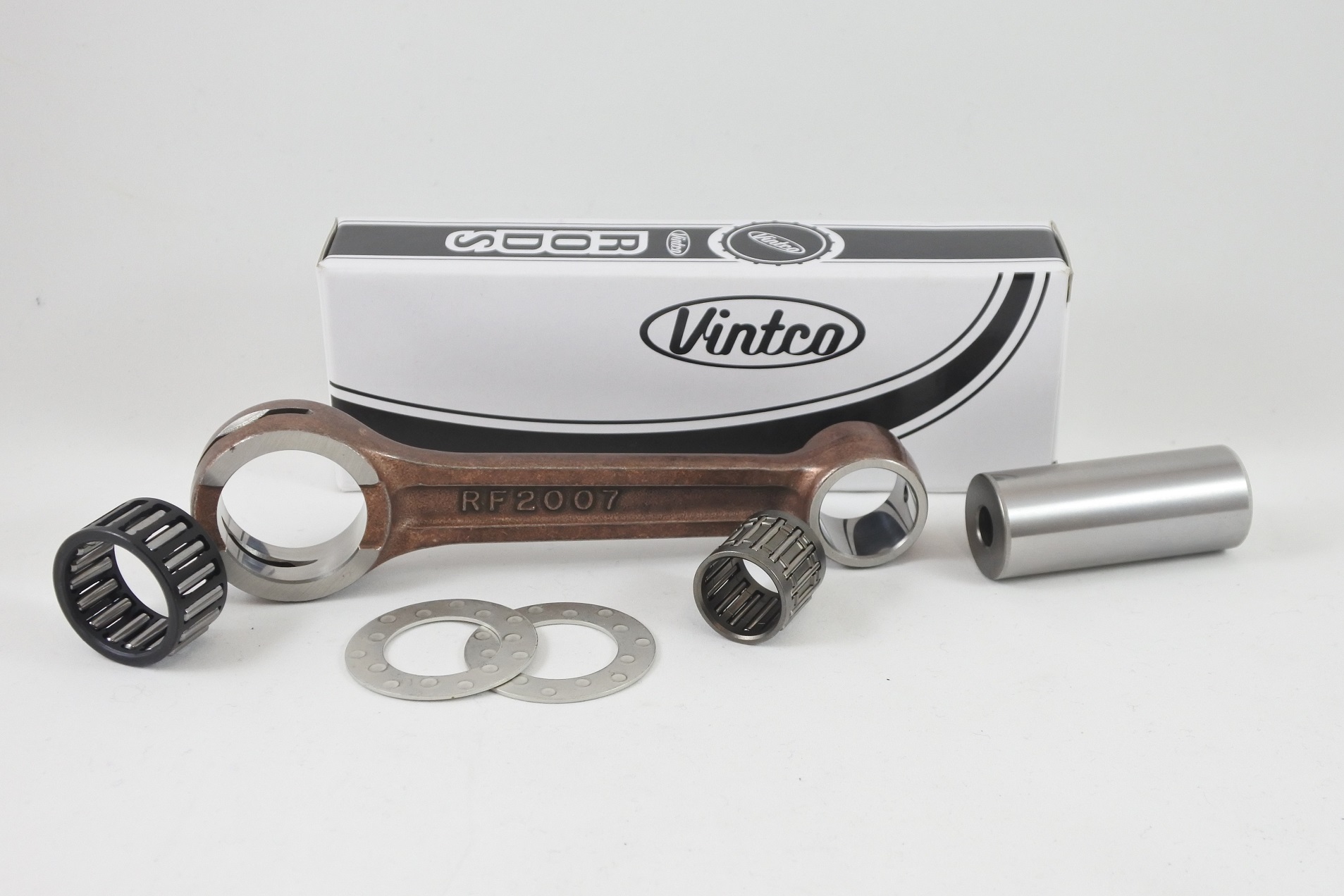

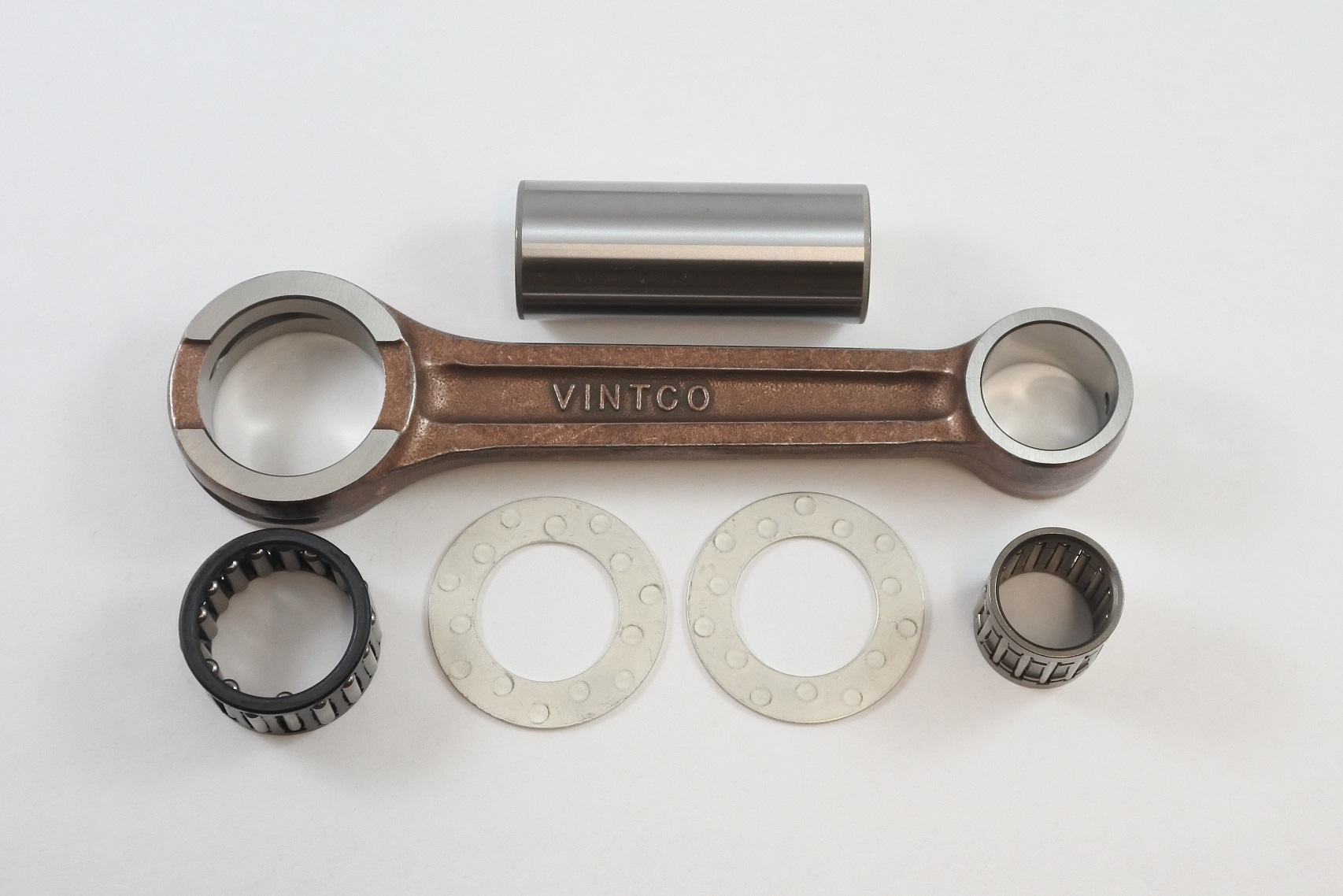

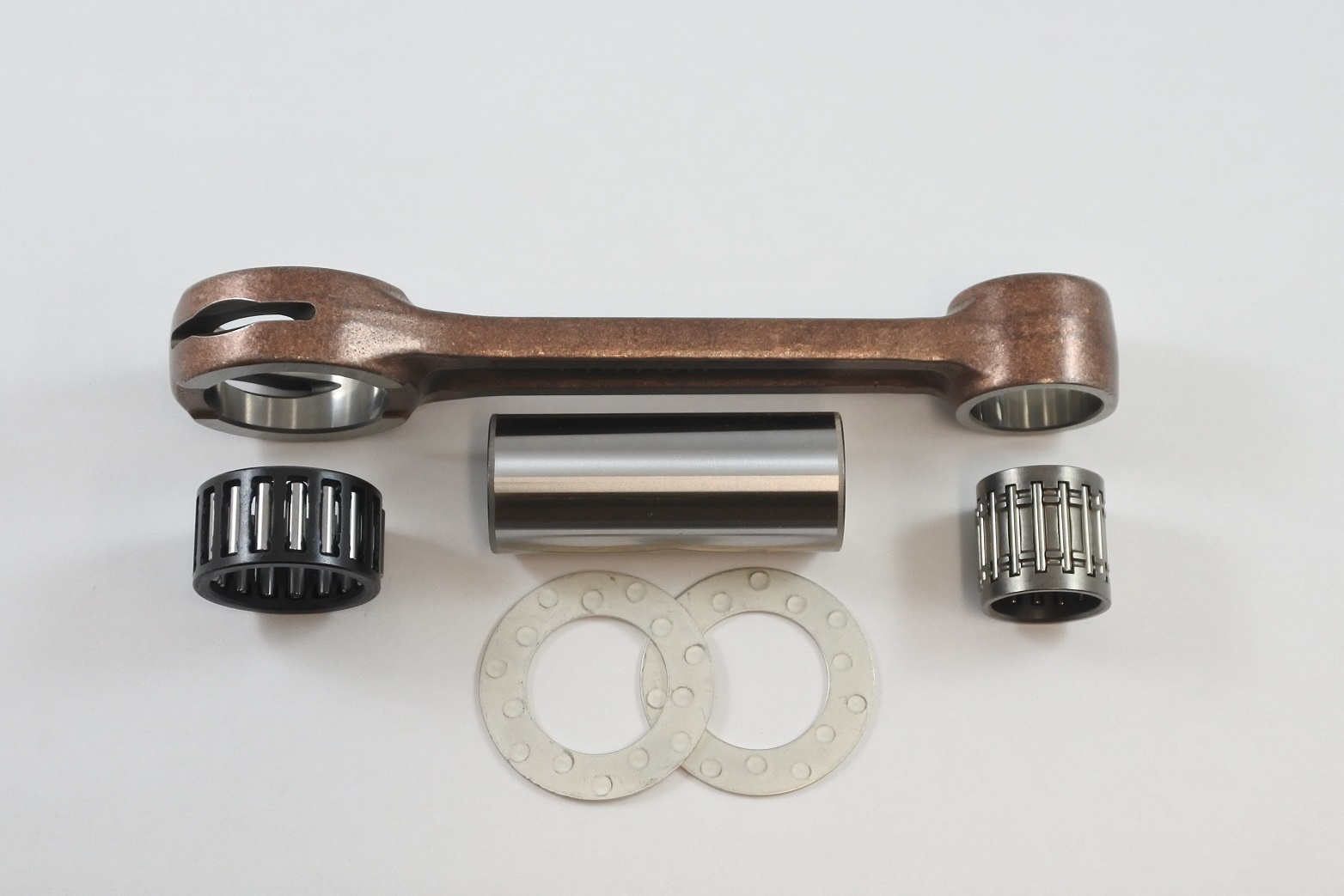

Kit Contents:

• 1 x Connecting Rod (heavy duty forged steel)
• 1 x Crank Pin
• 1 x Big End Bearing
• 1 x Wrist Pin Bearing
• 2 x Thrust Washers

Specifications:

• Manufacturer Part Number: KR2043
• Connecting Rod Material: Heavy duty forged steel
• Connecting Rod Quantity: 1
• Crank Pin Dimensions: 9 mm x 24 mm x 56.5 mm
• Crank Pin Quantity: 1
• Big End Bearing Dimensions: 24 mm x 31 mm x 17 mm
• Big End Bearing Quantity: 1
• Wrist Pin Bearing Dimensions: 18 mm x 22 mm x 22 mm
• Wrist Pin Bearing Quantity: 1
• Thrust Washer Dimensions: 24 mm x 40 mm x 1 mm
• Thrust Washer Quantity: 2
