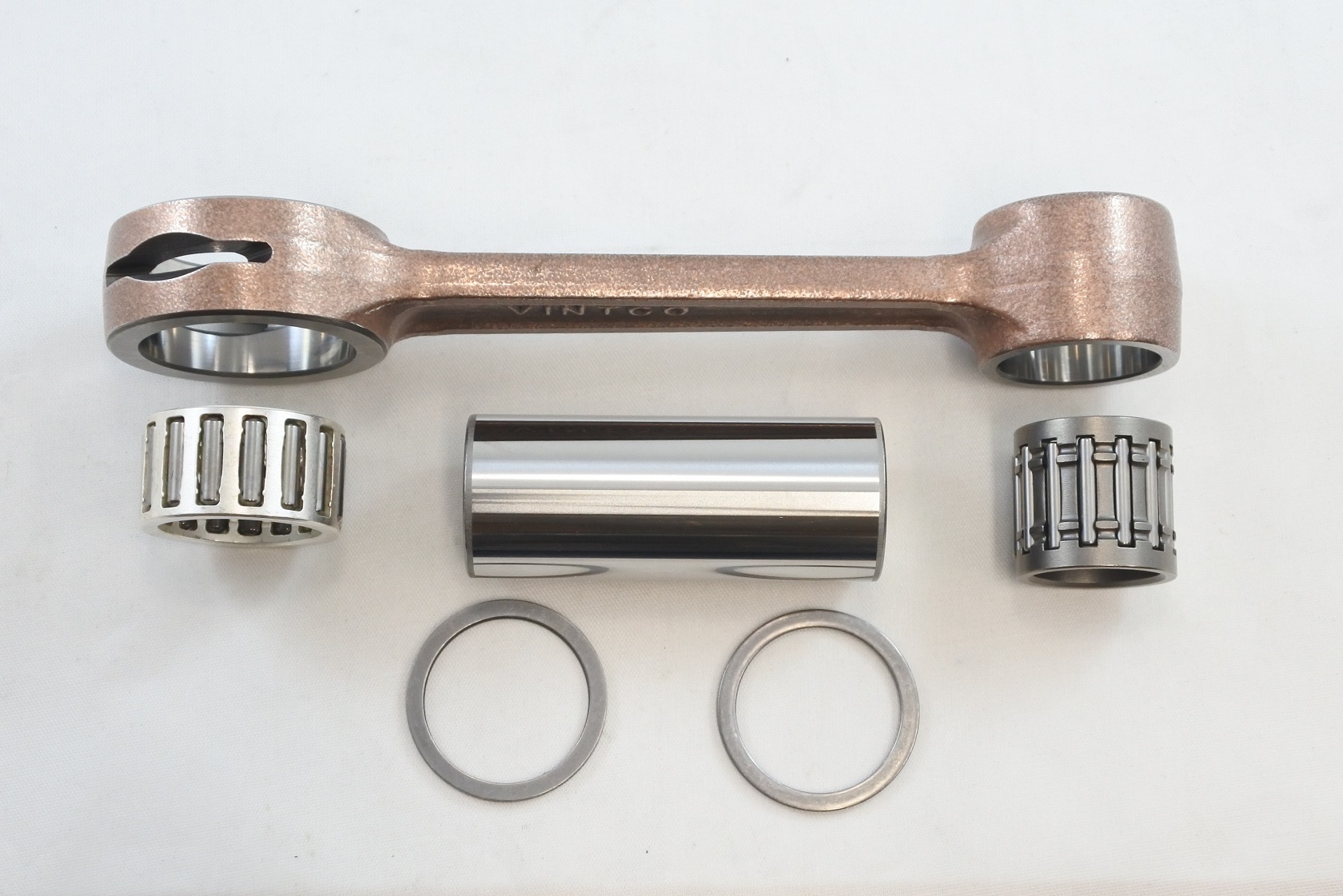

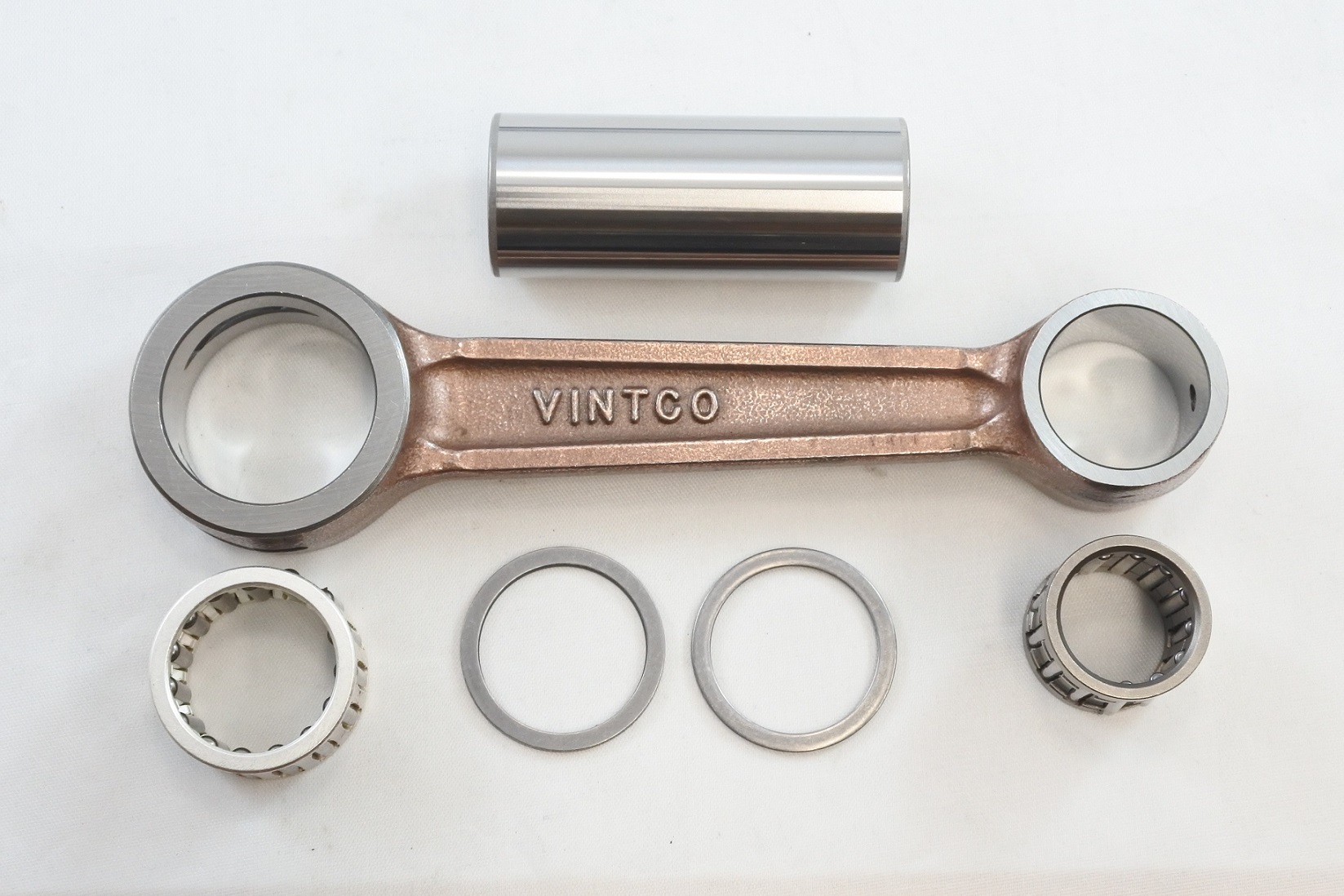

VintCo KR2030 connecting rod kit is a newly manufactured replacement for crankshaft rebuilds on 1980-1981 Suzuki PE250 and RS250 off-road motorcycles. This kit provides an alternative to replacing the complete crankshaft, utilizing modern materials and manufacturing techniques for OEM-equivalent fit and performance. It includes one connecting rod, one crank pin, one big end bearing, one wrist pin bearing, and two thrust washers. The connecting rod is heavy duty forged steel. Crank pin measures 8 x 24 x 60 mm. Big end bearing measures 24 x 30 x 17 mm. Wrist pin bearing measures 18 x 23 x 22 mm. Thrust washers measure 24 x 29 x 1.5 mm. Suzuki OEM Part Number cross-reference is 12161-40300.
- SKU
- VIN-KR2030
- Brand
- Vintco
- Availability
- In Stock (1)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| SUZUKI | PE 250 | 1980 |
| SUZUKI | PE 250 | 1981 |
| SUZUKI | RS 250 | 1980 |
| SUZUKI | RS 250 | 1981 |
- SKU
- VIN-KR2030
- Brand
- Vintco
- Availability
- In Stock (1)
FULL DESCRIPTION
VintCo Connecting Rod Kit for Vintage Suzuki 250 Off-Road Motorcycles
Revitalize your vintage Suzuki 250 off-road motorcycle's engine with the VintCo KR2030 Connecting Rod Kit. This high-quality kit is specifically designed for crankshaft rebuilds, offering a cost-effective alternative to replacing the entire crankshaft. Engineered with modern materials and advanced manufacturing techniques, the KR2030 ensures OEM-equivalent fit and performance, bringing your classic machine back to life.
Key Features:
- Direct replacement connecting rod kit for crankshaft rebuilds.
- Optimized for vintage Suzuki 250 off-road models.
- Allows for crankshaft repair without requiring a complete crankshaft replacement.
- Manufactured using contemporary materials and cutting-edge production processes.
- Precision engineered for an OEM-equivalent fit and reliable performance.
- Comprehensive kit includes: 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing, and 2 thrust washers.
Specifications:
- Connecting Rod Material: Heavy duty forged steel
- Crank Pin Dimensions: 8 x 24 x 60 mm
- Big End Bearing Dimensions: 24 x 30 x 17 mm
- Wrist Pin Bearing Dimensions: 18 x 23 x 22 mm
- Thrust Washer Dimensions: 24 x 29 x 1.5 mm
Cross-Reference OEM Part Number:
- Suzuki: 12161-40300
