CONNECTING ROD KIT 75-81 YAMAHA DT IT MX TY YZ 250 400 VINTCO KR2013
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
VintCo connecting rod kit KR2013 is a newly manufactured replacement assembly for selected Yamaha 250 and 400 models from 1975 to 1981. This kit is designed as a cost-conscious alternative to replacing the complete crankshaft. It is manufactured from heavy duty forged steel using modern materials and manufacturing techniques. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers. Specifications: VintCo Part Number KR2013. Material: Heavy duty forged steel. Crank pin size: 12 x 25 x 60 mm. Big end bearing size: 25 x 32 x 20 mm. Wrist pin bearing size: 18 x 22 x 22 mm. Thrust washer size: 25 x 40 x 1 mm. Cross-Reference OEM Part Number: Yamaha OE 498-11651-00-00.
- SKU
- VIN-KR2013
- Brand
- Vintco
- Availability
- In Stock (1)
Fitments (19)
| Make | Model | Year |
|---|---|---|
| YAMAHA | DT 250 | 1975 |
| YAMAHA | DT 250 | 1976 |
| YAMAHA | DT 250 | 1977 |
| YAMAHA | DT 250 | 1978 |
| YAMAHA | DT 250 | 1979 |
| YAMAHA | IT 250 | 1977 |
| YAMAHA | IT 250 | 1978 |
| YAMAHA | IT 250 | 1979 |
| YAMAHA | IT 250 | 1980 |
| YAMAHA | IT 250 | 1981 |
| YAMAHA | MX 250 | 1975 |
| YAMAHA | TY 250 | 1976 |
| YAMAHA | TY 250 | 1977 |
| YAMAHA | YZ 250 | 1976 |
| YAMAHA | YZ 250 | 1977 |
| YAMAHA | YZ 250 | 1978 |
| YAMAHA | YZ 250 | 1979 |
| YAMAHA | YZ 250 | 1980 |
| YAMAHA | YZ 250 | 1981 |
- SKU
- VIN-KR2013
- Brand
- Vintco
- Availability
- In Stock (1)
FULL DESCRIPTION
VintCo Connecting Rod Kit for Yamaha
This VintCo connecting rod kit is a newly manufactured replacement assembly for selected Yamaha 250 and 400 models. It provides a cost-conscious alternative to replacing the complete crankshaft. The kit is manufactured from heavy duty forged steel using modern materials and manufacturing techniques.
Key Features
- Replacement connecting rod kit
- Intended as an alternative to replacing the complete crankshaft
- Manufactured using modern materials and manufacturing techniques
- Heavy duty forged steel construction
- Designed for OEM-equivalent fitment and performance

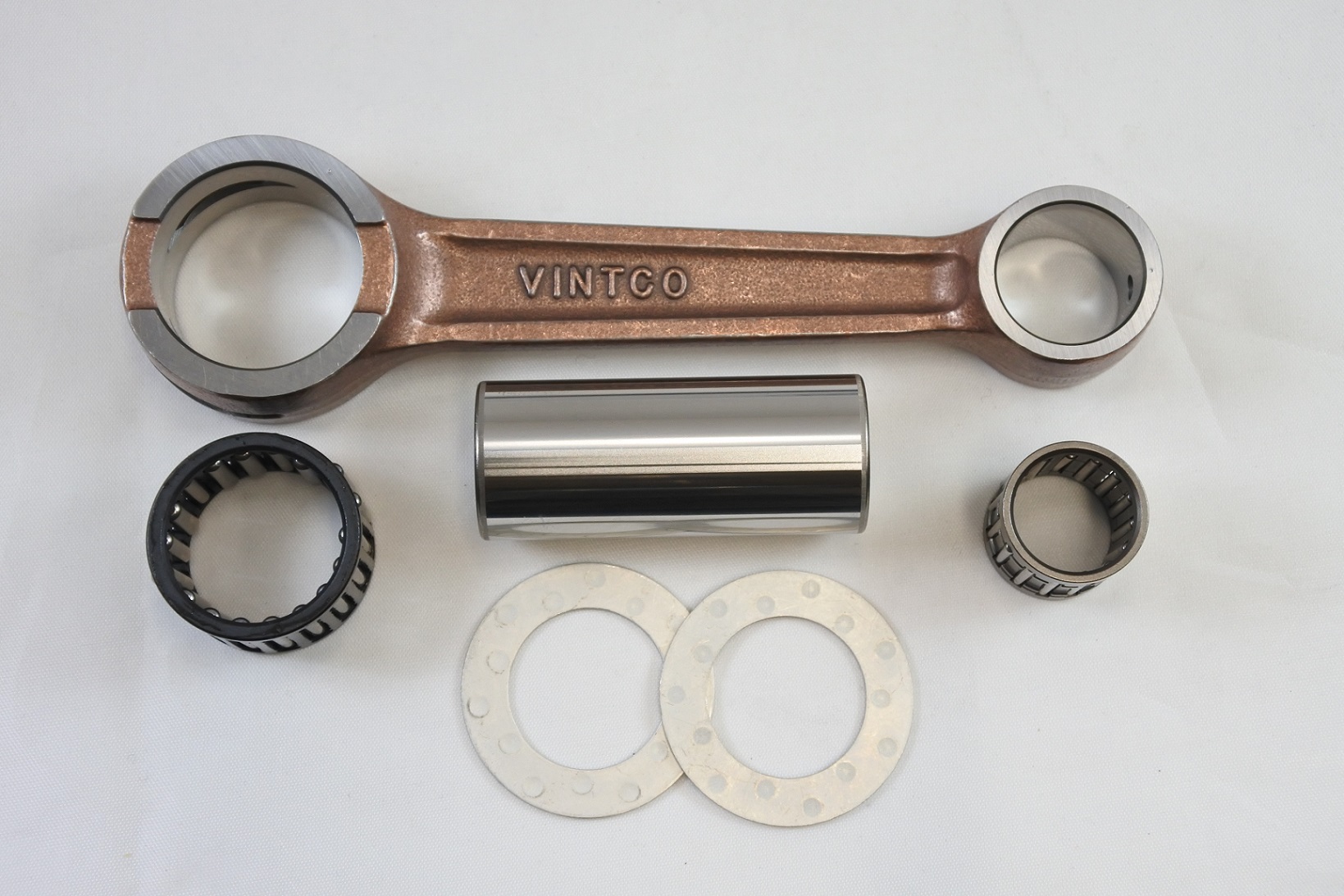

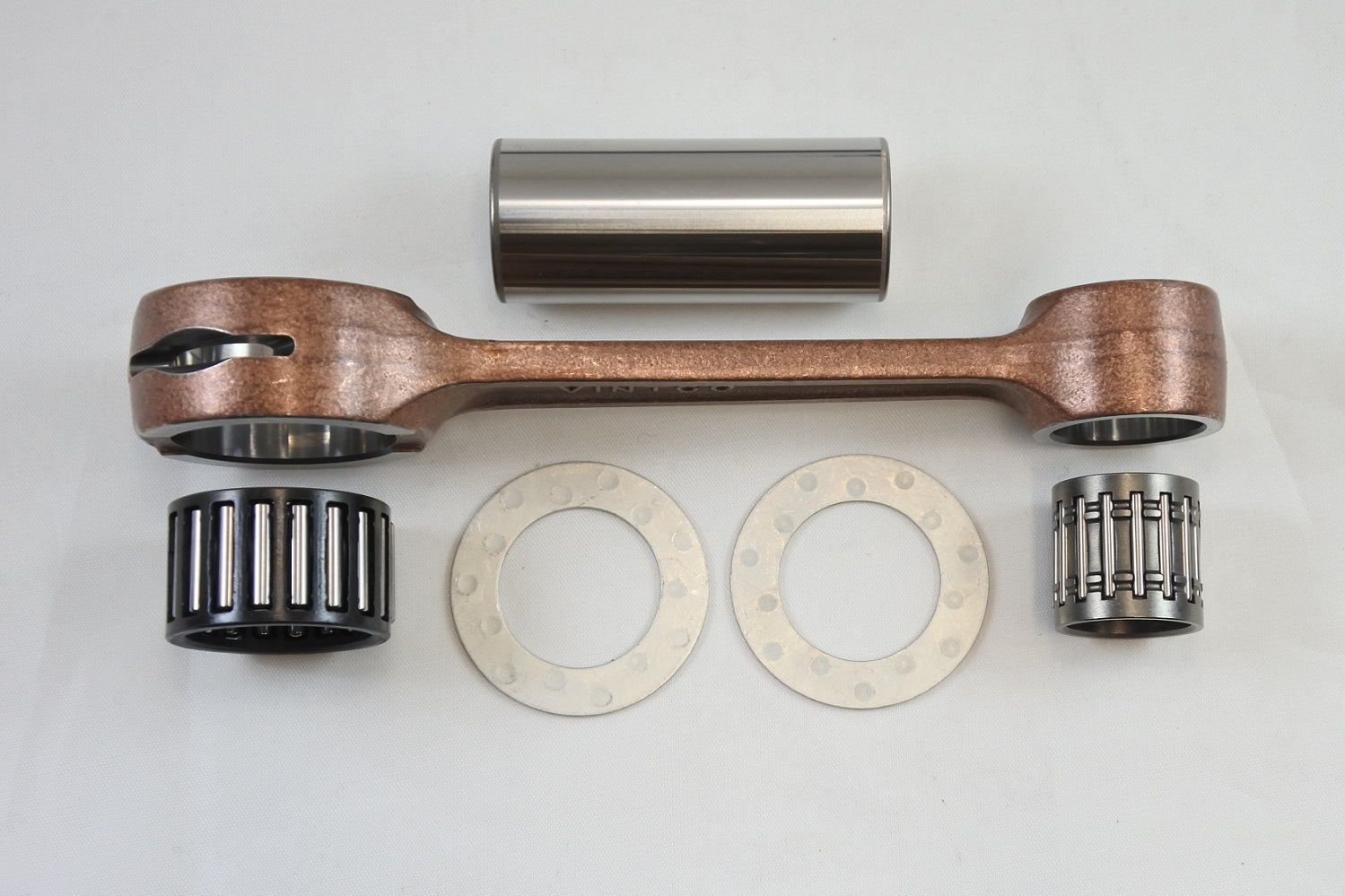

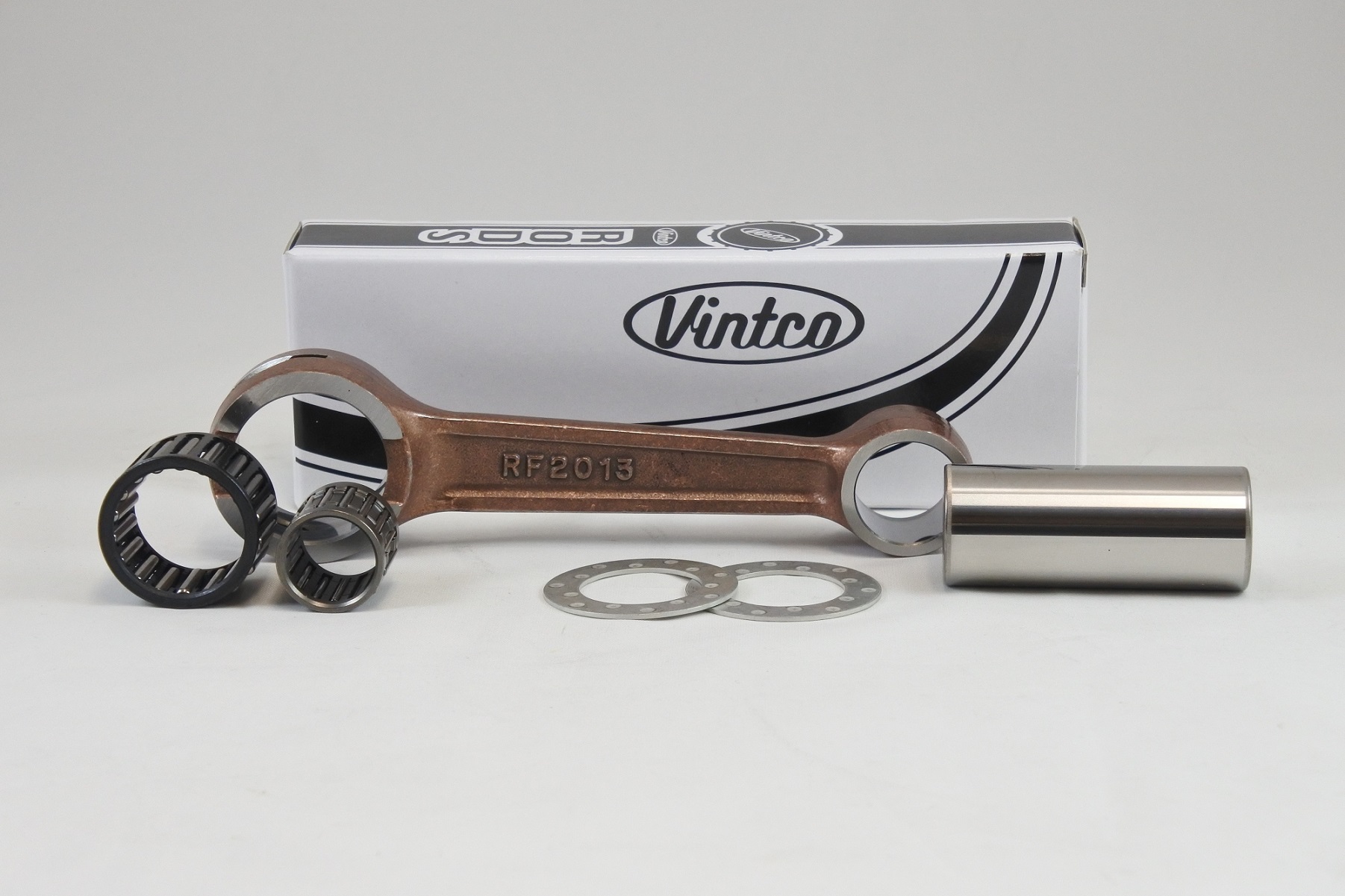

Included Components
- Connecting rod
- Crank pin
- Big end bearing
- Wrist pin bearing
- Two thrust washers
Specifications
- Crank pin size: 12 x 25 x 60 mm
- Big end bearing size: 25 x 32 x 20 mm
- Wrist pin bearing size: 18 x 22 x 22 mm
- Thrust washer size: 25 x 40 x 1 mm
- Material: Heavy duty forged steel
