CONNECTING ROD 04-11 RM125, NAMURA RX-30008 MX-09059-1
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Heavy-duty connecting rod rebuild kit designed as an OE replacement. Constructed from certified chrome alloy steel for superior strength and durability. Crankpins are made from hot-rolled ASTM steel and case-hardened. Features advanced caged needle roller bearing designs for high-rpm longevity and bronze phosphor thrust washers with a silver coating. Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed. Fully compatible with aftermarket and OE crankshafts. Meets or exceeds OEM quality and reliability standards. Centre-to-Centre: 110 mm. Small End Bearing: 15x19x19.80 mm. Small End Bore Ø: 19 mm. Small End Width: 16 mm. Big End Bearing: 22x28x15.80 mm. Big End Bore Ø: 28 mm. Big End Width: 16 mm. Big End Pin Ø: 22 mm. Big End Pin Length: 52.70 mm. Washer Thickness: 1.0 mm. Manufacturer: Namura Technologies.
- SKU
- 56-925.NM
- Brand
- Namura Technologies
- Availability
- In Stock (2)
Fitments (8)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 125 | 2004 |
| SUZUKI | RM 125 | 2005 |
| SUZUKI | RM 125 | 2006 |
| SUZUKI | RM 125 | 2007 |
| SUZUKI | RM 125 | 2008 |
| SUZUKI | RM 125 | 2009 |
| SUZUKI | RM 125 | 2010 |
| SUZUKI | RM 125 | 2011 |
- SKU
- 56-925.NM
- Brand
- Namura Technologies
- Availability
- In Stock (2)
FULL DESCRIPTION

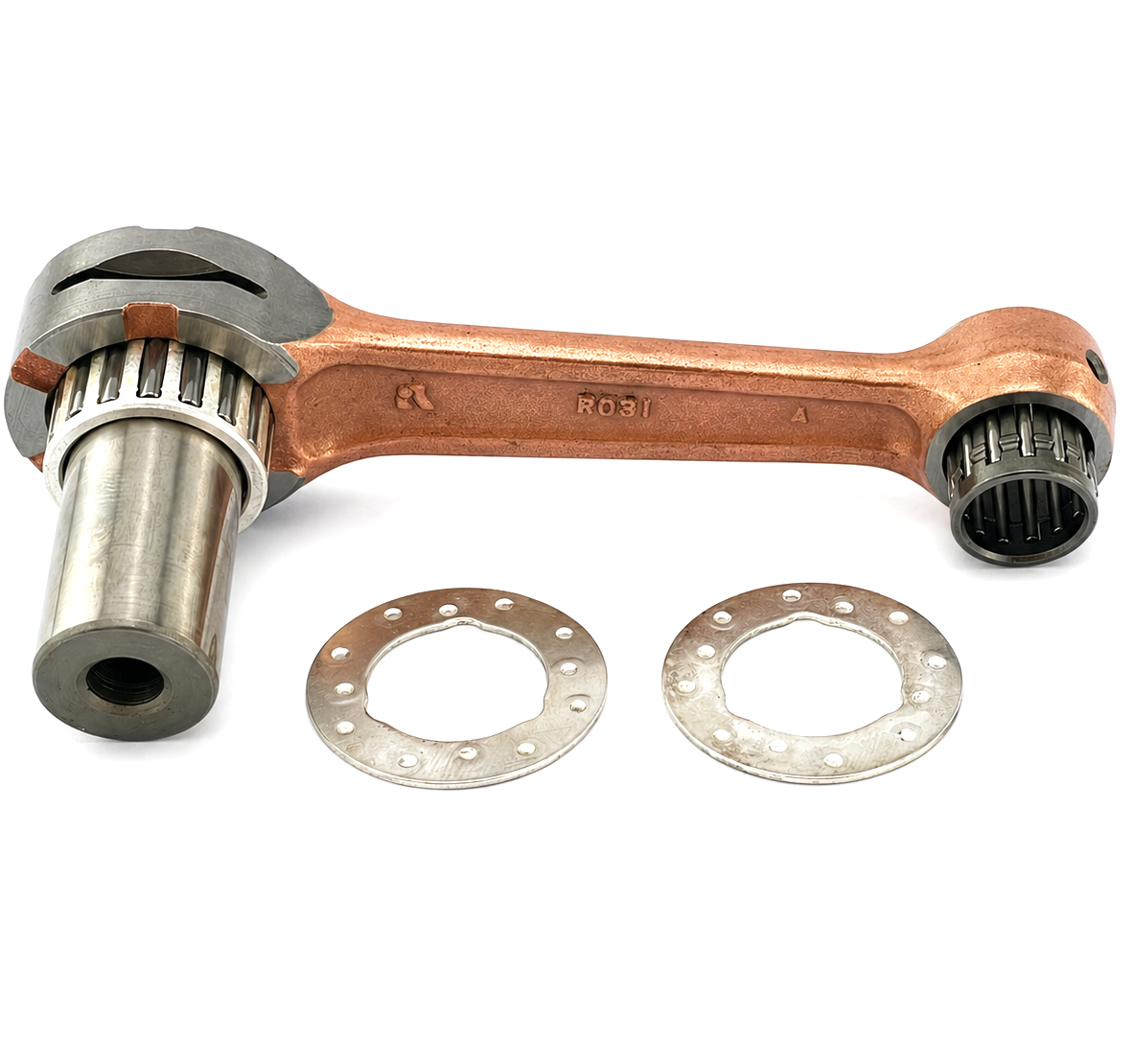

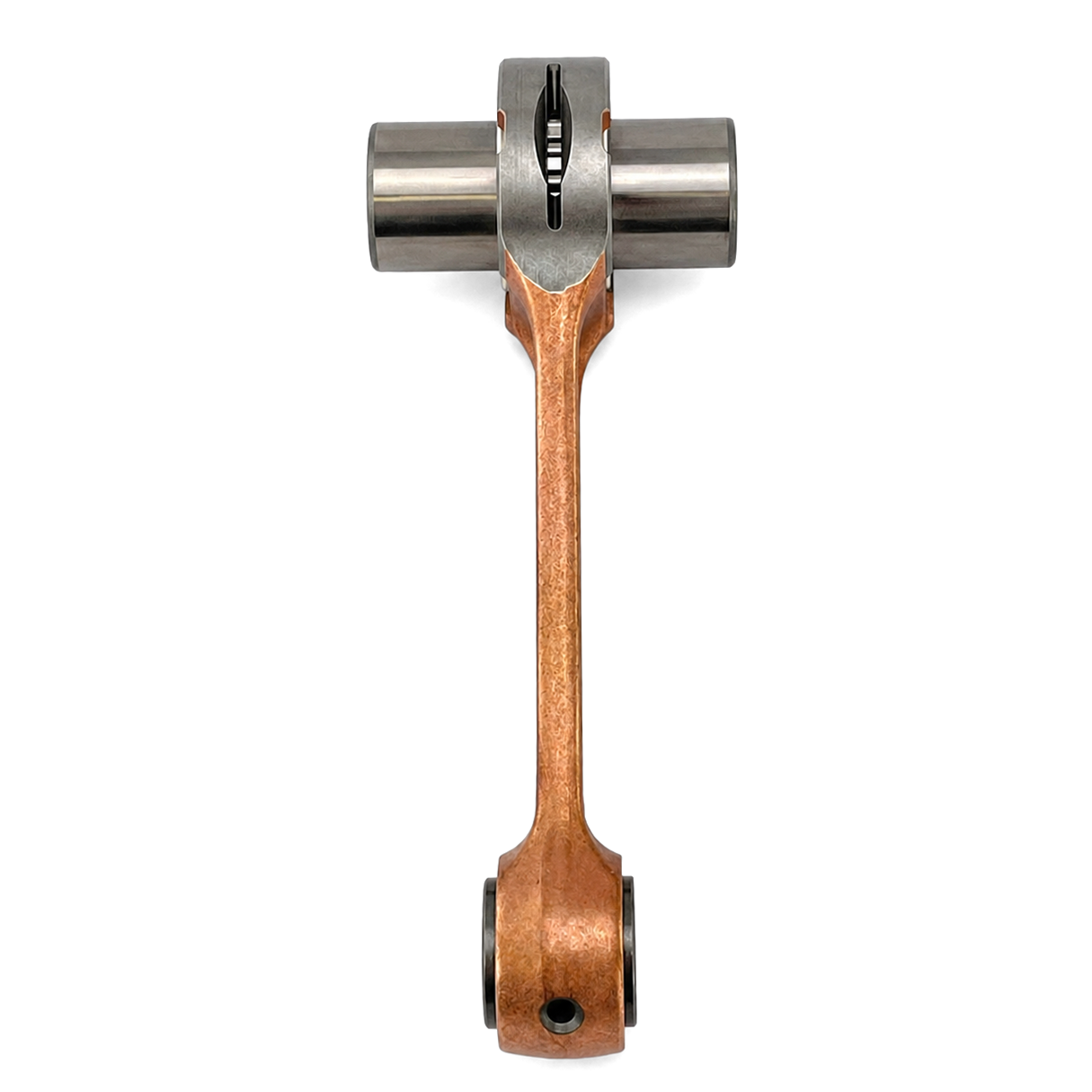

Namura Technologies Connecting Rod Rebuild Kit for Suzuki RM125
This heavy-duty connecting rod rebuild kit from Namura Technologies is engineered as a direct OE replacement for Suzuki RM125 models. Manufactured with certified chrome alloy steel, it offers enhanced strength and durability, meeting or exceeding OEM quality standards. Every component is factory tested to ensure reliability and peak performance, providing a seamless integration with your motorcycle's existing crankshafts, whether aftermarket or original equipment.
Key Features:
- Heavy-duty design for superior strength and longevity.
- Constructed from certified chrome alloy steel.
- Crankpins are crafted from hot-rolled ASTM steel and case-hardened.
- Advanced caged needle roller bearing designs ensure high-rpm longevity.
- Includes bronze phosphor thrust washers with a silver coating for improved performance.
- Complete assembly provides all necessary parts for a full rebuild.
- Fully compatible with both aftermarket and OE crankshafts.
- Meets or exceeds OEM quality and reliability specifications.
Specifications:
- Centre-to-Centre: 110 mm
- Small End Bearing Dimensions: 15x19x19.80 mm
- Small End Bore Diameter: 19 mm
- Small End Width: 16 mm
- Big End Bearing Dimensions: 22x28x15.80 mm
- Big End Bore Diameter: 28 mm
- Big End Width: 16 mm
- Big End Pin Diameter: 22 mm
- Big End Pin Length: 52.70 mm
- Washer Thickness: 1.0 mm
Cross-Reference OEM Part Numbers:
- Suzuki: 12161-36E11
- Suzuki: 12161-36E12
- Suzuki: 12161-36F20
- Suzuki: 12161-36F21
- Psychic: MX-09059-1
- ProX: 03.3224
- Wiseco: WPR195
- Wossner: P2016
- Hot Rods: 8615
