CDI BOX YAMA DT125 82-84, 18G-85540-20-00, IYA6002, DZE 1377, IYA6002
£42.61
1
Qty
1

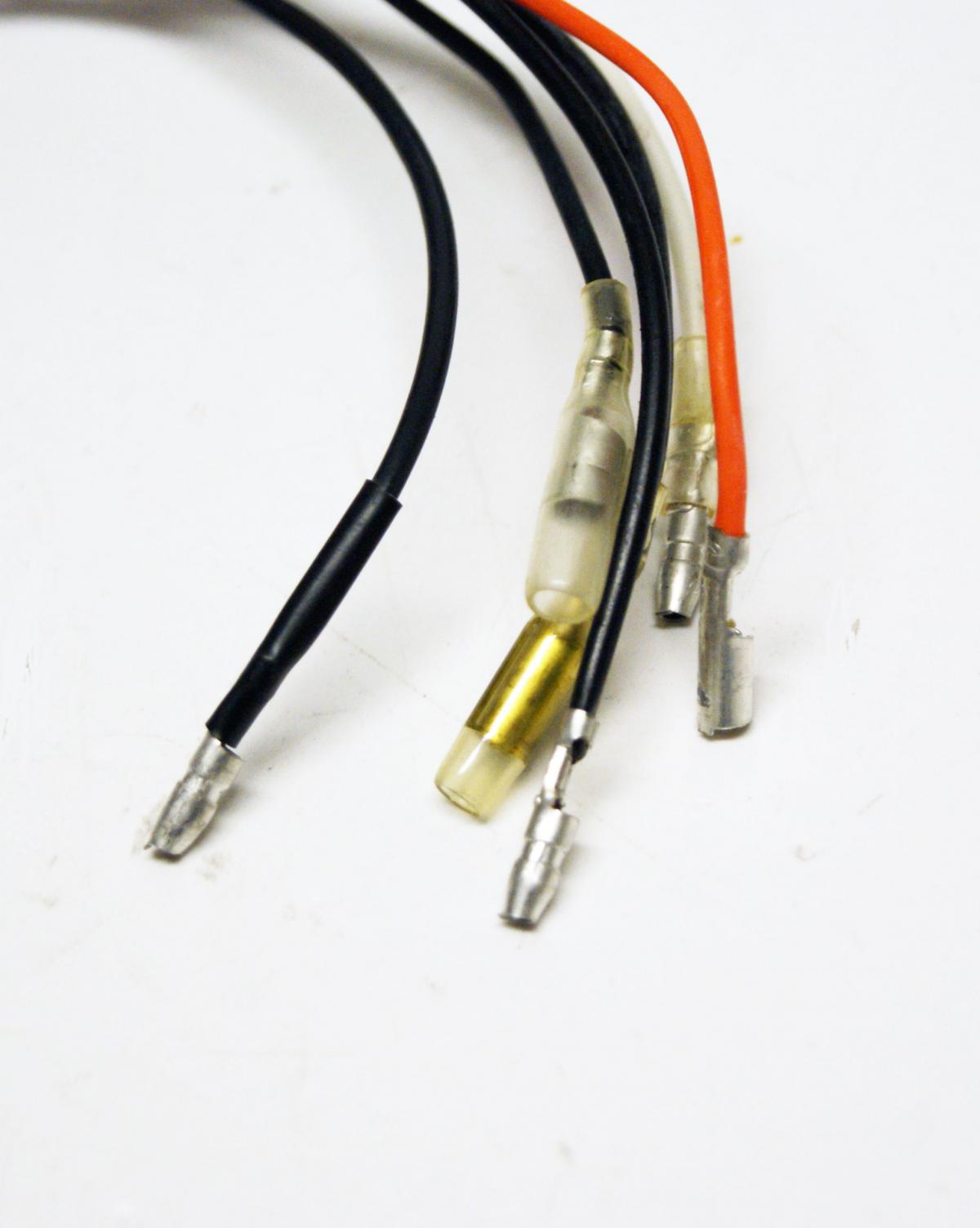

CDI BOX MODULE. 6 wire. Orange wire connects to ignition coil. Black/White wire is for killer. White/Red wire connects to sensor. Black/Red wire connects to charging coil. Black wire is ground. Do not turn the flywheel around without the ground connection. Cross reference numbers: 18G-85540-20-00, IYA6002, DZE 1377.
Specifications
- SKU
- 44-5801
- Brand
- DZE Electrics
- Availability
- In Stock (10)
General Product Group
Ignition & Electrical Parts
General Product Type
CDI Box
Variant Id
242289
Shipping OptionsShown at checkout
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details
FULL DESCRIPTION
CDI Ignition Control Module
This is a replacement CDI (Capacitor Discharge Ignition) ignition control module designed for select Yamaha dual sport motorcycles. It is a crucial component for your motorcycle's ignition system, responsible for generating the spark that ignites the fuel-air mixture.
Key Features:
- Direct replacement CDI module.
- Ensures proper ignition timing and spark generation.
- Features a standard 6-wire connector for easy installation.
- Wire color identification: Orange for ignition coil, Black/White for kill switch, White/Red for sensor, Black/Red for charging coil, and Black for ground.
- Important Safety Note: Never rotate the flywheel without ensuring the ground connection is properly attached.
Cross-reference part numbers: 18G-85540-20, DZE 1377, IYA6002.
