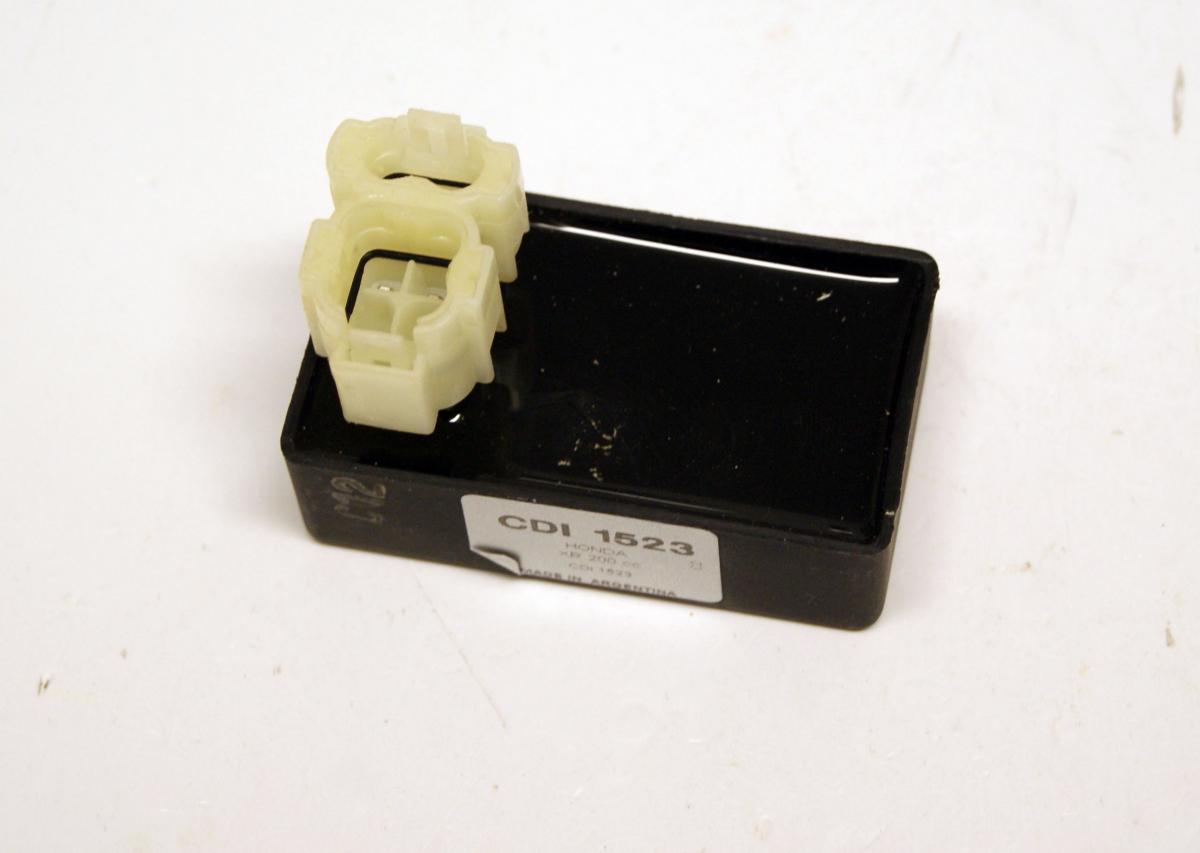

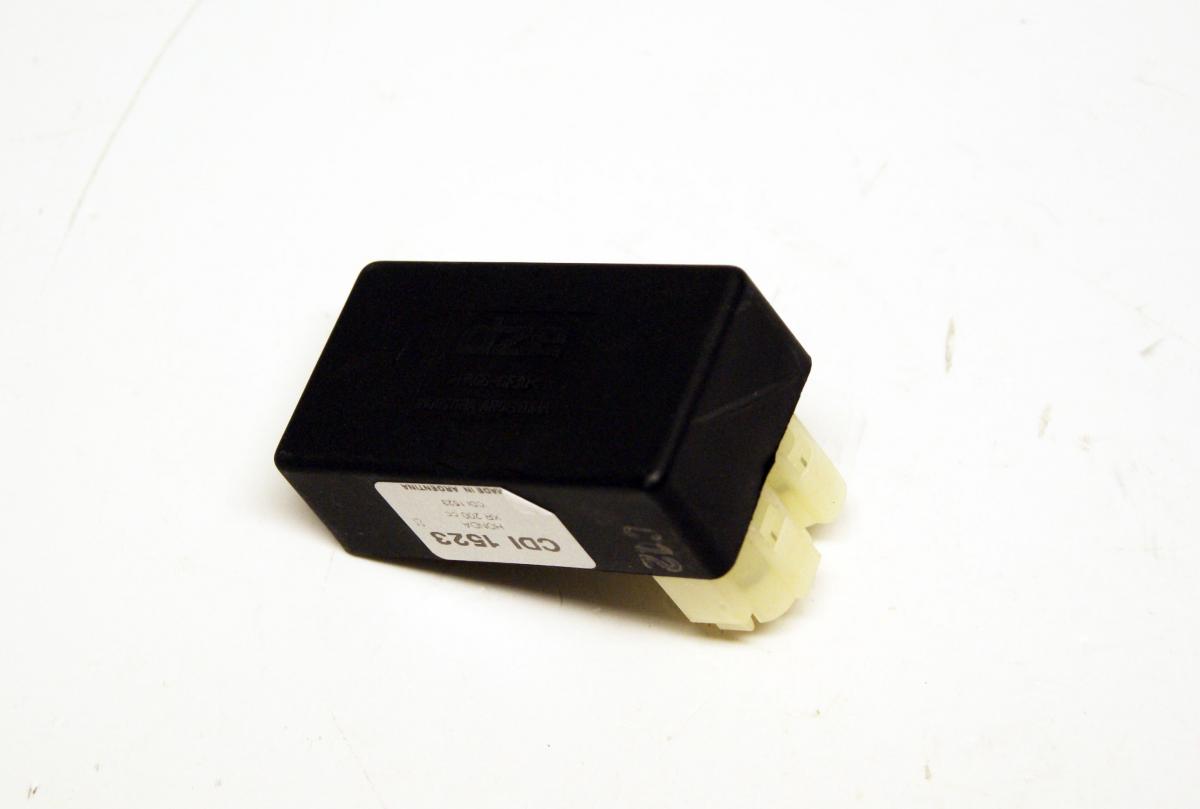

CDI BOX HONDA XR200 86-02, IHA6017, 30410-KBB-901

CDI Ignition Control Module for Honda XR200

This CDI (Capacitor Discharge Ignition) box is an aftermarket replacement part designed for the ignition system of Honda XR200 motorcycles. It features an electronic advance ignition timing system powered by an AC coil input and provides one output terminal. This unit is engineered to meet or exceed OEM quality standards and undergoes factory testing for 100% reliability.

Key Features:

• Direct replacement for original Honda XR200 ignition control modules.
• Features an analog electronic advance ignition system.
• Utilizes an AC coil input and has one output terminal.
• Designed to handle increased power loads for optimal performance.
• Each unit is factory tested for reliability.
• This is an electrical part, and returns are not accepted.
• High-quality replacement guaranteed to ensure customer satisfaction.

Specifications:

• Ignition Type: Electronic Advance
• System Type: Analog Electronic
• Input Power: AC (from coil)
• Output Terminals: 1

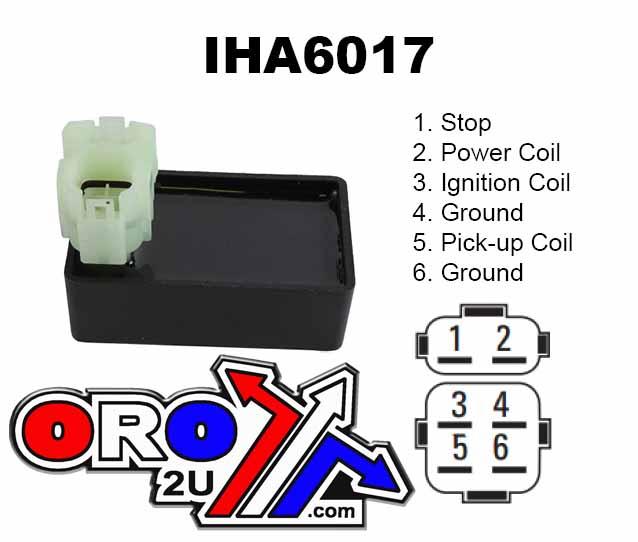

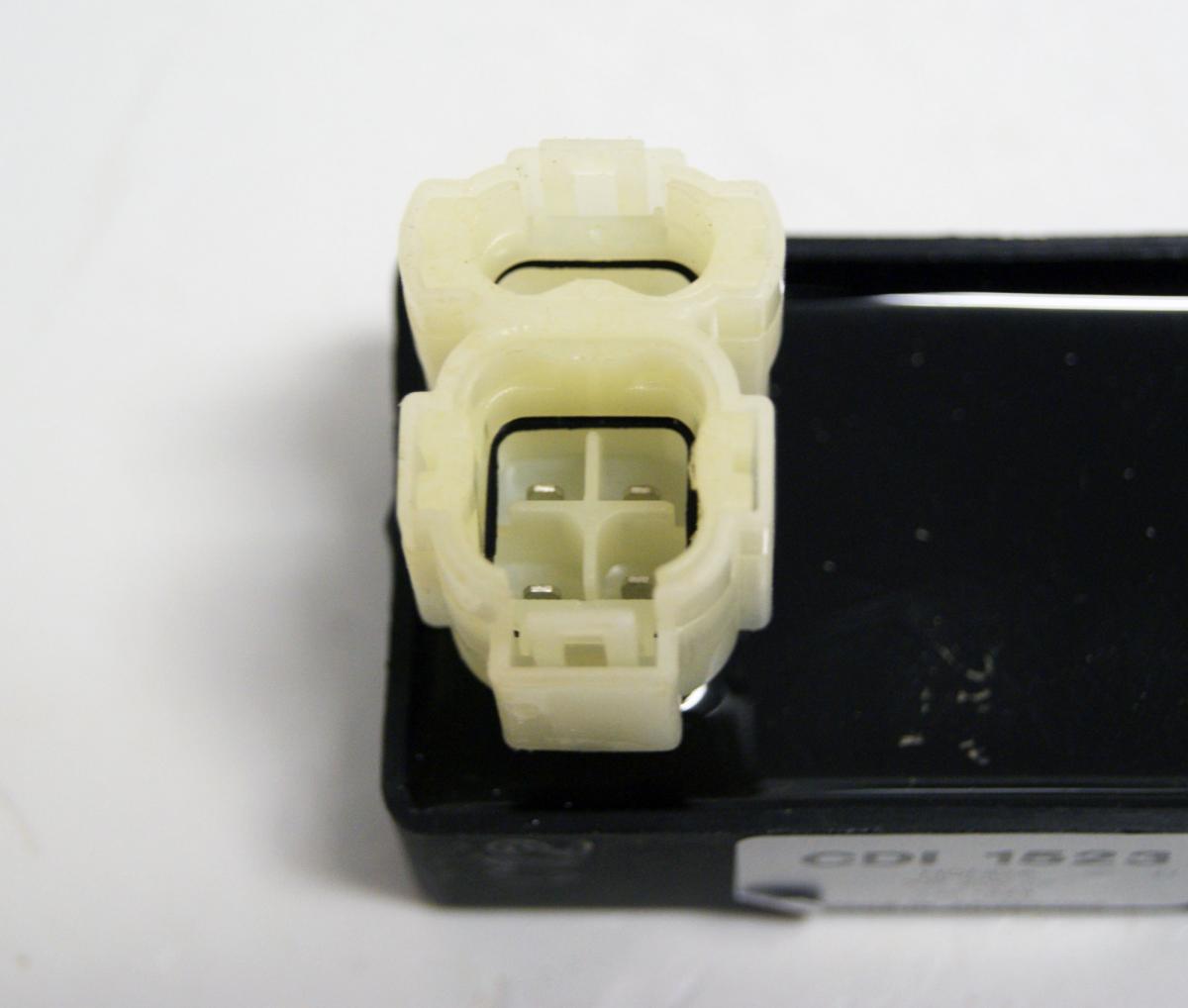

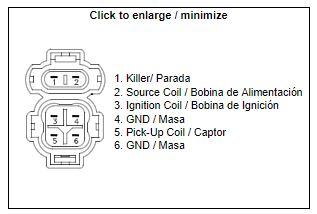

• Number of Connectors: 6
• Dimensions: 68mm (Length) x 38mm (Width) x 23mm (Height)

Cross Reference Numbers:

• 30410-KBB-901
• CF486A
• CF512F
• IHA6017
• 30410-KT0-670
• 463975 TUCKER ROCKY 46-3975
