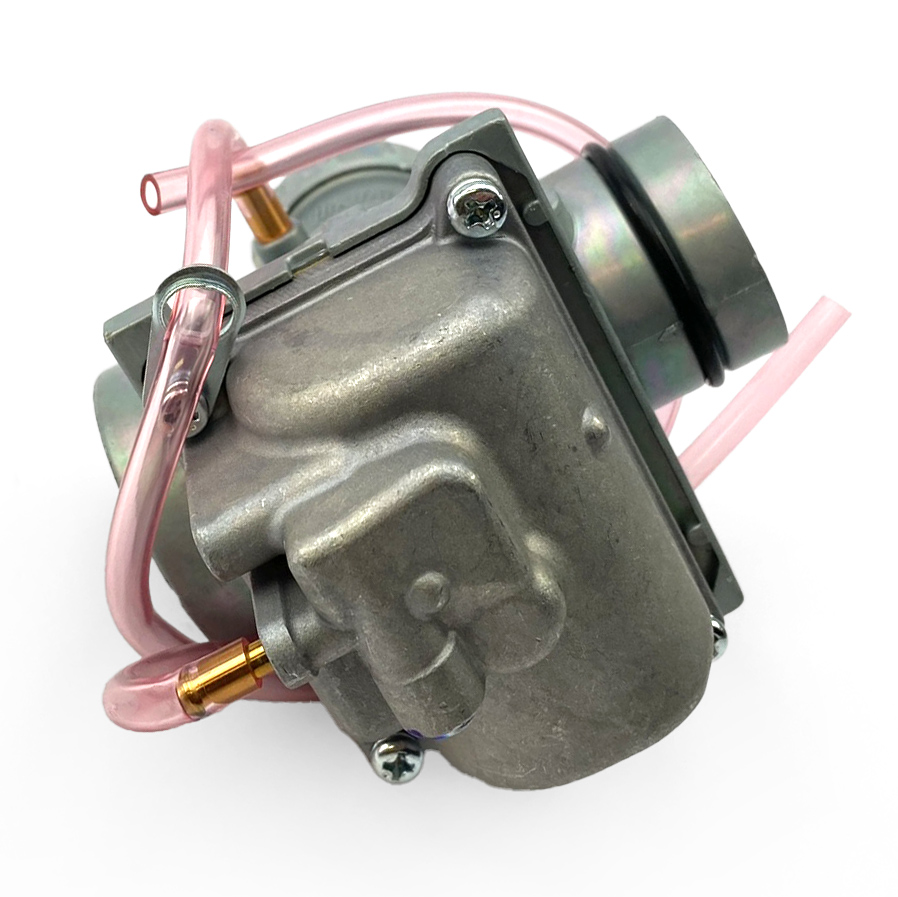

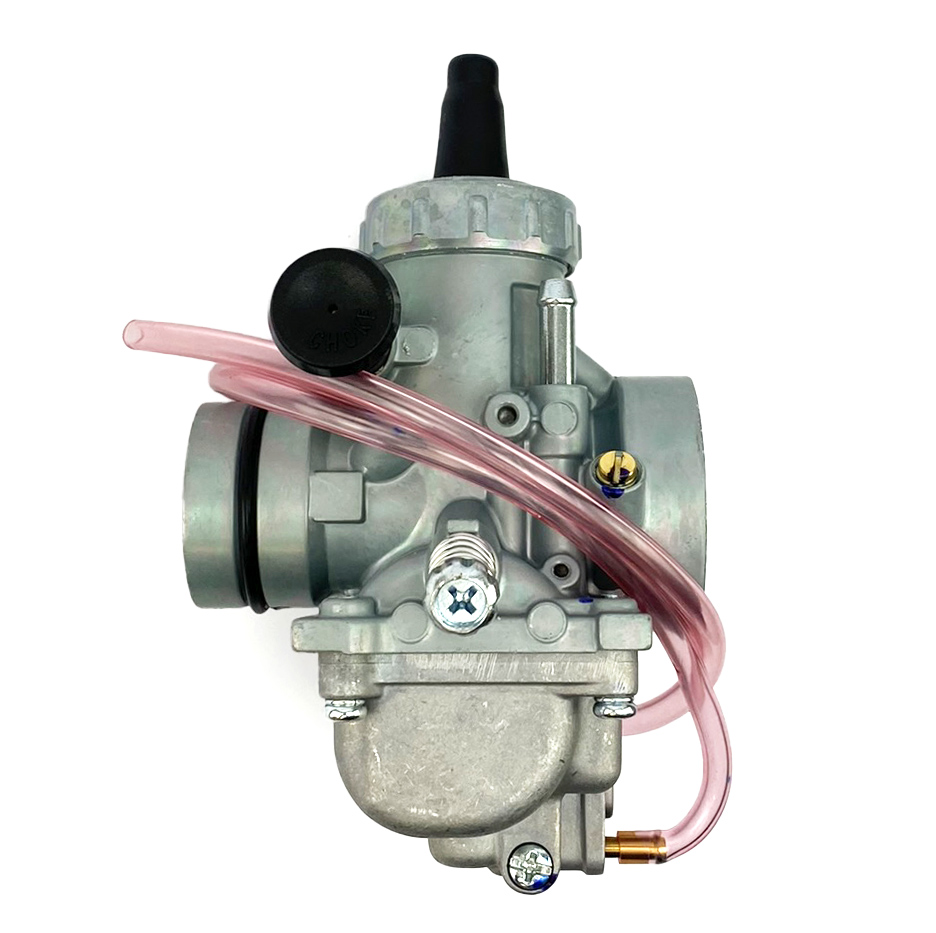

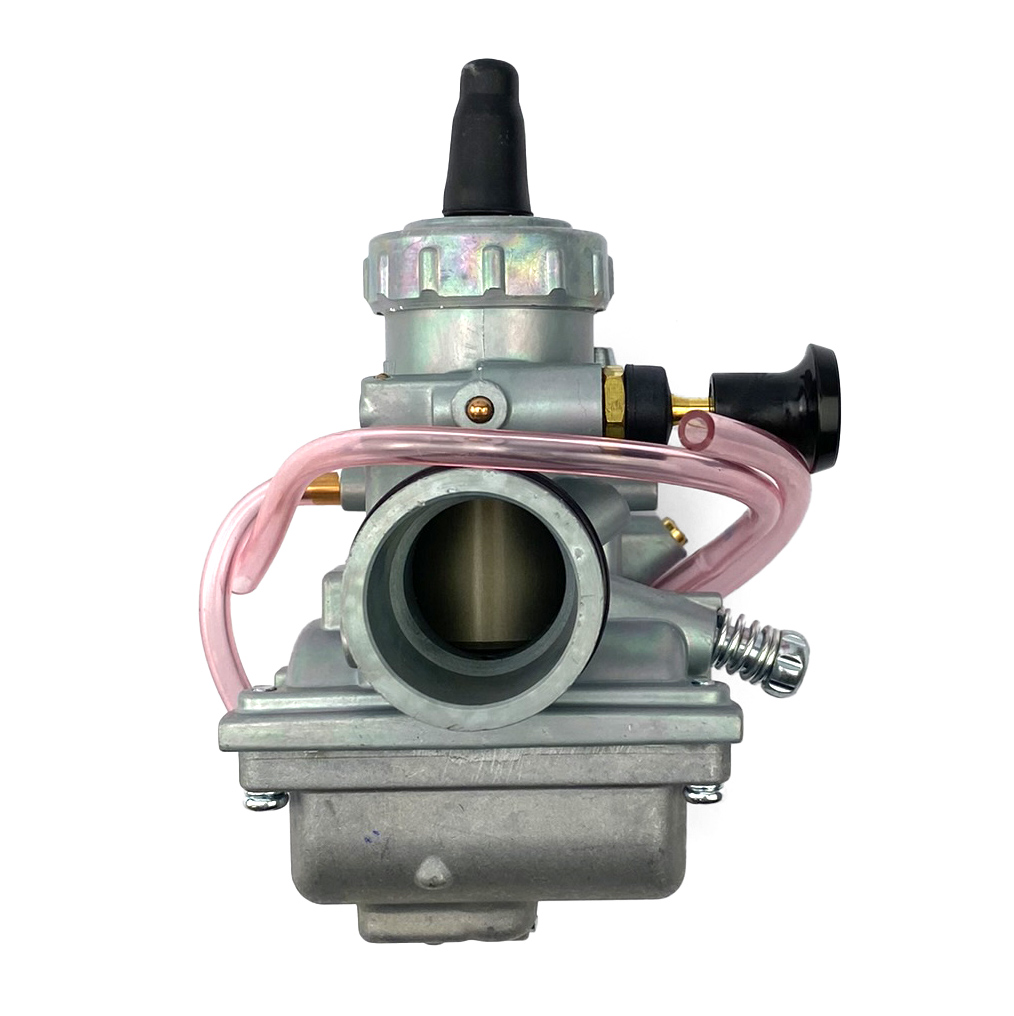

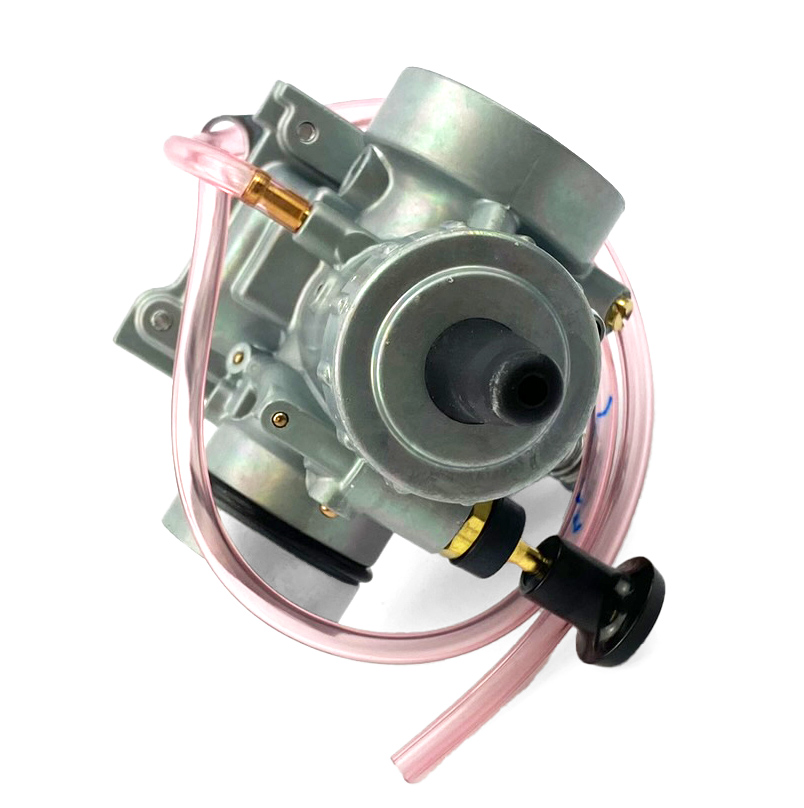

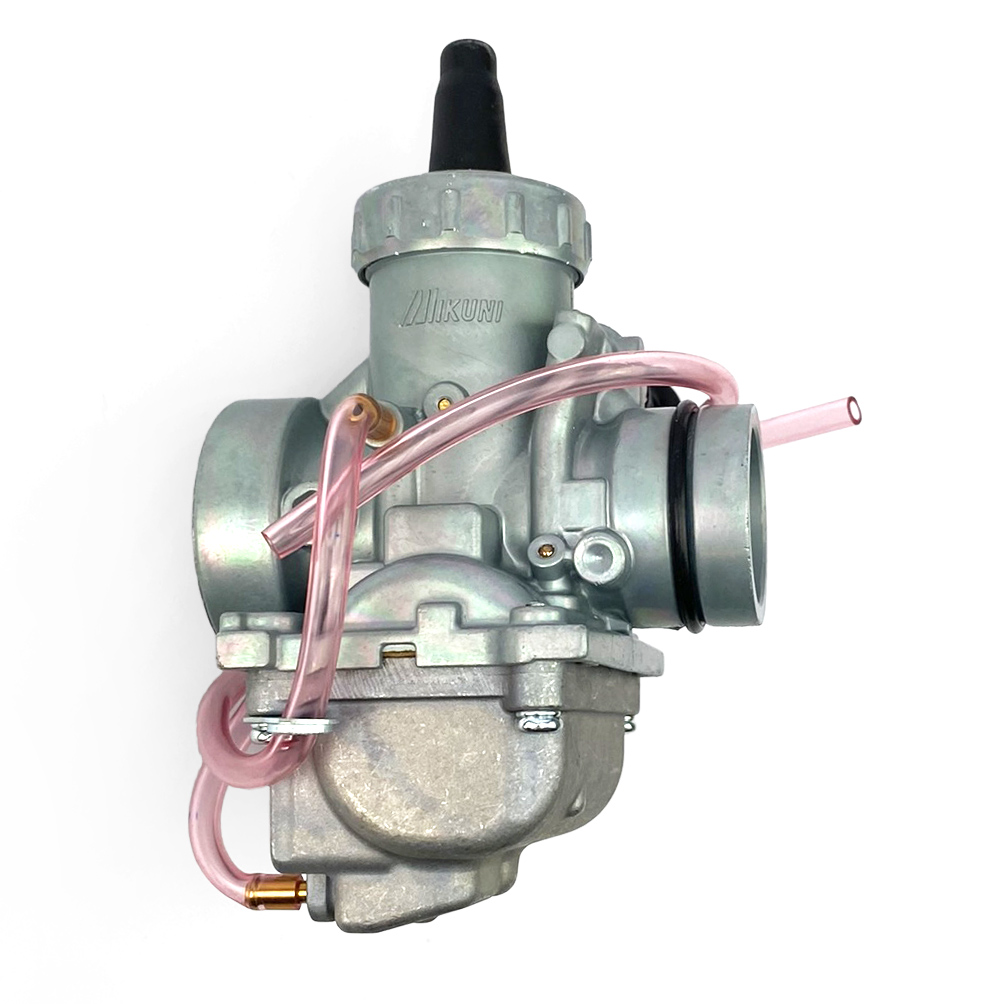

CARBURETOR ASSEMBLY CRF50 HONDA, VM24
4.4 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with 18+, T&Cs apply
HONDA CRF50 VM24 Carburetor Assembly. Round slide. Intake Mount Bore Diameter: 27mm. Intake Mount OD: 34.80mm. Air Filter Mount Diameter: 42mm. Overall Height: 120mm (not including adjuster). Overall length: 83.25mm. Part No. 18-9910. Manufacturer: Factory Image Racing.
- SKU
- 18-9910
- Brand
- Factory Image Racing
- Availability
- In Stock (11)
Fitments (16)
| Make | Model | Year |
|---|---|---|
| HONDA | CRF 50 | 2004 |
| HONDA | CRF 50 | 2005 |
| HONDA | CRF 50 | 2006 |
| HONDA | CRF 50 | 2007 |
| HONDA | CRF 50 | 2008 |
| HONDA | CRF 50 | 2009 |
| HONDA | CRF 50 | 2010 |
| HONDA | CRF 50 | 2011 |
| HONDA | CRF 50 | 2012 |
| HONDA | CRF 50 | 2013 |
| HONDA | CRF 50 | 2014 |
| HONDA | CRF 50 | 2015 |
| HONDA | CRF 50 | 2016 |
| HONDA | CRF 50 | 2017 |
| HONDA | CRF 50 | 2018 |
| HONDA | CRF 50 | 2019 |
- General Product Group
- Carburettor & Intake
- General Product Type
- Carburetor Assembly
- Variant Id
- 225775
FULL DESCRIPTION
VM24 Carburetor Assembly for Honda CRF50 and Compatible Pit Bikes
This is a high-quality VM24 round slide carburetor assembly designed as a direct replacement for Honda CRF50 models. It is also compatible with a wide range of popular Chinese pit bike import brands, offering a reliable upgrade or replacement part.
Key Features:
- Type: VM24 Round Slide Carburetor Assembly
- Intake Mount Bore Diameter: 27mm
- Intake Mount Outer Diameter: 34.80mm
- Air Filter Mount Diameter: 42mm
- Overall Height: 120mm (excluding adjuster)
- Overall Length: 83.25mm
- Direct Fit: Designed as a drop-in replacement for original equipment.
- No Modifications Needed: This quality carburetor is ready to install without requiring additional parts or modifications.
