BRAKE SHOES GROOVED YAMAHA EBC G503 Y503G
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply

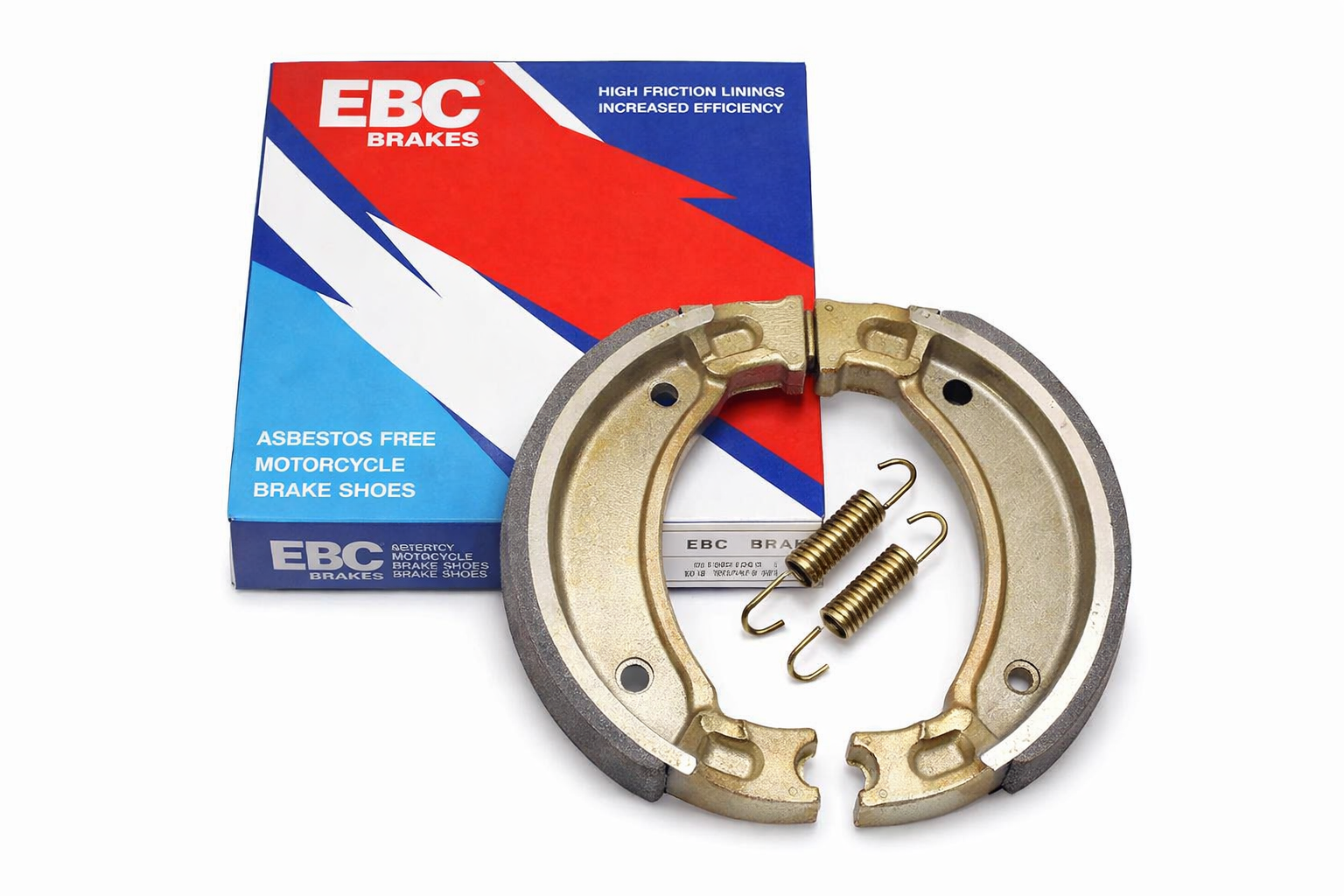

This EBC Brakes Water Grooved Brake Shoe set provides consistent braking performance and control for off-road use. The angled water grooves channel away water, dirt, and dust from the braking area. The 100% asbestos-free bonded organic brake lining construction balances bite, modulation, and durability under heat. These brake shoes feature radius-ground and edge-trimmed linings for accurate drum contact, and lead-in and lead-out chamfers for progressive engagement. Supplied as a complete shoe set with OE-style brake shoe springs, they are suitable for 110 mm × 25 mm drum-brake systems in front applications and are manufactured as an OE-quality replacement. Product type: Brake shoe set. Product range/series: Water Grooved Brake Shoes. Position: Front. Compound/material: 100% asbestos-free bonded organic brake lining. Construction/design: Grooved friction linings bonded to high-pressure die-cast aluminium shoe platforms. Pad/shoe dimensions: 110 mm × 25 mm (drum diameter × shoe width). Weight: 0.2 kg. Cross Reference Numbers: Y503G, EBCY503G, G503, 5050953102950.
- SKU
- 38-503.EBC
- Brand
- EBC
- Availability
- In Stock (3)
Fitments (19)
| Make | Model | Year |
|---|---|---|
| YAMAHA | PW 80 | 1993 |
| YAMAHA | PW 80 | 1994 |
| YAMAHA | PW 80 | 1995 |
| YAMAHA | PW 80 | 1996 |
| YAMAHA | PW 80 | 1997 |
| YAMAHA | PW 80 | 1998 |
| YAMAHA | PW 80 | 1999 |
| YAMAHA | PW 80 | 2000 |
| YAMAHA | PW 80 | 2001 |
| YAMAHA | PW 80 | 2002 |
| YAMAHA | PW 80 | 2003 |
| YAMAHA | PW 80 | 2004 |
| YAMAHA | PW 80 | 2005 |
| YAMAHA | PW 80 | 2006 |
| YAMAHA | PW 80 | 2007 |
| YAMAHA | TY 80 | 1983 |
| YAMAHA | TY 80 | 1984 |
| YAMAHA | YZ 100 | 1982 |
| YAMAHA | YZ 100 | 1983 |
- General Product Group
- Braking
- General Product Type
- Brake Drums, Shoes & Parts
- Variant Id
- 235793
FULL DESCRIPTION
EBC Water Grooved Brake Shoes for Drum Brakes
Experience reliable braking performance with EBC's Water Grooved Brake Shoes. Designed for off-road applications, these brake shoes offer a balanced blend of stopping power, modulation, and durability, even under demanding conditions. The advanced design ensures consistent control and safety.
Key Features:
- Optimized for Off-Road: Engineered to provide consistent braking performance and control in varied off-road environments.
- Water Grooved Design: Features angled water grooves that efficiently channel away water, dirt, and dust from the braking surface, maintaining optimal contact.
- Advanced Lining Material: Constructed with a 100% asbestos-free bonded organic brake lining that balances initial bite, modulation, and longevity under heat.
- Precision Fitment: Linings are radius-ground and edge-trimmed for accurate contact with the brake drum.
- Smooth Engagement: Lead-in and lead-out chamfers ensure progressive and smooth engagement of the brake shoes.
- OE-Style Springs Included: Supplied with brake shoe springs that match original equipment specifications for easy installation.
- Durable Construction: Friction linings are bonded to high-pressure die-cast aluminum shoe platforms for robust construction.
Specifications:
- Product Type: Brake Shoe Set
- Product Series: Water Grooved Brake Shoes
- Position: Front
- Compound: 100% Asbestos-Free Bonded Organic

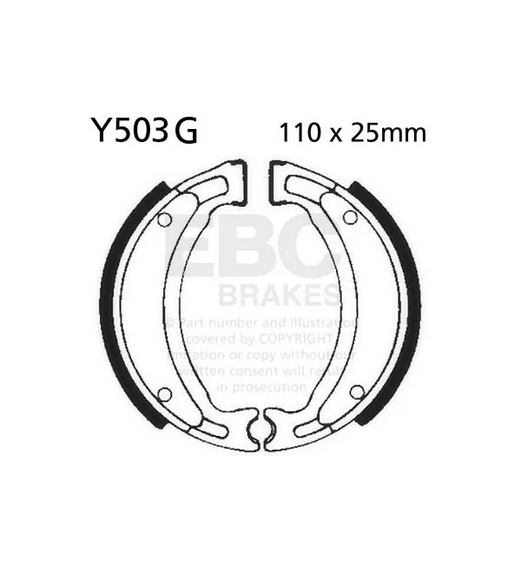

- Shoe Dimensions: 110 mm x 25 mm (Drum Diameter x Shoe Width)
- Weight: 0.2 kg
