BRAKE PIN STAINLESS STEEL 52MM
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply

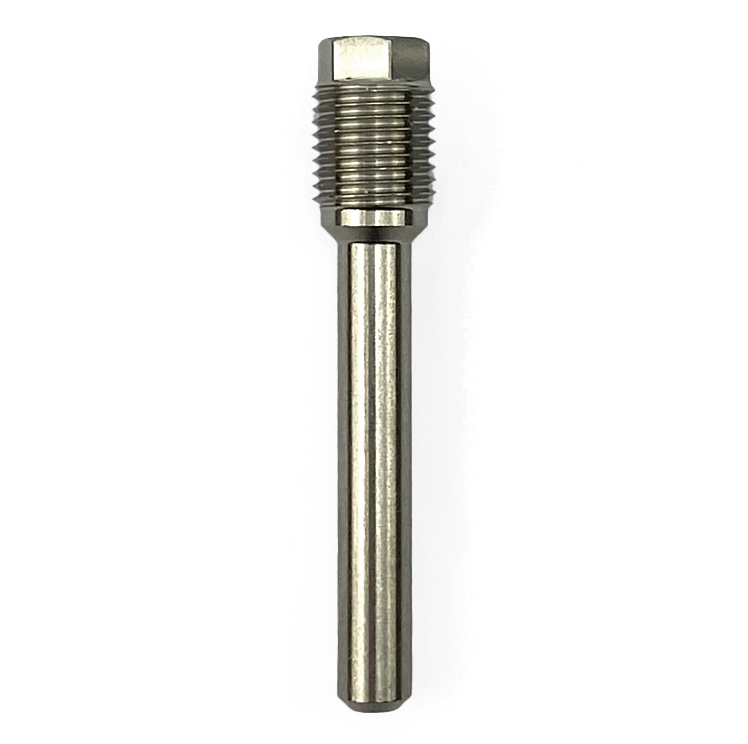

Stainless steel brake pin set with 8mm hex head for front brakes. Overall length is 52mm, pin length is 37mm, and OD is 5.80mm. Thread size is M10. Made from FIR SUS304 stainless steel, these brake pins offer increased resistance to ridging and allow for quick and simple pad changes via the 8mm hex head. They are zero maintenance and reduce friction between the pad and pin, extending disc and pad life. Part number 42-137.
- SKU
- 42-137
- Brand
- Factory Image Racing
- Availability
- In Stock (8)
Fitments (65)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KLX 450R | 2006 |
| KAWASAKI | KLX 450R | 2007 |
| KAWASAKI | KLX 450R | 2008 |
| KAWASAKI | KLX 450R | 2009 |
| KAWASAKI | KLX 450R | 2010 |
| KAWASAKI | KLX 450R | 2011 |
| KAWASAKI | KLX 450R | 2012 |
| KAWASAKI | KLX 450R | 2013 |
| KAWASAKI | KLX 450R | 2014 |
| KAWASAKI | KLX 450R | 2015 |
| KAWASAKI | KX 125 | 1997 |
| KAWASAKI | KX 125 | 1998 |
| KAWASAKI | KX 125 | 1999 |
| KAWASAKI | KX 125 | 2000 |
| KAWASAKI | KX 125 | 2001 |
| KAWASAKI | KX 125 | 2002 |
| KAWASAKI | KX 125 | 2003 |
| KAWASAKI | KX 125 | 2004 |
| KAWASAKI | KX 125 | 2005 |
| KAWASAKI | KX 125 | 2006 |
| KAWASAKI | KX 125 | 2007 |
| KAWASAKI | KX 125 | 2008 |
| KAWASAKI | KX 250 | 1997 |
| KAWASAKI | KX 250 | 1998 |
| KAWASAKI | KX 250 | 1999 |
| KAWASAKI | KX 250 | 2000 |
| KAWASAKI | KX 250 | 2001 |
| KAWASAKI | KX 250 | 2002 |
| KAWASAKI | KX 250 | 2003 |
| KAWASAKI | KX 250 | 2004 |
| KAWASAKI | KX 250 | 2005 |
| KAWASAKI | KX 250 | 2006 |
| KAWASAKI | KX 250 | 2007 |
| KAWASAKI | KX 250 | 2008 |
| KAWASAKI | KX 250F | 2004 |
| KAWASAKI | KX 250F | 2005 |
| KAWASAKI | KX 250F | 2006 |
| KAWASAKI | KX 250F | 2007 |
| KAWASAKI | KX 250F | 2008 |
| KAWASAKI | KX 250F | 2009 |
| KAWASAKI | KX 250F | 2010 |
| KAWASAKI | KX 250F | 2011 |
| KAWASAKI | KX 250F | 2012 |
| KAWASAKI | KX 250F | 2013 |
| KAWASAKI | KX 250F | 2014 |
| KAWASAKI | KX 250F | 2015 |
| KAWASAKI | KX 250F | 2016 |
| KAWASAKI | KX 250F | 2017 |
| KAWASAKI | KX 250F | 2018 |
| KAWASAKI | KX 450F | 2006 |
| KAWASAKI | KX 450F | 2007 |
| KAWASAKI | KX 450F | 2008 |
| KAWASAKI | KX 450F | 2009 |
| KAWASAKI | KX 450F | 2010 |
| KAWASAKI | KX 450F | 2011 |
| KAWASAKI | KX 450F | 2012 |
| KAWASAKI | KX 450F | 2013 |
| KAWASAKI | KX 450F | 2014 |
| KAWASAKI | KX 450F | 2015 |
| KAWASAKI | KX 450F | 2016 |
| KAWASAKI | KX 450F | 2017 |
| KAWASAKI | KX 450F | 2018 |
| SUZUKI | RM-Z 250 | 2004 |
| SUZUKI | RM-Z 250 | 2005 |
| SUZUKI | RM-Z 250 | 2006 |
- General Material
- Stainless Steel
- General Product Group
- Braking
- General Product Type
- Brake Pad Pin
- General Size
- 52mm
Show more +1Show less
- Variant Id
- 239201
FULL DESCRIPTION
Factory Image Racing Stainless Steel Brake Pins
Upgrade your braking system with these high-quality stainless steel brake pins from Factory Image Racing. Designed for durability and performance, these pins offer a significant improvement over standard components.
Key Features:
- Material: Constructed from FIR SUS304 Stainless Steel for exceptional resistance to ridging.
- Ease of Use: Features an 8mm hex head, making pad changes quick and simple.
- Performance Benefits: Provides zero maintenance and extends disc and pad life by reducing friction between the pad and pin.
- Dimensions:
- Overall Length: 52.00mm
- Usable Pin Length: 37mm
- Outer Diameter: 5.80mm
- Thread Size: M10
These brake pins are engineered to enhance the longevity and efficiency of your braking system.
