BOLT DISC M6 WITH SHOULDER PK6, TITANIUM GRADE 5 /DISC BOLT
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
BOLT DISC M6 WITH SHOULDER PK6, TITANIUM GRADE 5. Pack of 6. M6 x 14mm, 3 boss. Material: Grade 5 (6Al/4V) titanium alloy. CNC machined with rolled threads. D/DIA: M6, P/PITCH: 1.00mm, DS/SHANK DIA: 8.90mm, DC/HEAD DIA: 13.40mm, S/ALLEN DIA: 5.00mm, B/THRED LENGTH: 11.00mm, ES/SHANK LENGTH: 3.00mm, K/ALLEN LENGTH: 4.20mm.
- SKU
- 08-397.TI.PK6
- Brand
- Factory Image Racing Titanium
- Availability
- In Stock (28)
Fitments (78)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 125 | 2001 |
| KAWASAKI | KX 125 | 2002 |
| KAWASAKI | KX 125 | 2003 |
| KAWASAKI | KX 125 | 2004 |
| KAWASAKI | KX 125 | 2005 |
| KAWASAKI | KX 125 | 2006 |
| KAWASAKI | KX 125 | 2007 |
| KAWASAKI | KX 250 | 2001 |
| KAWASAKI | KX 250 | 2002 |
| KAWASAKI | KX 250 | 2003 |
| KAWASAKI | KX 250 | 2004 |
| KAWASAKI | KX 250 | 2005 |
| KAWASAKI | KX 250 | 2006 |
| KAWASAKI | KX 250 | 2007 |
| KAWASAKI | KX 250F | 2006 |
| KAWASAKI | KX 250F | 2007 |
| KAWASAKI | KX 250F | 2008 |
| KAWASAKI | KX 250F | 2009 |
| KAWASAKI | KX 250F | 2010 |
| KAWASAKI | KX 250F | 2011 |
| KAWASAKI | KX 250F | 2012 |
| KAWASAKI | KX 250F | 2013 |
| KAWASAKI | KX 250F | 2014 |
| KAWASAKI | KX 250F | 2015 |
| KAWASAKI | KX 450F | 2006 |
| KAWASAKI | KX 450F | 2007 |
| KAWASAKI | KX 450F | 2008 |
| KAWASAKI | KX 450F | 2009 |
| KAWASAKI | KX 450F | 2010 |
| KAWASAKI | KX 450F | 2011 |
| KAWASAKI | KX 450F | 2012 |
| KAWASAKI | KX 450F | 2013 |
| KAWASAKI | KX 450F | 2014 |
| KAWASAKI | KX 450F | 2015 |
| KAWASAKI | KX 65 | 2000 |
| KAWASAKI | KX 65 | 2001 |
| KAWASAKI | KX 65 | 2002 |
| KAWASAKI | KX 65 | 2003 |
| KAWASAKI | KX 65 | 2004 |
| KAWASAKI | KX 65 | 2005 |
| KAWASAKI | KX 65 | 2006 |
| KAWASAKI | KX 65 | 2007 |
| KAWASAKI | KX 65 | 2008 |
| KAWASAKI | KX 85 | 2001 |
| KAWASAKI | KX 85 | 2002 |
| KAWASAKI | KX 85 | 2003 |
| KAWASAKI | KX 85 | 2004 |
| KAWASAKI | KX 85 | 2005 |
| KAWASAKI | KX 85 | 2006 |
| KAWASAKI | KX 85 | 2007 |
| KAWASAKI | KX 85 | 2008 |
| KAWASAKI | KX 85 | 2009 |
| KAWASAKI | KX 85 | 2010 |
| KAWASAKI | KX 85 | 2011 |
| KAWASAKI | KX 85 | 2012 |
| KAWASAKI | KX 85 | 2013 |
| KAWASAKI | KX 85 | 2014 |
| KAWASAKI | KX 85 | 2015 |
| SUZUKI | RM-Z 250 | 2004 |
| SUZUKI | RM-Z 250 | 2005 |
| SUZUKI | RM-Z 250 | 2006 |
| SUZUKI | RM-Z 250 | 2007 |
| SUZUKI | RM-Z 250 | 2008 |
| SUZUKI | RM-Z 250 | 2009 |
| SUZUKI | RM-Z 250 | 2010 |
| SUZUKI | RM-Z 250 | 2011 |
| SUZUKI | RM-Z 250 | 2012 |
| SUZUKI | RM-Z 250 | 2013 |
| SUZUKI | RM-Z 450 | 2005 |
| SUZUKI | RM-Z 450 | 2006 |
| SUZUKI | RM-Z 450 | 2007 |
| SUZUKI | RM-Z 450 | 2008 |
| SUZUKI | RM-Z 450 | 2009 |
| SUZUKI | RM-Z 450 | 2010 |
| SUZUKI | RM-Z 450 | 2011 |
| SUZUKI | RM-Z 450 | 2012 |
| SUZUKI | RM-Z 450 | 2013 |
| SUZUKI | RMZ 450 | 2004 |
- General Product Group
- Braking
- General Product Type
- Disc Bolt
- Variant Id
- 211380
FULL DESCRIPTION

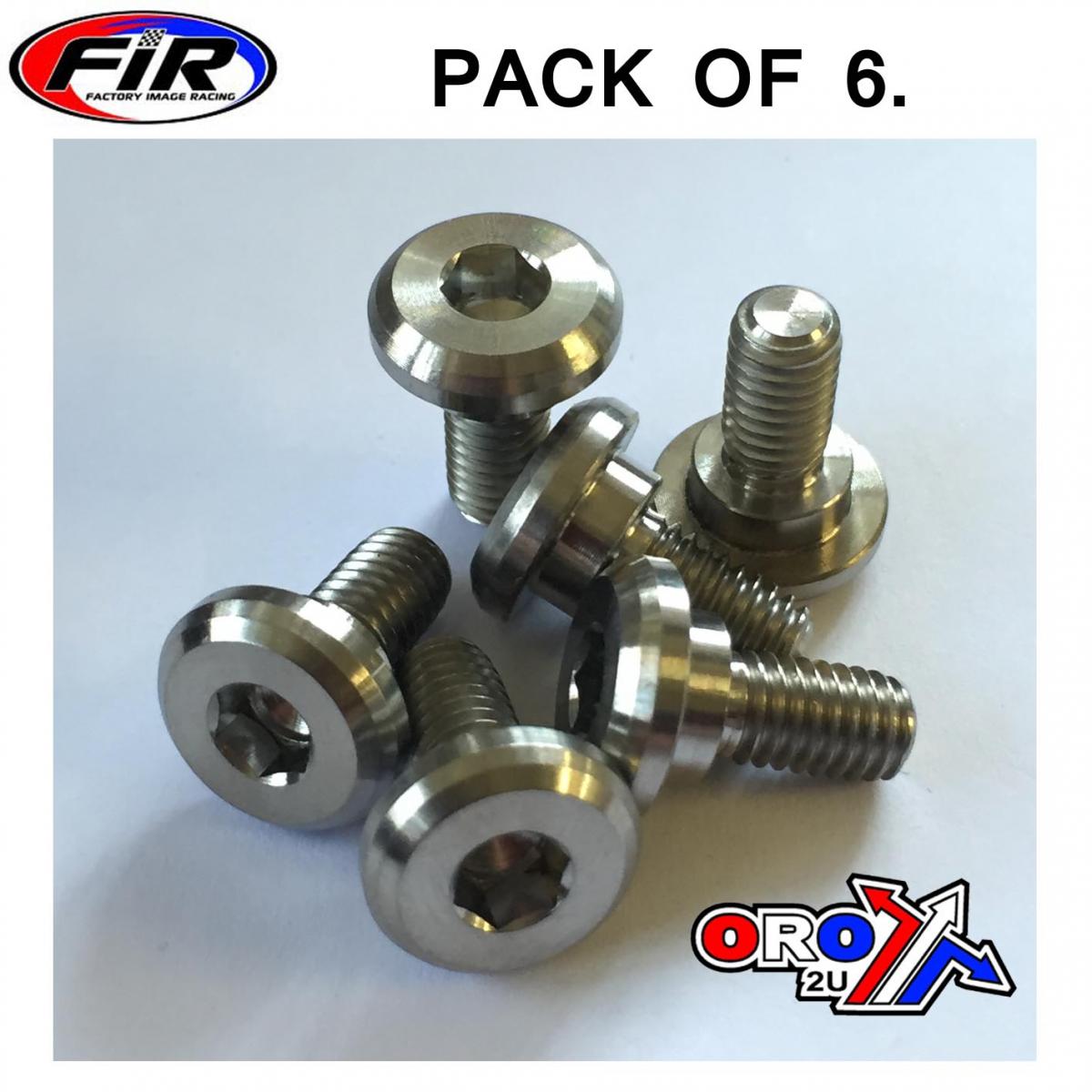

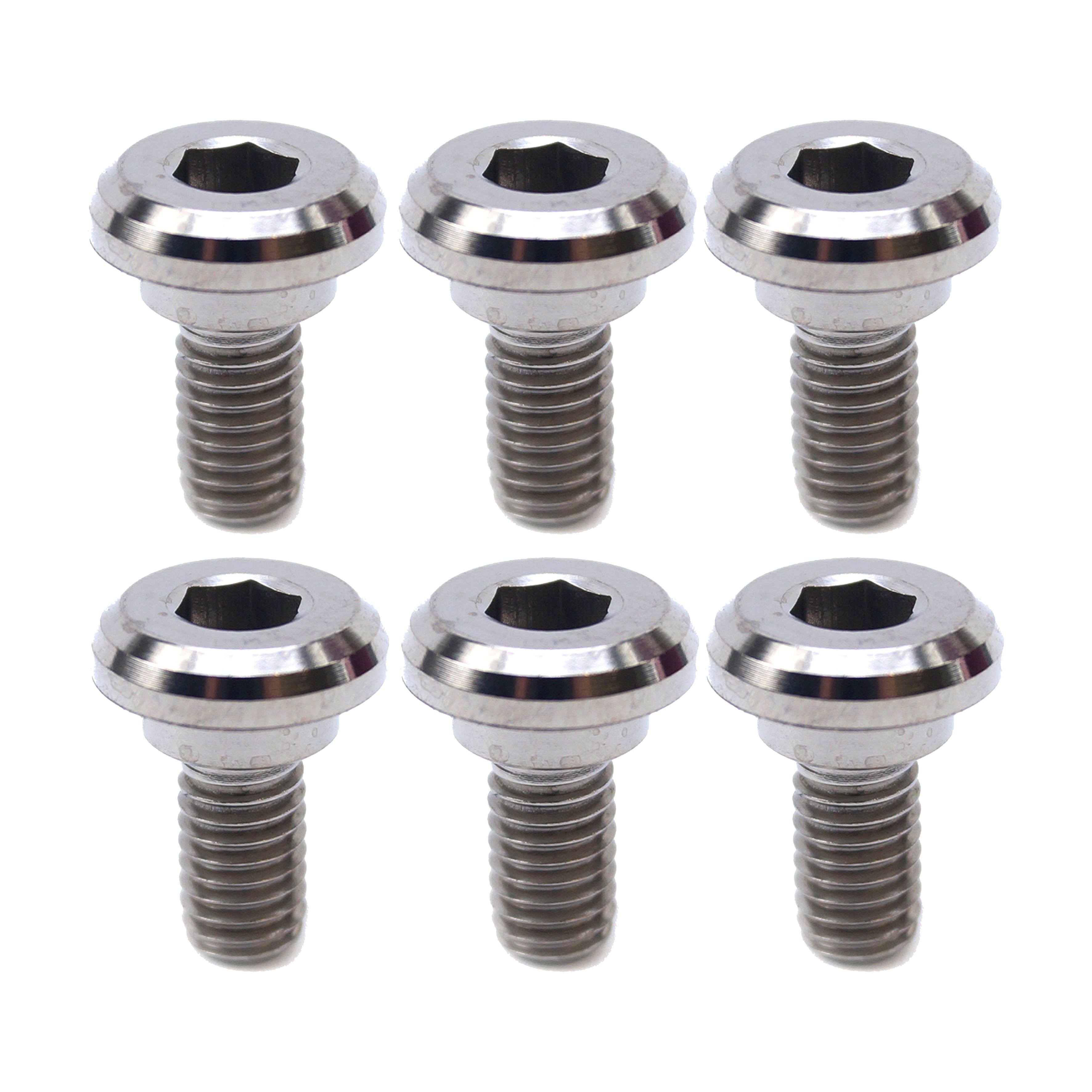

Titanium Disc Bolts M6 x 14mm - Pack of 6
Upgrade your motorcycle or cycle with these premium M6 disc bolts, meticulously crafted from Grade 5 (6Al/4V) titanium alloy. These bolts offer exceptional strength, being 50% lighter than standard steel alternatives and even stronger than steel. The superior anti-corrosive properties of titanium ensure longevity and a pristine appearance in all conditions.
Each bolt is CNC machined with rolled threads for maximum durability and precision. This pack contains 6 bolts, ideal for replacing multiple disc bolts on your vehicle.
Key Features:
- Material: Grade 5 Titanium (6Al/4V)
- Weight: 50% lighter than standard bolts
- Strength: Stronger than steel
- Corrosion Resistance: Excellent anti-corrosion properties
- Manufacturing: CNC machined with rolled threads
- Application: Suitable for Motorcycles, Cycles, and more
- Quantity: Pack of 6

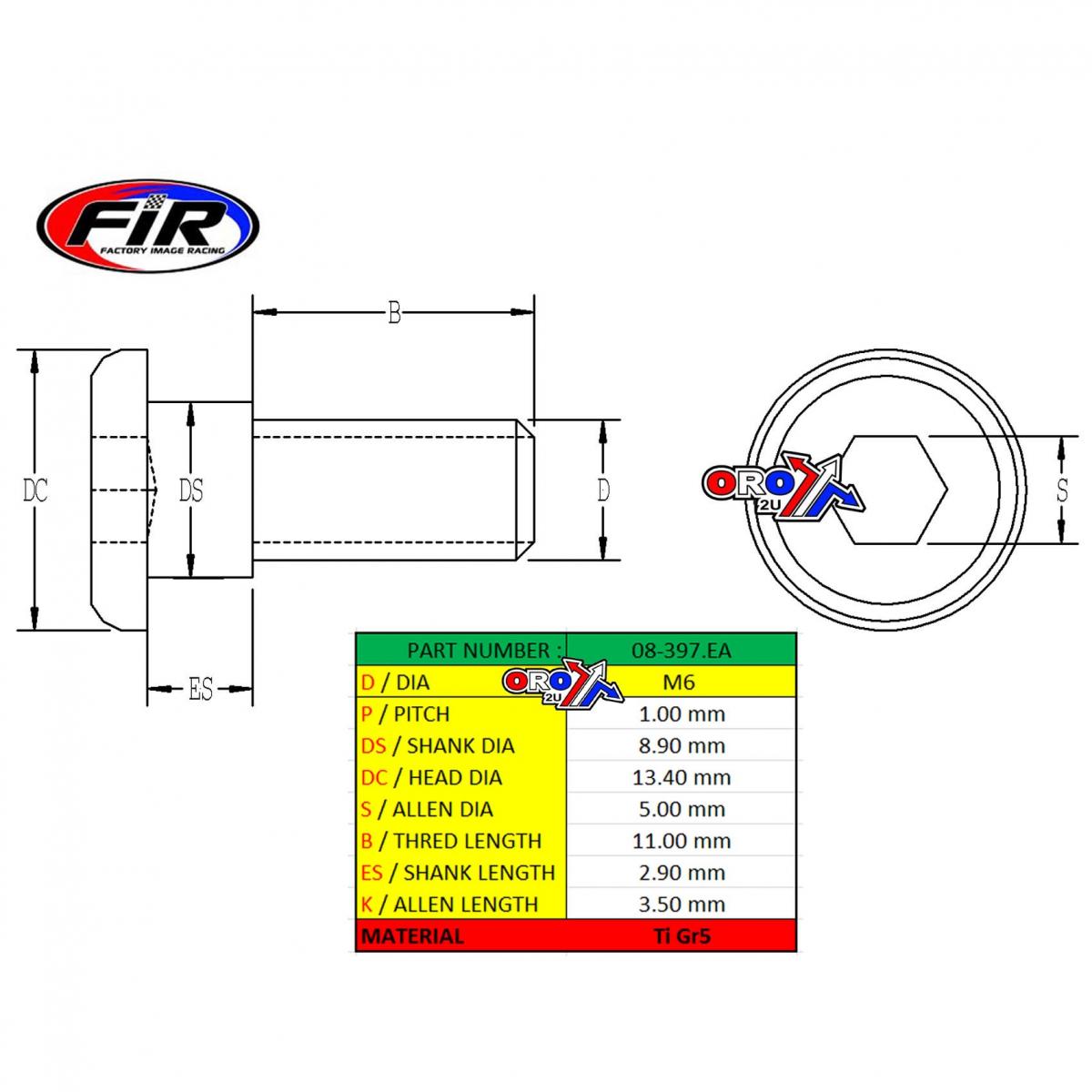

Specifications:
- Diameter (D): M6
- Pitch (P): 1.00 mm
- Shank Diameter (DS): 8.90 mm
- Head Diameter (DC): 13.40 mm
- Allen Diameter (S): 5.00 mm
- Thread Length (B): 11.00 mm
- Shank Length (ES): 3.00 mm
- Allen Length (K): 4.20 mm
