BOLT DISC M6 WITH SHOULDER EA, TITANIUM GRADE 5 /DISC BOLT

£3.30

4.1 Trustpilot 99.9% positive on eBay

UK delivery £4.99, free over £60 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

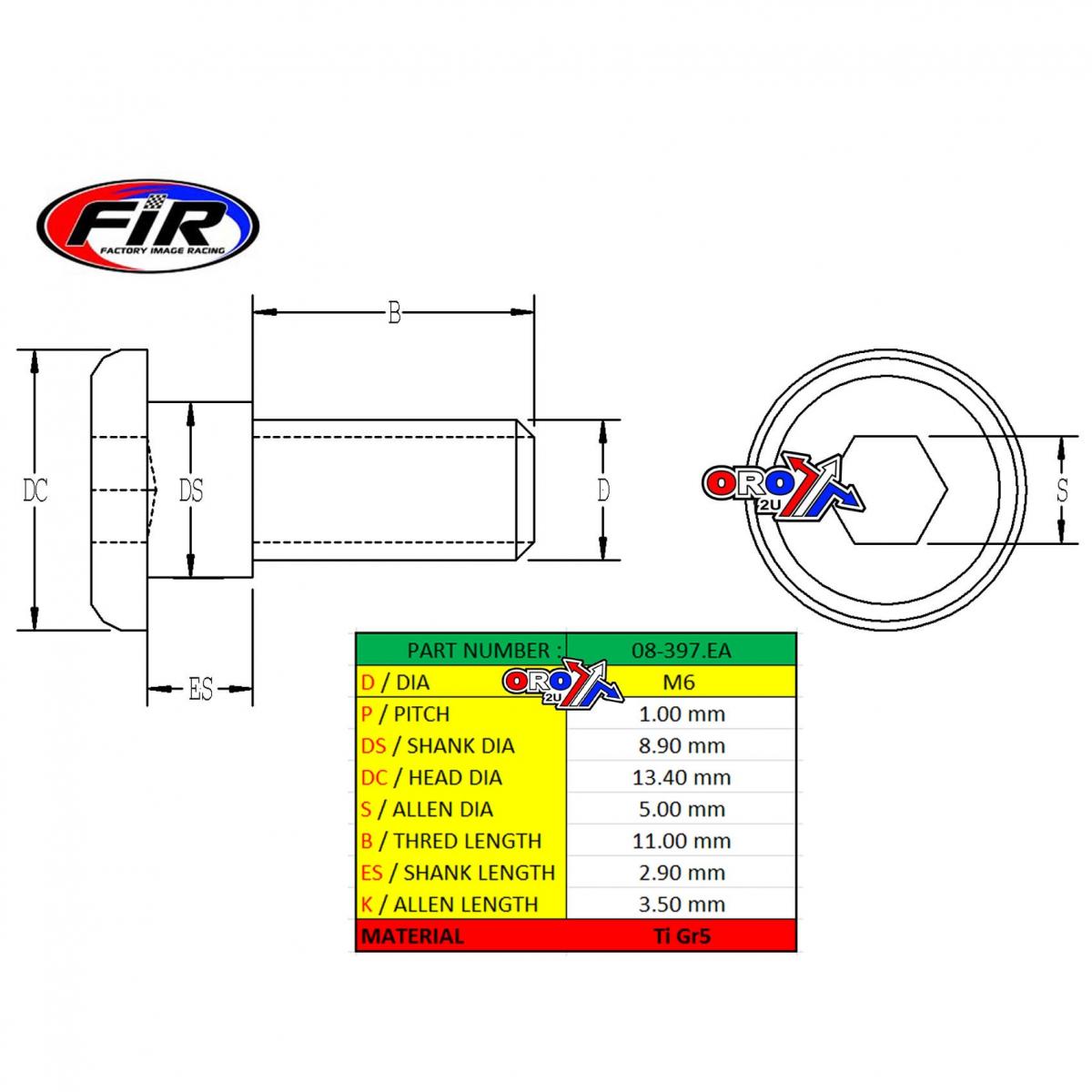

DISC BOLT M6x14mm - 3 BOSS, EACH TITANIUM GRADE 5. Material: Grade 5 (6Al/4V). D / DIA: M6. P / PITCH: 1.00 mm. DS / SHANK DIA: 8.90 mm. DC / HEAD DIA: 13.40 mm. S / ALLEN DIA: 5.00 mm. B / THREAD LENGTH: 11.00 mm. ES / SHANK LENGTH: 3.00 mm. K / ALLEN LENGTH: 4.20 mm. CNC machined with rolled threads from superstrong grade 5 titanium alloy. High strength and lightweight properties with fantastic anti-corrosion properties.

Specifications
SKU
08-397.TI.EA
Brand
Factory Image Racing Titanium
Availability
In Stock (25)

Fitments (78)

MakeModelYear
KAWASAKIKX 1252001
KAWASAKIKX 1252002
KAWASAKIKX 1252003
KAWASAKIKX 1252004
KAWASAKIKX 1252005
KAWASAKIKX 1252006
KAWASAKIKX 1252007
KAWASAKIKX 2502001
KAWASAKIKX 2502002
KAWASAKIKX 2502003
KAWASAKIKX 2502004
KAWASAKIKX 2502005
KAWASAKIKX 2502006
KAWASAKIKX 2502007
KAWASAKIKX 250F2006
KAWASAKIKX 250F2007
KAWASAKIKX 250F2008
KAWASAKIKX 250F2009
KAWASAKIKX 250F2010
KAWASAKIKX 250F2011
KAWASAKIKX 250F2012
KAWASAKIKX 250F2013
KAWASAKIKX 250F2014
KAWASAKIKX 250F2015
KAWASAKIKX 450F2006
KAWASAKIKX 450F2007
KAWASAKIKX 450F2008
KAWASAKIKX 450F2009
KAWASAKIKX 450F2010
KAWASAKIKX 450F2011
KAWASAKIKX 450F2012
KAWASAKIKX 450F2013
KAWASAKIKX 450F2014
KAWASAKIKX 450F2015
KAWASAKIKX 652000
KAWASAKIKX 652001
KAWASAKIKX 652002
KAWASAKIKX 652003
KAWASAKIKX 652004
KAWASAKIKX 652005
KAWASAKIKX 652006
KAWASAKIKX 652007
KAWASAKIKX 652008
KAWASAKIKX 852001
KAWASAKIKX 852002
KAWASAKIKX 852003
KAWASAKIKX 852004
KAWASAKIKX 852005
KAWASAKIKX 852006
KAWASAKIKX 852007
KAWASAKIKX 852008
KAWASAKIKX 852009
KAWASAKIKX 852010
KAWASAKIKX 852011
KAWASAKIKX 852012
KAWASAKIKX 852013
KAWASAKIKX 852014
KAWASAKIKX 852015
SUZUKIRM-Z 2502004
SUZUKIRM-Z 2502005
SUZUKIRM-Z 2502006
SUZUKIRM-Z 2502007
SUZUKIRM-Z 2502008
SUZUKIRM-Z 2502009
SUZUKIRM-Z 2502010
SUZUKIRM-Z 2502011
SUZUKIRM-Z 2502012
SUZUKIRM-Z 2502013
SUZUKIRM-Z 4502005
SUZUKIRM-Z 4502006
SUZUKIRM-Z 4502007
SUZUKIRM-Z 4502008
SUZUKIRM-Z 4502009
SUZUKIRM-Z 4502010
SUZUKIRM-Z 4502011
SUZUKIRM-Z 4502012
SUZUKIRM-Z 4502013
SUZUKIRMZ 4502004
General Product Group
Braking
General Product Type
Disc Bolt
Variant Id
211379
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

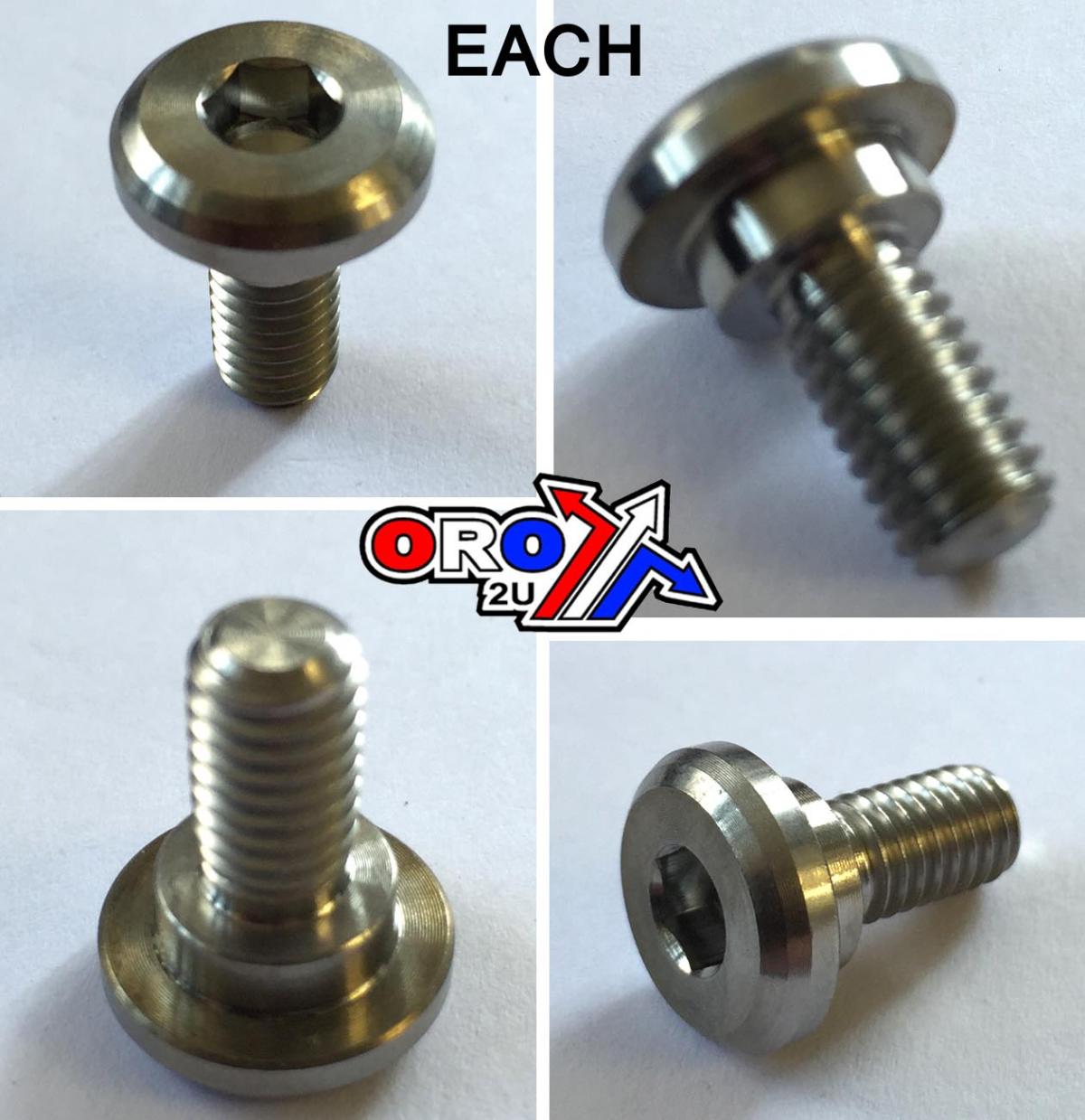

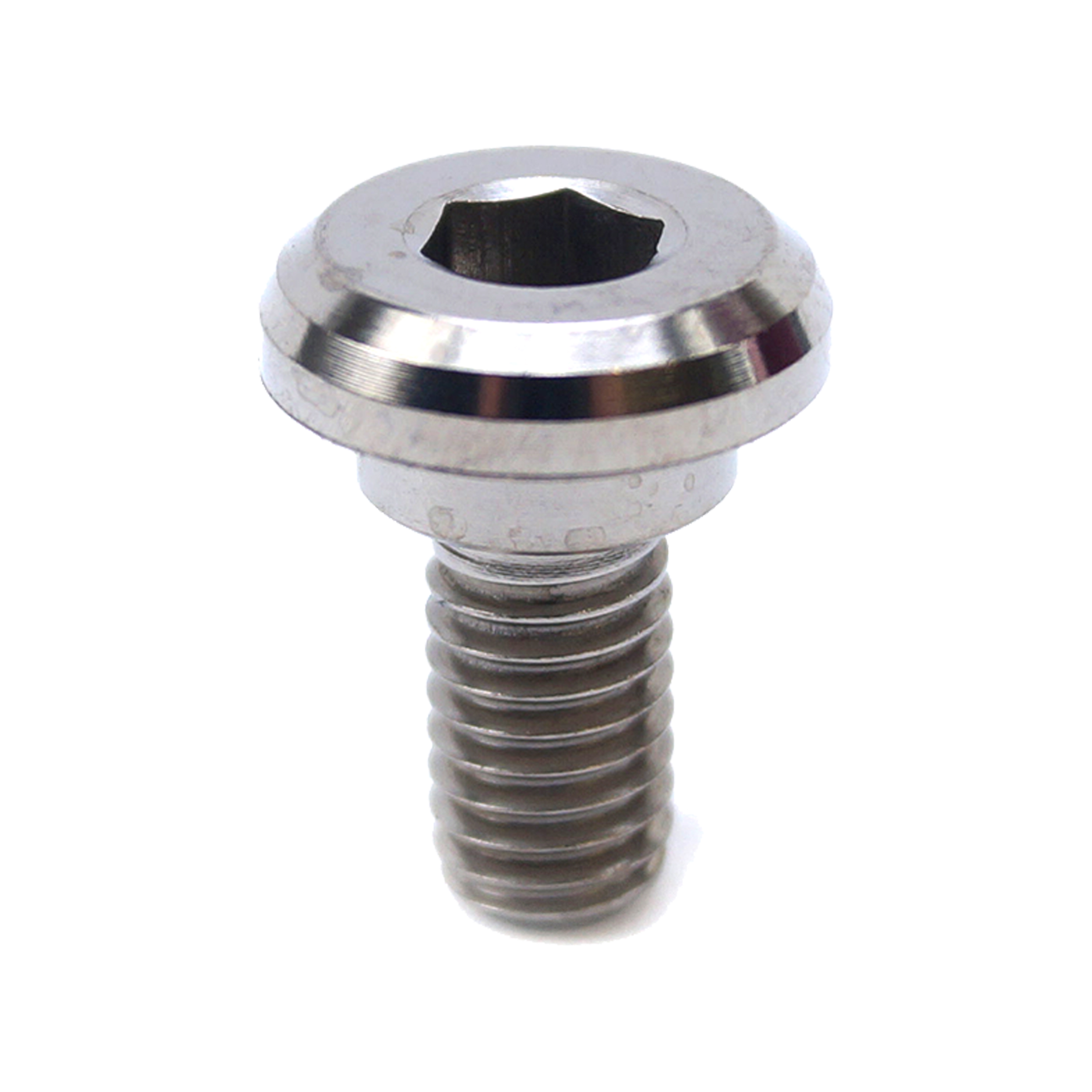

Titanium Grade 5 Disc Bolt M6 x 14mm

Upgrade your motorcycle or automotive build with this high-performance M6 x 14mm disc bolt, crafted from premium Grade 5 (6Al/4V) Titanium alloy. This material offers exceptional strength while being significantly lighter than traditional steel fasteners, providing a performance advantage for various applications.

Key Features:

  • Material: Grade 5 (6Al/4V) Titanium Alloy
  • Thread Size: M6
  • Thread Pitch: 1.00 mm
  • Bolt Length: 14mm
  • Head Type: Disc Bolt with 3 Boss
  • Allen Key Size: 5.00 mm
  • Shank Diameter: 8.90 mm
  • Head Diameter: 13.40 mm
  • Thread Length: 11.00 mm
  • Shank Length: 3.00 mm
  • Allen Key Length: 4.20 mm
  • Weight: 50% lighter than standard steel bolts
  • Strength: Stronger than steel
  • Corrosion Resistance: Excellent anti-corrosion properties
  • Manufacturing: CNC machined with rolled threads for superior durability and finish

This disc bolt is ideal for applications where weight reduction, enhanced strength, and superior corrosion resistance are paramount, including motorcycles, cycles, and many other demanding uses. Experience the benefits of aerospace-grade titanium in your next project.
