AIR SHOCK COMPLETE REBUILD KIT FOX VINTCO KSH-REBUILD

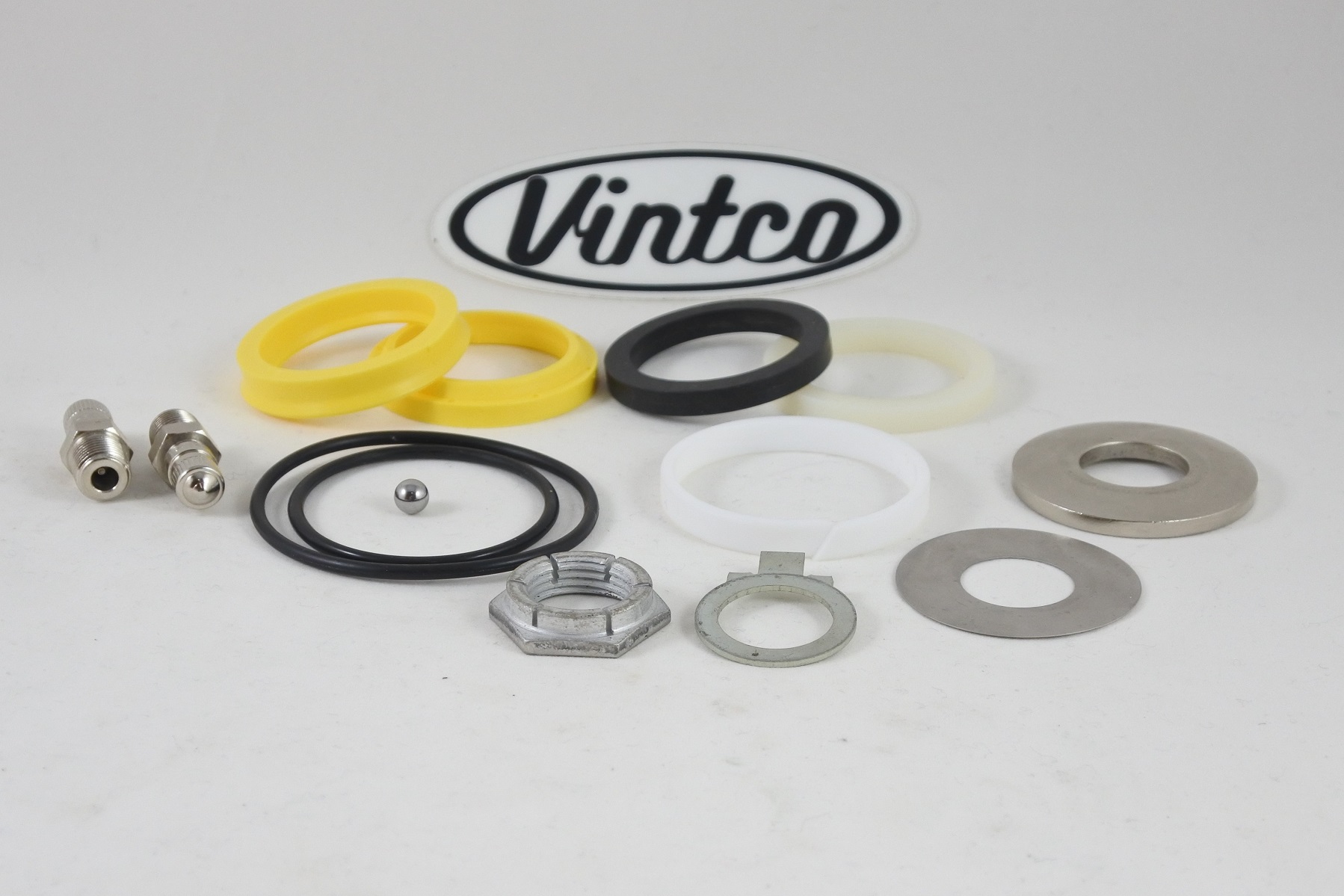

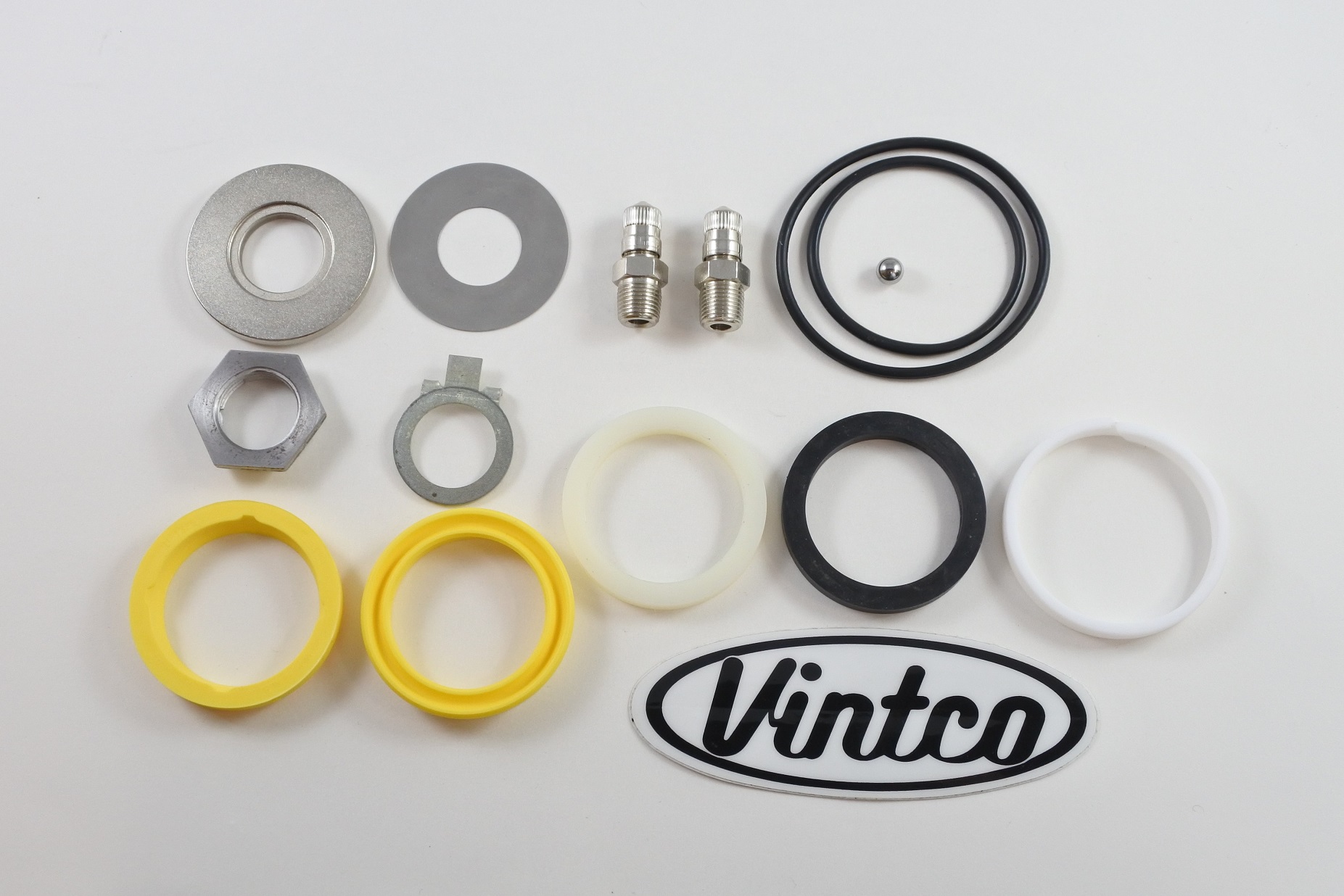

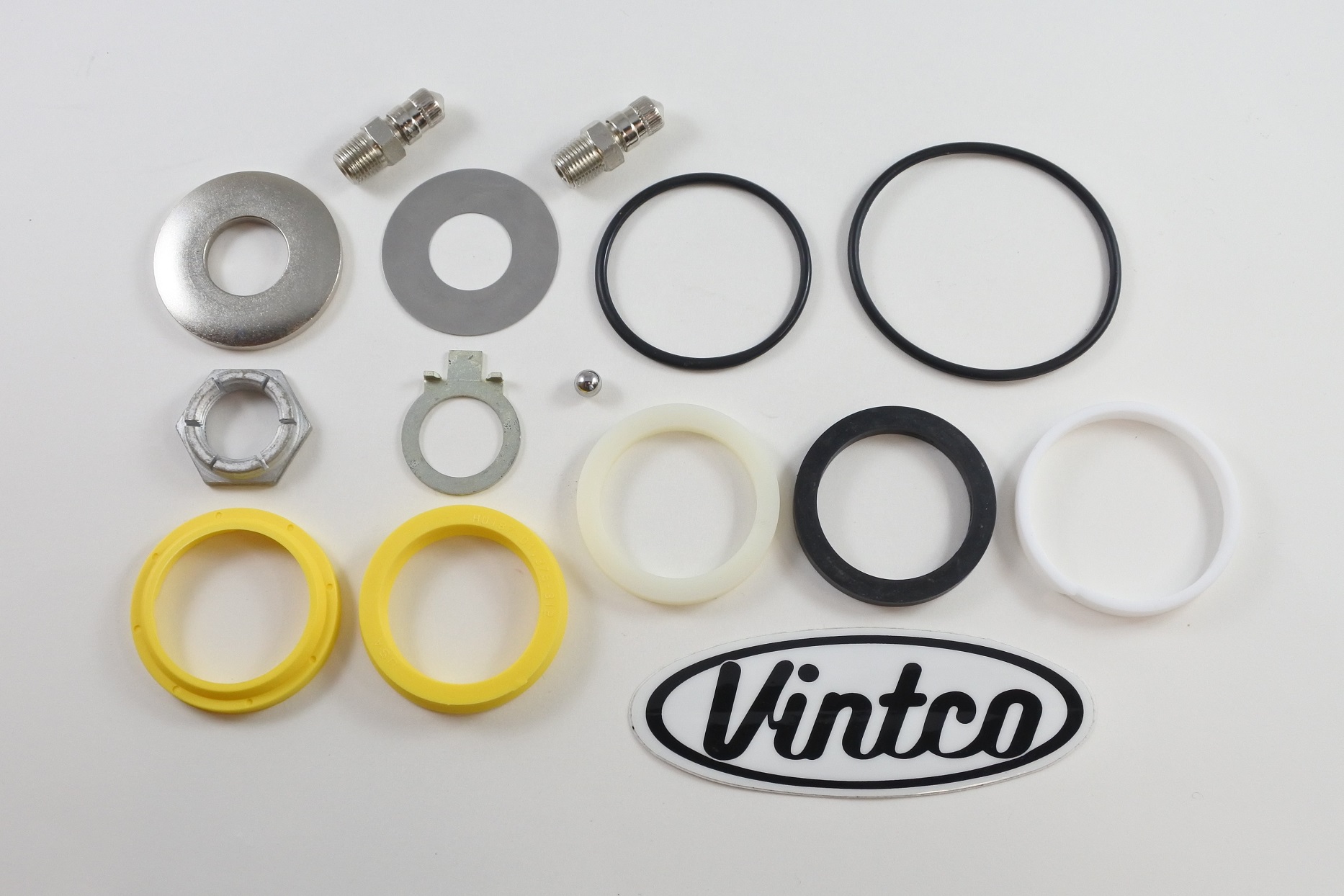

VintCo KSH-REBUILD Complete Air Shock Rebuild Kit

Restore your VintCo or original Fox air shock to peak performance with the VintCo KSH-REBUILD Complete Air Shock Rebuild Kit. This comprehensive kit is engineered to service one air shock of any length, providing all the essential sealing, damping, and valve components necessary for a thorough overhaul. Manufactured using advanced materials and modern production techniques, VintCo ensures a precise fit and reliable function, comparable to original Fox air shock components.

Key Features:

• Complete rebuild kit for one VintCo or original Fox air shock.
• Suitable for all VintCo and original Fox air shock lengths.
• Includes critical sealing, damping, and valve components.
• Manufactured with modern materials and production methods for superior fit and durability.
• Individual replacement parts are also available from VintCo.

Specifications:

• 1 Shaft Seal: 33.5 × 43.5 × 7.9 mm
• 1 Shaft Wiper: 34.5 × 45.5 × 7.25 mm
• 1 Bearing O-ring: 42 × 48 × 2.6 mm
• 1 Cap O-ring: 55 × 60 × 2.6 mm
• 1 Top-out Bumper: 34.5 × 44.5 × 5.3 mm
• 1 Shaft Bumper: 34.4 × 47.5 × 6.35 mm
• 1 Piston Ring: 6.35 mm
• 1 Piston Lock Ring: 1.1 mm
• 1 Valve Ball
• 1 Top-out Plate (Washer): 4.6 mm
• 1 Large Valve (Washer): 0.25 mm
• 2 Tank Valves
• 2 Tank Valve Caps
