FLYWHEEL PULLER M19 M22 RH, TWIN END FLYWHEEL EXTRACTOR
Double-ended flywheel puller with M19 x 1.5 RH and M22 x 1.5 RH threads. Used for removal of the flywheel or rotor. Made from high carbon steel S45C, heat-treated for strength and durability, with a durable hot black oxide finish. Fits many classic lightweight machines with Morini or Ducati Electrotechnica flywheel magnetos. Ensure flywheel thread is clean and undamaged before use. Apply copper grease to puller threads for longevity. Screw puller fully into the flywheel. Tap center with a hammer if needed to jolt free. Always check threads are in good condition before use. Part No. 00-884.DR. Manufactured by Factory Image Racing.
- SKU
- 00-884.DR
- Brand
- Factory Image Racing
- Availability
- In Stock (67)
FULL DESCRIPTION

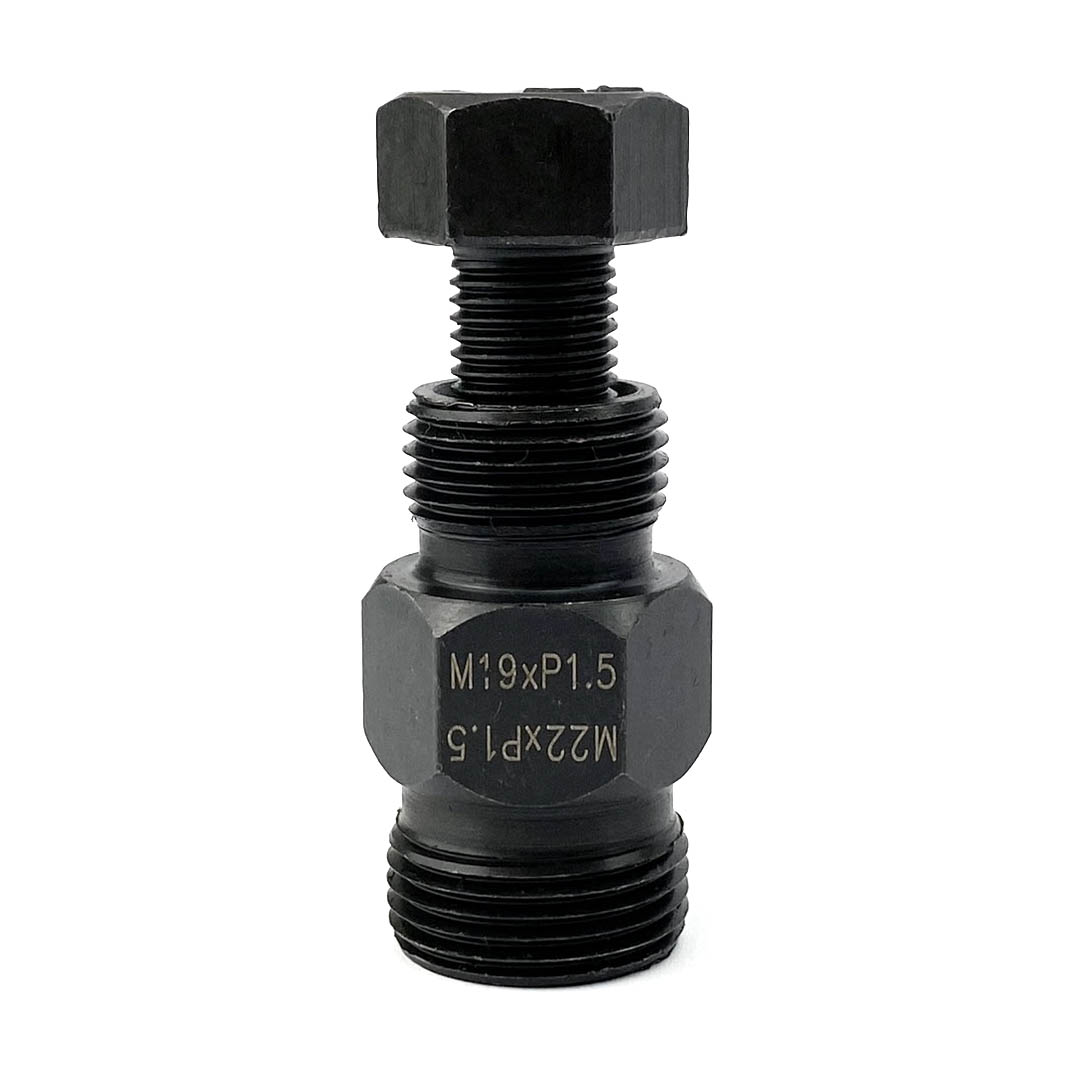

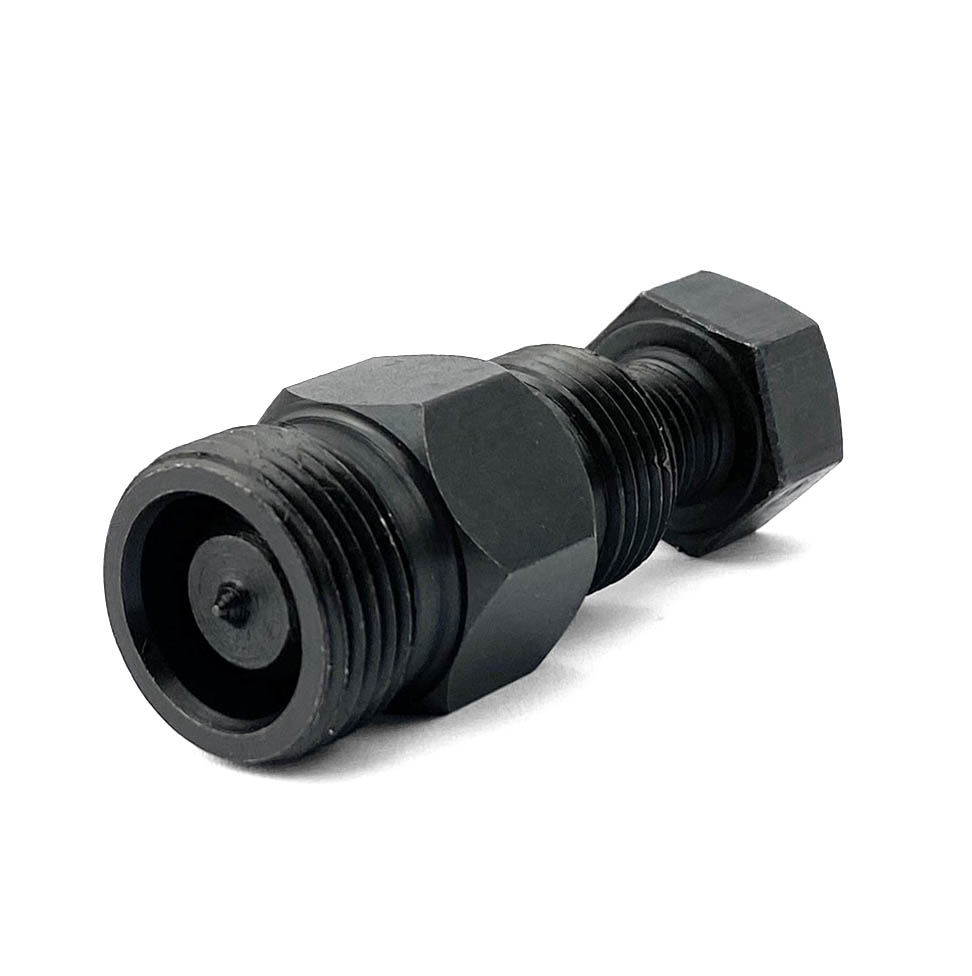

Flywheel Puller Double-Ended M19 x 1.5 RH / M22 x 1.5 RH
This double-ended flywheel puller is designed for the removal of flywheels or rotors on various lightweight machines. It features two thread sizes: M19 x 1.5 RH on one end and M22 x 1.5 RH on the other. This tool is suitable for motorcycles equipped with Morini or Ducati Electrotechnica flywheel magnetos.
Key Features:
- Facilitates the removal of flywheels and rotors.
- Constructed from premium quality high carbon steel S45C for enhanced strength.
- Heat-treated for superior durability and longevity.
- Finished with a durable hot black oxide coating for corrosion resistance.
Usage Tips:
- Ensure the flywheel thread is clean and undamaged before installing the puller.
- Apply copper grease to the puller threads to prolong its life.
- Verify that the puller is fully screwed into the flywheel.
- Gentle tapping with a hammer on the center may be required to loosen the flywheel.
- When using older pullers, always check thread condition to prevent damage to the flywheel.
