TOP END PISTON KIT 86-86 HONDA CR 125 55.5mm 1.5mm OVER VINTCO KTH17-1.5

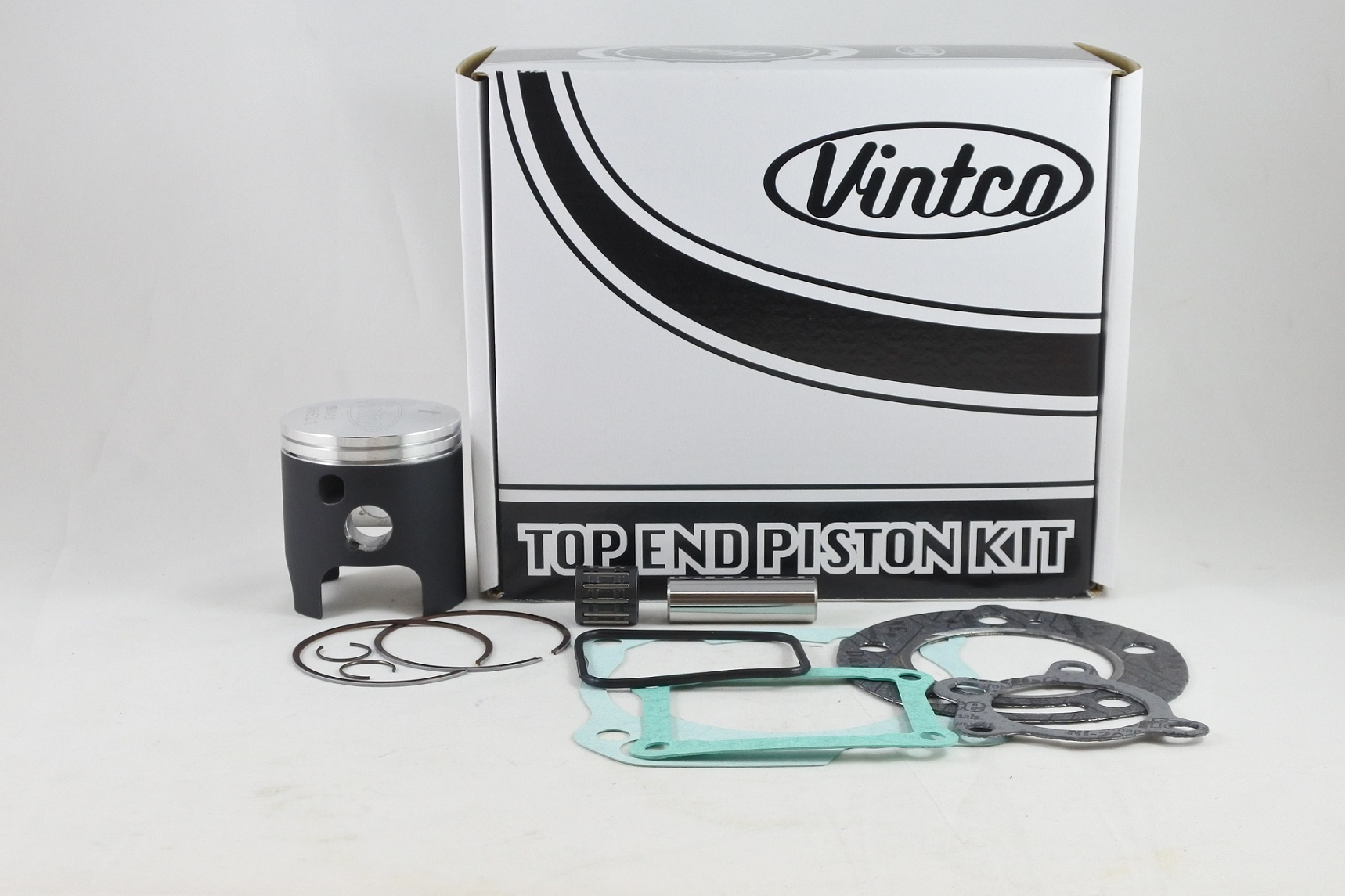

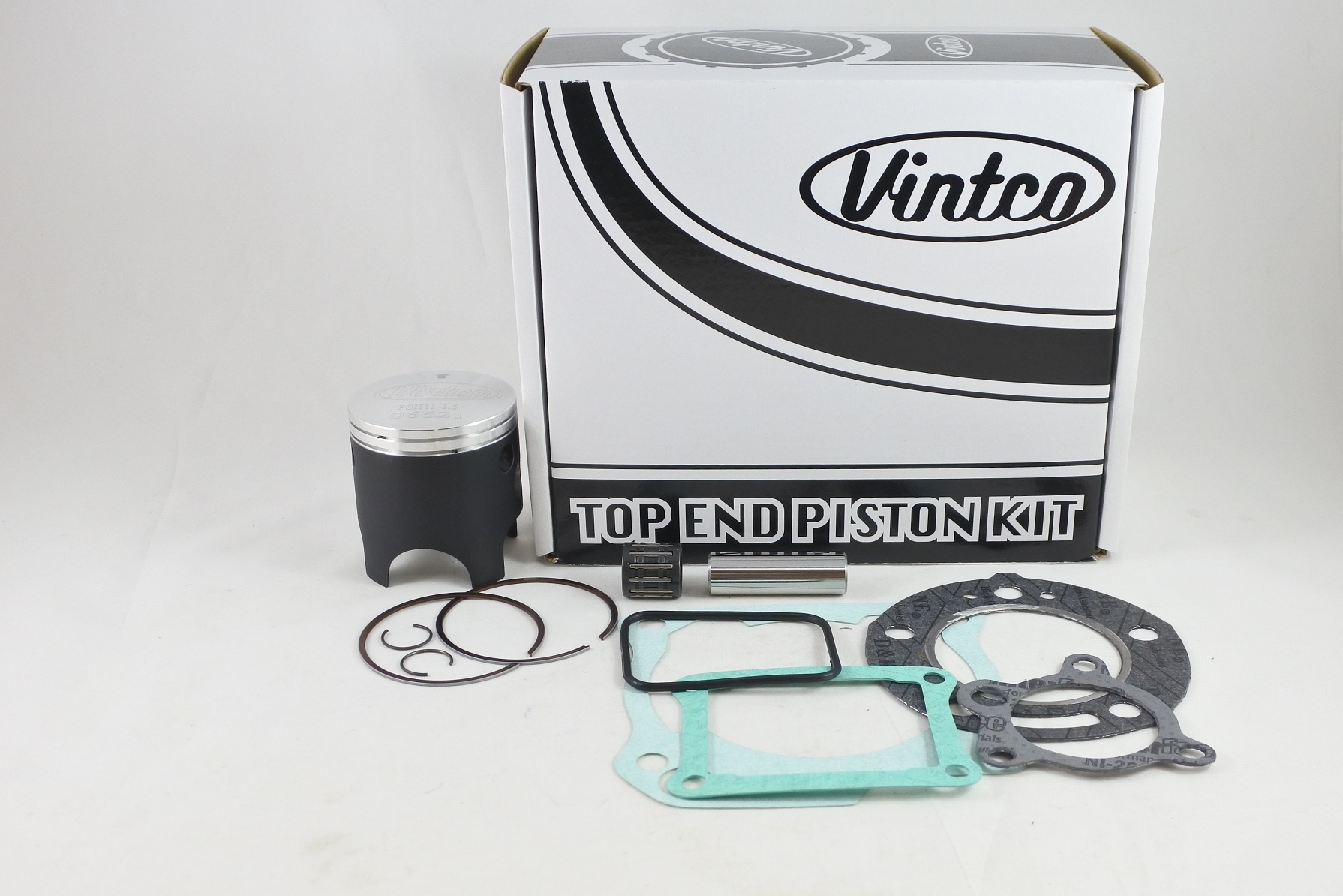

VintCo top end piston kit KTH17-1.5 is a complete rebuild kit for the 1986 Honda CR125, supplied for a 55.5 mm (+1.5 mm over) application. It includes the piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust sealing components, plus intake O-ring, manufactured to provide OEM-equivalent fitment and performance. Features include a coated piston to aid running-in, produced using modern materials and manufacturing techniques for OEM-equivalent fitment and performance. Specifications: VintCo Part Number: KTH17-1.5, Product type: Top End Piston Kit, Piston type: Forged, Country of manufacture: Germany, Piston coating: MOS2, Nominal size: 55.5 mm, Piston diameter: 55.44 mm, Oversize: +1.5 mm, Piston clearance: 0.06 mm. Cross-Reference OEM Part Numbers: Head gasket: 12251-KS6-307, Base gasket: 12191-KA3-307, Intake O-ring: 91301-KS6-003, Intake gasket: 14132-KA3-306, Exhaust pipe gasket: 18359-KS6-306.
- SKU
- VIN-KTH17-1.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit for Honda CR 125
Restore your Honda CR 125's performance with this comprehensive VintCo Top End Piston Kit. Designed for a 55.5 mm bore with a 1.5 mm oversize, this kit provides everything needed for a complete top-end rebuild, ensuring OEM-equivalent fitment and performance.
Key Features:
- Complete top-end rebuild kit
- Includes forged piston, rings, pin, and clips
- Features a wrist pin bearing
- Full top-end gasket set: head gasket, base gasket, intake O-ring, intake gasket, and exhaust pipe gasket
- Piston is coated with MOS2 to aid running-in
- Manufactured in Germany using modern materials and techniques
- Delivers OEM-equivalent fitment and performance
- Piston nominal size: 55.5 mm
- Piston diameter: 55.44 mm
- Oversize: +1.5 mm
- Piston clearance: 0.06 mm
