PISTON KIT 90-91 CR125 54.00 A, WOSSNER 8107DA HONDA MX
Wossner Forged Piston Kit 54.00mm Bore. This kit is engineered for high-performance 2-stroke engines, offering exceptional structural integrity, heat transfer efficiency, and resistance to thermal stress. The elliptical piston profile ensures even load distribution during expansion, helping to prevent piston collapse. Precision-made in Germany. Features include a forged piston for enhanced strength and durability, engineered to maximise combustion chamber heat transfer, and an elliptical profile that ensures a uniform bearing surface under heat expansion. Specifications: Bore Size 54.00mm (Standard), Actual Bore 53.94mm, Compression Height 28.00mm, Clearance 0.06mm, Stroke 54.50mm, Displacement 125 cm³. Cross-Reference OEM Part Numbers: Wossner Piston 8107DA, Ring Set RSB5400, Lock CW15, Pin WP032, Rod P2009, OEM/Aftermarket Cross Reference 13120-KZ4-306, 595M05400.
- SKU
- 56-W595+00A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

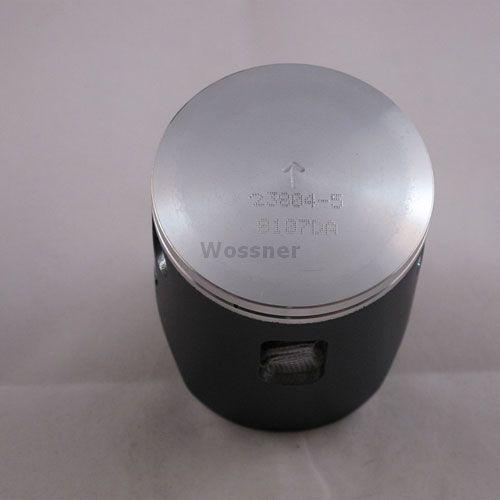

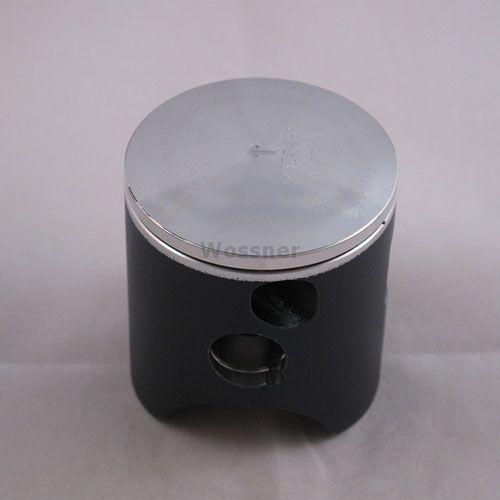

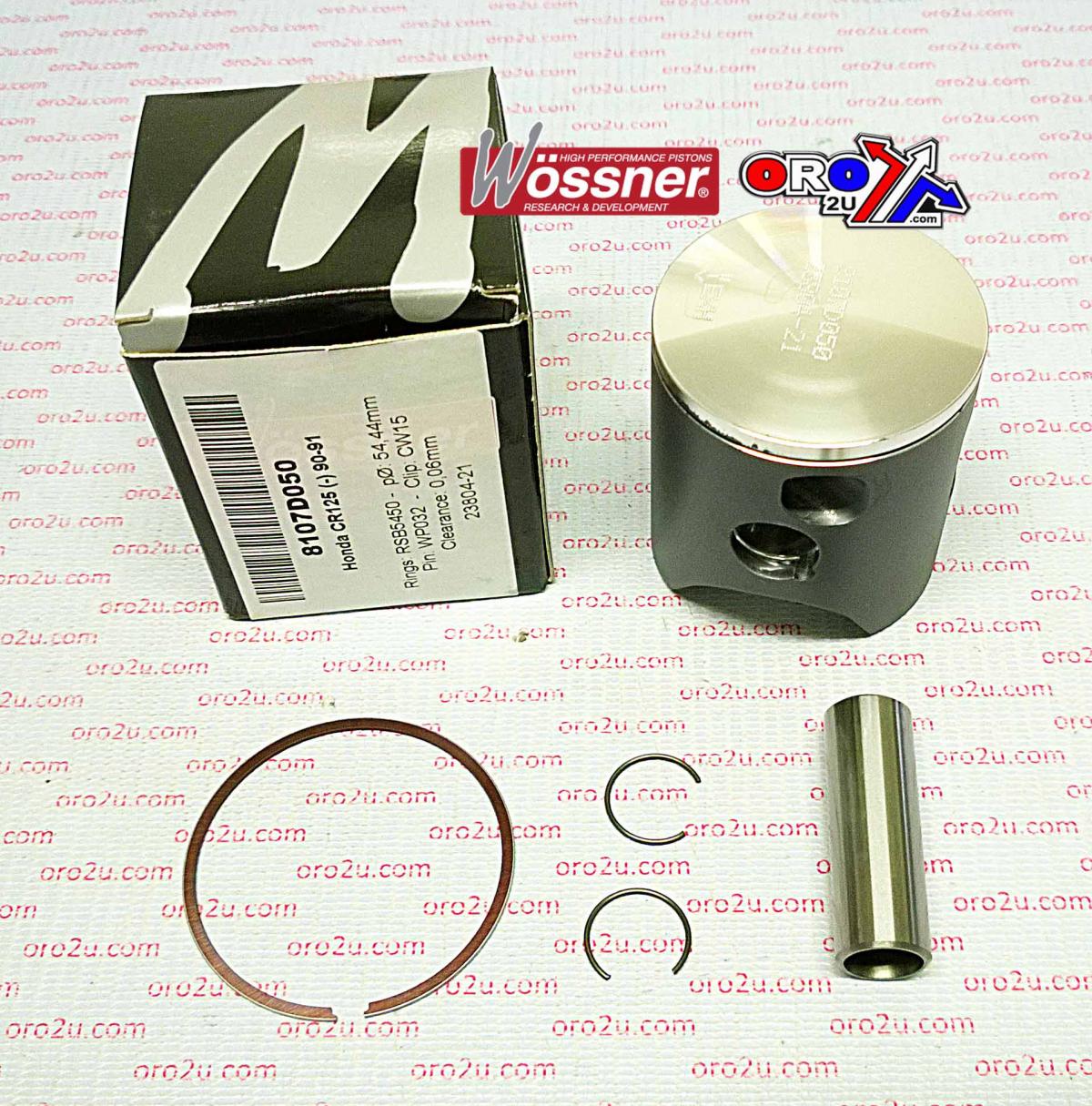

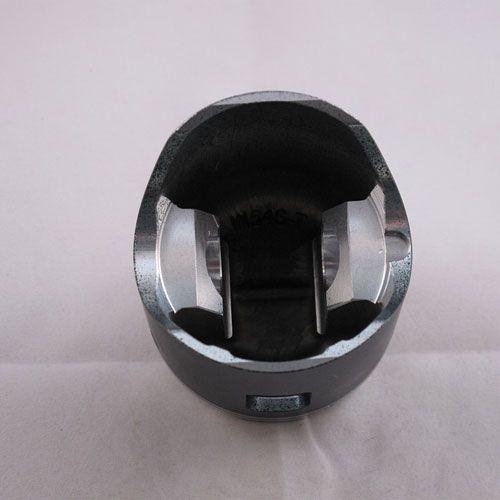

Wossner Forged Piston Kit 54.00mm Bore
This Wossner forged piston kit is engineered for high-performance 2-stroke engines. It offers exceptional structural integrity, heat transfer efficiency, and resistance to thermal stress. The elliptical piston profile ensures even load distribution during expansion, helping to prevent piston collapse. Precision-made in Germany.
Key Features
- Forged piston for enhanced strength and durability
- Engineered to maximize combustion chamber heat transfer
- Elliptical profile ensures uniform bearing surface under heat expansion
- Suitable for 2-stroke engine performance
- Made in Germany
Specifications
- Bore Size: 54.00mm (Standard)
- Actual Bore: 53.94mm
- Compression Height: 28.00mm
- Clearance: 0.06mm
- Stroke: 54.50mm
- Displacement: 125 cm³
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
Wossner Part Information
- Wossner Piston Part Number: 8107DA
- Ring Set: RSB5400
- Lock: CW15
- Pin: WP032
- Rod: P2009
- OEM Cross Reference: 13120-KZ4-306, 595M05400
