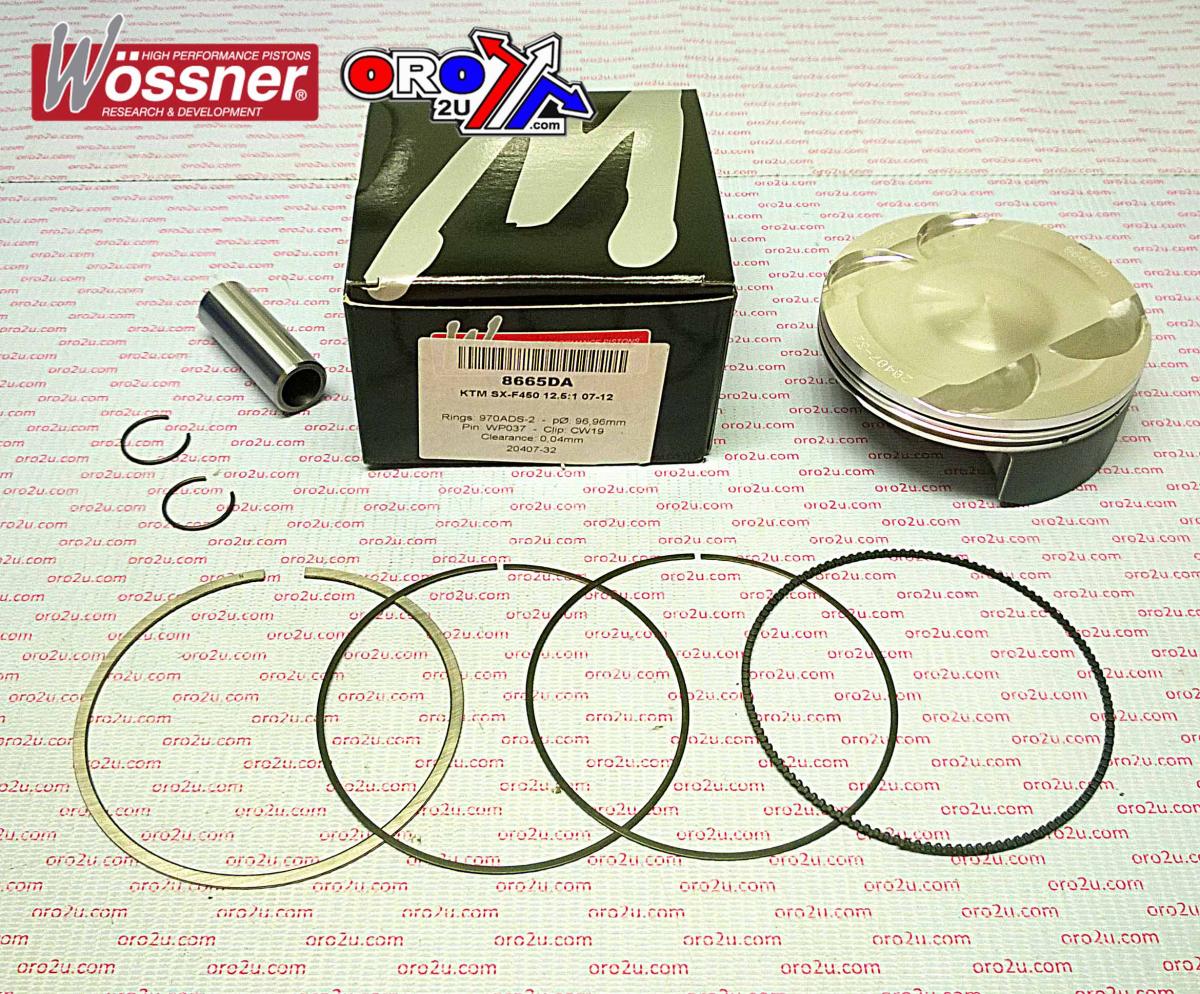

PISTON KIT 07-12 SX-F450 97.00, FORGED 8665DA WOSSNER KTM 77330007500
Wossner 97.00mm forged piston kit designed for strength and precision. This piston kit offers efficient heat transfer to cylinder walls for uniform expansion and reduced localized pressure. The elliptical design distributes thrust loads evenly, preventing piston collapse. Manufactured in Germany. Features include superior strength and durability, optimized heat transfer for improved combustion efficiency, an elliptical design for uniform bearing surface and reduced localized pressure, and precision engineering to prevent piston collapse. Specifications: Bore Size 97.00mm (96.96mm), Standard Size (STD), Displacement 449cc, Stroke 60.80mm, Clearance 0.04mm, Compression Ratio OEM (12.50:1), Dome Volume -2.60cm³, Compression Height 21.30mm, Lock Part Number CW19, Pin Part Number WP037, Ring Set Part Number 970ADS-2, Gasket Part Number D4019, Rod Part Number P4017. Cross-reference OEM Part Numbers: 77330007500, 4937M09700.
- SKU
- 56-W107.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

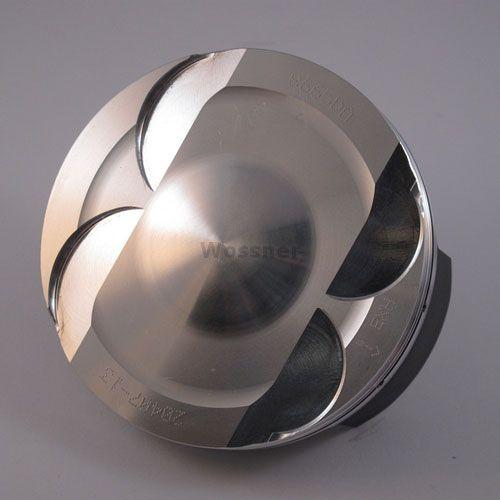

Wossner Forged Piston Kit 97.00mm for KTM 450cc
Upgrade your KTM's engine performance with this high-quality Wossner forged piston kit. Engineered for exceptional strength and durability, this 97.00mm piston is designed to optimize combustion efficiency and ensure reliable power delivery.
Key Features:
- Wossner Forged Piston: Provides superior strength and longevity for demanding applications.
- Optimized Heat Transfer: Promotes efficient heat dissipation to the cylinder walls, leading to uniform expansion and reduced localized pressure.
- Elliptical Design: Distributes thrust loads evenly across the bearing surface, effectively preventing piston collapse and ensuring a more stable operation.
- Precision Engineered: Manufactured to exacting standards in Germany for peak performance and a precise fit.
- Standard Size (STD): Designed as a direct replacement for standard bore sizes.
Specifications:
- Bore Size: 97.00mm (actual measurement 96.96mm)
- Displacement: 449cc
- Stroke: 60.80mm
- Piston Clearance: 0.04mm
- Compression Ratio: OEM (12.50:1)
- Dome Volume: -2.60cm³
- Compression Height: 21.30mm
- Lock Part Number: CW19
- Pin Part Number: WP037
- Ring Set Part Number: 970ADS-2
- Gasket Part Number: D4019
- Rod Part Number: P4017
Cross-Reference OEM Part Numbers:
- 77330007500
- 4937M09700
